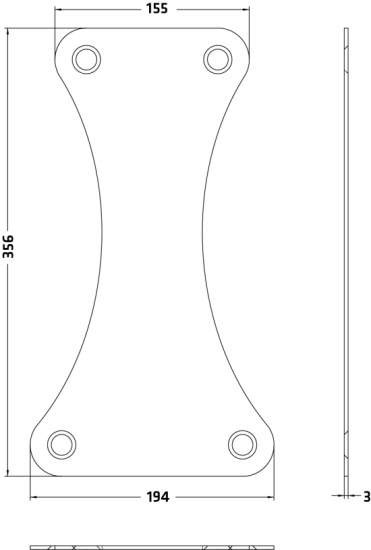

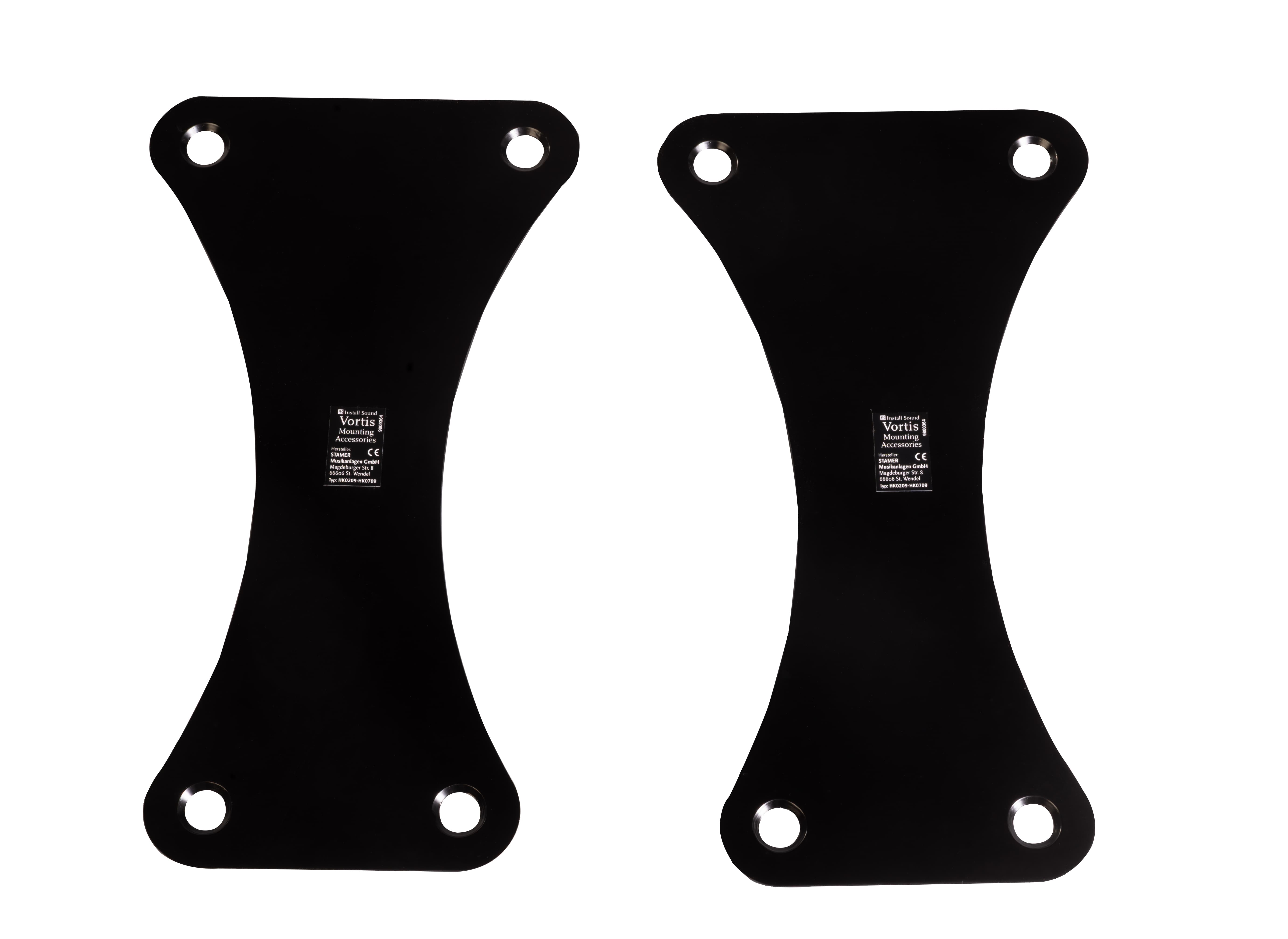

This cluster plate lets you array cabinets
vertically and horizontally.
You will need the extension plate to cluster more than two enclosures.
Note: The VR 10810 requires a different cluster plate!
The 0° plate is suitable for the 40° x 60° horn, and the 10° plate for 60° x 40° and 55° x 90° horns.
Mounting type
Connection of a fanned cluster of fixed installed loudspeakers
Material
Steel
Surface finish
Galvanised and smooth powder-coated (black, white or RAL according to requirements)
Functional description
Building a cluster of VORTIS (2) loudspeakers with a 10° intermediate angle
