The COSMO Line Array System was developed to be an extremely flexible and easily configurable solution for professional sound applications. It combines state-of-the-art audio characteristics with ingeniously simple handling and a very high degree of economy.

COSMO takes line array performance to a new level of productivity and efficiency. The integrative and highly flexible line array system offers a measurably higher usable sound pressure level in the HF range than comparable systems. The range of horizontal dispersion characteristics of 100°, 80° and 60° ensures maximum flexibility in sound applications for a wide variety of live scenarios.

Sound distribution

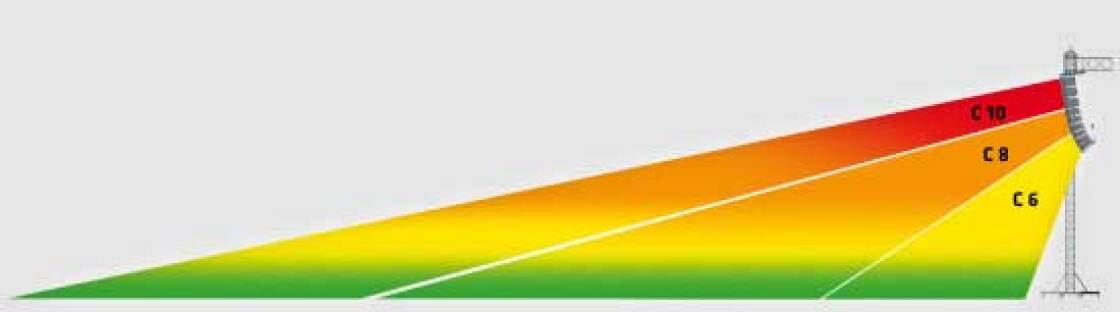

Sound distribution with depth

The narrow or narrower-dispersion models of the COSMO family direct the sound energy to a smaller spatial angle. This significantly increases the range and ensures the sound is distributed very consistently over the entire area.

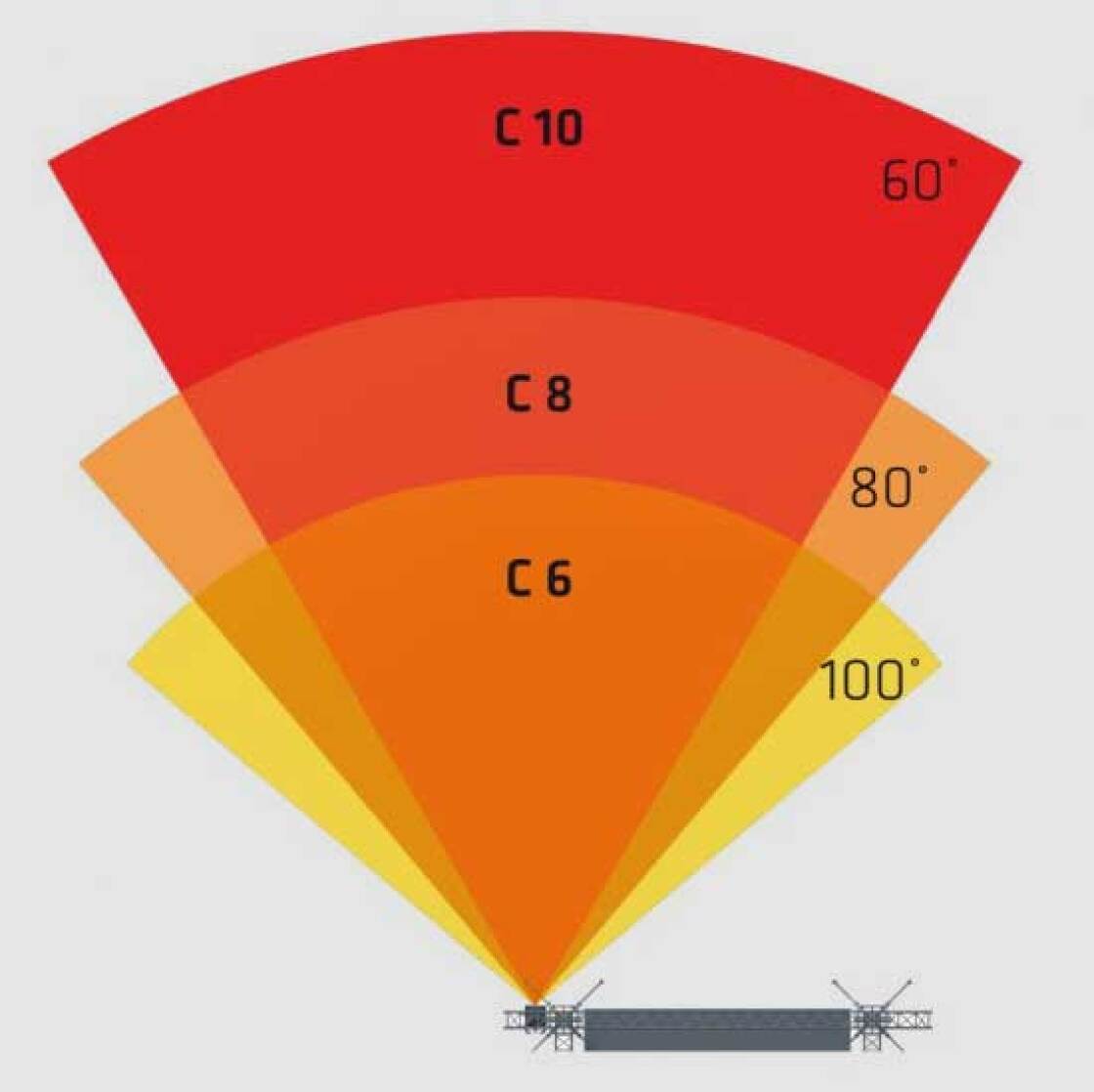

Horizontal asymmetrical sound distribution

It normally makes sense for line arrays to have an asymmetrical horizontal dispersion pattern: the upper components should have a narrower pattern because they have to cover larger distances, and this should grow increasingly wider towards the bottom in order to provide sufficient coverage in front of the stage. However, conventional line array systems often have a fixed horizontal dispersion pattern (typically 90 to 120 degrees) to create a sufficiently wide sound field over the first few metres. This means that even at medium distances, these arrays generate very wide sound fields that cause a large part of the sound energy to be reflected unintentionally off walls or cover areas outdoors where sound is not actually required. By combining the three COSMO mid/high units, it is easy to create an array with horizontally asymmetrical dispersion, which avoids the disadvantages described above and solves typical sound issues in the best possible way.

COSMO rigging concept

The COSMO family’s three-point compressed-mode rigging concept offers numerous practical advantages:

  • Minimal space requirements

COSMO arrays require very little rigging space. The compressed mode concept means that all the mid/high units are hung in a straight line below each other. There is no curving until the entire array is compressed.

  • Minimal personnel requirements

The mid/high units stay straight on top of each other when pre-assembling the array. No force is applied to the system until the last step when the system is compressed. What’s more, because the system is only connected at three points, it can be rigged easily by just one person.

  • Easy-to-adjust curvature

As COSMOS’s angle adjustment hardware only serves to limit travel and does not carry any weight, it is quick and easy to adjust the system’s curvature, even if it is already rigged. Simply loosen the tensioning strap, reposition the quick-release pins to set the desired angle and compress the array again.

  • Easy, time-saving dismantling

These features also make dismantling the system extremely quick and easy. Once ‘relaxed’, simply place the array on the dolly package by package and effortlessly roll it away.

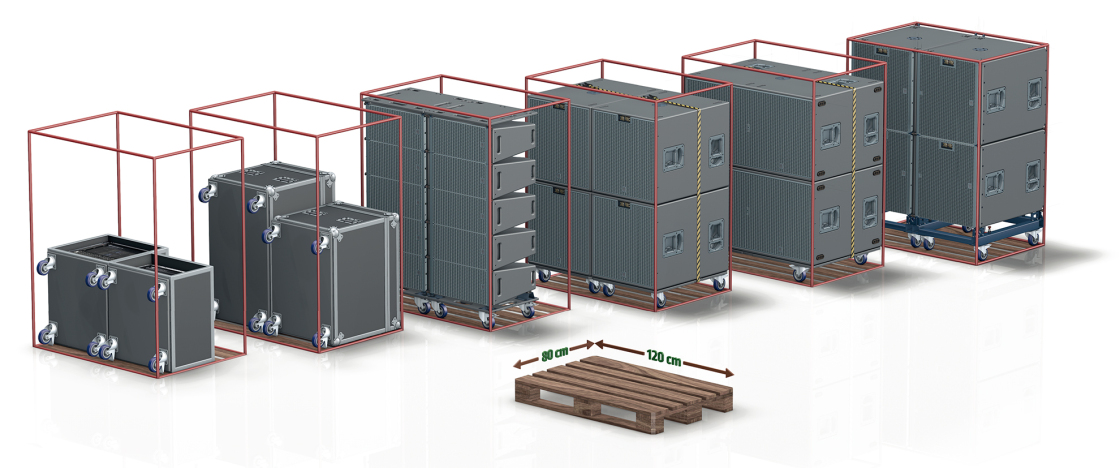

Ease of storage and transport are key criteria when it comes to assessing the cost-effectiveness of sound systems. Buyers are ultimately faced with two questions: How do I use the available space most effectively, and how do I minimise the time spent on the various tasks that need to be performed?

Our approach in developing the COSMO logistics concept was to keep it as simple as possible.

When applied to the COSMO product line, this means that only a few components are used, which always fit the modular dimensions of the Euro pallet. This simplifies handling, makes storage clearer, speeds up loading and makes optimum use of the available truck space.

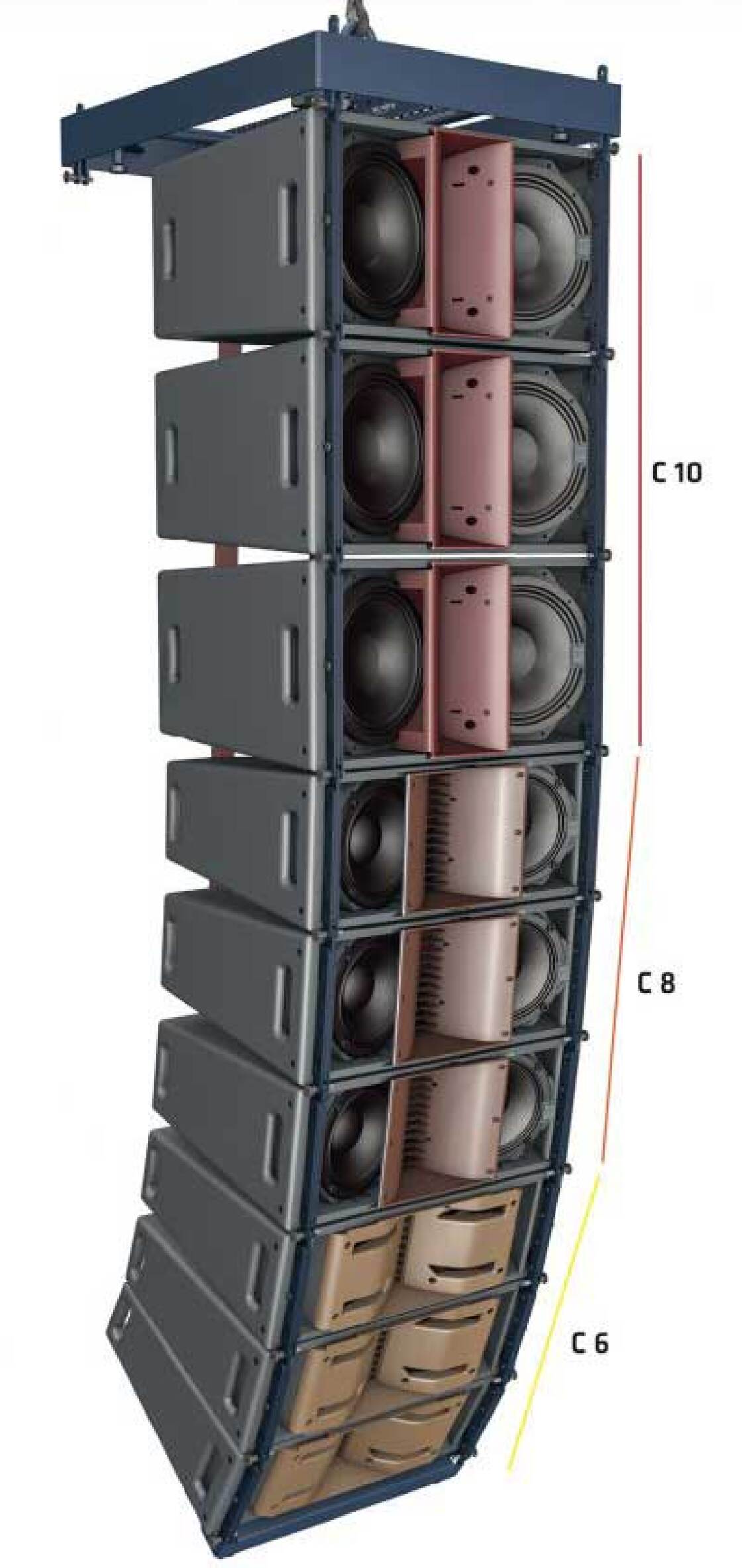

COSMO mixed array

One feature that adds a great deal of practical value that only the integrative COSMO family can offer is the option to configure mixed arrays. Mixed arrays are made up of two or three types of COSMO mid/high units combined to create an asymmetrical throw pattern along the horizontal plane. This is particularly wide in front of the stage, less wide for medium distances and more focused for long distances. The C 6, C 8 and C 10 fit directly on top of each other without adapter frames. Because there are no mechanical interruptions of the line source at any point, this setup emits a wavefront that is acoustically continuously coherent.

Efficiency

There are many parameters that affect the cost-effectiveness of a sound system. The integrative COSMO line array family adds a few more factors to consider. Of course, the new COSMO line array family offers state-of-the-art acoustic performance and sophisticated, user-friendly handling. But what makes COSMO so fundamentally different from anything else on offer? Most line array suppliers offer several systems in different sizes. Typical standards in the compact class are two-way systems with two 6.5″, 8″ or 10″ transducers. The system is then selected to suit the venue and the type of audio to be transmitted. Mid-sized and larger rental companies usually invest in two or sometimes three systems of different sizes in order to be able to meet the constantly changing sound requirements. It is often necessary to combine these systems with each other or with the next larger 2 x 12″ or 2 x 15″ systems – this requires special adapter frames. Although this is awkward and also acoustically questionable due to the gaps it leaves, it leads to better utilisation of the existing stock and thus to cost-effectiveness. When designing the new HK Audio COSMO line array concept, however, we were in a position to take all practically relevant factors into account from the outset and to plan not just one line array but an entire family of three systems that can be optimally coupled both acoustically and mechanically.

Compared to conventional solutions, this results in a whole catalogue of economic advantages: The bottom line: The innovative, comprehensive system concept means that HK Audio’s COSMO is significantly more economical and user-friendly, and delivers sound to meet even the highest requirements – all in one coherent overall concept. • Far fewer components to cover a wide range of applications • Comparatively more usage time for each component • Simplified storage and logistics • Fewer people and less time required for handling • Less training required – only once instead of three times • Less total storage requirements • Far lower overall investment requirement • More effective investment protection – an existing system can be expanded as required.

The bottom line: The innovative, comprehensive system concept means that HK Audio’s COSMO is significantly more economical and user-friendly, and delivers sound to meet even the highest requirements – all in one coherent overall concept.

Subwoofer

The C SUB family of subwoofers are extremely high-powered, offering high efficiency and impressive low bass performance. They are optimised for use with the CONTOUR X point sound sources and the COSMO line arrays, with components and workmanship that meet the same high standards.

Electronics

We recommend the Lab.Gruppen PLM+ and Powersoft X series of high-performance power amps. Special filter settings are also available for these controller amps.

COSMO – C 10

The COSMO C 10 has two 10″ neodymium speakers with a horizontal dispersion of 60°. It is therefore ideally suited as a full-range line array for large events with required ranges of 80 meters and more. The narrow horizontal dispersion allows a large throw range with targeted sound distribution. The asymmetrical sound distribution of the C 10 mid/high unit can be modularly adjusted by pairing it with C 6 and C 8 units.

The COSMO C 10 is even more flexible thanks to the option to install the supplied 80° brackets. This allows better control of the horizontal dispersion of a pure C 10 line array without compromising on the useful sound pressure level. It requires no adapters and leaves no gaps when combined with C 6 and C 8 units, making the C 10 ideal as the top section of a mixed line array. All in all, considerably fewer components are needed than before to cover the full spectrum of what users need and expect from an FoH system. This extends the operating periods of each component compared to other system families.

The uniform dimensions of the COSMO family simplify both storage and disposition, which has a positive impact on the warehousing in total. The line array is easy to handle, resulting in enormous time savings, as well as reduced training requirements. An existing system can be expanded precisely as needed, all of which means an effective investment protection is ensured. The expansion in small steps creates a much lower initial investment requirement.

COSMO – C 8

The COSMO C 8 has two 8″ neodymium speakers with a horizontal dispersion of 80°. It is therefore ideally suited as a full-range line array for medium-sized events with required ranges of 30 meters and more. The medium-wide horizontal dispersion makes the C 8 highly versatile. Its asymmetrical sound distribution can be modularly adjusted by pairing it with C 6 and C 10 units, resulting in an almost perfect sound distribution.

Thanks to minimal distortion and a high sound pressure level, the COSMO delivers impressive results, even beyond its versatile field of application. When paired with subwoofers from the C SUB series, it really shows its strengths for rock and pop gigs. It requires no adapters and leaves no gaps when combined with C 6 and C 10 units, making the C 8 ideal as the center section of a mixed line array. All in all, considerably fewer components are needed than before to cover the full spectrum of what users need and expect from an FoH system. This extends the operating periods of each component compared to other system families.

The uniform dimensions of the COSMO family simplify both storage and disposition, which has a positive impact on the warehousing in total. The line array is easy to handle, resulting in enormous time savings, as well as reduced training requirements. An existing system can be expanded precisely as needed, all of which means an effective investment protection is ensured. The expansion in small steps creates a much lower initial investment requirement.

COSMO – C 6

The wide horizontal dispersion of 100° and the low overall height make the compact C 6 array an ideal solution for very wide audience areas. Thanks to its low weight, the C 6 can meet high acoustic requirements, even with limited load capacity. The wide frequency range makes it perfect for use in pure speech applications without additional subwoofers. Two 6.5″ transducers loaded to an acoustic coupler increase the maximum sound pressure level.

When paired with subwoofers, the C 6 mid/high unit really shows its strengths for rock and pop gigs. It requires no adapters and leaves no gaps when combined with C 10 and C 8 units, making the C 6 ideal as the bottom section of a mixed line array. All in all, considerably fewer components are needed than before to cover the full spectrum of what users need and expect from an FoH system. This extends the operating periods of each component compared to other system families.

The uniform dimensions of the COSMO family simplify both storage and disposition, which has a positive impact on the warehousing in total. The line array is easy to handle, resulting in enormous time savings, as well as reduced training requirements. An existing system can be expanded precisely as needed, all of which means an effective investment protection is ensured. The expansion in small steps creates a much lower initial investment requirement.

C SUB – CF 118

The compact, direct-radiating, high-performance 1×18″ subwoofer with COSMO’s modular dimensions of 60 cm is the flyable version of the CS 118 subwoofer. Its high efficiency and extremely high power handling capacity provide an extraordinarily large dynamic headroom down to the lowest frequencies. It is ideal for all applications where there is no room for placing bass enclosures and is also suitable for ground-stack setups with COSMO or CONTOUR X components.

Compared to subwoofers in its performance class, there are considerably fewer components covering the full spectrum of what users need and expect from an FOH system. This extends the operating periods of each component compared to other system families. For the CF 118 we provide ready-to-use filter sets for Lab.Gruppen PLM+ or Powersoft X power amplifiers. Optimised filter settings make it possible to quickly set up Cardioid or Endfire arrangements, among others.

The uniform dimensions of the COSMO family simplify both storage and disposition, which has a positive impact on the warehousing in total. The simple handling results in enormous time savings, as well as reduced training requirements. An existing system can be expanded precisely as needed, all of which means an even more effective investment protection than usual is ensured. The expansion in small steps creates a much lower investment requirement.

System proposals

System 1

18 x C 6

8 x CS 118

2 x C-DRIVE 4

System 3

8 x C 10

8 x CS 118

2 x C-DRIVE 4

System 4

8 x C 10

6 x C 6

12 x CS 118

1 x C-DRIVE 4

1 x C-DRIVE 8

System 5

8 x C 10

6 x C 8

6 x C 6

16 x CS 118

2 x C-DRIVE 8

System 7

8 x C 10

6 x C 8

6 x C 6

8 x CS 218

2 x C-DRIVE 8

Accessories

C-WB – Wheelboard

The COSMO C-WB Wheelboard offers a simple and space-saving alternative for transporting the COSMO C 6, C 8 or C 10 mid/high units. The line array units are well protected during transport thanks to the top plate. An optional matching protective cover is also available, providing the necessary protection during onward transport of the line array. The package contains the wheelboard and the top plate.

C-WB Cover

The C-WB cover is a custom-fit protective transport cover for the C-WB wheelboard. Thanks to the cover’s clever and easily adjustable height, it can be quickly adapted to transport up to four C 10, six C 8 or six C 6 mid/high units and offers additional protection during transport.

CS-WB 1 – Wheelboard

The CS-WB 1 is the ideal addition for transporting the subwoofers of the C SUB series. It has space for up to two CS 118 subwoofers. A matching protective cover is optionally available to protect the subwoofers during transport. The CS-WB 1 also comes with a lashing strap for securely attaching the C SUB subwoofers to the wheelboard.

CS-WB 1 Cover

The CS-WB 1 Cover is a clever transport protection cover for use with the subwoofers of the C SUB series. It offers coverable access to the connections, the speaker flange and the transport handles.

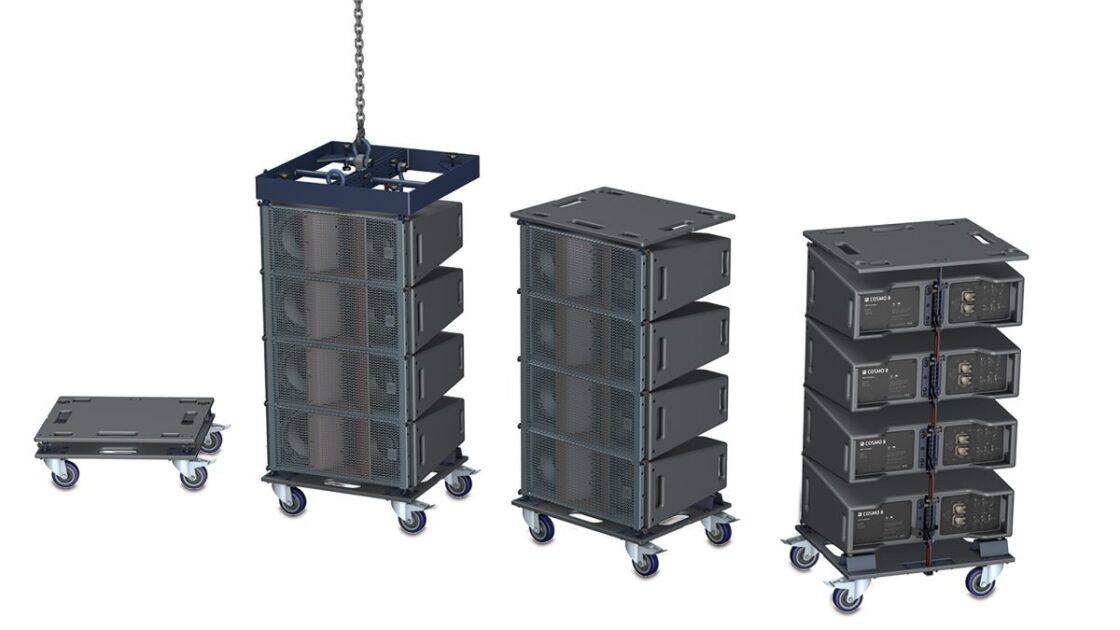

CF-DO – Transport Dolly

The multifunctional CF-DO Transport Dolly is used to safely transport the COSMO C 6, C 8 and C 10 mid/high units or the CF 118 subwoofer. If it is only being used to transport mid/high units, the flying frame can also be attached at the rear. The CF-DO can be used for ground-stack applications by using the optionally available CF-DO Extension.

CF-DO Extension

The CF-DO Extension is an extension for the COSMO CF-DO Transport Dolly. The CF-DO Extension allows for quick and straightforward ground-stack applications with the flyable CF 118 subwoofer together with the C 6, C 8 or C 10 mid/high units of the COSMO Line Array series. The package contains the CF-DO Extension and an installation manual. The CF-DO Extension requires a CF-DO from the COSMO series.

CRF-60 – Rigging Frame

The CRF-60 COSMO series flying frame can be used in flying applications for smaller line arrays containing the C 6, C 8 and C 10. With the C-M20 adapter, the frame serves as a connection between C SUB and the COSMO m/h units in ground-stack operation. The comprehensive package includes everything required for installation and use.

And of course, the CRF-60 supports the COSMO family’s transport and logistics concept, thus simplifying not only transport but also disposition.

  • Flying frame for COSMO C 6, C 8 and C 10 mid/high units
  • Ideal for ground-stack applications in combination with the C SUB subwoofers
  • MWL: 350 kg
  • Dimensions: 600 x 137 x 600 mm
  • Weight: 17.6 kg
  • Items delivered: CRF-60 flying frame, C-PPA pick point adapter, C-M20 adapter, 4 adjustable feet, 3 shackles

CRF-80 – Rigging Frame

The CRF-80 COSMO series flying frame can be used in flying applications with larger C 6, C 8 and C 10 setups and with the CF 118 as well as for creating ground-stack setups. With the C-M20 adapter, the frame serves as a connection between C SUB and COSMO m/h units in ground-stack operation. The comprehensive package includes everything required for installation and use.

And of course, the CRF-80 supports the COSMO family’s transport and logistics concept, thus simplifying not only transport but also disposition.

  • Flying frame for COSMO C 6, C 8 and C 10 mid/high units and CF 118 subwoofer
  • Ideal for ground-stack applications in combination with the C SUB subwoofers
  • MWL: 700 kg
  • Dimensions: 780 x 137 x 600 mm
  • Weight: 19.1 kg
  • Items delivered: CRF-80 flying frame, C-PPA pick point adapter, C-M20 adapter, 4 adjustable feet, 3 shackles

CRF-PB – Pull-Back Frame

The COSMO CRF-PB Pull-Back Frame is used for Compressed Mode by means of a lashing strap for a COSMO line array setup. It is also ideal for mounting COSMO mid/high units on tripods using flange adapters and for implementing smaller ground-stack setups.

  • Flying frame for COSMO C 6, C 8 and C 10 mid/high units and CF 118 subwoofer
  • Ideal for ground-stack applications in combination with the C SUB subwoofers
  • MWL: 700 kg
  • Dimensions: 534 x 86 x 526 mm
  • Weight: 6.1 kg
  • Items delivered: CRF-PB Pull-Back Frame, lashing strap, 1 shackle

C-GSA

The ground stack adapter allows the mid/high units to be mounted and angled on the rigging frame for use in ground stacks. The array can thus be optimally aligned to the specific application in a total of 9 angular steps.

C-M20 Adapter

The C-M20 adapter is used to securely connect the flying frame or the pull-back frame to the subwoofers in the C SUB series (in ground-stack operation).

Transport case for CRF-60 or CRF-80

Sturdy cases are available to fit the CRF-60 and the CRF-80. These offer space to safely transport two rigging frames, two CRF-PBs as well as the shackles and tensioning straps.
