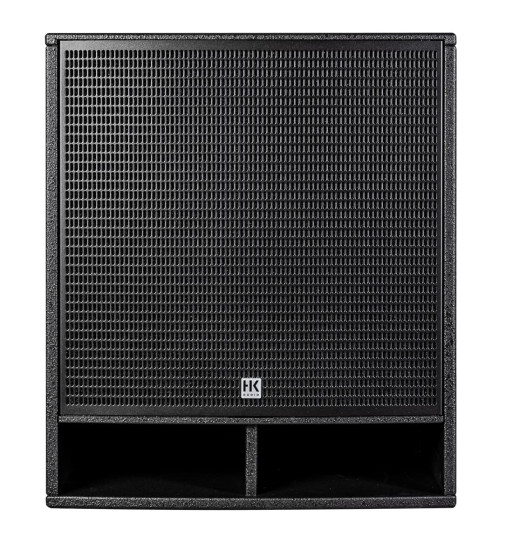

FINEO FO S118 F
THE NEW INSTALLATION STANDARD
technical data
Characteristics
ConceptFlight capable passive subwoofer
Cabinet principleBass reflex
Power handling RMS1000 W
Power handling program2000 W
Power handling peak4000 W
Nominal impedance18 Ohms
Max. SPL average2124 dB
Max. SPL peak3129 dB
Sensitivity 1 W/1 m496 dB
Frequency range -6 dB41 Hz - crossover
Frequency range -10 dB38 Hz - crossover
Dispersion angle -6 dB (horizontal x vertical)omnidirectional
Index
Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)
Index 2)1 m, 10 % THD @ 40 Hz - 100 Hz, (EN 60268-21), full space
Index 3)1 m, 10 % THD @ 70 Hz, full space
Index 4) 40 Hz - 100 Hz, full space
Certifications
Ball impact resistance (DIN 18032-3)certified (MPA Uni Stuttgart)
IP-Protection class (EN 60529)not specified (installation only in dry indoor areas)
Components
Low frequency1x 18" Beyma cone speaker with ferrite magnet and 3"-voice coil
Crossoverno integrated crossover
Connections
Input1 x NL4 Speakon
Output/parallel output1 x NL4 Speakon
Pin assignment2+/- (input/parallel output), 1+/- (looped through)
Amping/Presets
Lab.gruppenIPX Series
othersLEA Professional Sharkware
Amping/Filter Sheets
Lab.GruppenIPX Series
othersBiamp Tesira, BSS, Lab.Gruppen Lake, Linea Research, Marani, Powersoft, QSC Q-SYS, Ram Audio, Symetrix (Filter specifications in tabular form for frequency response equalization, without limiter specifications)
Mechanical data
Cabinet features/rigging4 x M8 on the side, 4 x M8 Deckel
Cabinet materialMDF
Cabinet surface1-component-acrylic enamel
ColorJet black (RAL 9005), Signal white (RAL 9003) or special color according to catalog
Front grilleSteel front grille with anticorrosive coating and backed acoustic foam and additional steel reinforcements as well as secondary grille for the bass reflex port (plug-in protection)
Dimensions (W x H x D), metric52.0 x 60.8 x 72.1 cm
Dimensions (W x H x D), imperial20-15/32 x 23-15/16 x 28-3/8 inch
Weight, metric40.5 kg
Weight, imperial89.3 lbs
Despite the large membrane area, the FO S118 is compact and easy to integrate into various ambiences. Installation is simple and secure with the optionally available U-bracket or AP8 attachment points. Four M8 threads on the side and four M8 threads on the top are available for mounting. For aesthetic reasons, the FO S112 F does not have the cut-outs for cable routing or rubber feet. A secondary grille protects the bass reflex port from accidental or deliberate insertion of foreign objects. A ball-impact resistance certificate in line with DIN 18032-3 is provided for installations in sports facilities.
