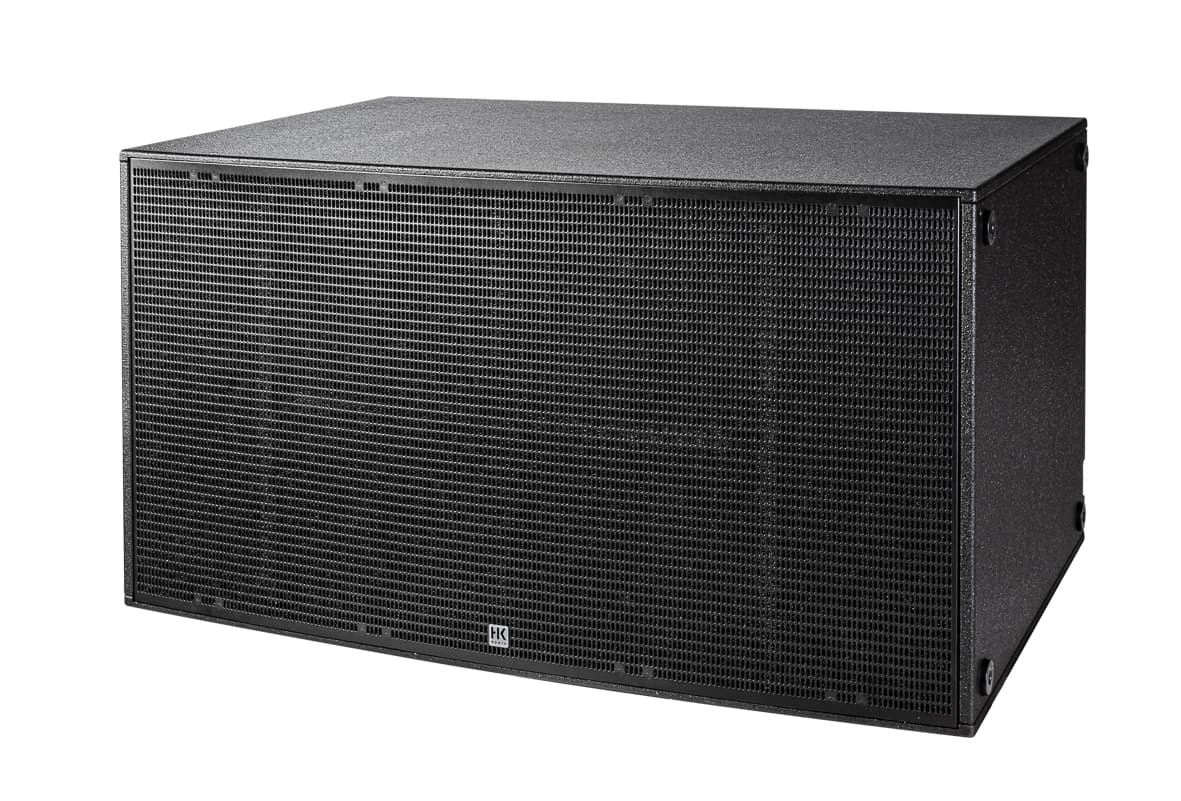

FINEO FO S218
THE NEW INSTALLATION STANDARD
technical data
Characteristics
ConceptPassiver Subwoofer
Cabinet principleBass reflex
Power handling RMS2000 W
Power handling program4000 W
Power handling peak8000 W
Nominal impedance14 Ohms
Max. SPL average2129 dB
Max. SPL peak3133 dB
Sensitivity 1 W/1 m498 dB
Frequency range -6 dB37 Hz - crossover
Frequency range -10 dB33 Hz - crossover
Dispersion angle -6 dB (horizontal x vertical)omnidirectional
Index
Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)
Index 2)1 m, 10 % THD @ 33 Hz - 100 Hz, (EN 60268-21), full space
Index 3)1 m, 10 % THD @ 70 Hz, full space
Index 4)33 Hz - 100 Hz, full space
Certifications
Ball impact resistance (DIN 18032-3)certified (MPA Uni Stuttgart)
IP-Protection class (EN 60529)not specified (installation only in dry indoor areas)
Components

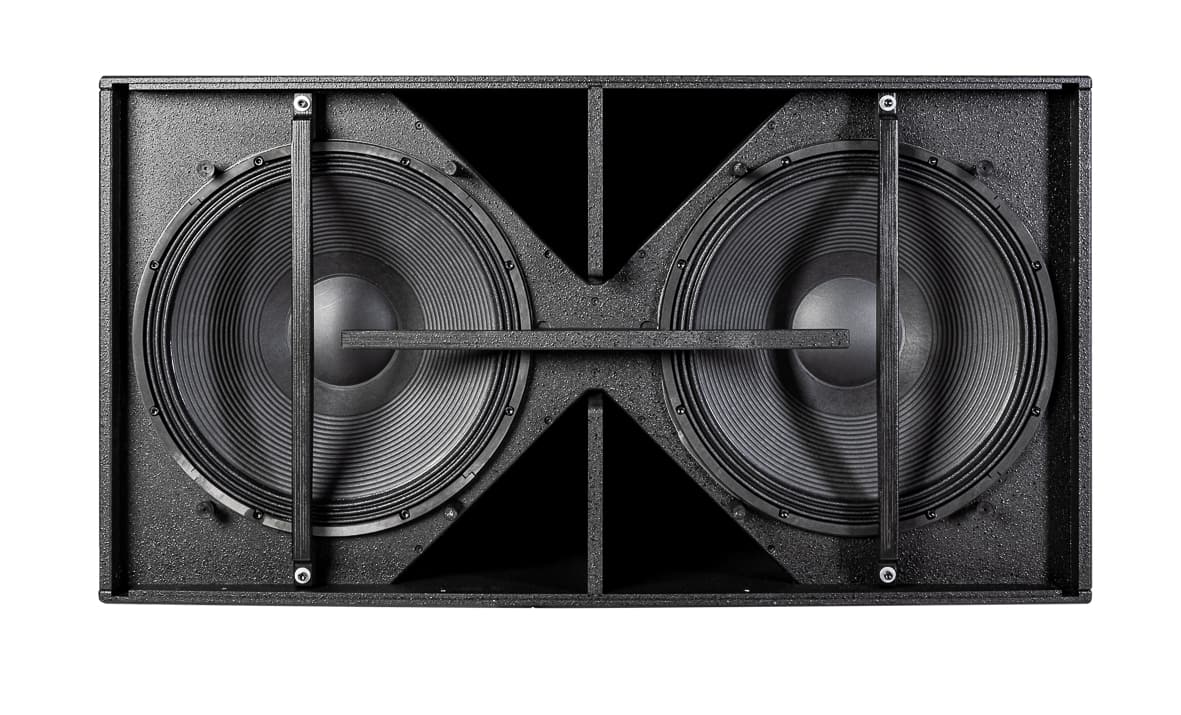

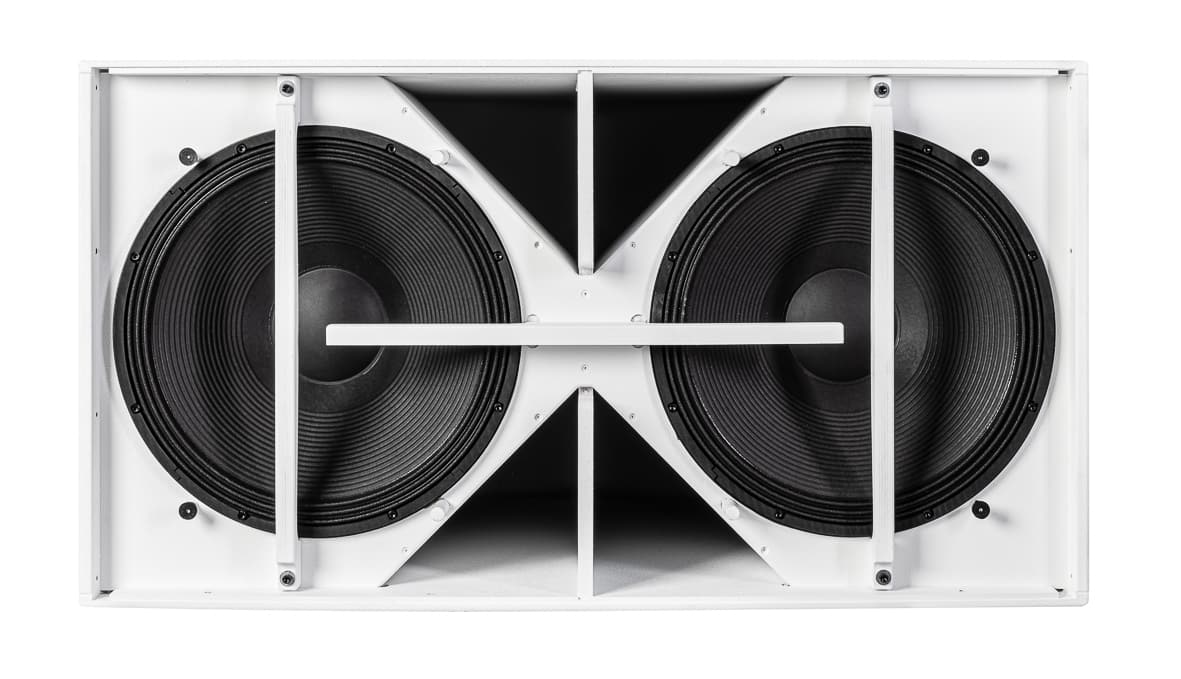

Low frequency2x 18" Beyma cone speaker with ferrite magnet and 3"-voice coil
Crossoverno integrated crossover

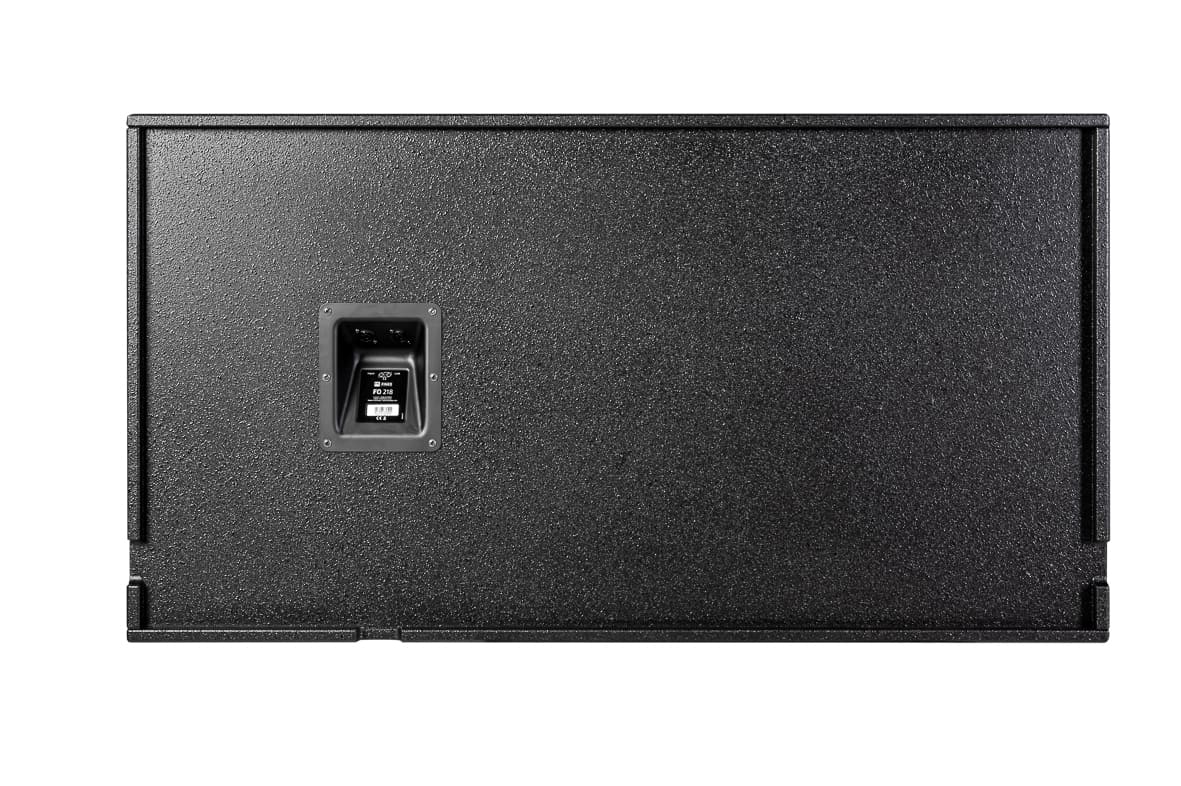

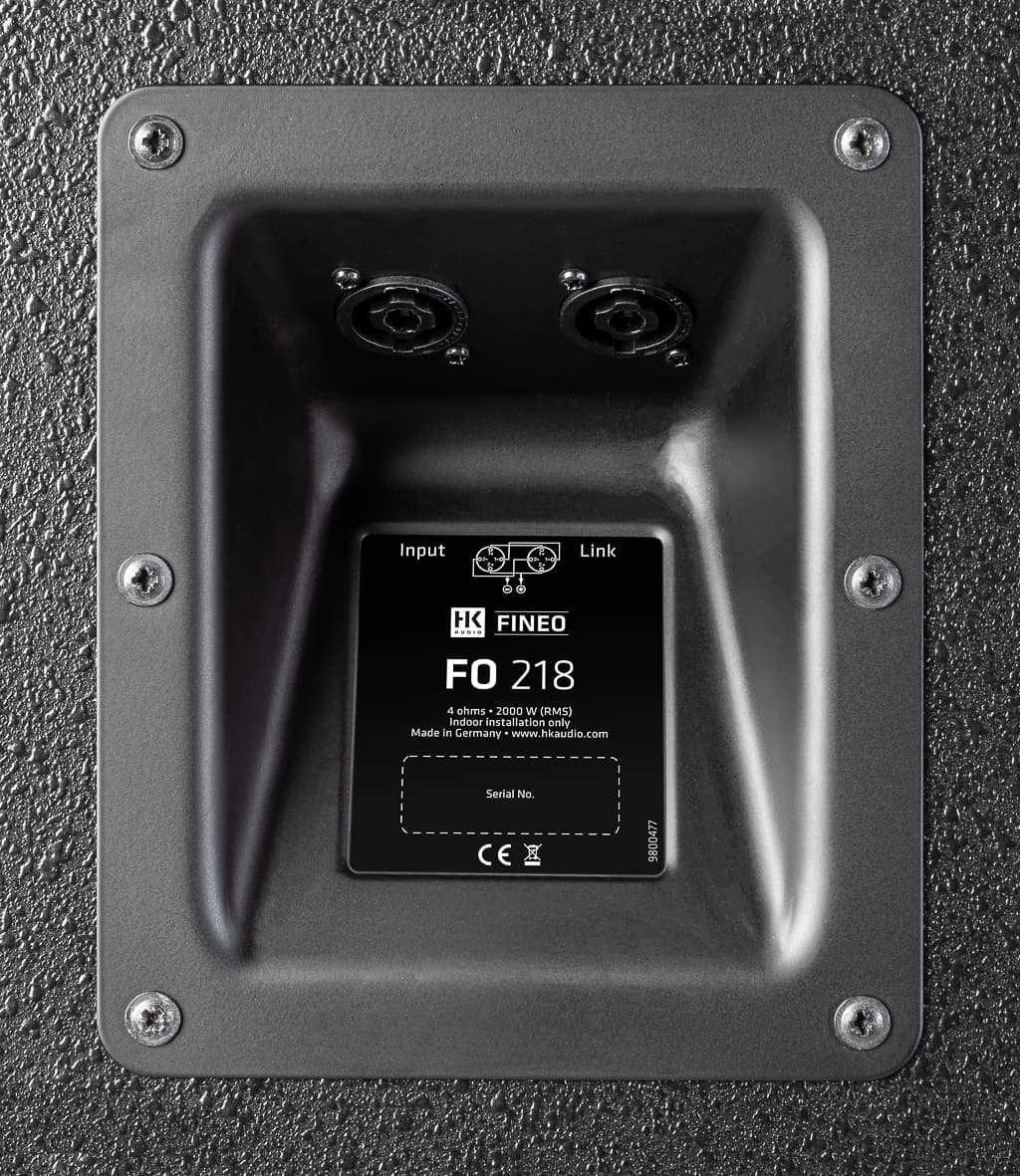

Connections
Input1 x NL4 Speakon
Output/parallel output1 x NL4 Speakon
Pin assignment2+/- (input/parallel output), 1+/- (looped through)
Amping/Presets
Lab.gruppenIPX Series
othersLEA Professional Sharkware
Amping/Filter Sheets
Lab.GruppenIPX Series
othersBiamp Tesira, BSS, Lab.Gruppen Lake, Linea Research, Marani, Powersoft, QSC Q-SYS, Ram Audio, Symetrix (Filter specifications in tabular form for frequency response equalization, without limiter specifications)
Mechanical data
Cabinet materialMDF
Cabinet surface1-component-acrylic enamel

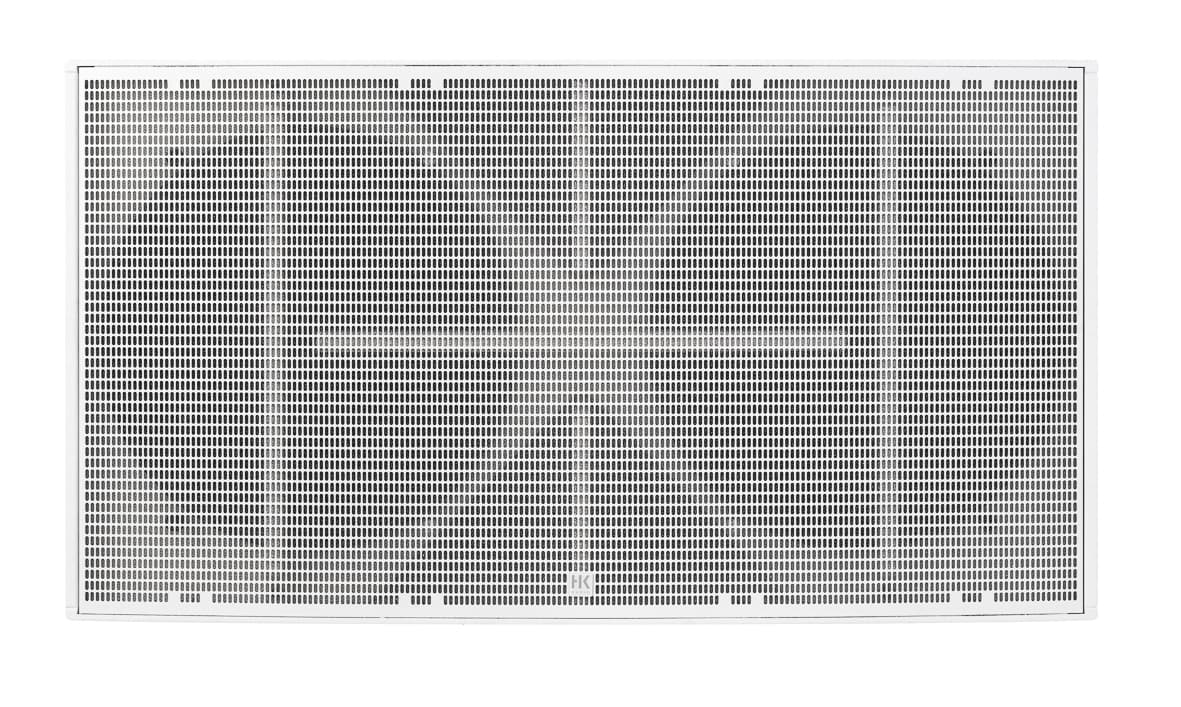

ColorJet black (RAL 9005), Signal white (RAL 9003) or special color according to catalog

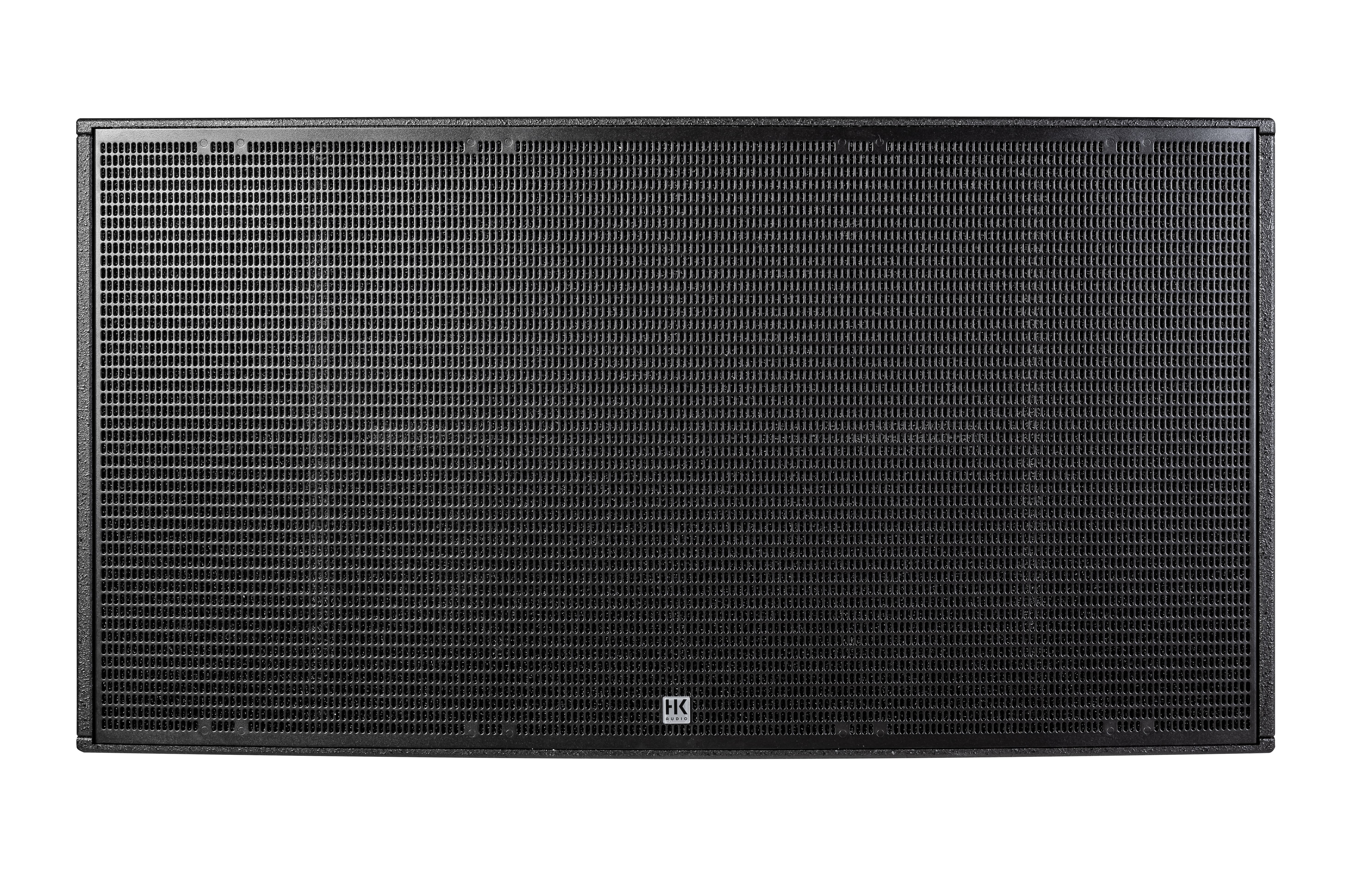

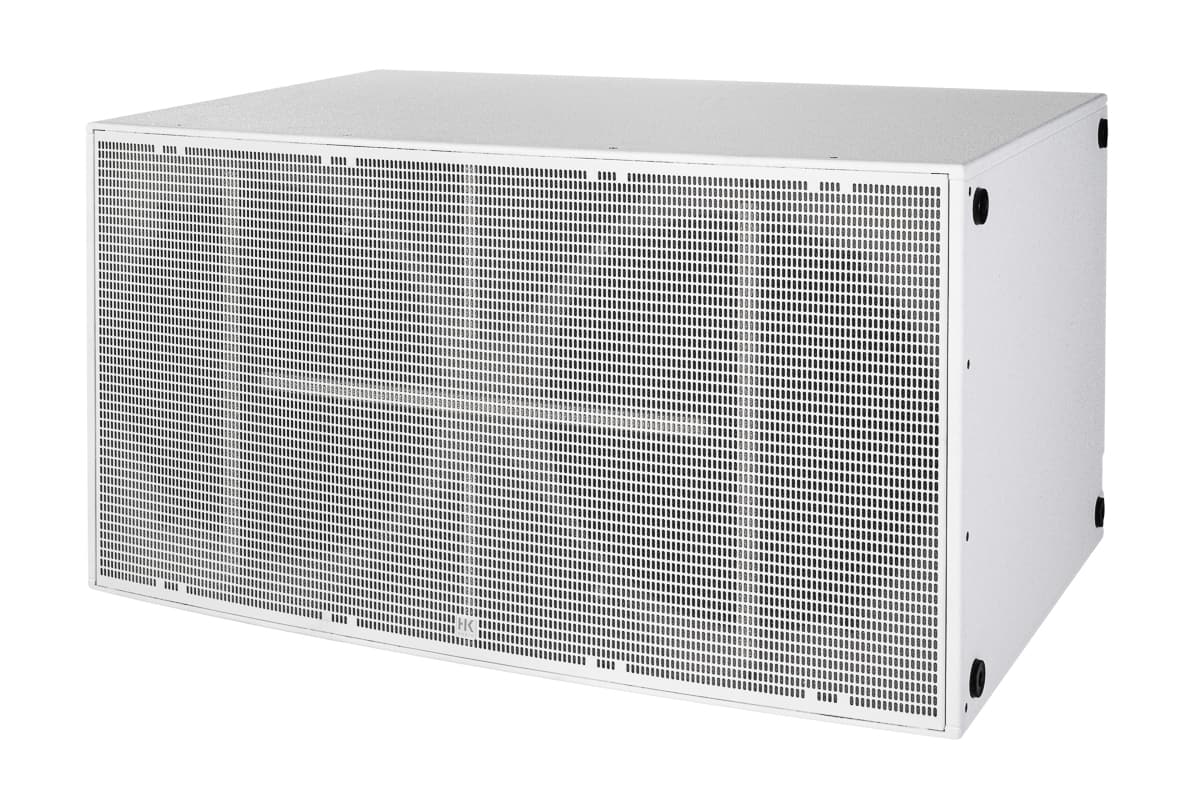

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam and additional birch plywood and steel reinforcements
Dimensions (W x H x D), metric112.8 x 60.8 x 72.1 cm
Dimensions (W x H x D), imperial44-13/32 x 23-15/16 x 28-3/8 inch
Weight, metric73.9 kg
Weight, imperial162.9 lbs

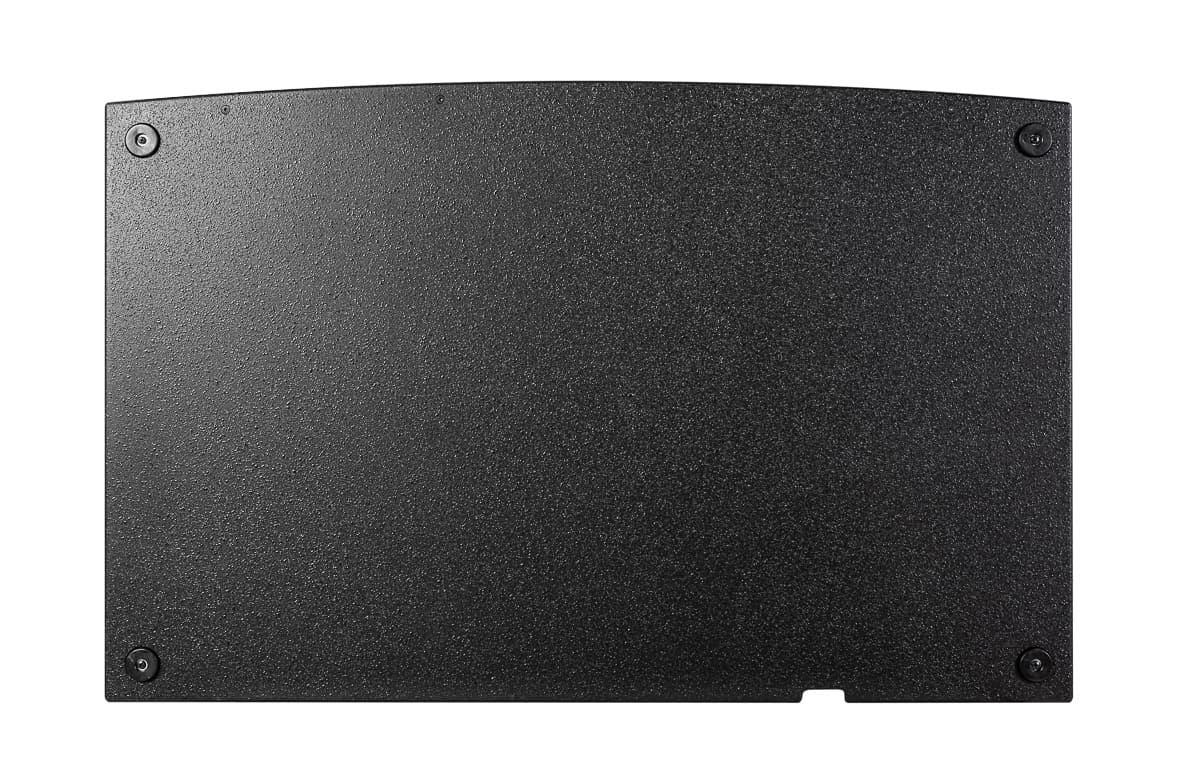

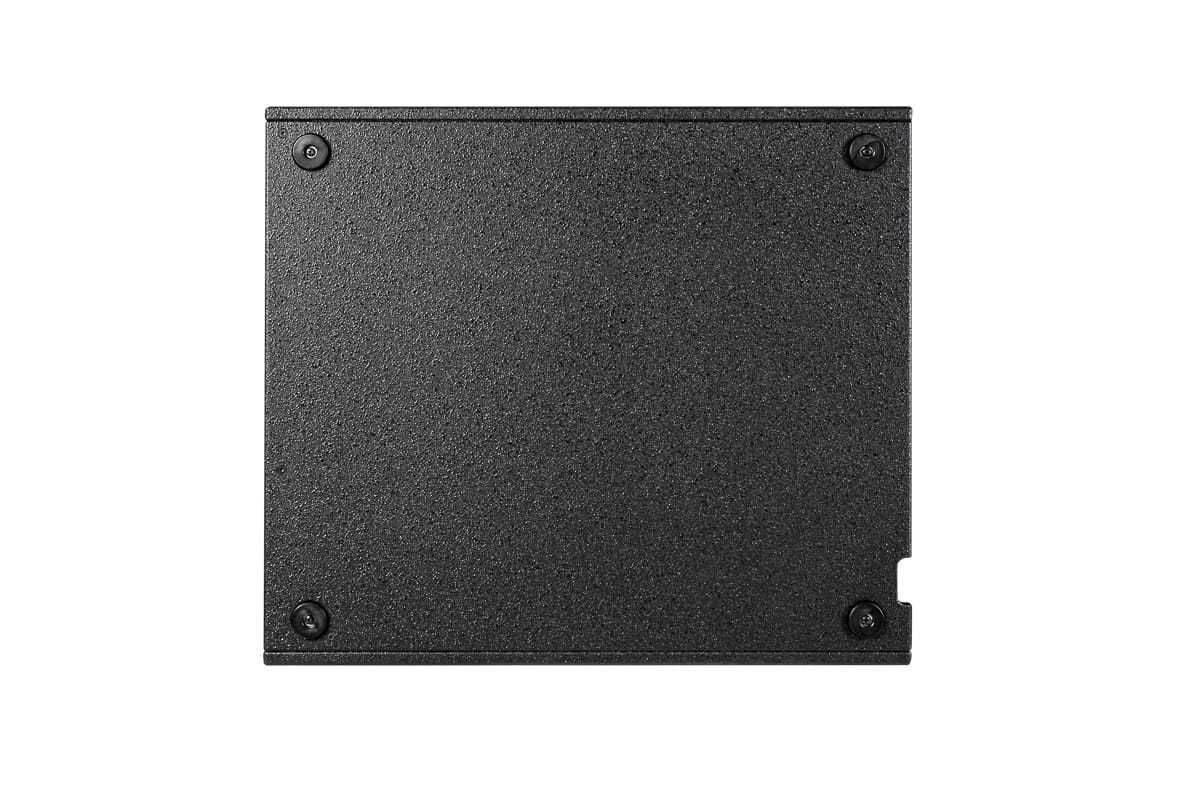

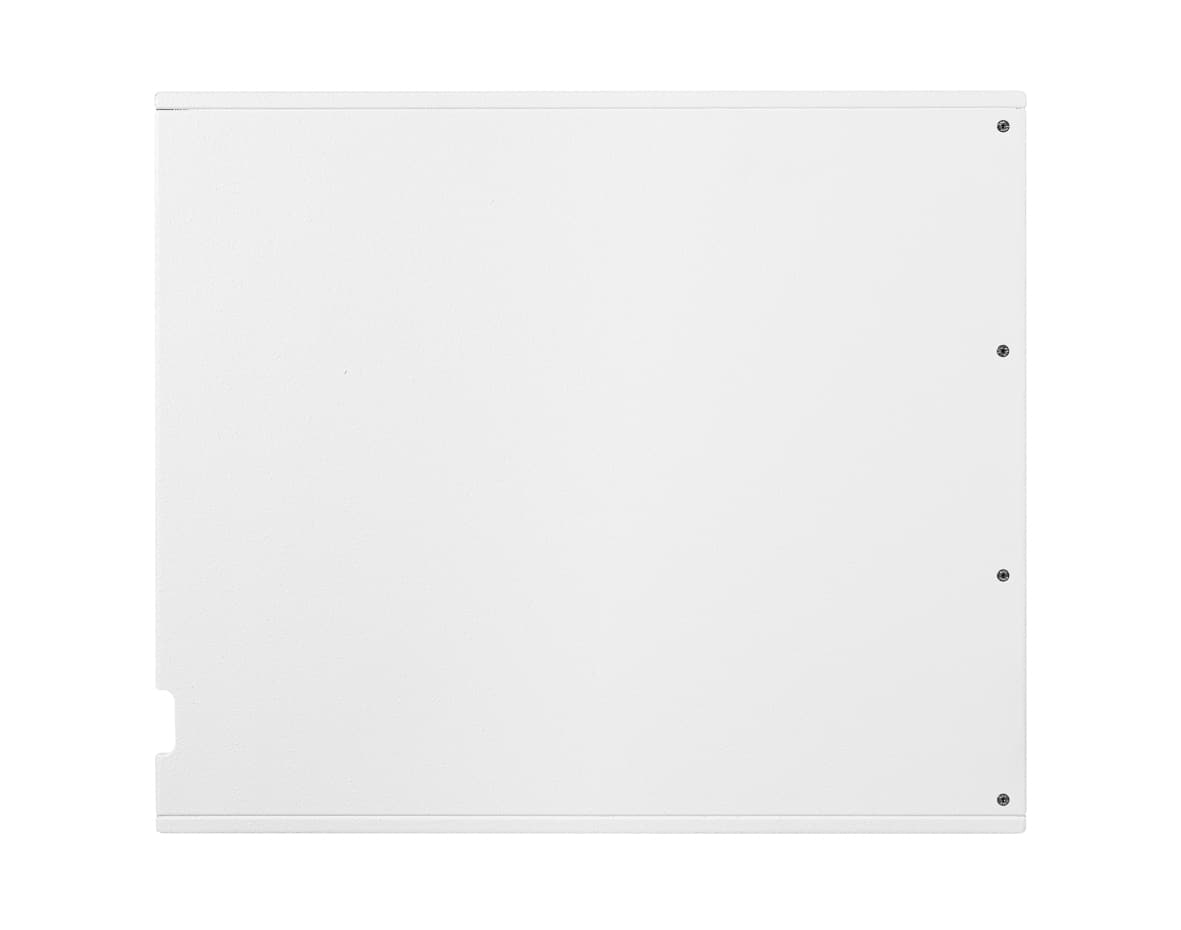

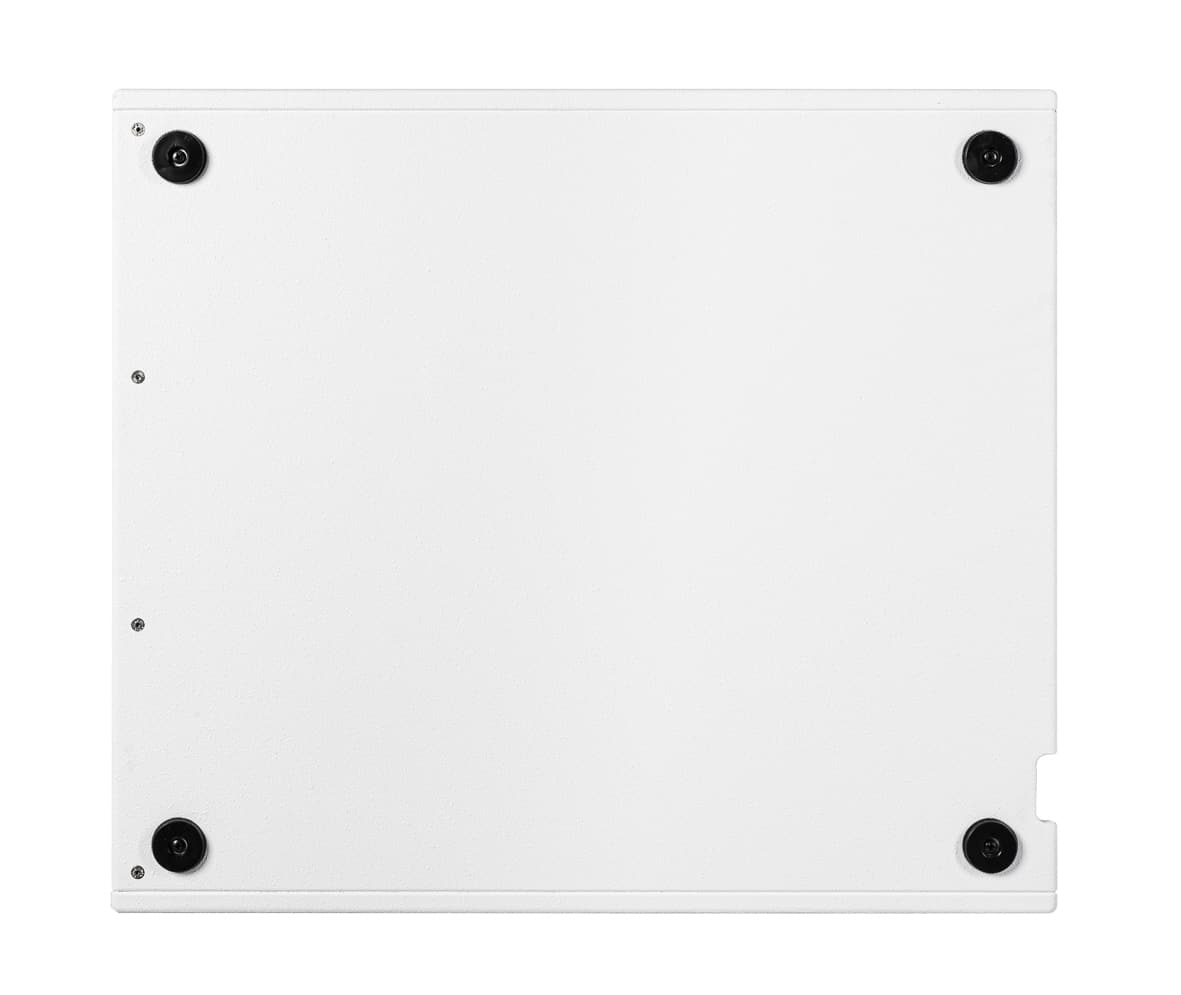

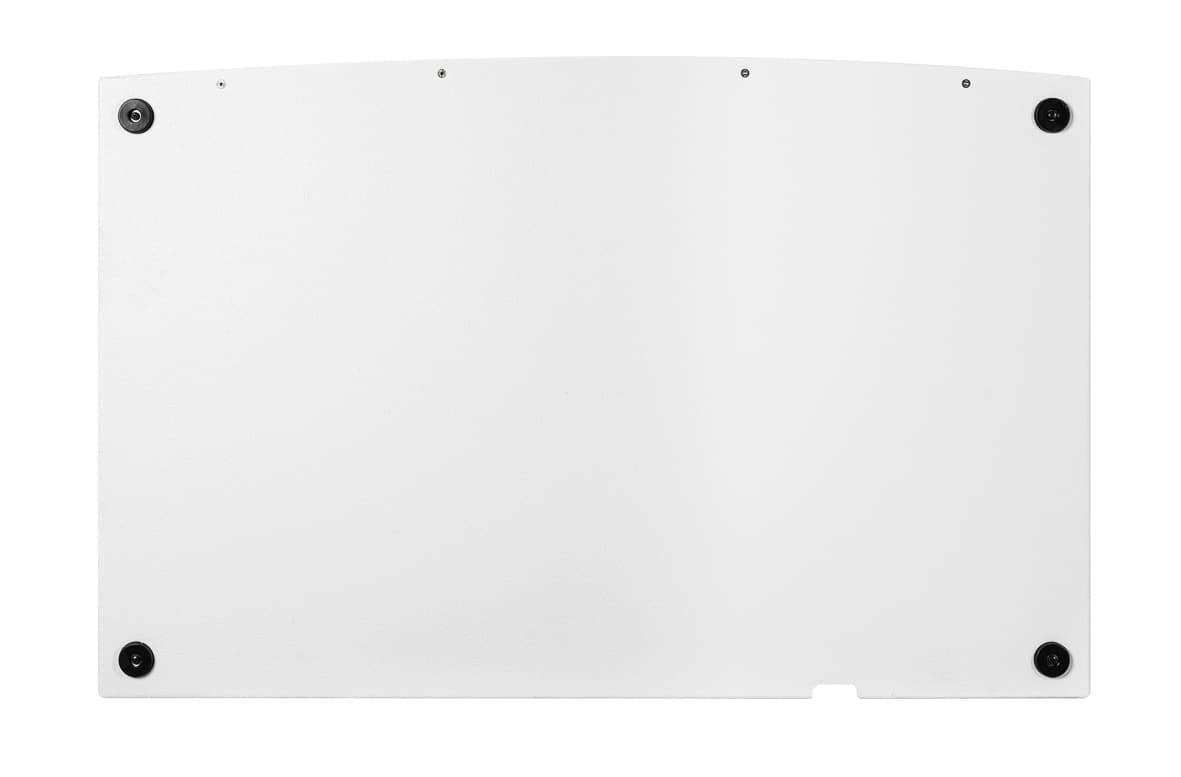

The subwoofer can be placed upright or on its side and offers a milled cable duct to the bottom, left and right for cable routing close to the wall. The front is protected by a full-surface grille, which is supported by solid reinforcements on the inside. This makes the FO S218 suitable not only for use in sports venues (for which a ball-impact resistance certificate in line with DIN?18032-3 is provided), but also for wild club and concert environments.
