POLAR 10 MK2 White

PUT YOUR SOUND IN POLE POSITION

POLAR 10 MK2 – Compact. Powerful. Clear.
The POLAR 10 MK2 combines transport-friendly design with amazing sound performance. Despite its compact dimensions, it even outperforms many 12" systems in its price class – ideal for musicians, entertainers and presentations. With an integrated 4-channel mixer, Bluetooth 5.0 True Wireless Stereo, phantom power, USB-C charging port and low-resonance aluminium profile, it offers maximum flexibility and professional features in a slim format.

Concept	Active column loudspeaker system
Power amplifier output peak	2000 W
Analog input	2 x XLR/jack combo (Mic/Line), 1 x 6.3 mm (1/4") jack plug (Instrument), 1 x Chinch Stereo
Bluetooth	Yes (5.0), TWS
Accessories included	Protection cover (Sub), transport bag (Mid/High unit)

technical data

System

Specifications

ConceptActive column loudspeaker system

System components1 x Subwoofer, 1 x Spacer, 1 x Mid/High unit

Max. SPL peak³130 dB

Crossover frequency180 Hz

Frequency range -6 dB42Hz - 18kHz

Frequency range -10 dB38Hz - 20kHz

Dispersion angle -6 dB (horizontal x vertical)120° x 30°

Index

Index 3)1 x unit @ 1 m, 10 % THD, half space

Connections

Analog input2 x XLR/jack combo (Mic/Line), 1 x 6.3 mm (1/4") jack plug (Instrument), 1 x Chinch Stereo

Mix output1 x XLR

Electronical data

PreamplifierDSP preamplifier

Power amplifierClass D-Biamped

Power amplifier output RMS500 W

Power amplifier output peak2000 W

Power consumption0.8 A/100 - 240 V nominal (EN 62368-1)

Maximum input level16 dBu

Speaker protectionRMS-/Peak-Limiter

Sample rate24 Bit / 44.1 kHz

Latency2 ms

DisplayLCD

DSP functionsPresets, 5 storable user presets, delay, LCD dimmable, 3-band EQ, semi-parametric mid-EQ

Filter presetsMusic, Voice, DJ

BluetoothYes (5.0), TWS

Mechanical data

Carrying handles2 x Carrying handle

Cabinet materialPlywood, aluminum

ColorJet black (RAL 9005), White (RAL 9003)

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

Accessories includedProtection cover (Sub), transport bag (Mid/High unit)

Dimensions (W x H x D), metric37 x 208 x 47,8 cm

Dimensions (W x H x D), imperial14-9/16 x 81-7/8 x 18-13/16 inch

Weight, metric26,9 kg

Weight, imperial59,3 lbs

Subwoofer

Charecteristics and components

ConceptActive subwoofer

Cabinet principleBass reflex

Low frequency1 x 12" cone speaker

CrossoverHigh pass: 24 dB/oct., Low pass: 24 dB/oct.

Mechanical data

Cabinet materialPlywood

Cabinet surfaceBlack acrylic enamel

Carrying handles2 x Carrying handle

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

Dimensions (W x H x D), metric37 x 56,2 x 47,8 cm

Dimensions (W x H x D), imperial14-9/16 x 22-1/8 x 18-13/16 inch

Weight, metric19,35 kg

Weight, imperial42,66 lbs

Mid/High Unit

Characteristics and components

Conceptpassive column speaker

Cabinet principleclosed

Mid/high frequency6 x 3" cone speaker

High frequency1 x 1" compression driver

HornConstant directivity horn

Dispersion angle -6 dB (horizontal x vertical)120° x 30°

Mechanical data

Cabinet materialAluminum

Cabinet surfacepowder-coated black or white

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

Dimensions (W x H x D), metric10,7 x 82,7 x 12,8 cm

Dimensions (W x H x D), imperial4-7/32 x 30-9/16 x 5-1/32 inch

Weight, metric4,75 kg

Weight, imperial10,47 lbs

Spacer

Mechanical data

Cabinet materialAluminium

Cabinet surfacepowder-coated black or white

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

Dimensions (W x H x D), metric10,7 x 76,9 x 12,8 cm

Dimensions (W x H x D), imperial4-7/32 x 30-9/32 x 5-1/32 inch

Weight, metric2,8 kg

Weight, imperial6,17 lbs

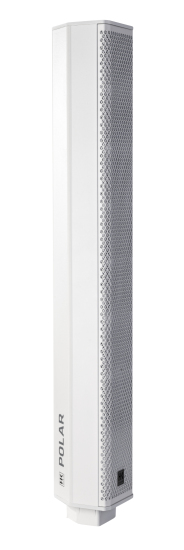

• Clear sound, elegant design: The new, low-resonance aluminium column housing reduces distortion and impresses with its stability and elegant appearance. The redesigned connector ensures a secure hold and protects the signal connection.

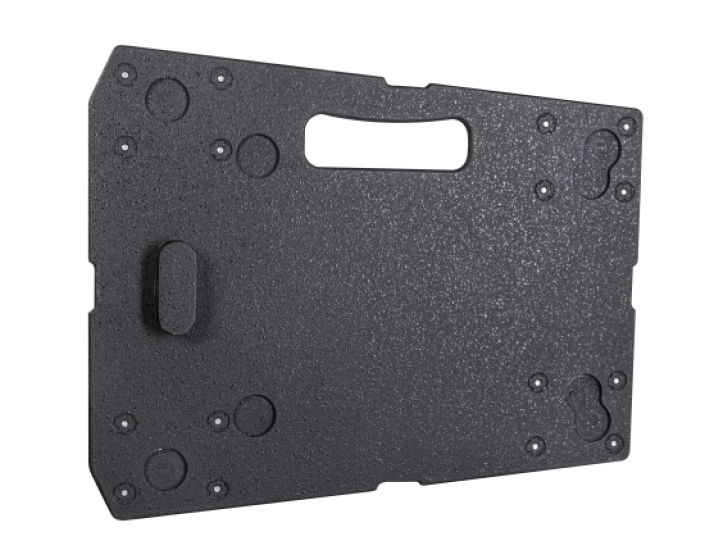

• Powerful bass: The subwoofer enclosure made of multiplex delivers powerful bass and high precision. Thanks to carrying handles and an optional roller board, it remains mobile and easy to handle.

• Design highlight: Sleek and modern – ideal for stage and events. Also available in white on request – perfect for weddings and stylish events.

• Integrated four-channel mixer: microphone inputs with phantom power, USB-C charging port for mobile devices and microphone receivers – ideal for uninterrupted performances.

• Wireless flexibility: Bluetooth 5.0 TWS for stable streaming, TWS function for true stereo sound with two POLAR systems

• Well protected on the go: carrying bag for the column elements and padded protective cover for the subwoofer included in delivery – for safe transport and optimal storage
