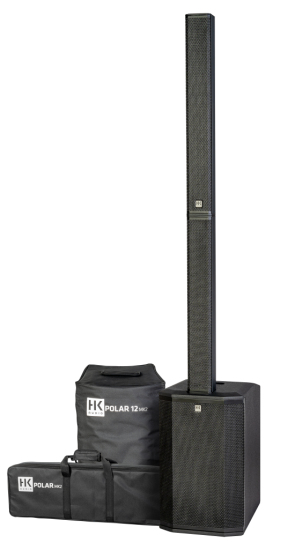

The POLAR 12 MK2 is the first choice for DJs, bands and performers with high demands on low frequencies and level. The 12" woofer and larger cabinet volume ensure powerful, defined bass – even under intensive continuous use. With its elegant design (also available in white), the POLAR 12 MK2 fits perfectly into stylish event settings – from weddings to club gigs. Thanks to its integrated 4-channel mixer, Bluetooth 5.0 True Wireless Stereo, phantom power, USB-C charging port and a low-resonance aluminium enclosure, it offers maximum flexibility and professional features in a compact format.

ConceptActive column loudspeaker system
Power amplifier output peak2000 W
BluetoothYes (5.0), TWS
Accessories includedProtection cover (Sub), transport bag (Mid/High unit)
DSP functionsPresets, 5 storable user presets, delay, LCD dimmable, 3-band EQ, semi-parametric mid-EQ

technical data

System

Specifications

ConceptActive column loudspeaker system
System components1 x Subwoofer, 1 x Spacer, 1 x Mid/High unit
Max. SPL peak3130 dB
Crossover frequency180 Hz
Frequency range -6 dB42Hz - 18kHz
Frequency range -10 dB35 Hz - 20 kHz
Dispersion angle -6 dB (horizontal x vertical)120° x 30°
Index
Index 3)1 x unit @ 1 m, 10 % THD, half space

Connections

Analog input2 x XLR/jack combo (Mic/Line), 1 x 6.3 mm (1/4") jack plug (Instrument), 1 x Chinch Stereo
Mix output1 x XLR

Electronical data

PreamplifierDSP preamplifier
Power amplifierClass D-Biamped
Power amplifier output RMS500 W
Power amplifier output peak2000 W
Power consumption0.8 A/100 - 240 V nominal (EN 62368-1)
Maximum input level16 dBu
Speaker protectionRMS-/Peak-Limiter
Sample rate24 Bit / 44.1 kHz
Latency2 ms
DisplayLCD
DSP functionsPresets, 5 storable user presets, delay, LCD dimmable, 3-band EQ, semi-parametric mid-EQ
Filter presetsMusic, Voice, DJ
BluetoothYes (5.0), TWS

Mechanical data

Carrying handles2 x Carrying handle
Cabinet materialPlywood, aluminum
ColorJet black (RAL 9005), White (RAL 9003)
Front grilleSteel front grille with anticorrosive coating and backed acoustic foam
Accessories includedProtection cover (Sub), transport bag (Mid/High unit)
Dimensions (W x H x D), metric37 x 213.6 x 47.8 cm
Dimensions (W x H x D), imperial14-9/16 x 84-1/8 x 18-13/16 inch
Weight, metric28.5 kg
Weight, imperial62.83 lbs

Subwoofer

Charecteristics and components

ConceptActive subwoofer
Cabinet principleBass reflex
Low frequency1 x 12" cone speaker
CrossoverHigh pass: 24 dB/oct., Low pass: 24 dB/oct.

Mechanical data

Cabinet materialPlywood
Cabinet surfaceBlack acrylic enamel
Carrying handles2 x Carrying handle
Front grilleSteel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W x H x D), metric37 x 61.8 x 47.8 cm
Dimensions (W x H x D), imperial14-9/16 x 24-5/16 x 18-13/16 inch
Weight, metric20.9 kg
Weight, imperial46.08 lbs

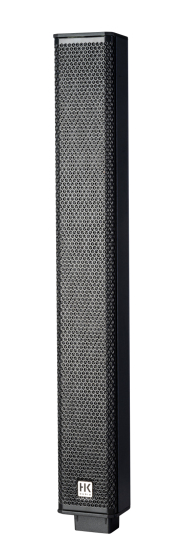

Mid/High Unit

Characteristics and components

Conceptpassive column speaker
Cabinet principleClosed
Mid/high frequency6 x 3" cone speaker
High frequency1 x 1" compression driver
HornConstant directivity horn
Dispersion angle -6 dB (horizontal x vertical)120° x 30°

Mechanical data

Cabinet materialABS
Cabinet surfaceAluminum
Front grilleSteel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W x H x D), metric10.7 x 82.7 x 12.8 cm
Dimensions (W x H x D), imperial4-7/32 x 30-9/16 x 5-1/32 inch
Weight, metric4.75 kg
Weight, imperial10.47 lbs

Spacer

Mechanical data

Cabinet materialaluminum
Cabinet surfacepowder-coated black or white
Front grilleSteel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W x H x D), metric10.7 x 76.9 x 12.8 cm
Dimensions (W x H x D), imperial4-7/32 x 30-9/32 x 5-1/32 inch
Weight, metric2.8 kg
Weight, imperial6.17 lbs

• Clear sound, elegant design: The new, low-resonance aluminium column housing reduces distortion and impresses with its stability and elegant appearance. The redesigned connector ensures a secure hold and protects the signal connection.

• Powerful bass: The subwoofer enclosure made of multiplex delivers powerful bass and high precision. Thanks to carrying handles and an optional roller board, it remains mobile and easy to handle.

• Design highlight: Sleek and modern – ideal for stage and events. Also available in white on request – perfect for weddings and stylish events.

• Integrated four-channel mixer: microphone inputs with phantom power, USB-C charging port for mobile devices and microphone receivers – ideal for uninterrupted performances.

• Wireless flexibility: Bluetooth 5.0 TWS for stable streaming, TWS function for true stereo sound with two POLAR systems

• Well protected on the go: carrying bag for the column elements and padded protective cover for the subwoofer included in delivery – for safe transport and optimal storage
