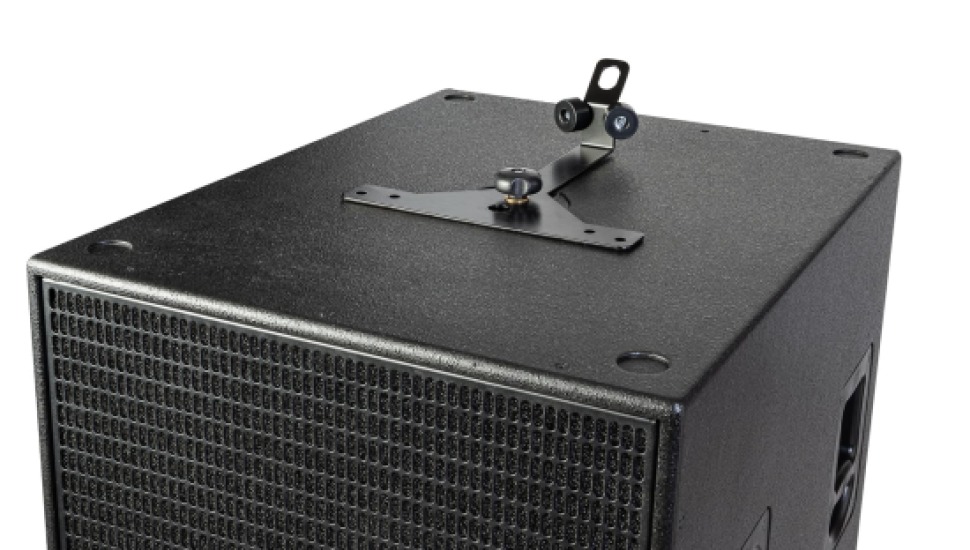

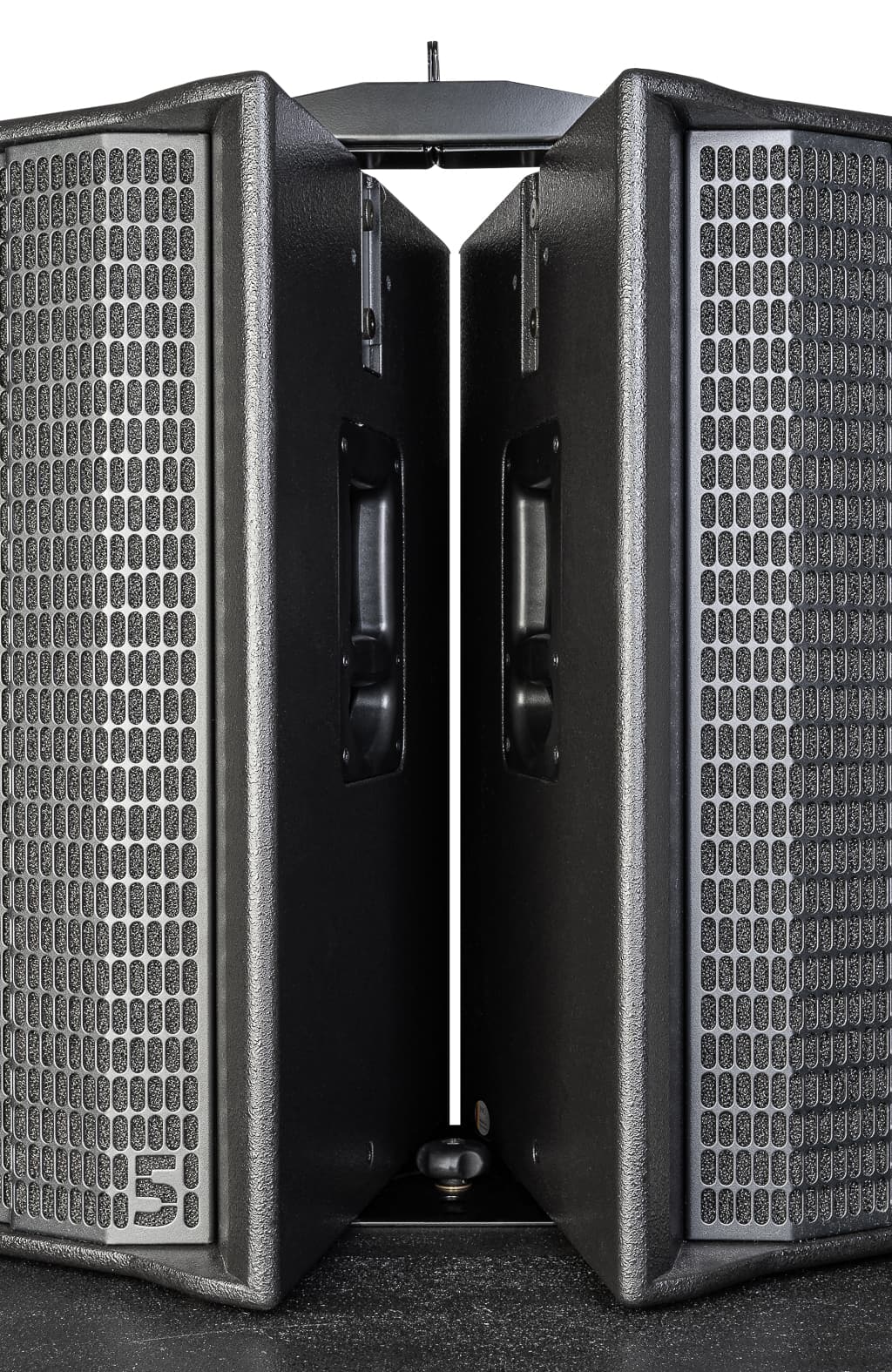

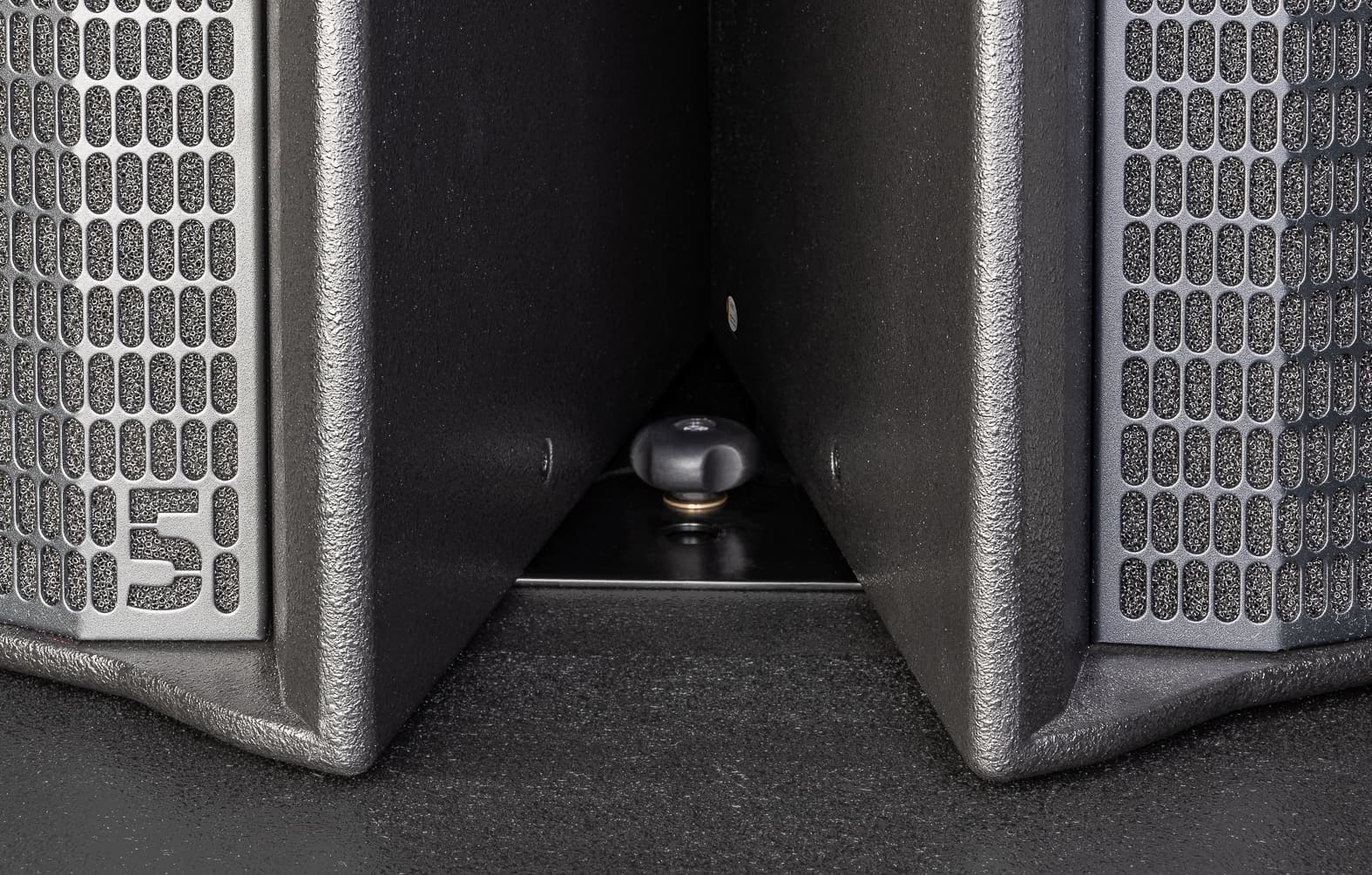

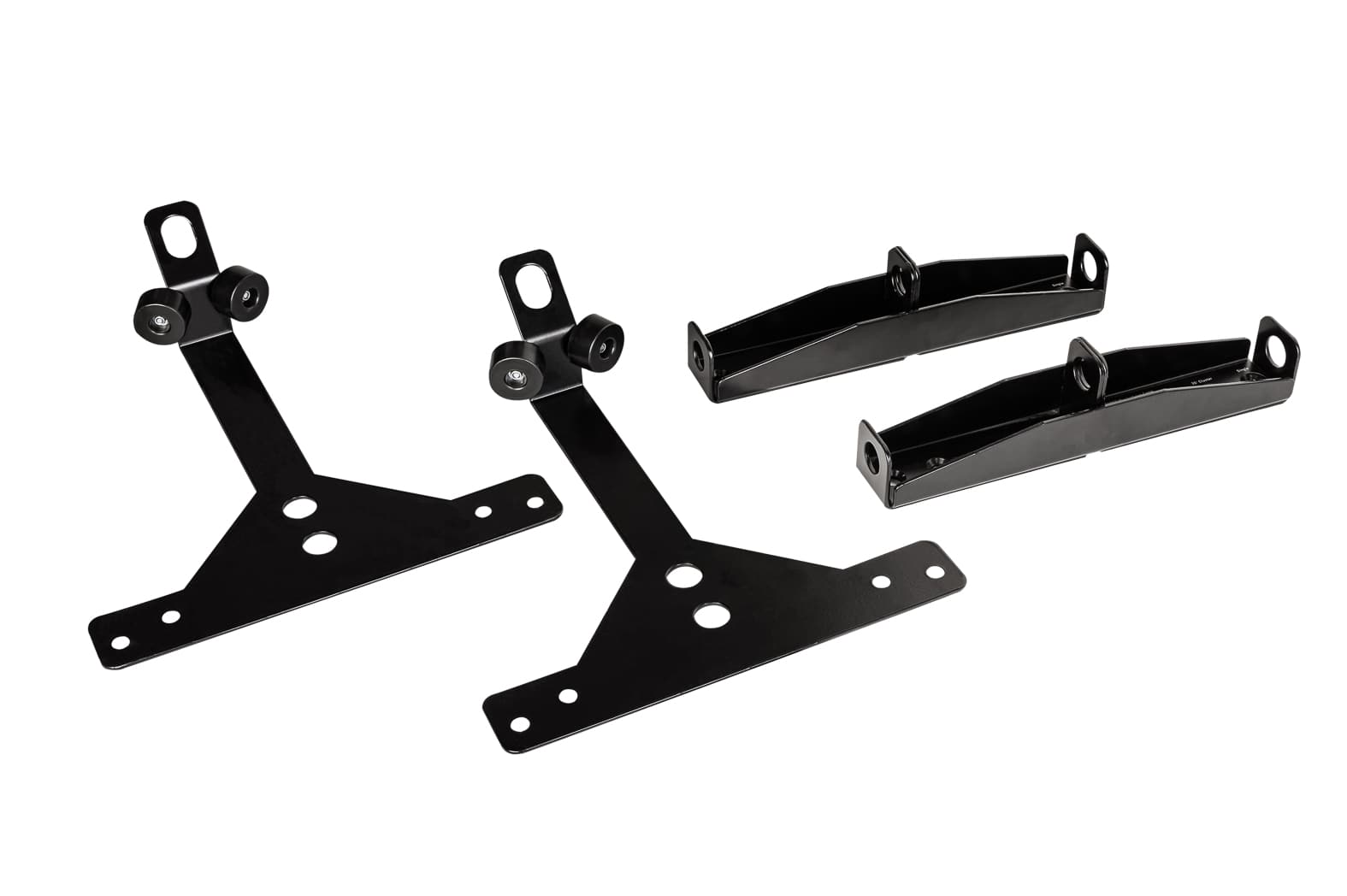

Pick Point (PP) and Cluster Plate (CP) offer two or three attachment points respectively for flying and angling the LINEAR 5 LTS / LTS A and LINEAR 5 MK2 308 LTA. For the operating modes Single, Headstack, Cluster, Headstack-Cluster.
Functional description

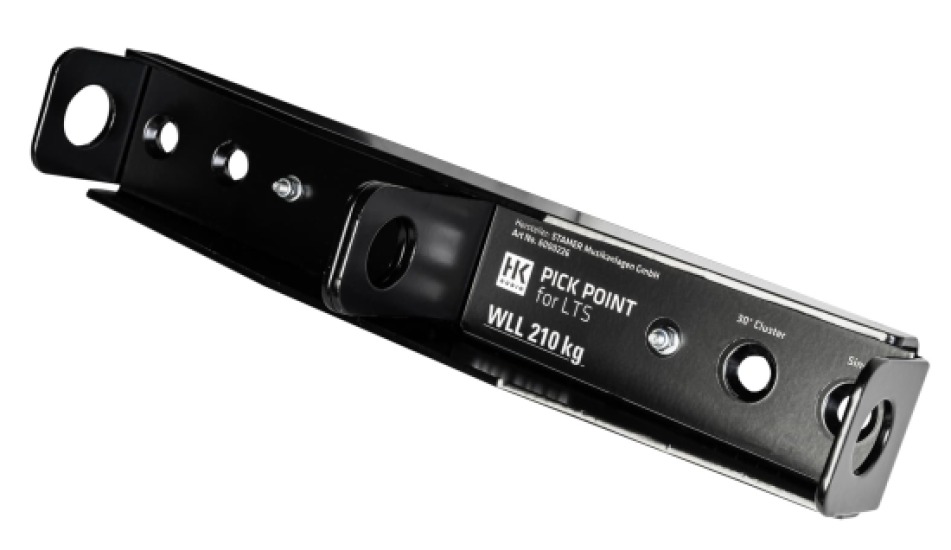

The combination of pick-point (PP) and cluster plate (CP) has a workload limit (WLL) of up to 210 kg at a safety factor of 0,5. The maximum permissible load in jurisdictions where the German BGV-C1 safety code applies is therefore 105 kg.
