PREMIUM PR:O 118 SUB D2

THE GERMAN AUDIO STANDARD

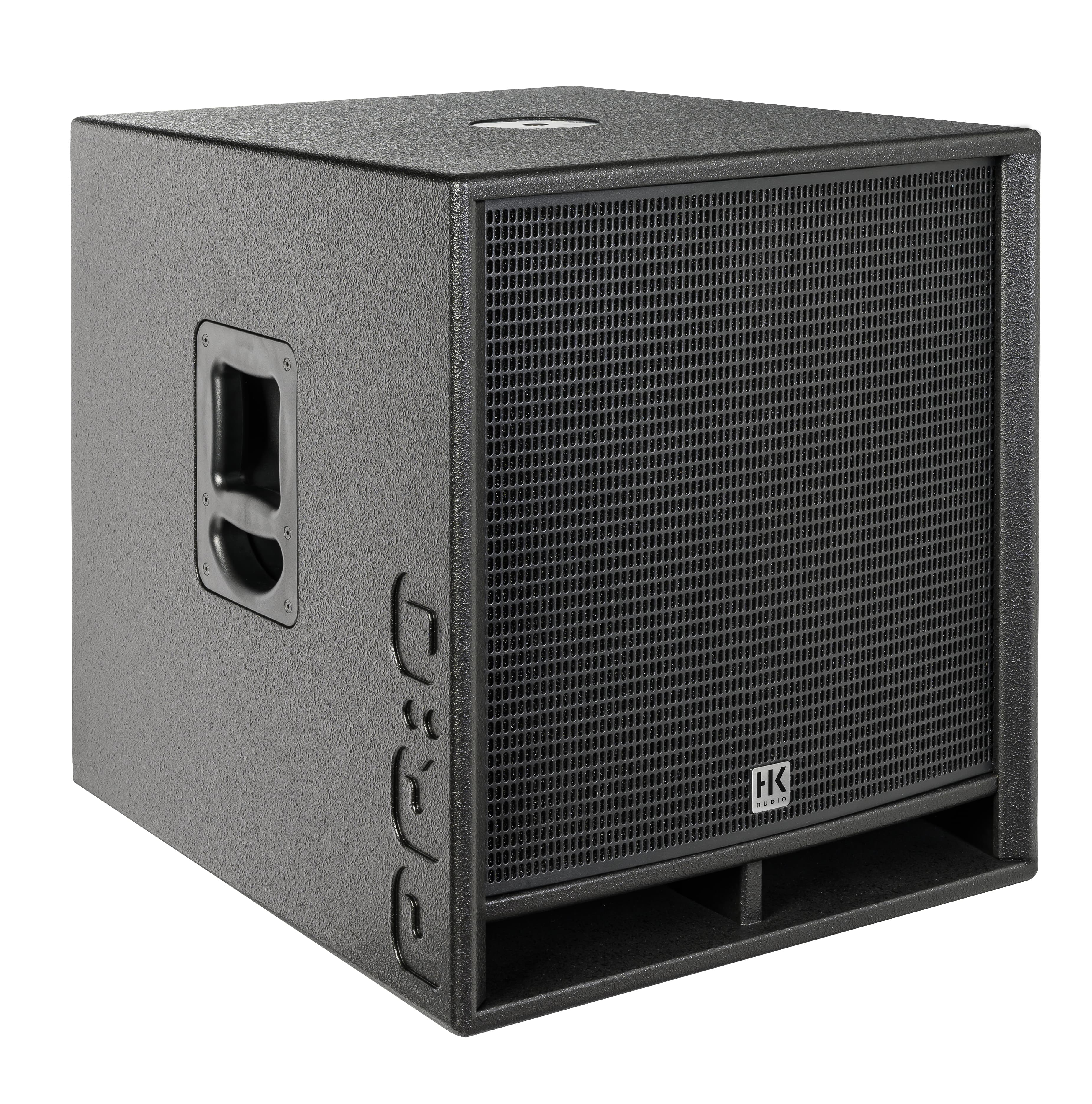

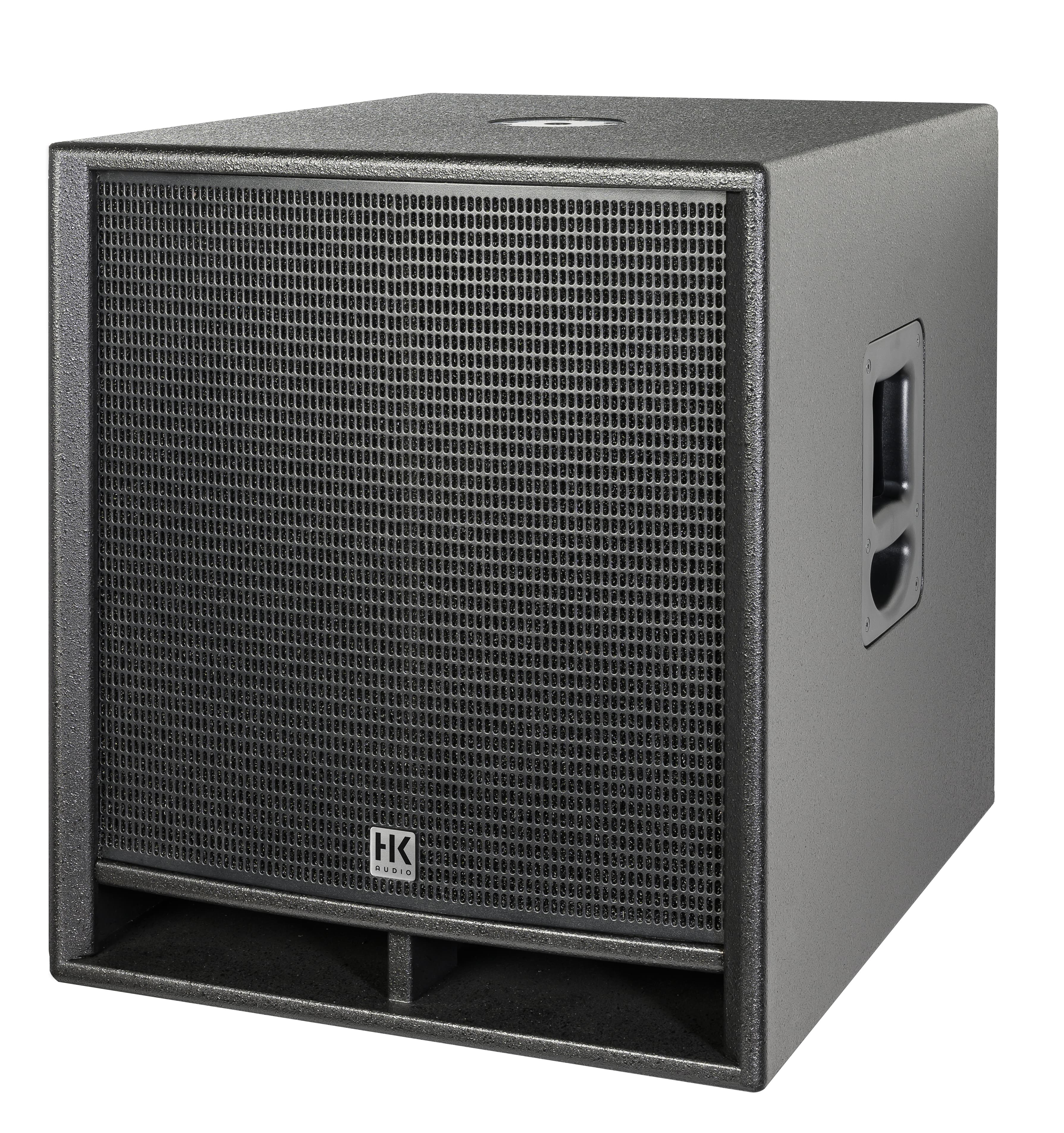

The 18” bass reflex subwoofer produces a deep and powerful bass foundation.

As a band PA or club setup with the desired top of the PREMIUM PRO D2 series, a flexible system can be put together here.

From 2.1 to half or full stack, every application is possible and enhances the performance. Thanks to the integrated system crossover, active tops that do not have their own filtering can also be connected to the mid/high unit output.

Concept	Active subwoofer
Power amplifier output peak	1200 W
Analog input	2 x XLR/jack combo symm.
Analog output	2 x XLR L/R Out Mid/High symm., 2 x XLR Thru symm.

technical data

Characteristics

ConceptActive subwoofer

Cabinet principleBass reflex

Max. SPL average²126 dB

Max. SPL peak³127 dB

Crossover frequency75 Hz - 150 Hz, selectable

Frequency range -6 dB45 Hz - X-Over

Frequency range -10 dB36 Hz - X-Over

Index

Index 2)1 x Subwoofer @ 1 m, 10 % THD, (EN 60268-21), half space

Index 3)1 x Subwoofer @ 1 m, 10 % THD, half space

Components

Low frequency1 x 18" cone speaker

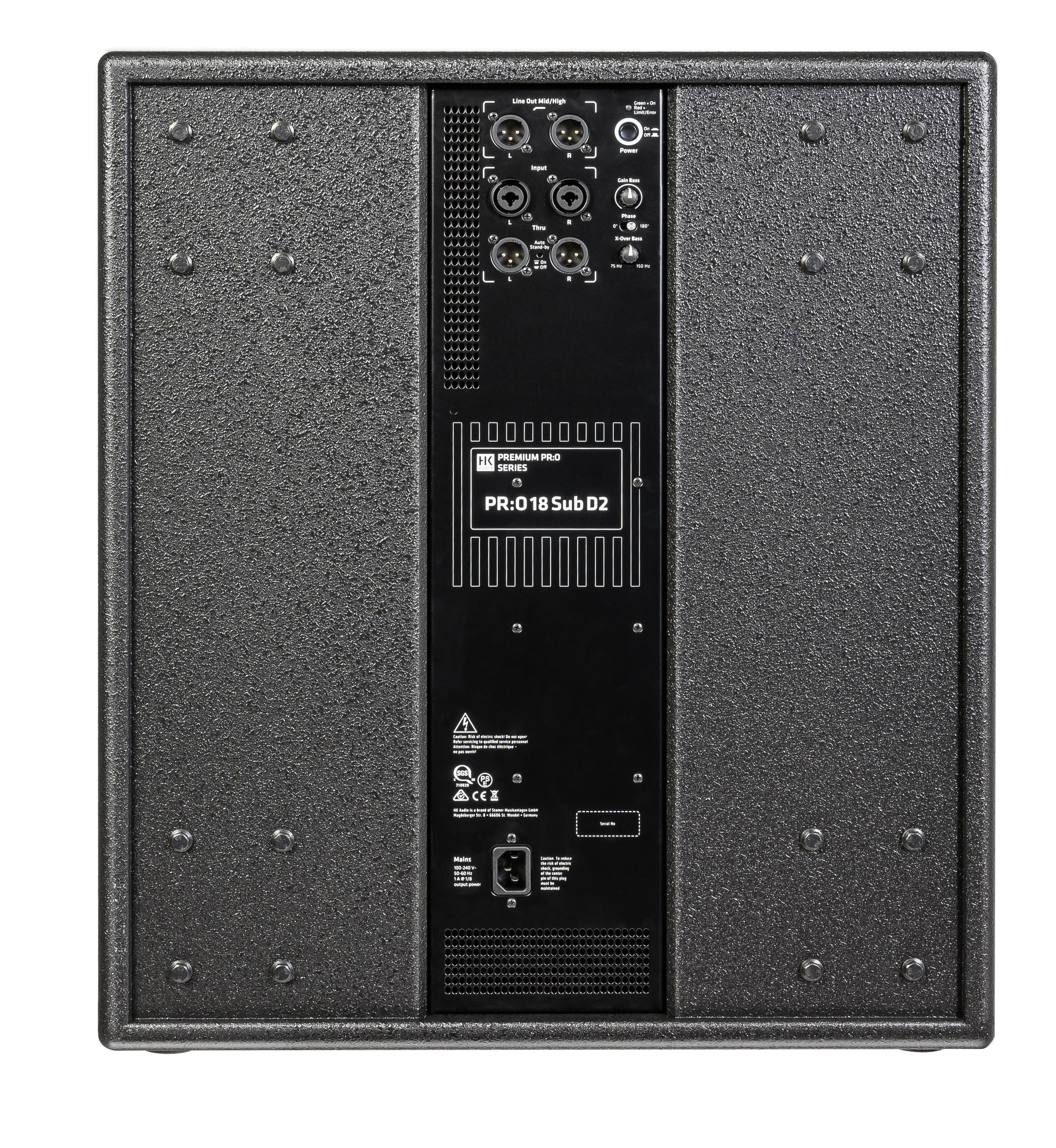

Connections

Analog input2 x XLR/jack combo symm.

Analog output2 x XLR L/R Out Mid/High symm., 2 x XLR Thru symm.

Electronical data

Power amplifierClass D

Power amplifier output peak1200 W

Speaker protectionSubsonic-Filter, Peak-Limiter

Mechanical data

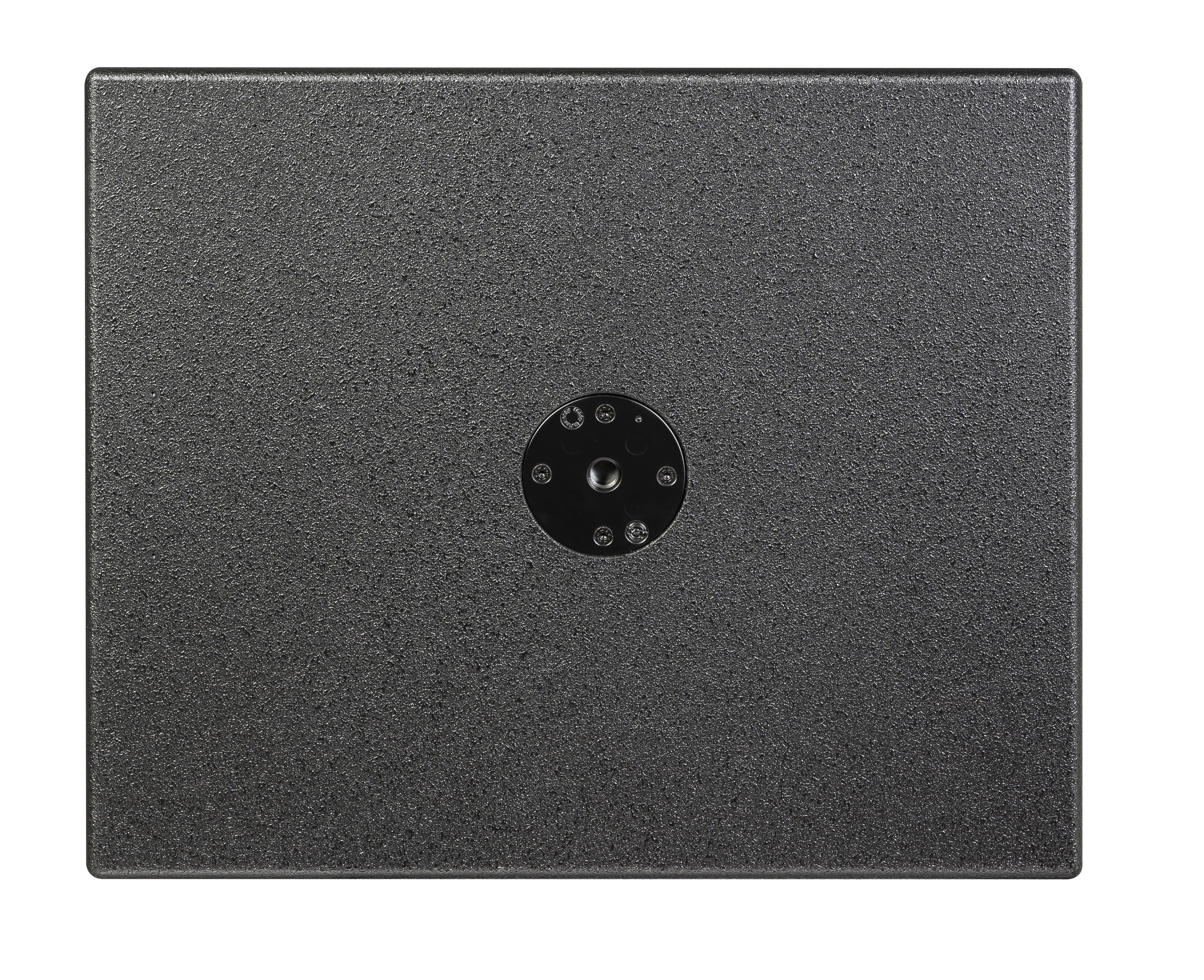

Cabinet features/rigging1 x M20 pole mount, preparation for wheel assembly

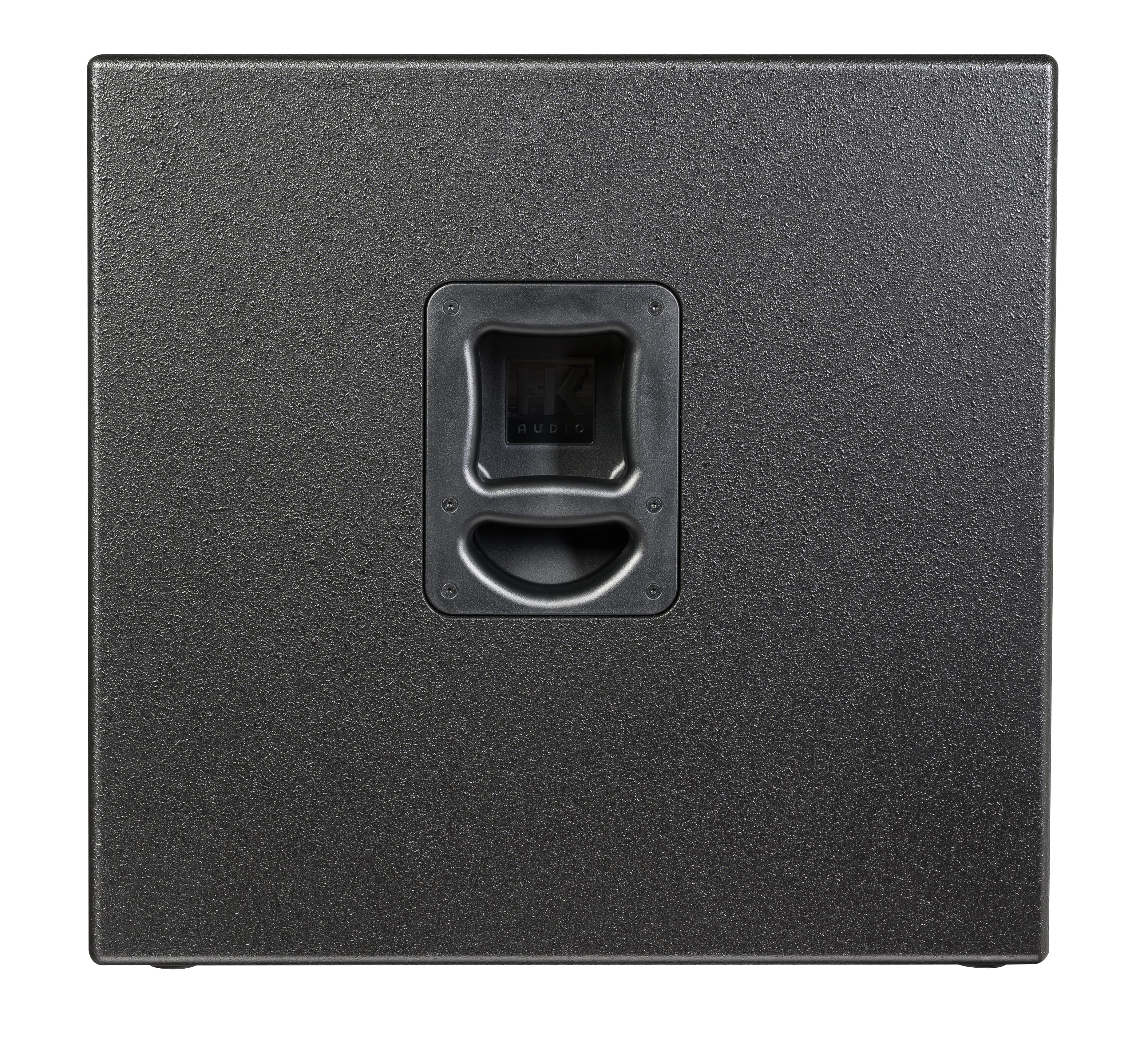

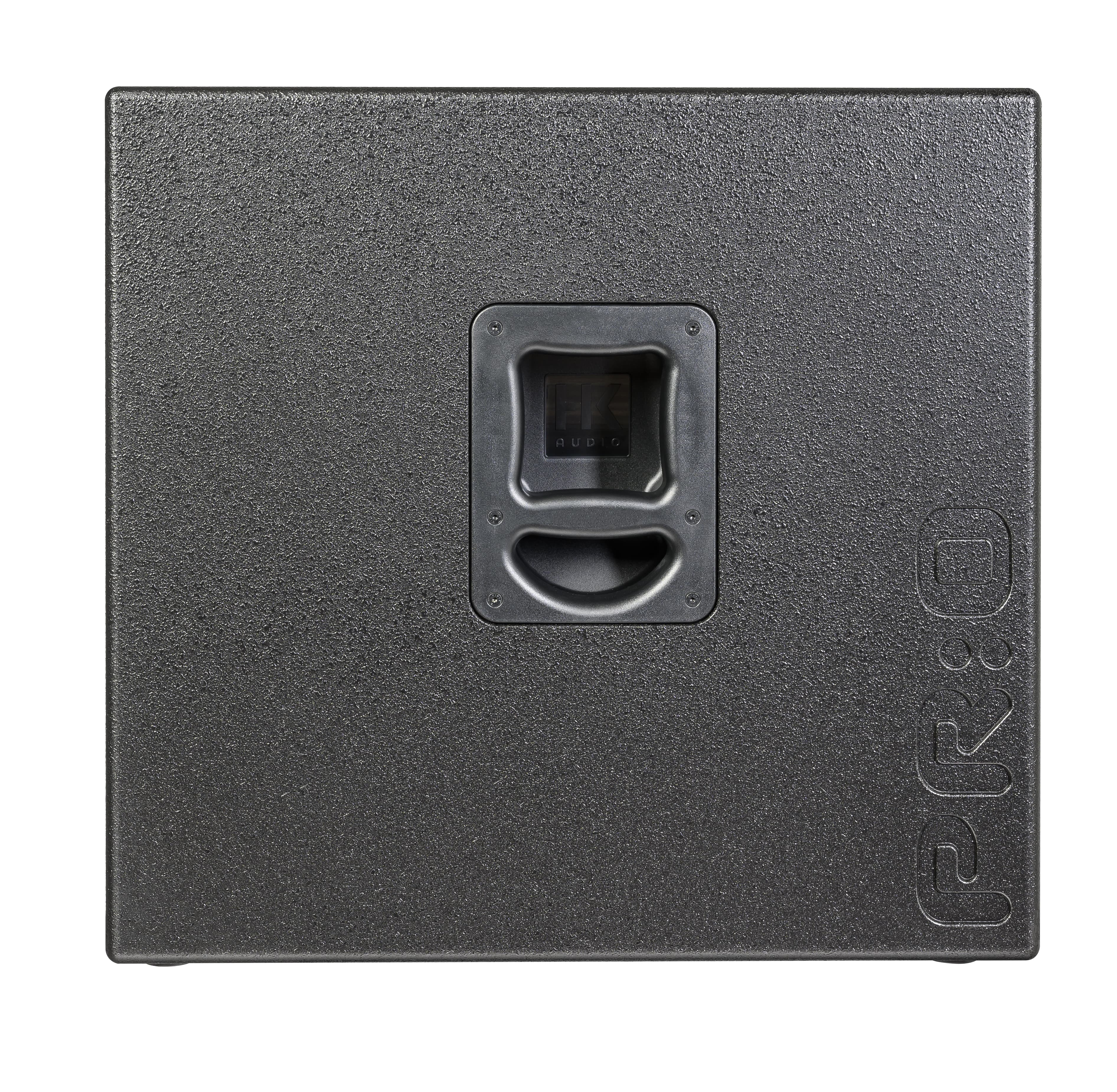

Carrying handles2, MultiGrip

Cabinet materialMDF

Cabinet surfaceacrylic enamel

ColorJet black (RAL 9005)

Front grilleSteel front grille, backed with acoustic foam

Dimensions (W x H x D), metric53 x 62 x 64 cm

Dimensions (W x H x D), imperial20-7/8 x 24-13/32 x 25-3/16 inch

Weight, metric39.8 kg

Weight, imperial87.7 lbs

The classic setup can be implemented either as a half or full stack, and a 2.1 system can be created with ease thanks to the two mid/high outputs. The subwoofer takes care of the filtering required for this. This means that mid/high units that do not have their own filtering can even be connected. The required system crossover is already completely integrated in the PR:O 118 Sub D2.
