PREMIUM PR:O 15
THE GERMAN AUDIO STANDARD
technical data
Characteristics
ConceptPassive 2-way mid/high unit
Cabinet principleBass reflex
Power handling RMS400 W
Power handling program800 W
Power handling peak1200 W
Nominal impedance18 Ohms
Max. SPL peak3128 dB
Sensitivity 1 W/1 m4104 dB
Crossover frequency2 kHz
Frequency range -6 dB60 Hz - 19 kHz
Frequency range -10 dB53 Hz - 19 kHz
Dispersion angle -6 dB (horizontal x vertical)60° x 40°
Index
Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)
Index 3)1 x unit @ 1 m, 10 % THD, half space
Index 4)half space
Components
Mid/high frequency1 x 15" cone speaker
High frequency1 x 1" compression driver
CrossoverHigh pass: 12 dB/oct., Low pass: 12 dB/oct.
High frequency protection circuitDynamic protective circuit
HornConstant directivity horn

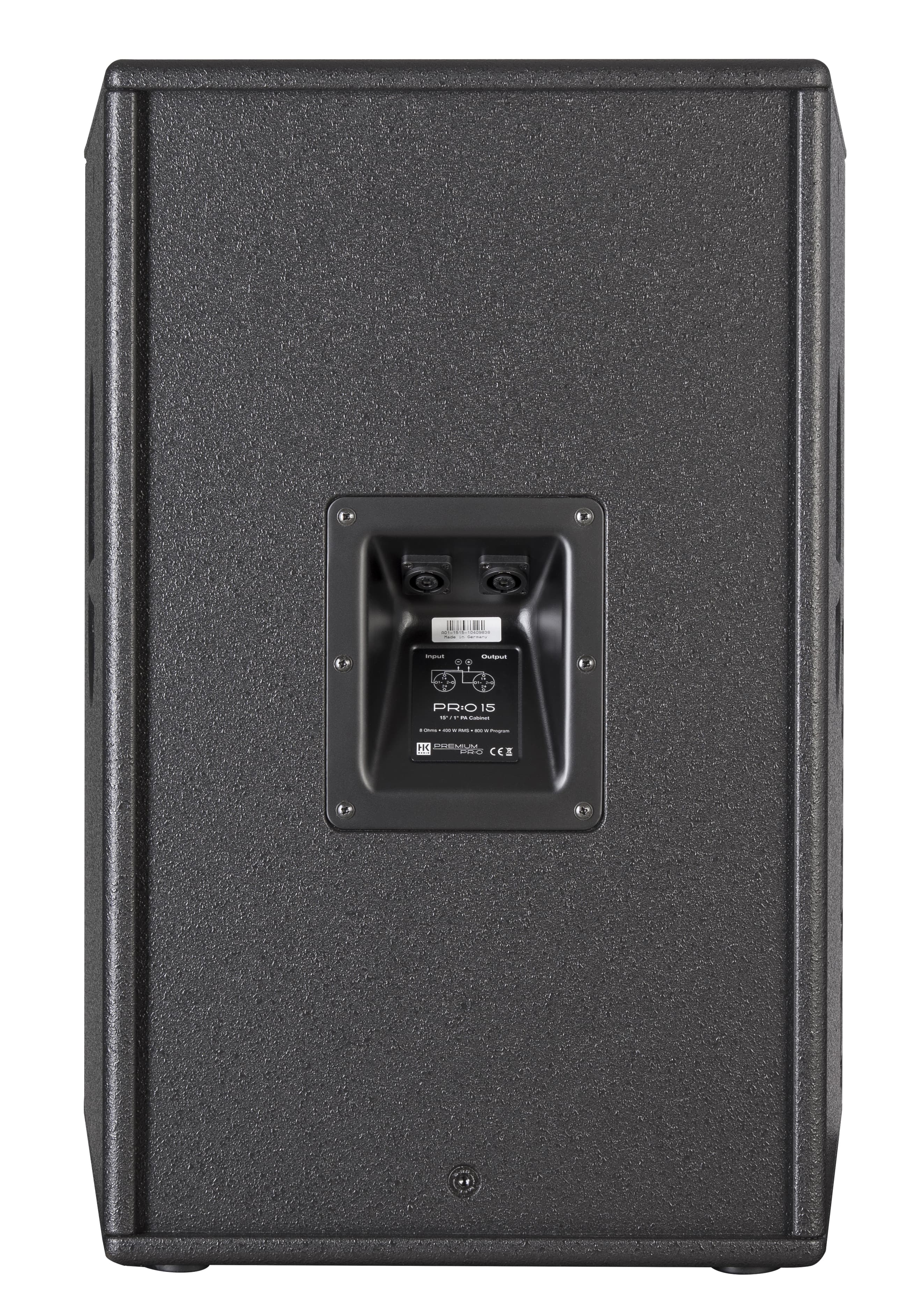

Connections
Input1 x NL4 Speakon
Output/parallel output1 x NL4 Speakon
Pin assignment1+/-
Amping/Presets
Lab.gruppenIPX Series, IPD Series
Amping/Filter Sheets
Lab.GruppenIPX Series, IPD Series (limiter settings incl.)
Mechanical data
Cabinet features/riggingpole mount HK Audio DuoTilt 3°/7°, 3 x rigging point M8

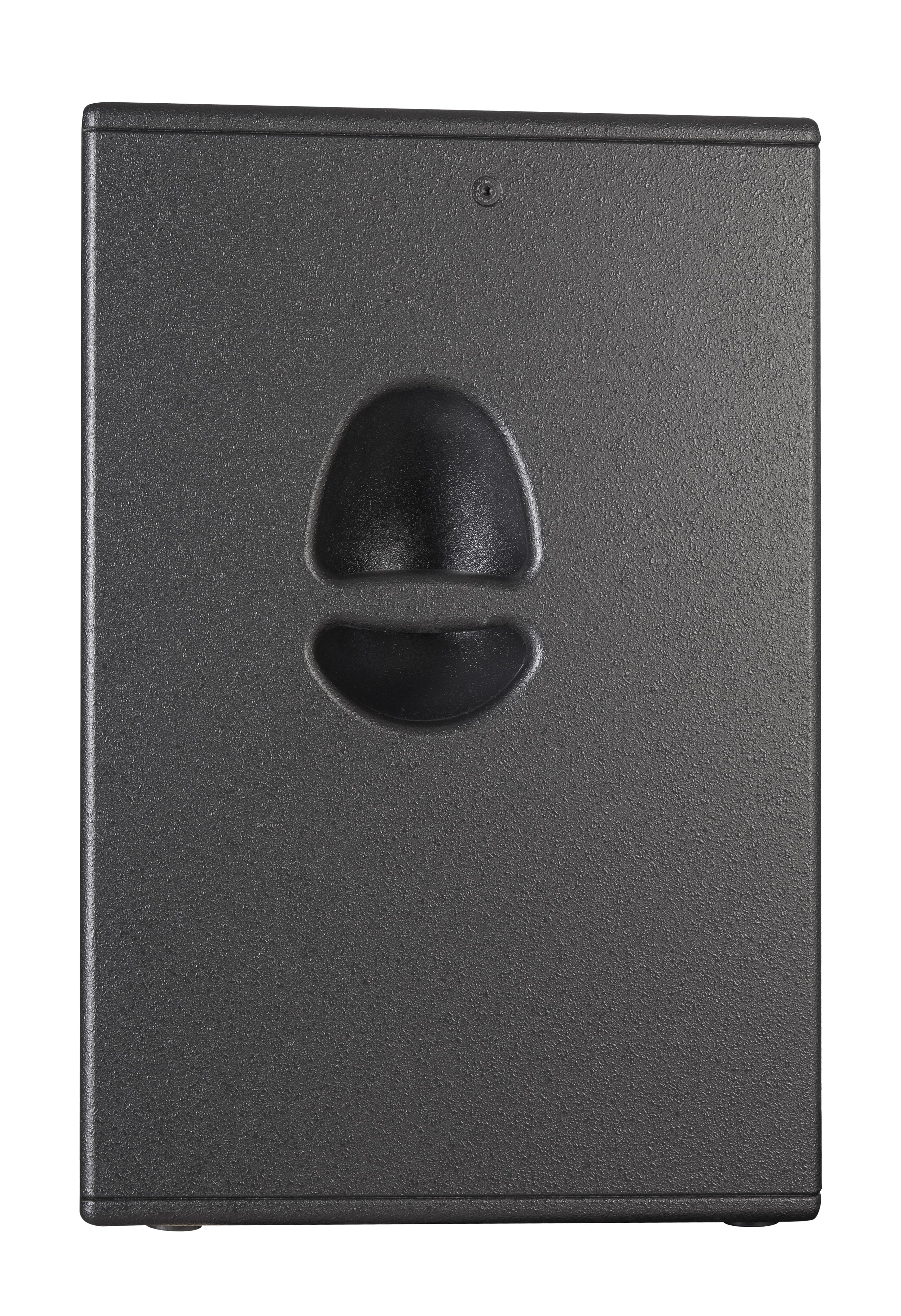

Carrying handles2 x integrated carrying handle
Cabinet materialMDF
Cabinet surfaceacrylic enamel
ColorJet black (RAL 9005)
Front grilleSteel front grille, backed with acoustic foam
Dimensions (W x H x D), metric47.5 x 62 x 41.5 cm
Dimensions (W x H x D), imperial18-11/16 x 24-13/32 x 16-11/32 inch
Weight, metric22.5 kg
Weight, imperial49.6 lbs
Compared to the PR:O 12, this speaker offers a significantly extended low-mid and bass response thanks to the 15″ speaker, which ensures a powerful and balanced sound reproduction. This extension in the low-frequency range makes it possible to ensure excellent sound quality even in larger rooms or for more demanding applications without having to rely on an additional subwoofer. This makes this speaker particularly suitable for stand-alone use where a complete and deeper sound reproduction is required.
Whether at live events, as the main speaker in medium-sized venues or in other professional applications, it offers excellent performance and flexibility to meet the requirements of a wide range of applications.
