PREMIUM PR:O 15 X

technical data

Characteristics

ConceptPassive 2-way mid/high unit

Cabinet principleBass reflex

Power handling RMS400 W

Power handling program800 W

Power handling peak1200 W

Nominal impedance¹8 Ohms

Max. SPL peak³128 dB

Sensitivity 1 W/1 m⁴104 dB

Crossover frequency2 kHz

Frequency range -6 dB60 Hz - 19 kHz

Frequency range -10 dB53 Hz - 19 kHz

Dispersion angle -6 dB (horizontal x vertical)60° x 40°

Index

Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)

Index 3)1 x unit @ 1 m, 10 % THD, half space

Index 4)half space

Components

Mid/high frequency1 x 15" cone speaker

High frequency1 x 1" compression driver

CrossoverHigh pass: 12 dB/oct., Low pass: 12 dB/oct.

High frequency protection circuitDynamic protective circuit

HornConstant directivity horn

Connections

Input1 x NL4 Speakon

Output/parallel output1 x NL4 Speakon

Pin assignment1+/-

Amping/Presets

Lab.gruppenIPX Series, IPD Series

Amping/Filter Sheets

Lab.GruppenIPX Series, IPD Series (limiter settings incl.)

Mechanical data

Cabinet features/riggingpole mount HK Audio DuoTilt 3°/7°, monitor angle: 45°, 3 x rigging point M8

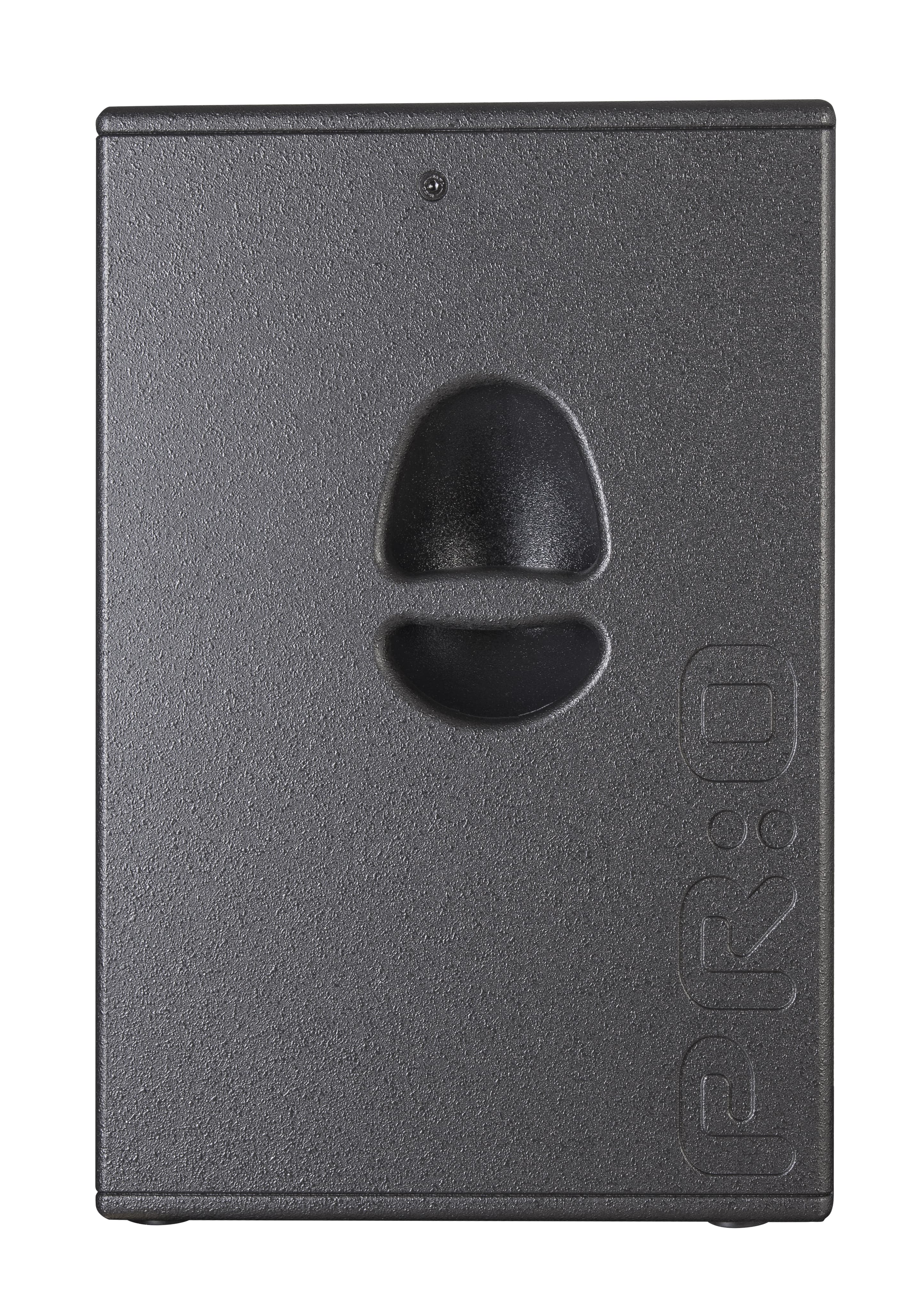

Carrying handles2 x integrated carrying handle

Cabinet materialMDF

Cabinet surfaceacrylic enamel

ColorJet black (RAL 9005)

Front grilleSteel front grille, backed with acoustic foam

Dimensions (W x H x D), metric47.5 x 62 x 45 cm

Dimensions (W x H x D), imperial18-11/16 x 24-13/32 x 17-23/32 inch

Weight, metric22 kg

Weight, imperial48.5 lbs

The multifunctional 15″ speaker offers an impressively rich bass response and high usable sound pressure, making it a powerful tool for a variety of professional audio applications. Its broad frequency spectrum not only ensures powerful bass and clear mids, but also precise and balanced sound reproduction.

Particularly noteworthy is the low susceptibility to feedback, which makes it possible to use this speaker in demanding live situations without having problems with unwanted feedback. In addition, the speaker offers excellent speech resolution, which is particularly evident in speech and vocal performances, ensuring clear intelligibility even at higher volumes.

With a dispersion angle of 45°, it is also excellent for use as a monitor, making it ideal for use on stage to give performers precise feedback of the sound.
