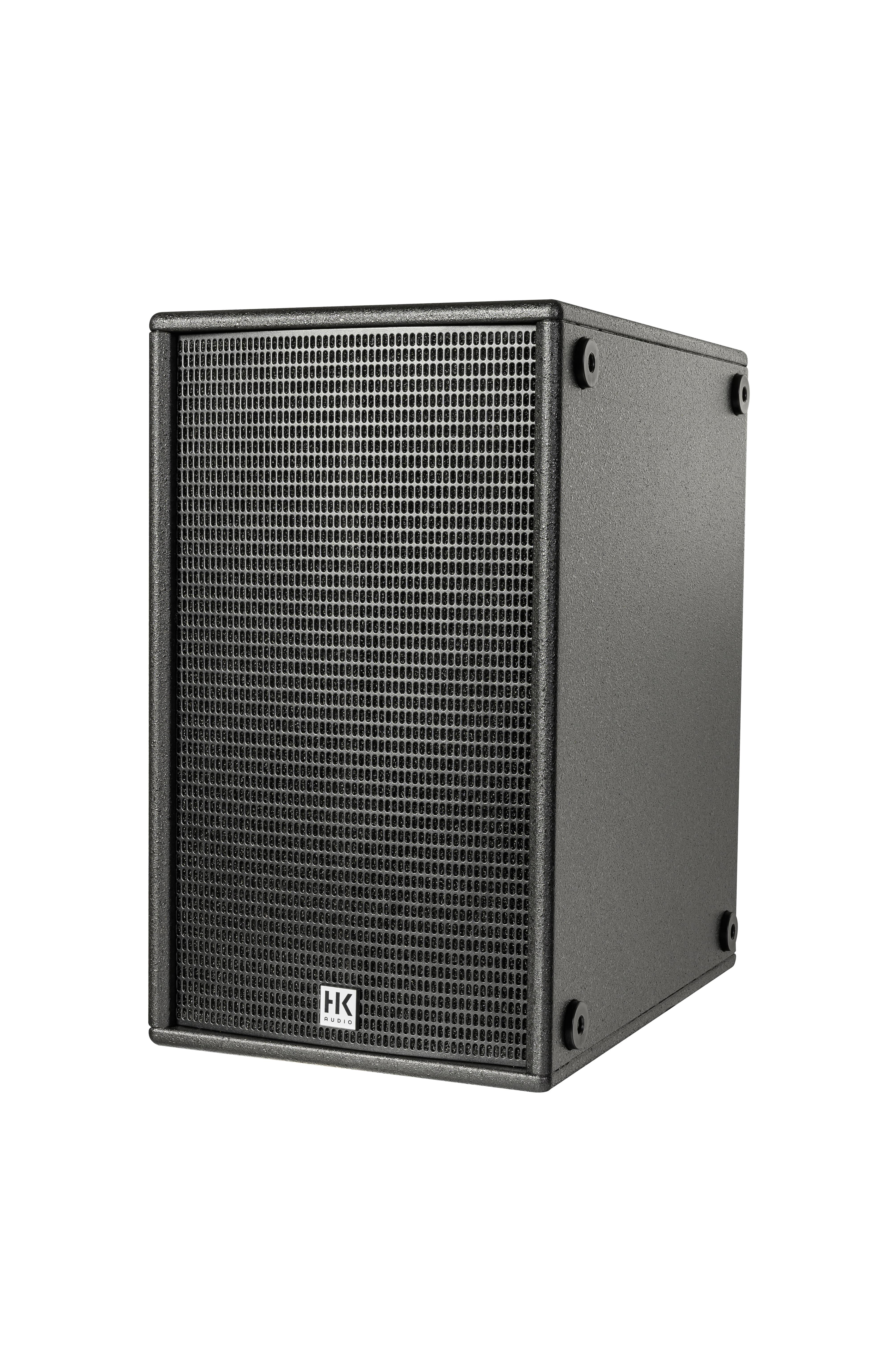

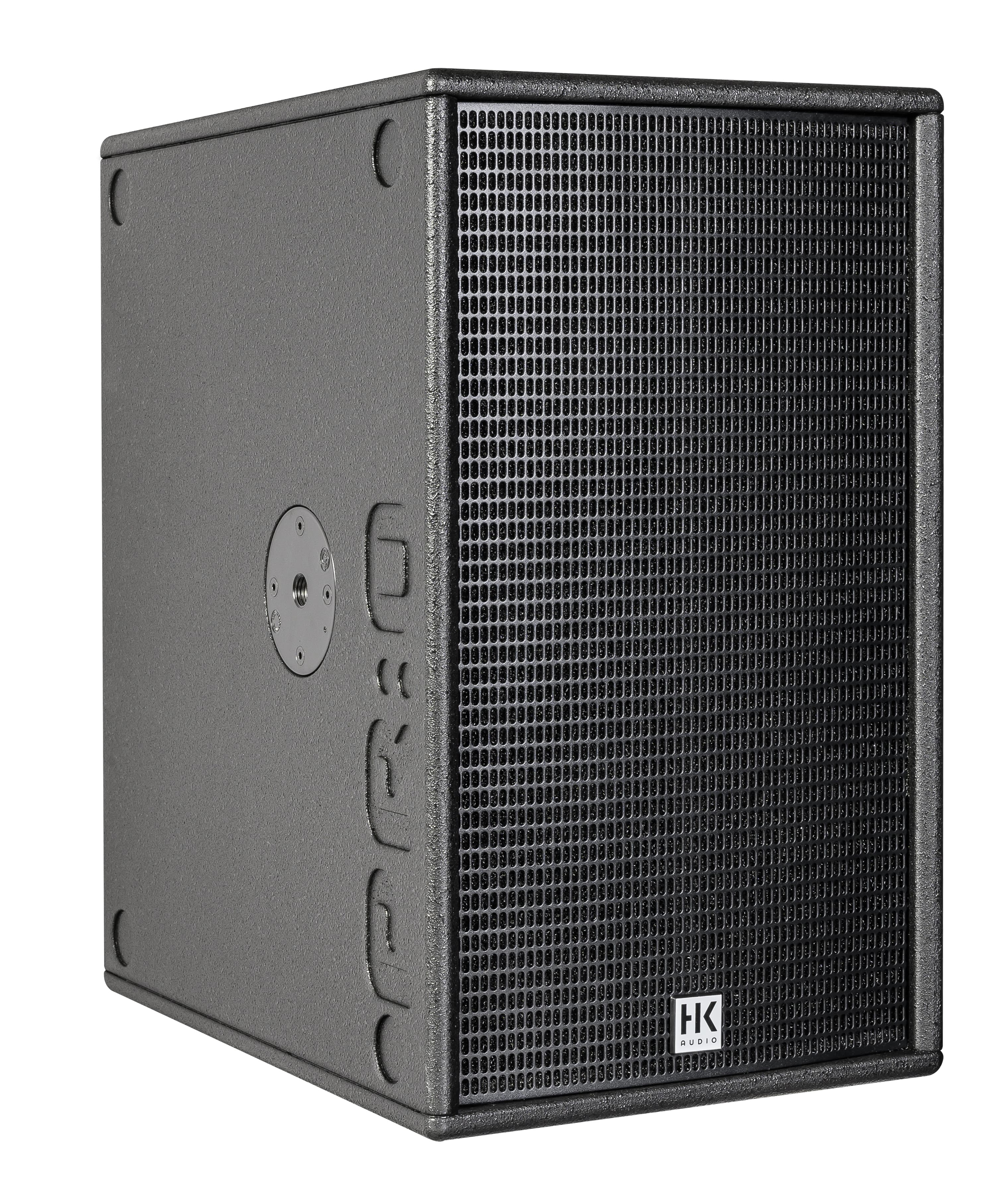

PREMIUM PR:O 210 SUB D2

THE GERMAN AUDIO STANDARD

With its 600 watts, the active 2 x 10” subwoofer in a bass reflex enclosure produces an impressive bass response, a powerful kick and surprising depth, despite its moderate dimensions.

Thanks to the two mid/high outputs and the adjustable frequency separation in the subwoofer, a 2.1 system, for example, can be easily created, even with active tops that do not have their own filtering. Ideal bass extension for setups with limited space and a small footprint.

Concept	Active subwoofer
Power amplifier output peak	600 W
Analog input	2 x XLR/jack combo symm.
Analog output	2 x XLR L/R Out Mid/High symm., 2 x XLR Thru symm.
Crossover frequency	75 Hz - 150 Hz, selectable

technical data

Characteristics

ConceptActive subwoofer

Cabinet principleBass reflex

Max. SPL average²123 dB

Max. SPL peak³126 dB

Crossover frequency75 Hz - 150 Hz, selectable

Frequency range -6 dB60 Hz - 150 Hz

Frequency range -10 dB40 Hz - 150 Hz

Index

Index 2)1 x Subwoofer @ 1 m, 10 % THD, 42 Hz - Crossover, (EN 60268-21), half space

Index 3)1 x Subwoofer @ 1 m, 10 % THD, half space

Components

Low frequency2 x 10" cone speaker

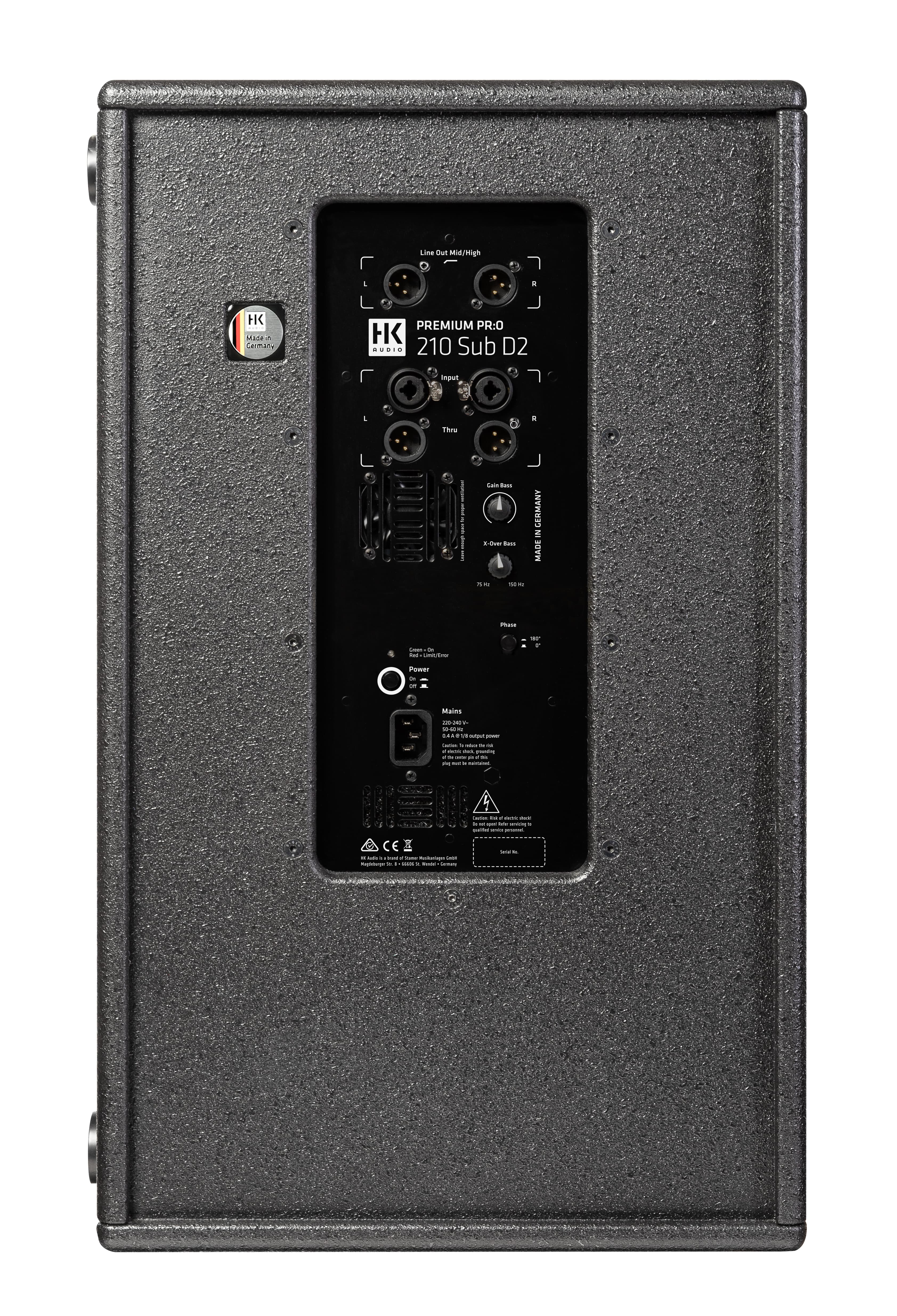

Connections

Analog input2 x XLR/jack combo symm.

Analog output2 x XLR L/R Out Mid/High symm., 2 x XLR Thru symm.

Electronical data

Power amplifierClass D

Power amplifier output peak600 W

Speaker protectionSubsonic-Filter, Peak-Limiter

Mechanical data

Cabinet features/rigging2 x M20 pole mount

Carrying handles2, MultiGrip

Cabinet materialMDF

Cabinet surfaceacrylic enamel

ColorJet black (RAL 9005)

Front grilleSteel front grille, backed with acoustic foam

Dimensions (W x H x D), metric37 x 62 x 53 cm

Dimensions (W x H x D), imperial14-9/16 x 24-13/32 x 20-7/8 inch

Weight, metric27.2 kg

Weight, imperial60.0 lbs

The active 2 x 10” subwoofer in a bass reflex cabinet impresses with its impressive bass response and exceptional performance, generating a powerful kick and surprising depth - despite its compact and space-saving dimensions.

The subwoofer has been specially developed for applications where powerful bass performance is required without taking up a lot of floor space. An outstanding feature is the ability to integrate it into versatile setups:

Thanks to the two mid/high outputs and the adjustable frequency separation in the subwoofer, a 2.1 system can be easily implemented, for example. This is particularly advantageous when using active tops that do not have their own filtering. This maximizes the flexibility of the system, as precise and effective separation of the frequencies is guaranteed.

The subwoofer is an ideal bass extension for setups with limited space, where the sound must not only be full and deep, but also efficient and unobtrusive. This combination of performance, flexibility and compact dimensions makes the subwoofer the perfect solution for professional applications where both sound quality and space optimization play an important role.
