PREMIUM PR:O 8

THE GERMAN AUDIO STANDARD

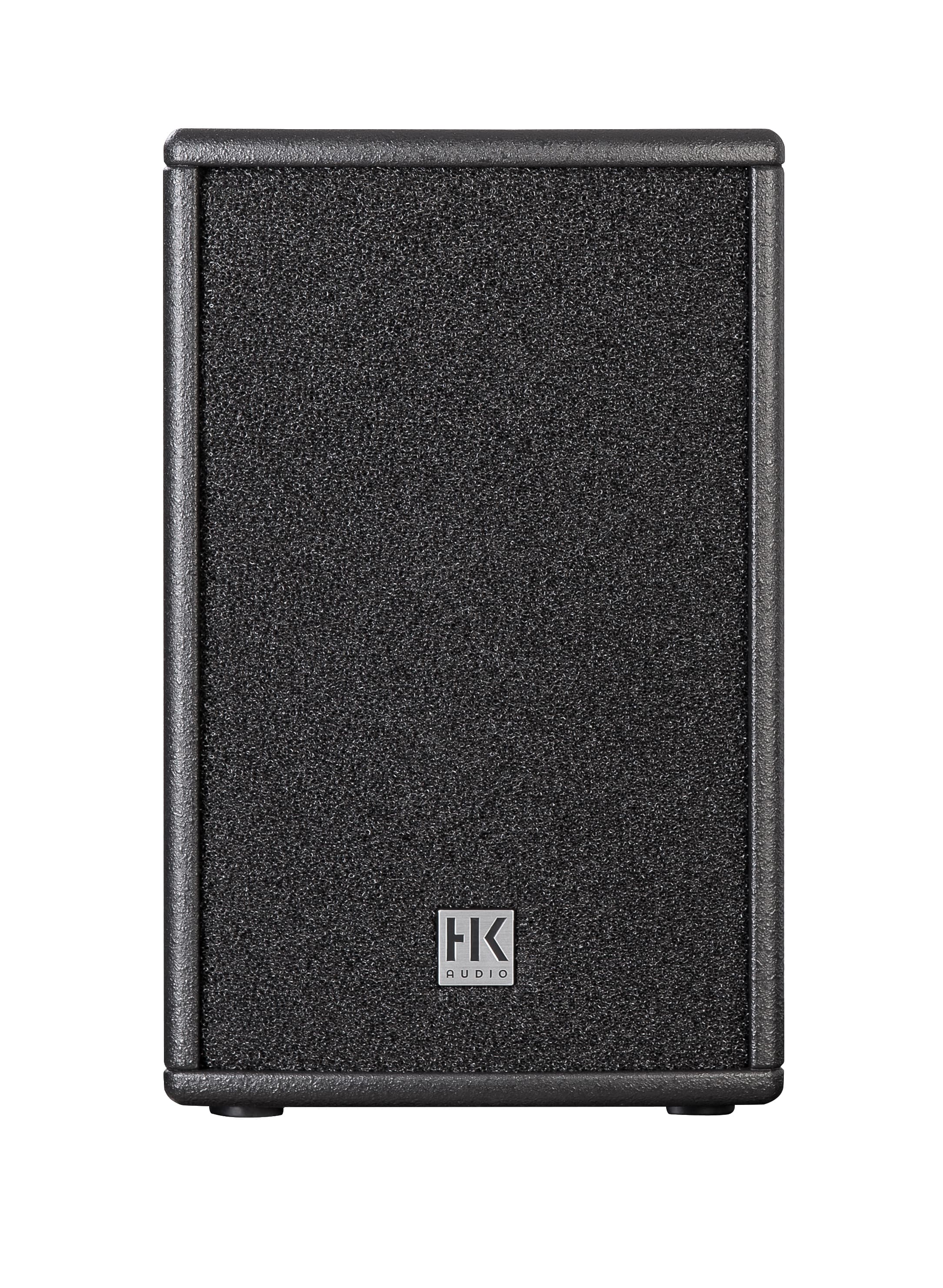

Compact 8″ full-range speaker with amazing bass response and astonishingly high sound pressure. Its size makes it particularly suitable for uncomplicated installations.

Concept	Passive 2-way mid/high unit
Nominal impedance	8 Ohms
Analog input
Cabinet features/rigging	HK Audio MonoTilt 3°, 3 x rigging point M8
Power handling RMS	300 W

technical data

Characteristics

ConceptPassive 2-way mid/high unit

Cabinet principleBass reflex

Power handling RMS300 W

Power handling program600 W

Power handling peak1200 W

Nominal impedance¹8 Ohms

Max. SPL peak³122 dB

Sensitivity 1 W/1 m⁴97 dB

Crossover frequency2.5 kHz

Frequency range -6 dB89 Hz - 19 kHz

Frequency range -10 dB63 Hz - 19 kHz

Dispersion angle -6 dB (horizontal x vertical)80° x 80°

Index

Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)

Index 3)1 x unit @ 1 m, 10 % THD, half space

Index 4)half space

Components

Mid/high frequency1 x 8" cone speaker

High frequency1 x 1" compression driver

CrossoverHigh pass: 12 dB/oct., Low pass: 12 dB/oct.

High frequency protection circuitDynamic protective circuit

HornConstant directivity horn

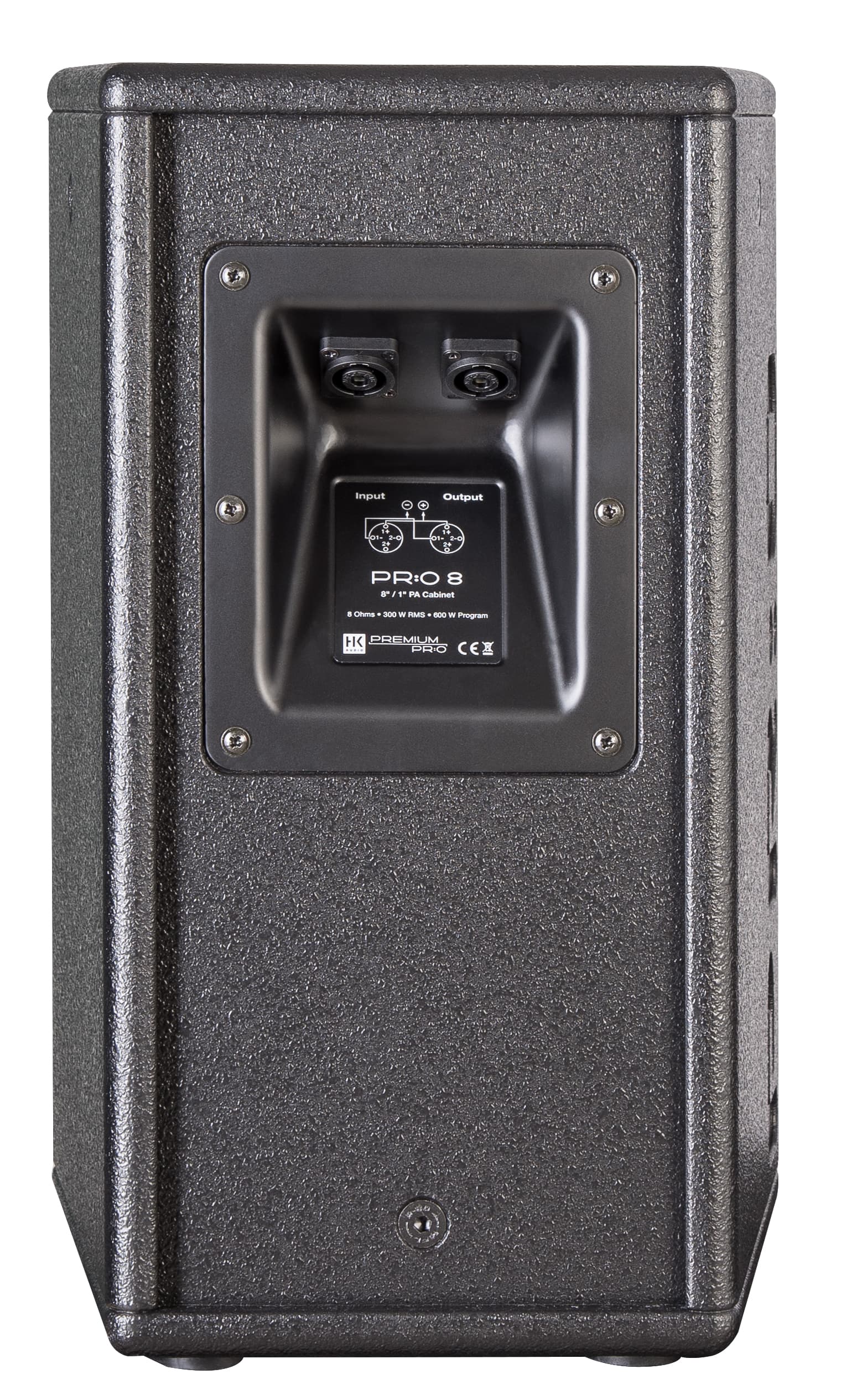

Connections

Input1 x NL4 Speakon

Output/parallel output1 x NL4 Speakon

Pin assignment1+/-

Amping/Presets

Lab.gruppenIPX Series, IPD Series

Amping/Filter Sheets

Lab.GruppenIPX Series, IPD Series (limiter settings incl.)

Mechanical data

Cabinet features/riggingHK Audio MonoTilt 3°, 3 x rigging point M8

Carrying handles2 x integrated carrying handle

Cabinet materialMDF

Cabinet surfaceacrylic enamel

ColorJet black (RAL 9005)

Front grilleSteel front grille, backed with acoustic foam

Dimensions (W x H x D), metric27 x 42 x 27.5 cm

Dimensions (W x H x D), imperial10-5/8 x 16-17/32 x 10-13/16 inch

Weight, metric10 kg

Weight, imperial22.0 lbs

The compact 8” full-range speaker offers surprisingly deep bass reproduction and an amazingly high sound pressure level, even in larger rooms or more demanding applications, for impressive sound quality.

Its ability to deliver a wide range of sounds with clear mids and powerful lows makes it an excellent choice for a variety of audio applications. Particularly noteworthy are its versatility and ease of use, making it ideal for straightforward installations in confined or limited spaces. Its compact design makes it easy to integrate into a wide range of setups, whether it's in small event spaces, retail sound reinforcement, or installations in other environments where space is limited.

The box impresses with its flexibility and ease of use, without sacrificing premium sound quality. This makes it a practical and powerful solution for applications where both performance and quick and easy integration are required.
