S210 P
VERSATILE INSTALLATION TOOLS
technical data
Characteristics
ConceptFlight capable passive subwoofer
Cabinet principleClosed with passive membrane
Power handling RMS300 W
Power handling program600 W
Power handling peak1200 W
Nominal impedance14 Ohms / 16 Ohms (switchable)
Max. SPL average2115 dB
Max. SPL peak3117 dB
Frequency range -6 dB50 Hz - 140 Hz
Frequency range -10 dB48 Hz -140 Hz
Dispersion angle -6 dB (horizontal x vertical)omnidirectional
Index
Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)
Index 2)1 m, 10 % THD @ 40 Hz - 140 Hz, (EN 60268-21), full space
Index 3)1 m, 10 % THD @ 145 Hz, full space
Certifications
Ball impact resistance (DIN 18032-3)certified (MPA Uni Stuttgart)
IP-Protection class (EN 60529)IP 66 (TÜV Süd)
Components

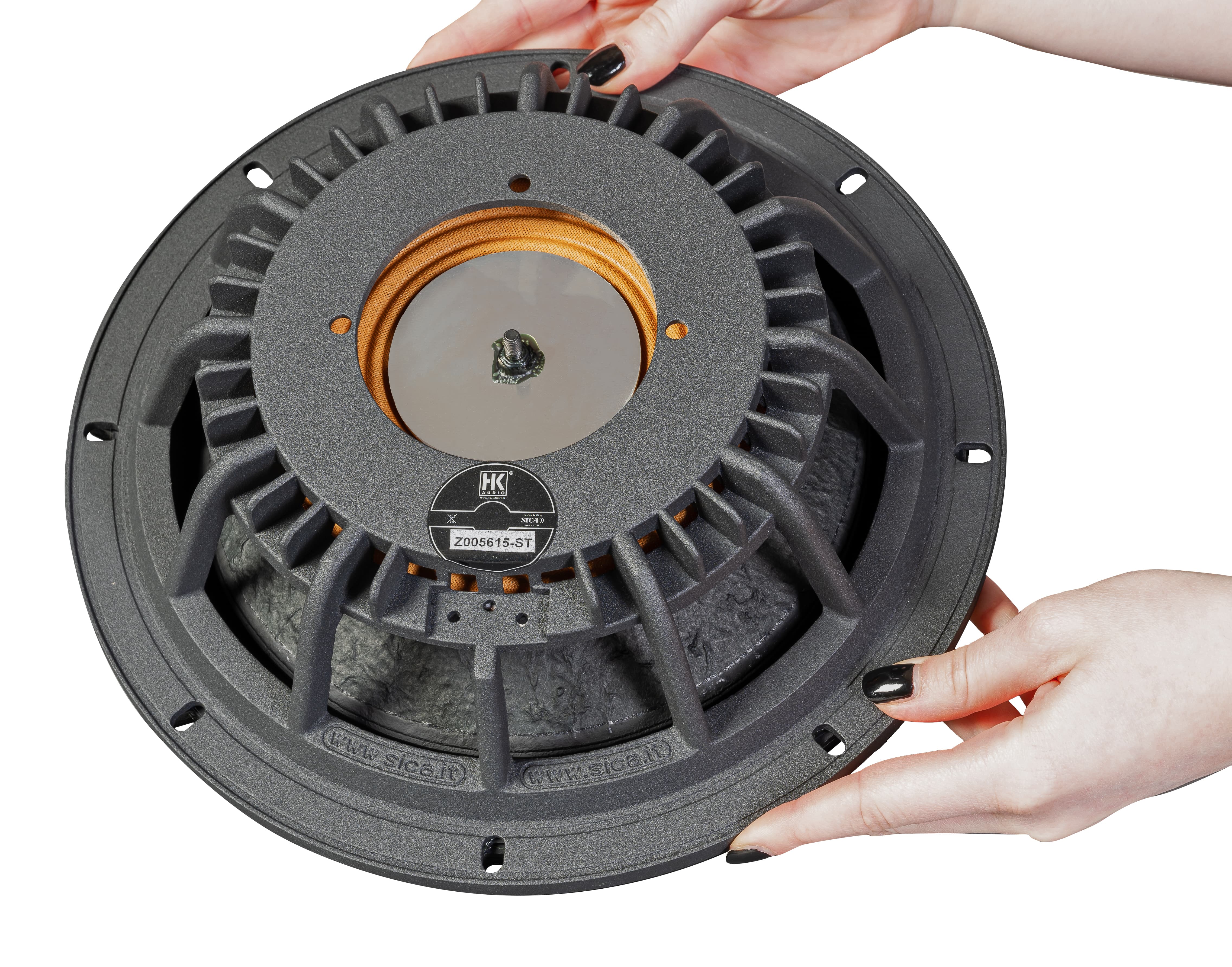

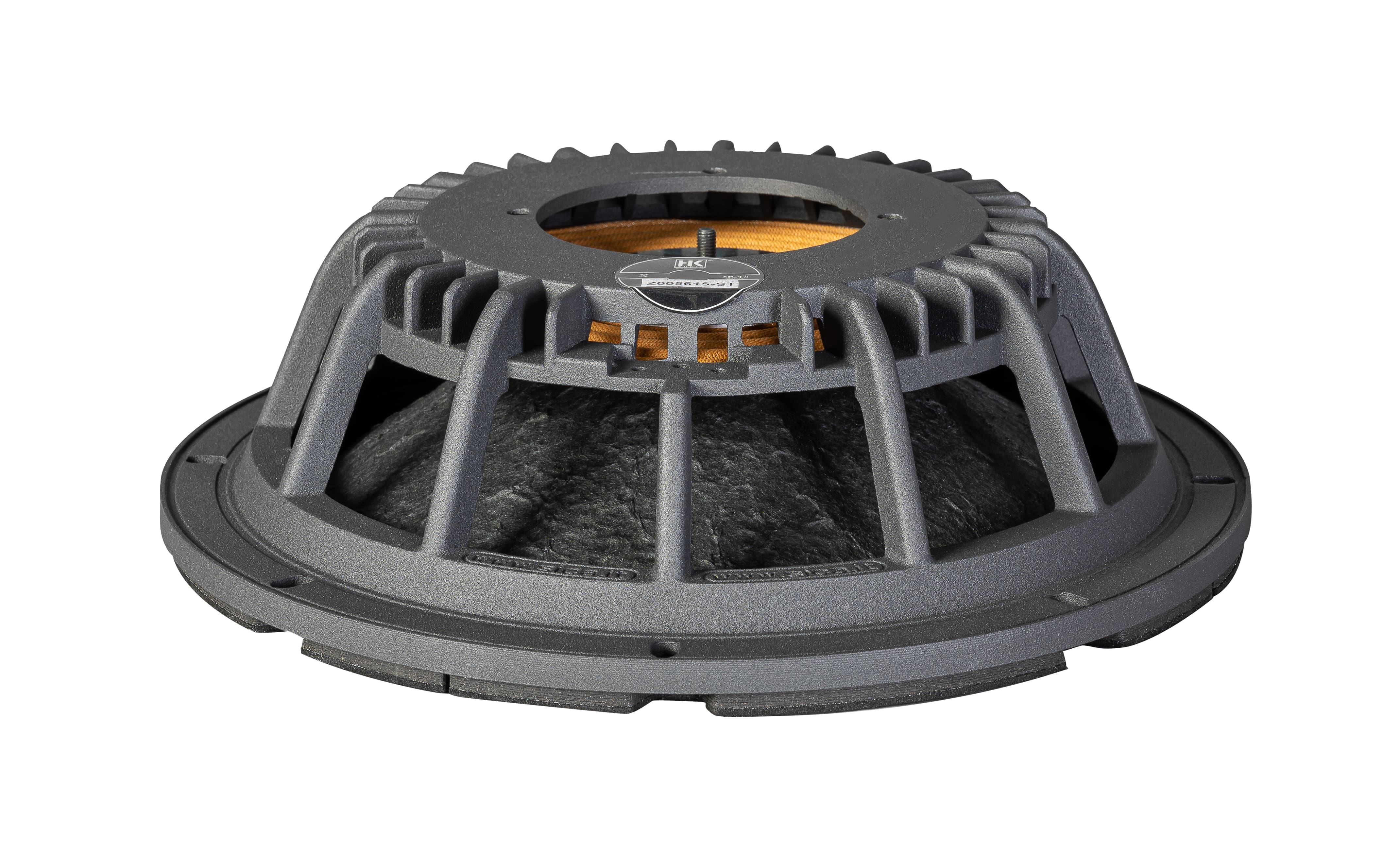

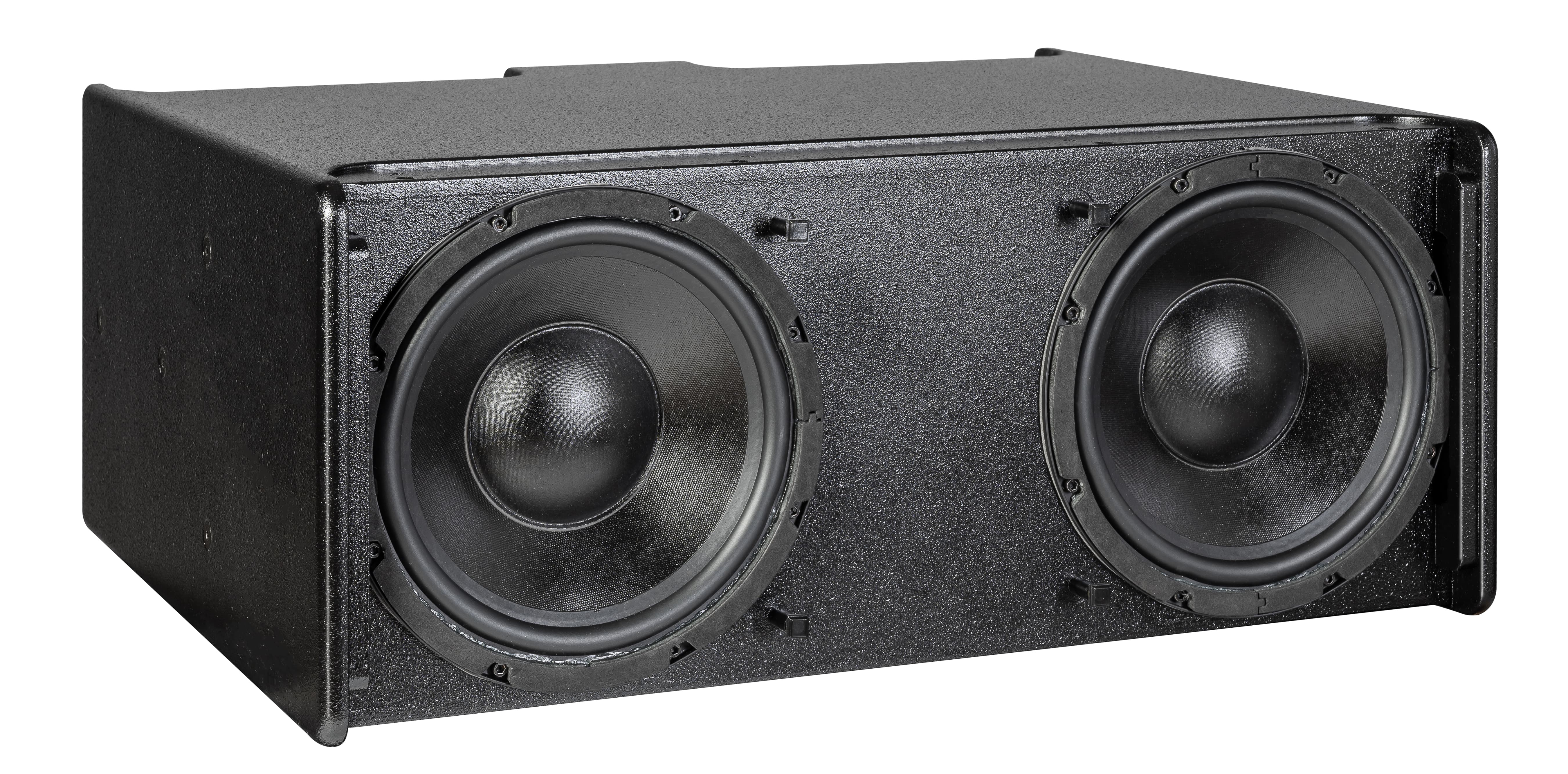

Low frequency2 x 10" Sica cone speaker with ferrite magnet and 2.5"-voice coil and 2 x 10" Sica passive membranes
Crossoverno integrated crossover
Connections

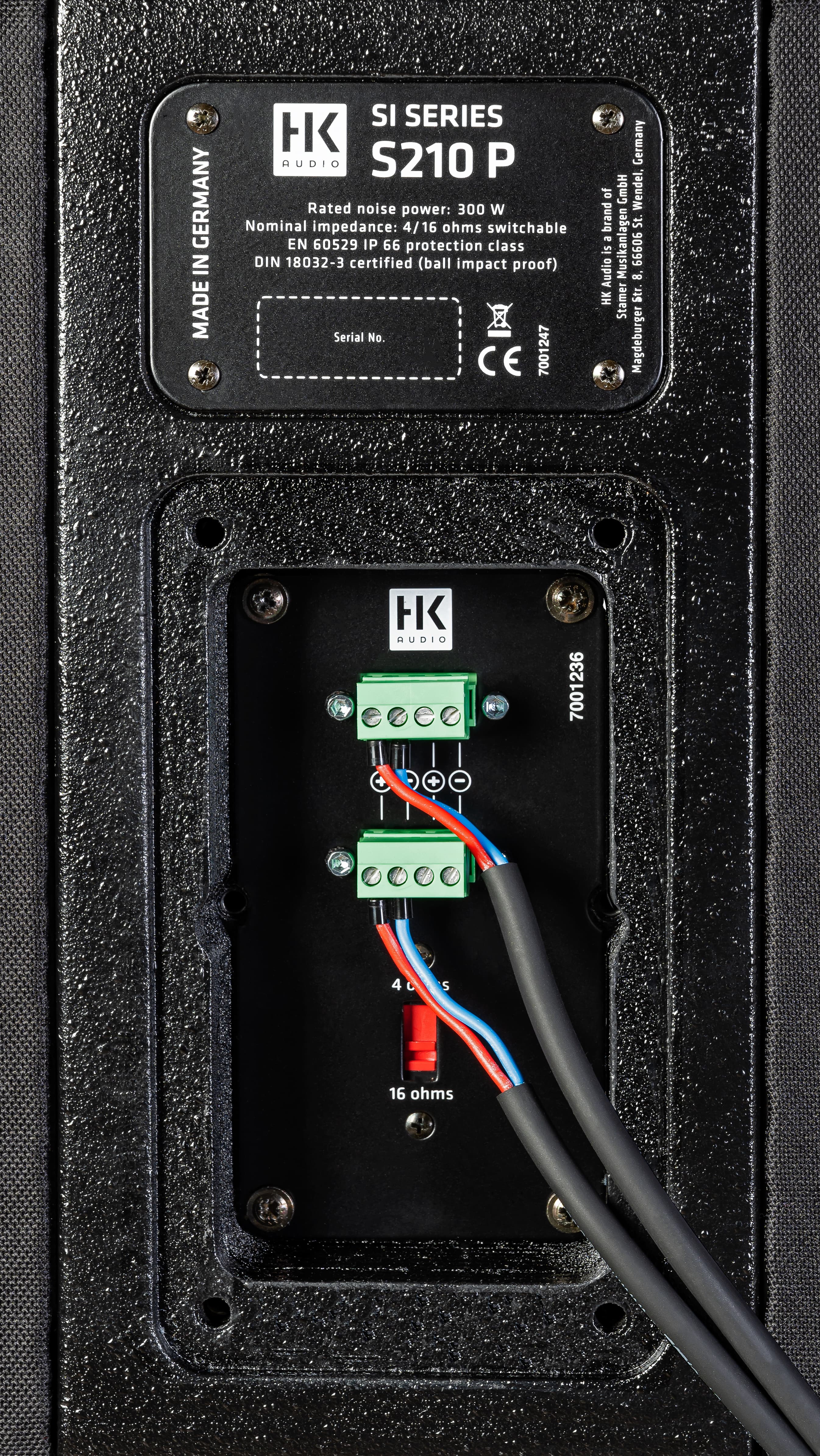

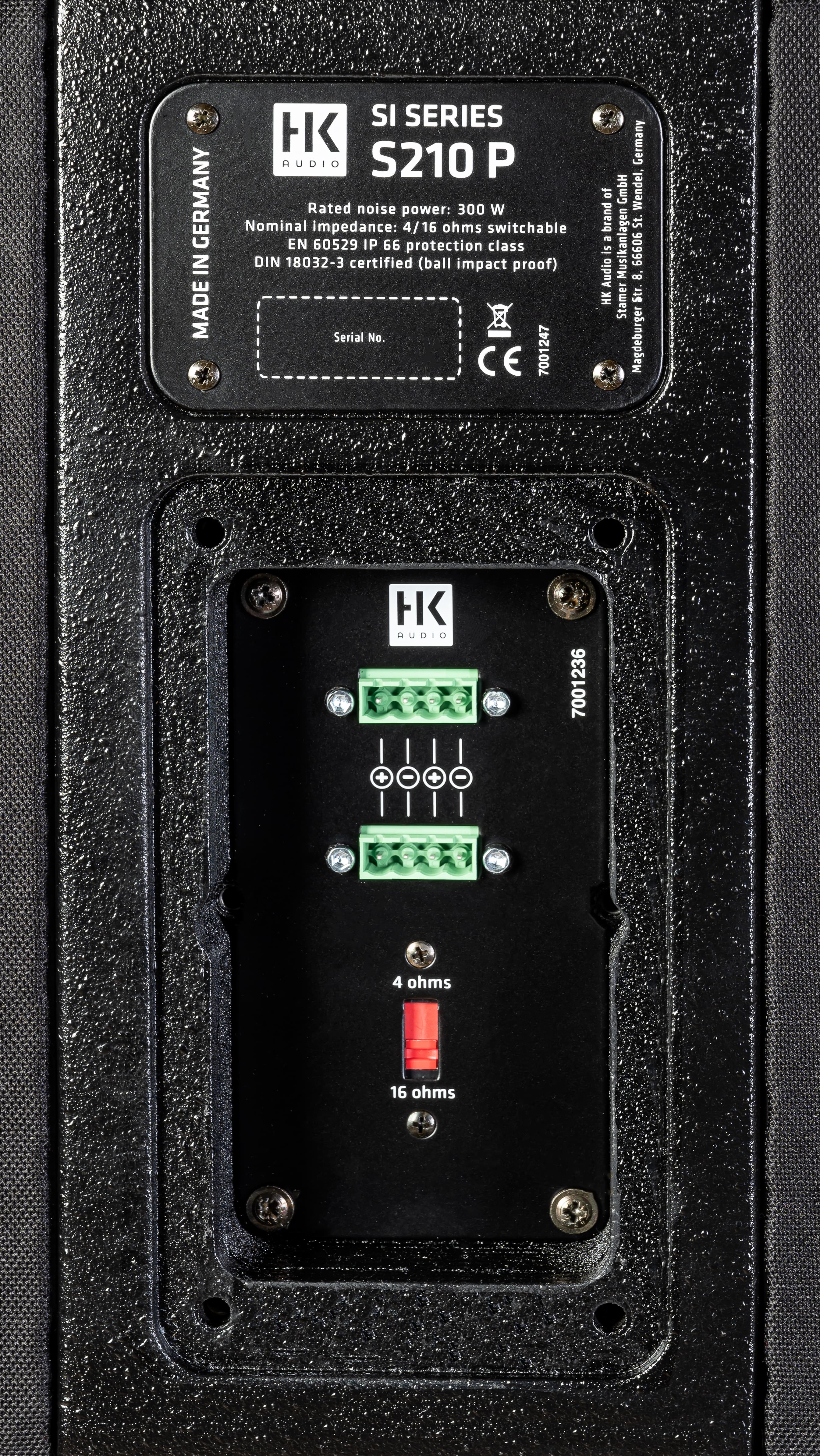

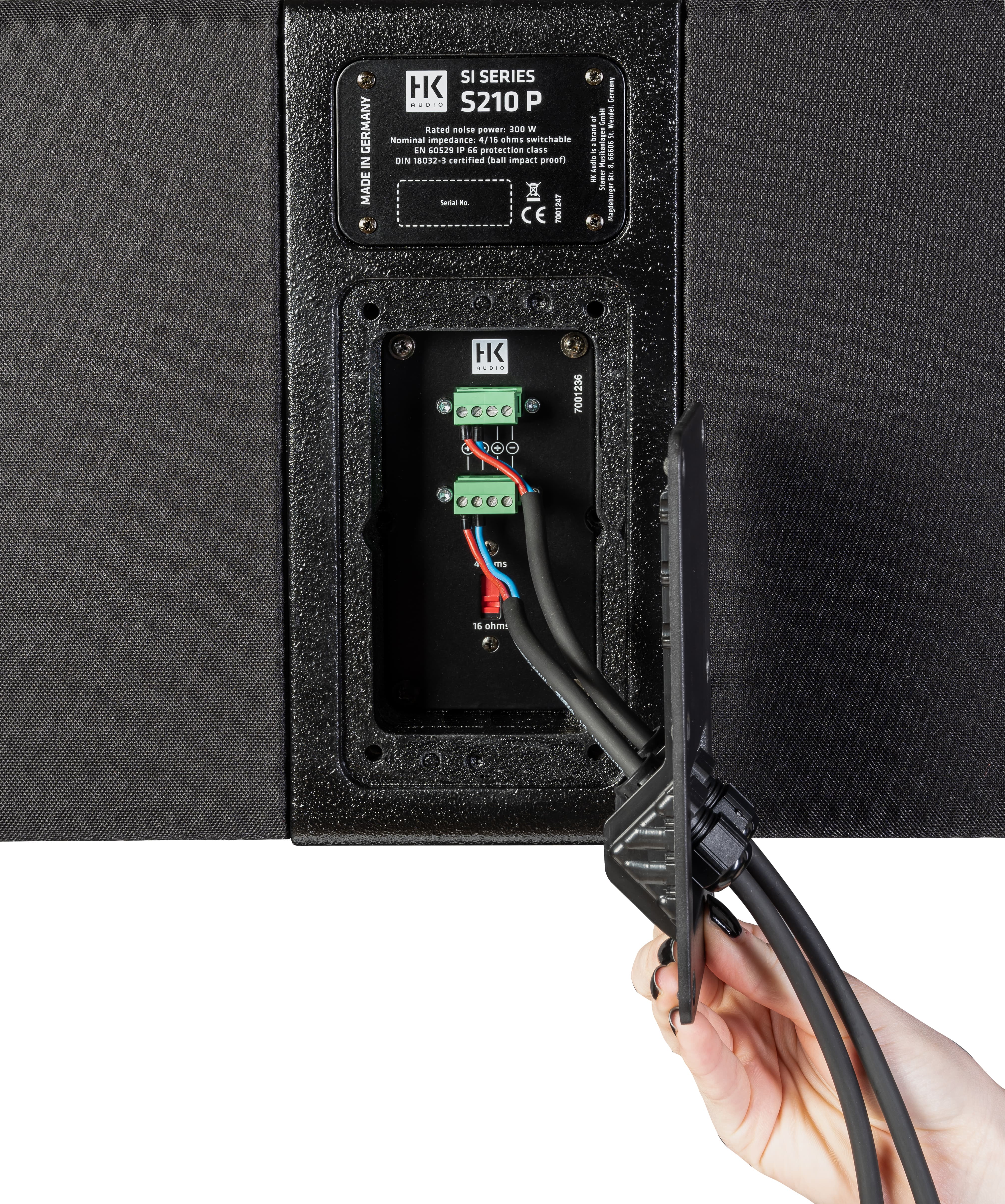

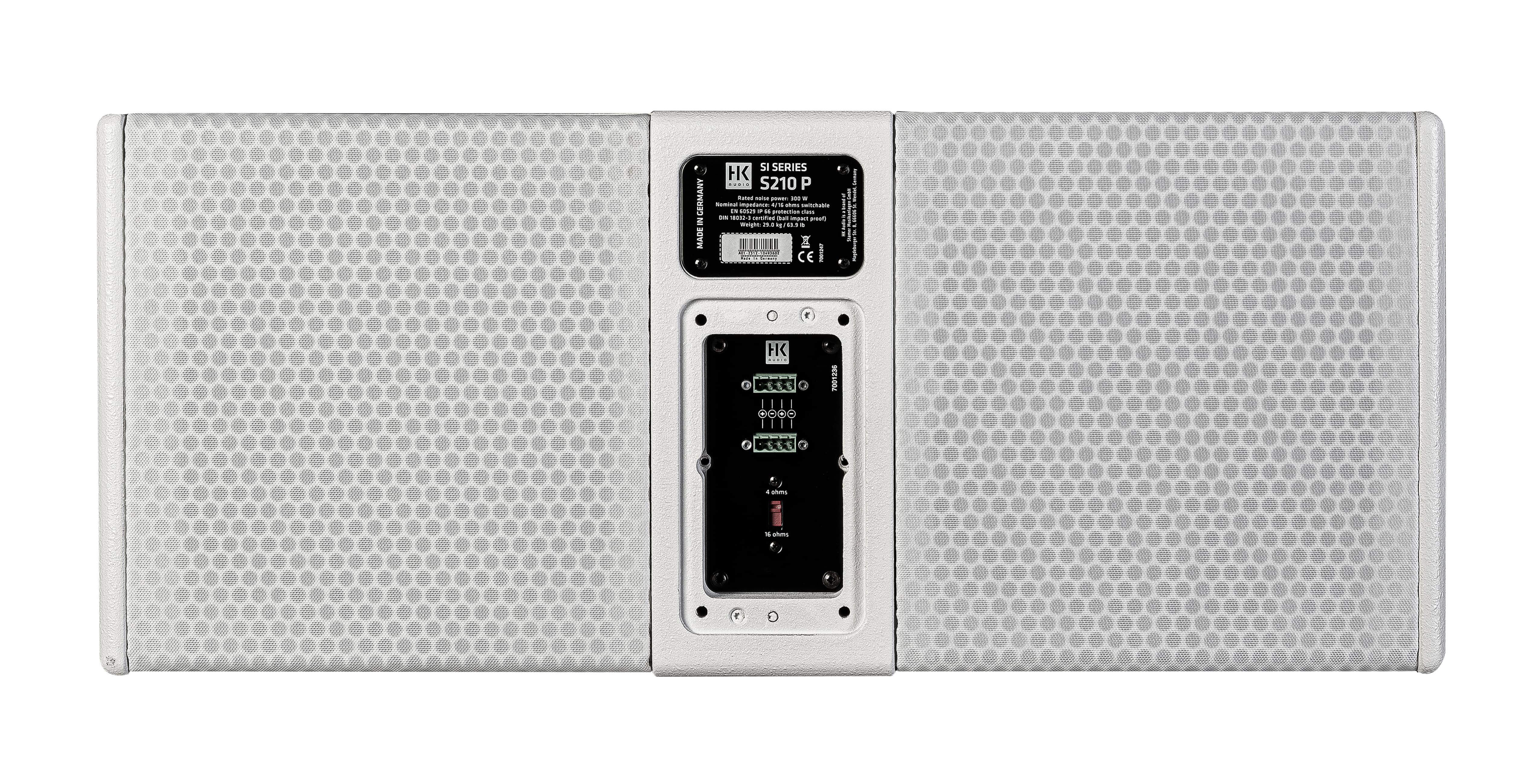

Input1 x 4-pin Euroblock plug
Output/parallel output1 x 4-pin Euroblock plug, parallel connecion
Amping/Presets
Lab.gruppenIPX Series, IPD Series, Lake
PowersoftArmonia+
othersQSC Q-SYS (Filter container)
Amping/Filter Sheets
Lab.GruppenIPX Series, IPD Series (limiter settings incl.)
Mechanical data

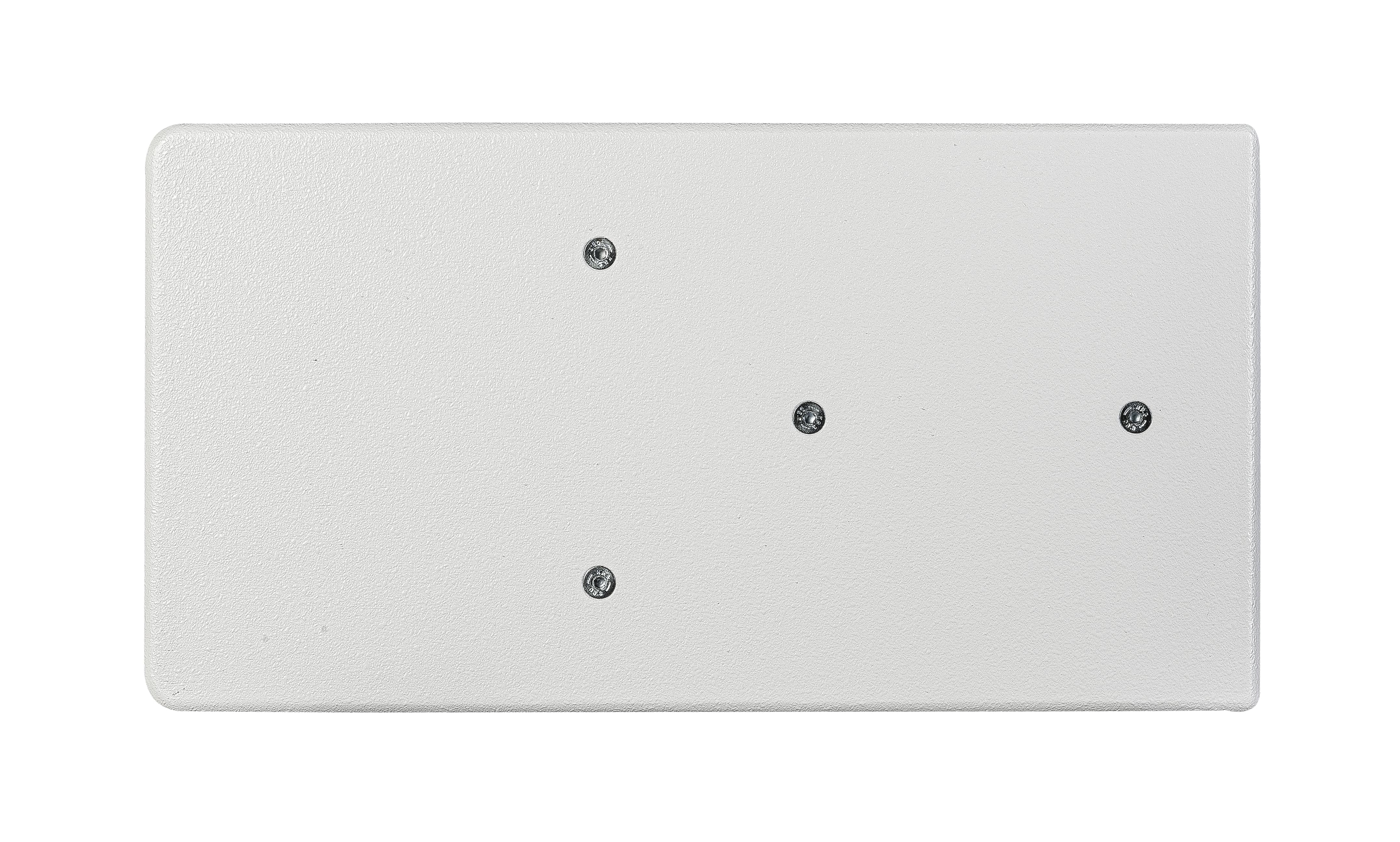

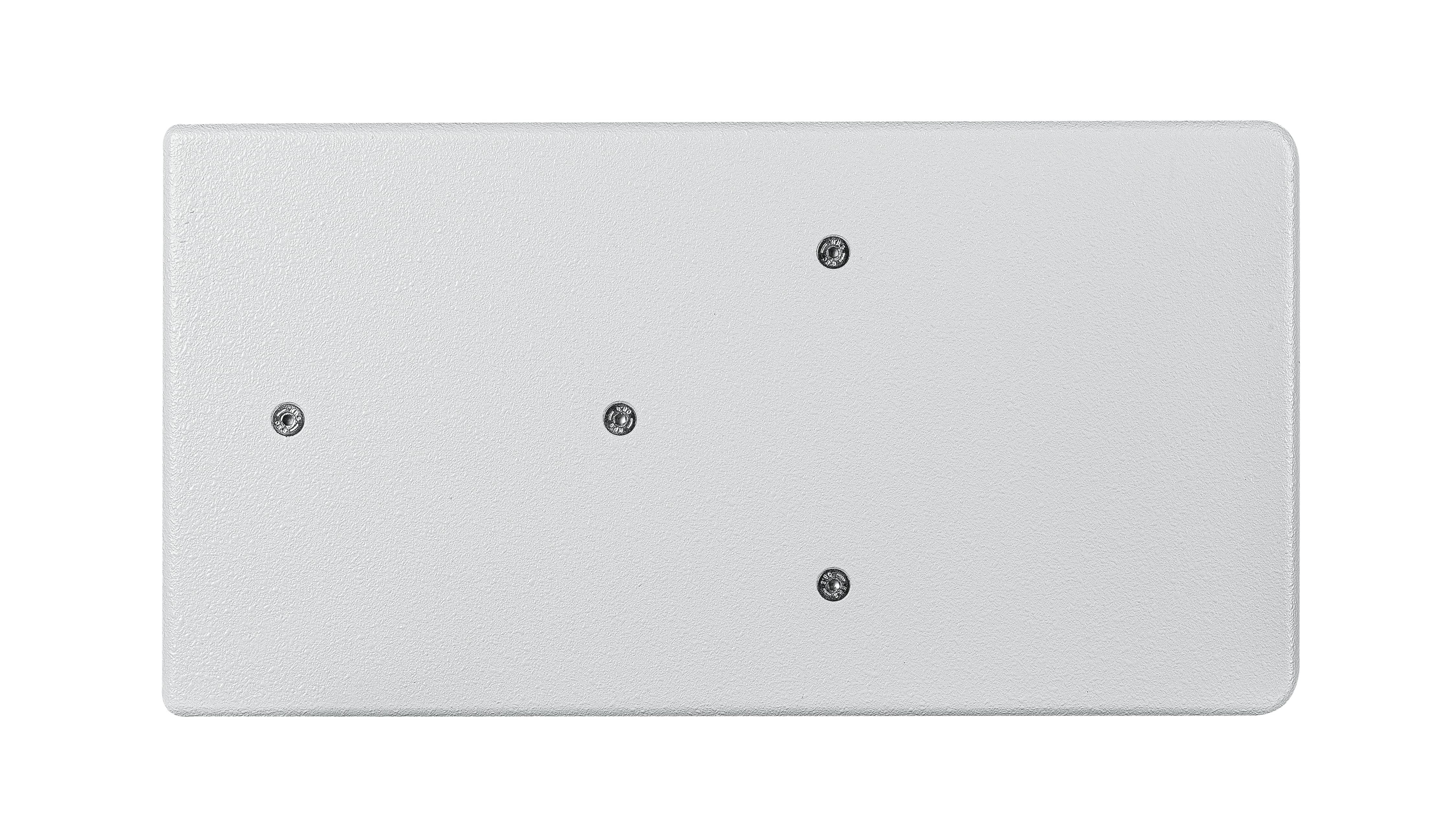

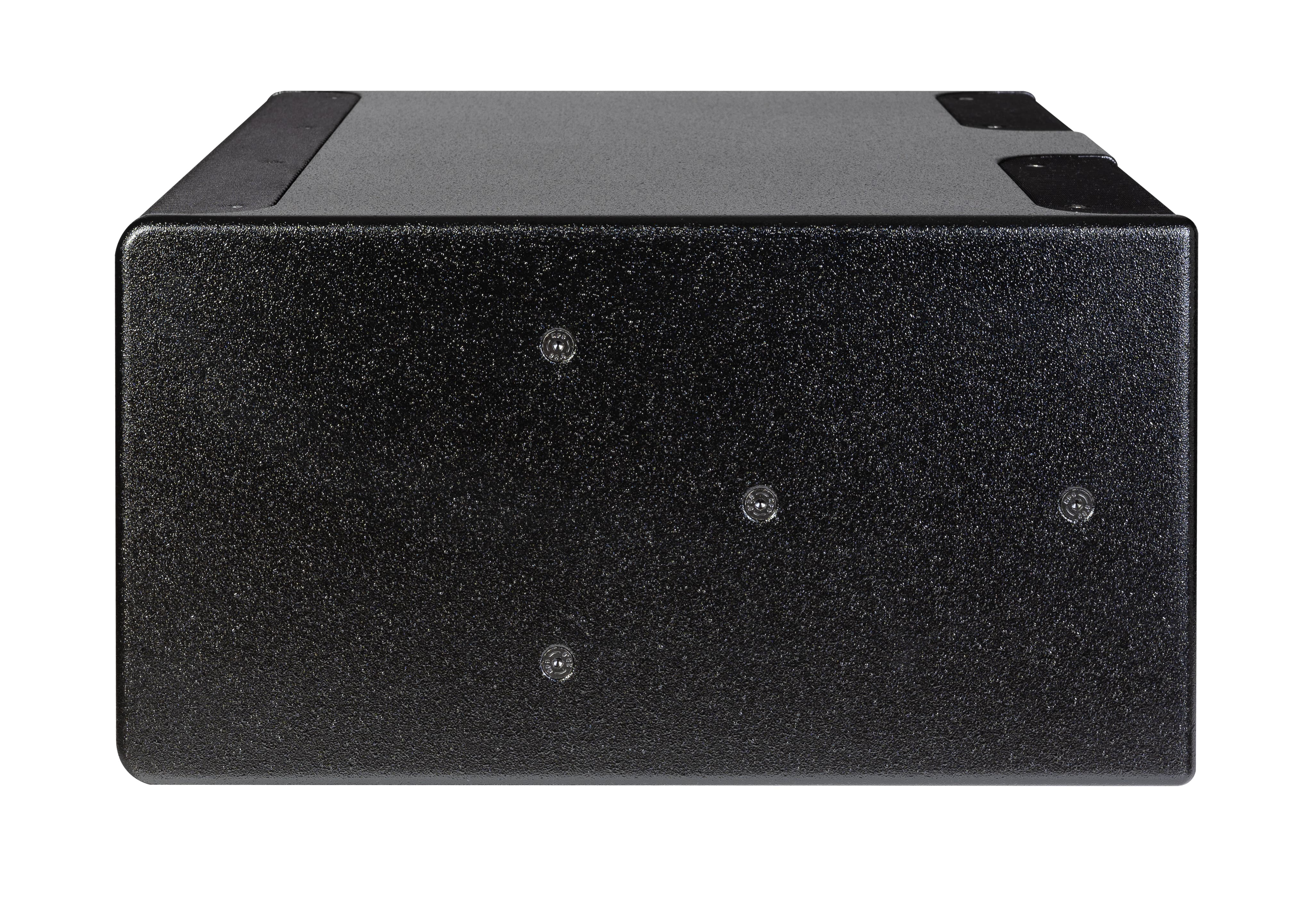

Cabinet features/rigging8 x M8 on the side
Cabinet materialBirch plywood
Cabinet surface2-component textured coating
ColorJet black (RAL 9005), Signal white (RAL 9003) or special color according to catalog (over 30 colors), also optional PU coating for installation in unroofed outdoor areas

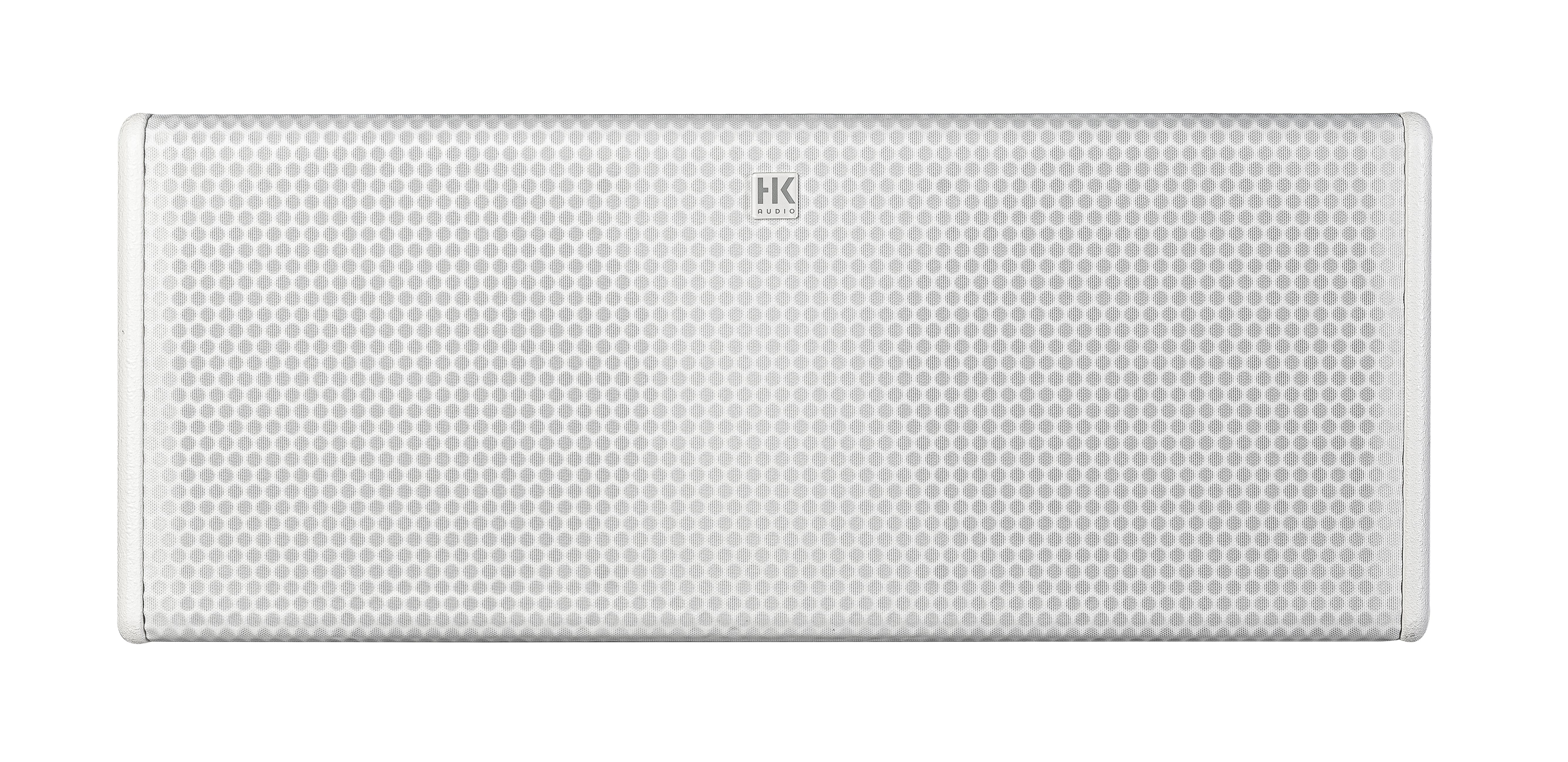

Front grilleSteel front grille with anticorrosive coating and external acoustic fabric, optionally hydrophobic or flame retardant

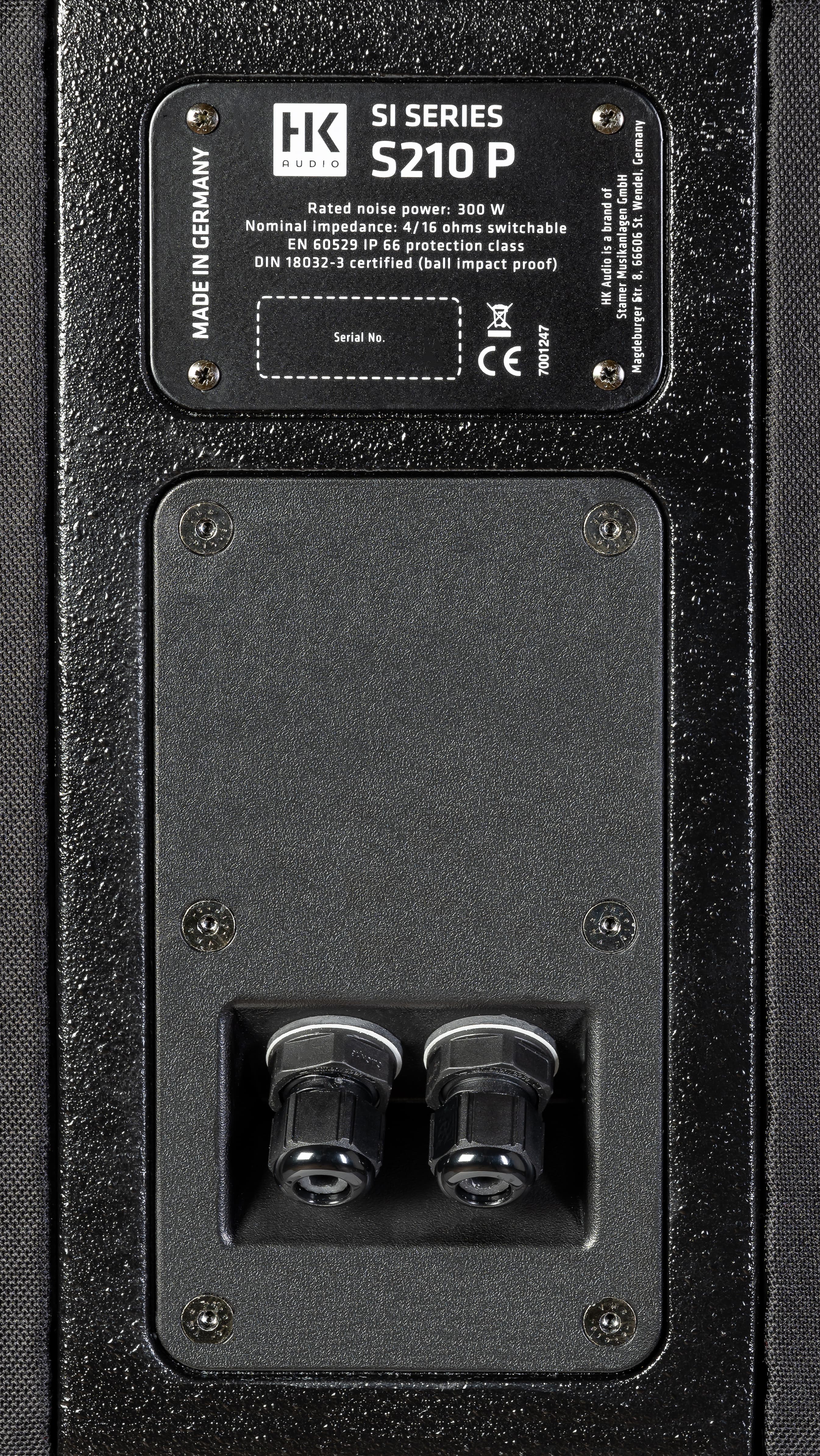

Accessories includedcover plate with 2 x PG screw connection
Dimensions (W x H x D), metric70.0 x 29.7 x 55.0 cm
Dimensions (W x H x D), imperial27-9/16 x 11-11/16 x 21-21/32 inch
Weight, metric29.0 kg
Weight, imperial63.9 lbs

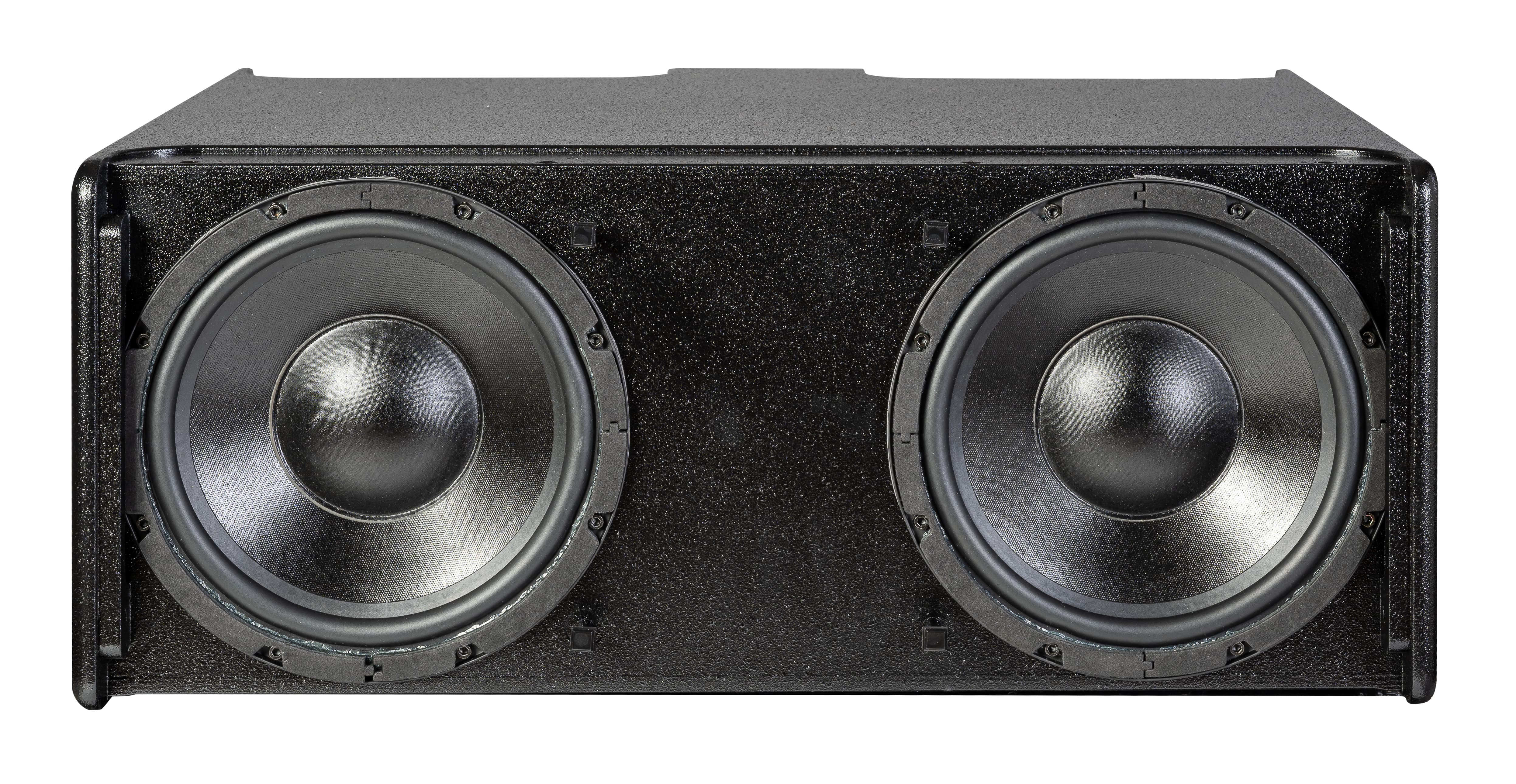

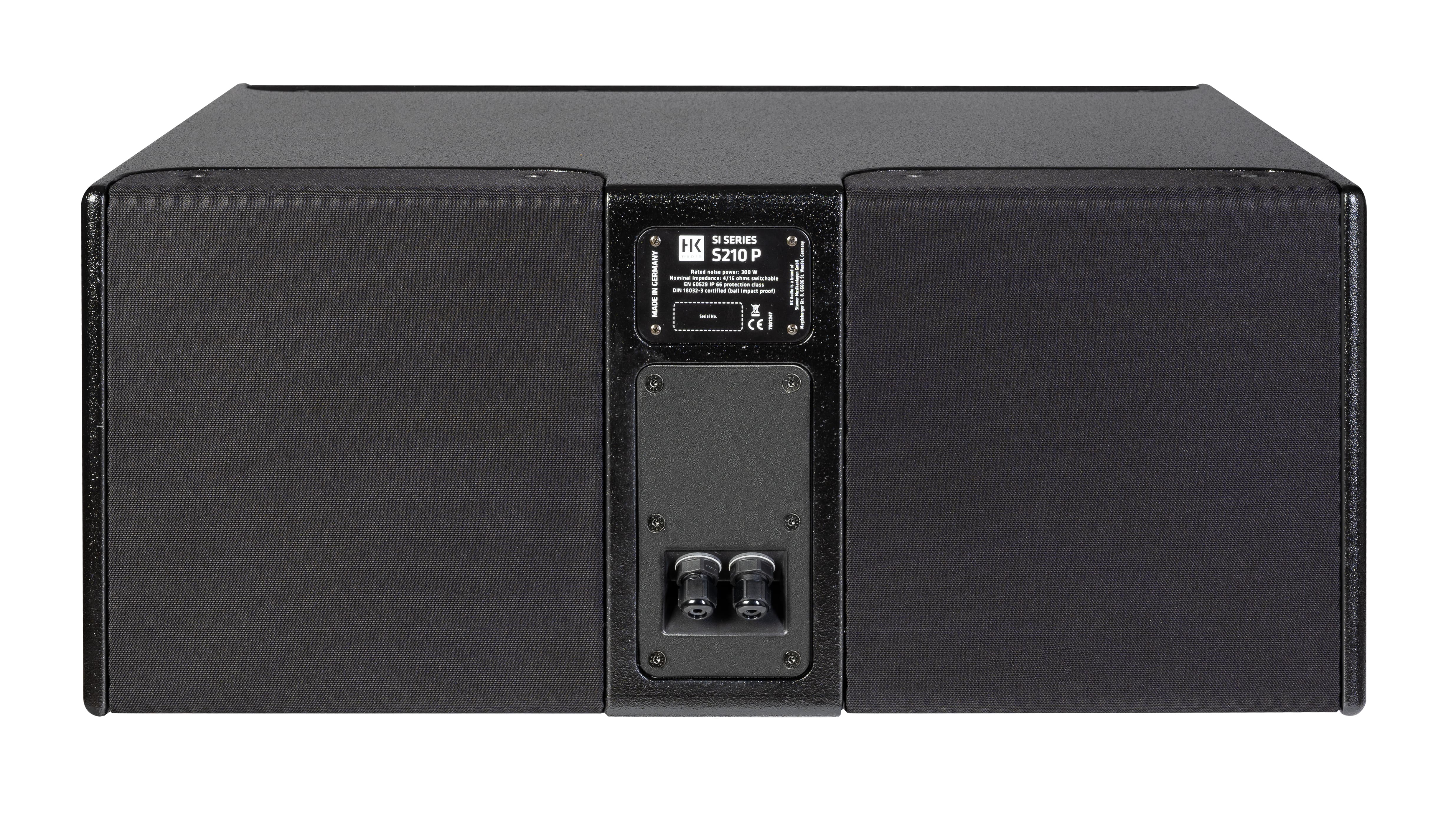

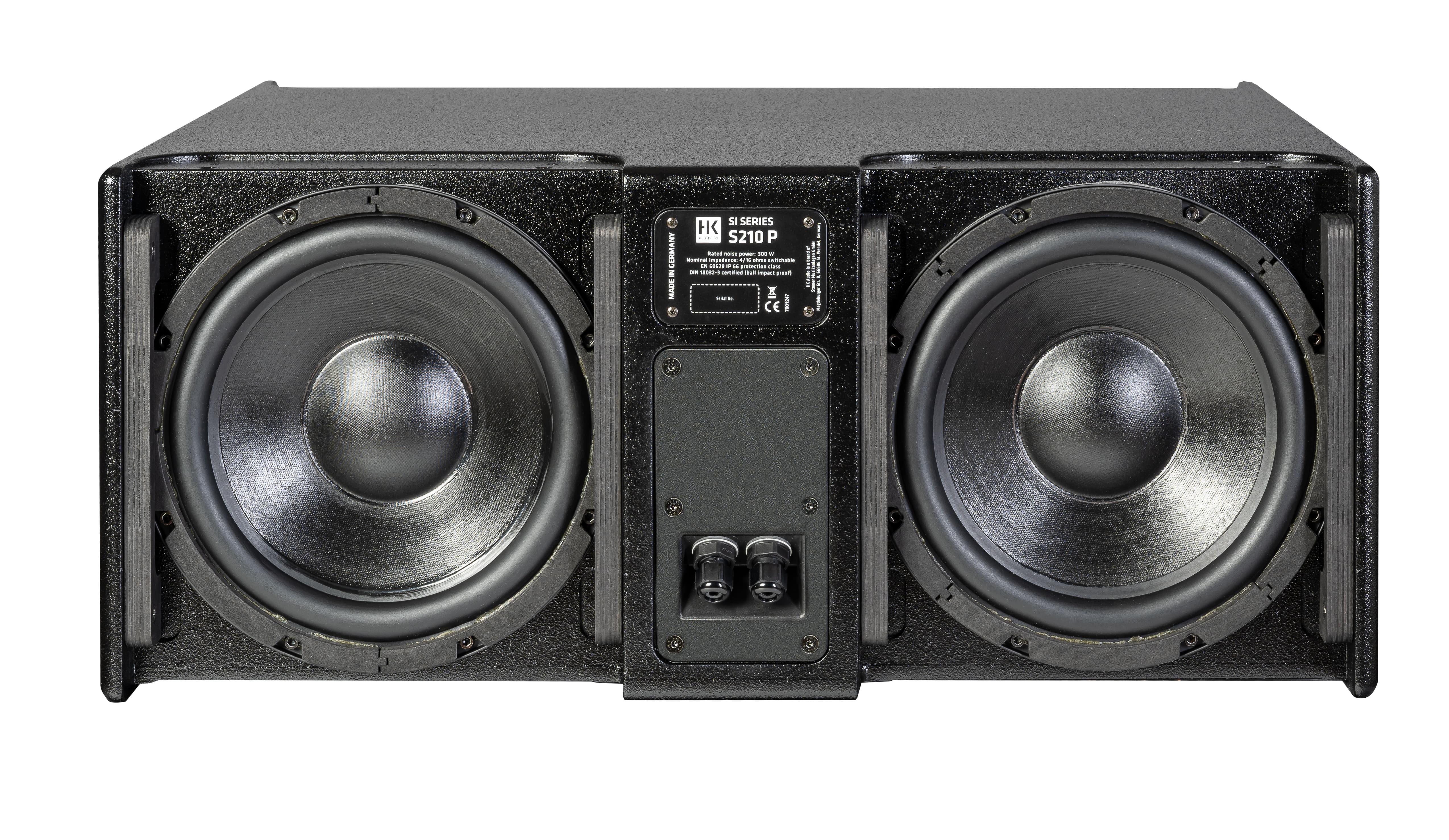

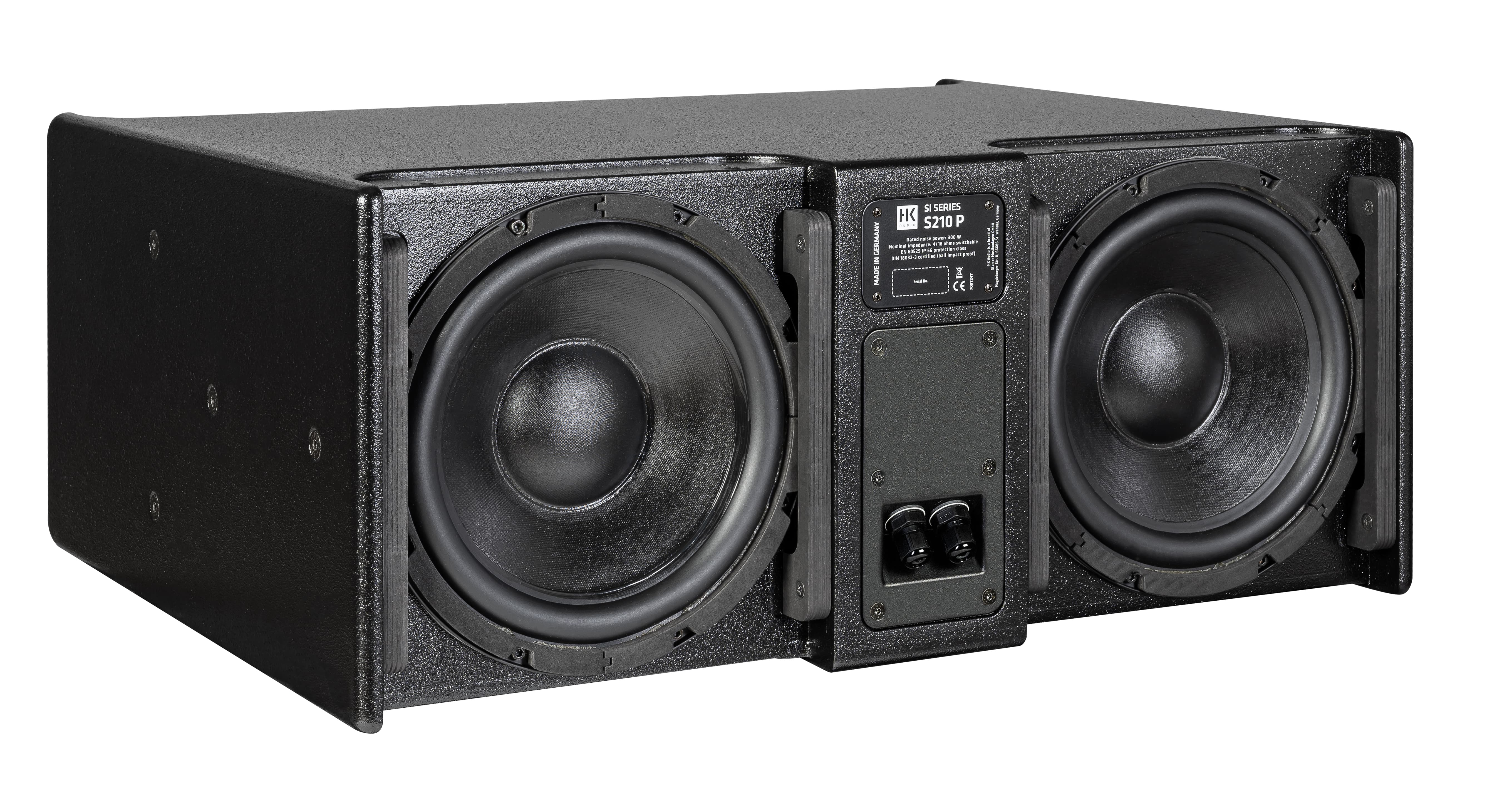

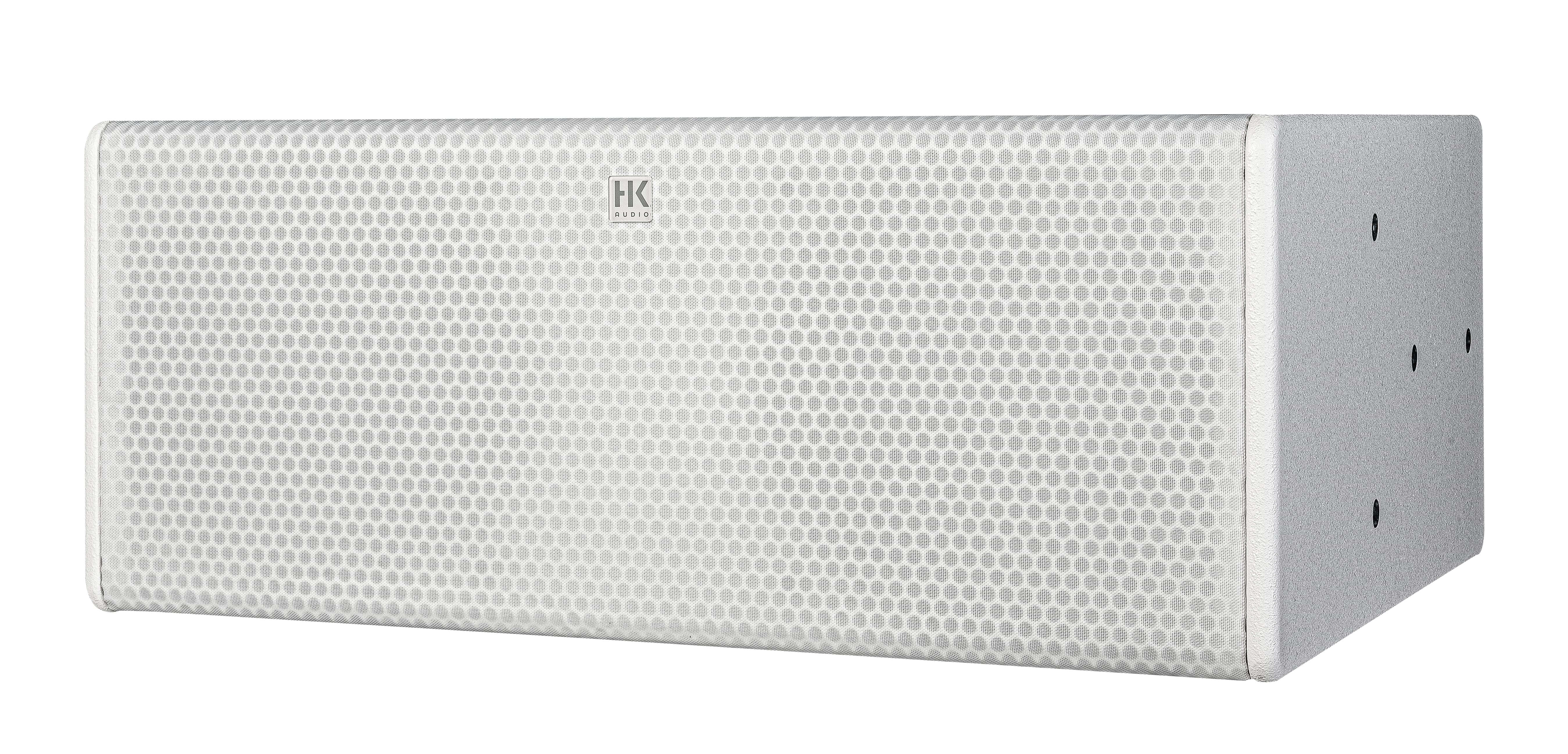

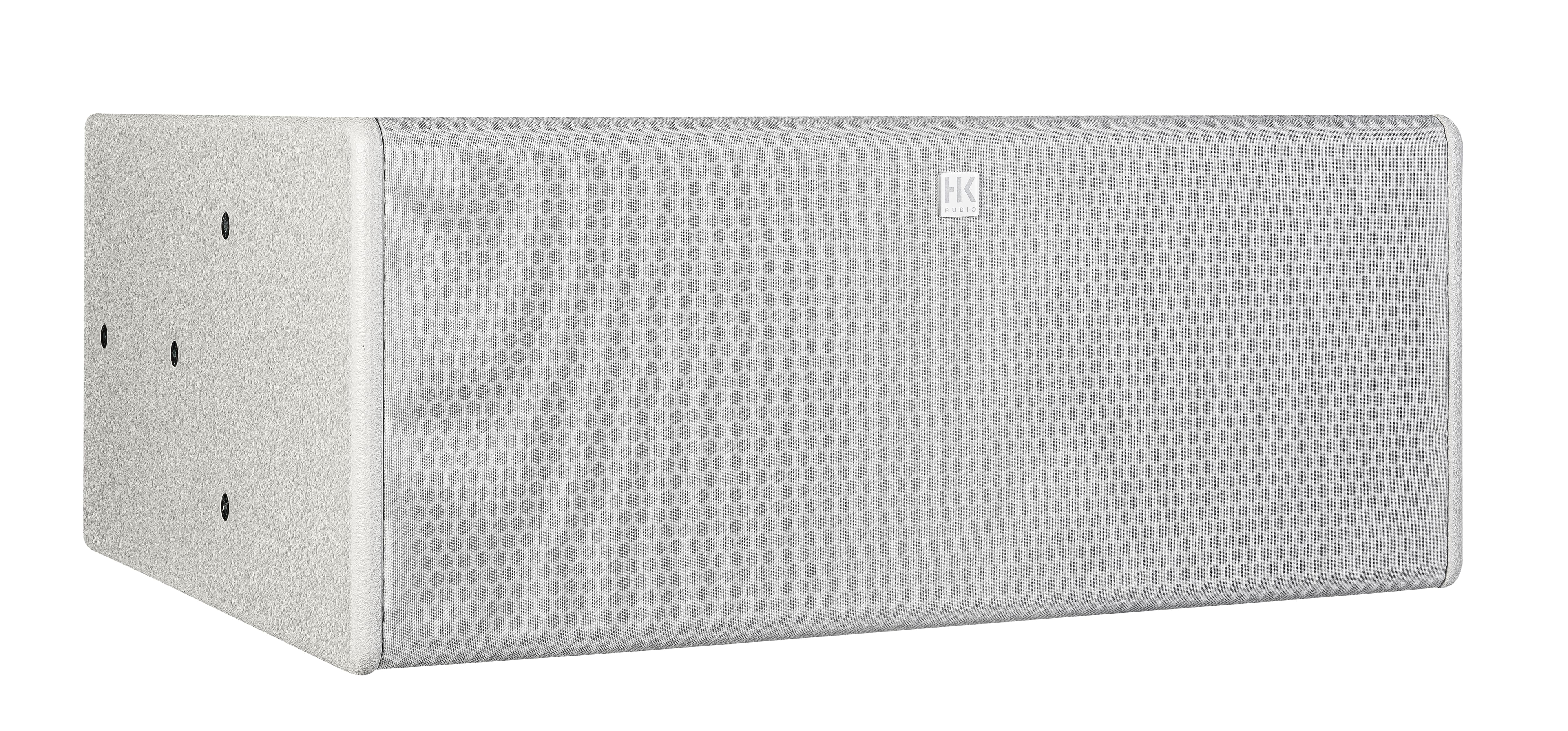

This passive high-performance subwoofer was developed for installations in particularly demanding environmental conditions. It is equipped with two 10" woofers and two rear-mounted 10" passive radiators that ensure excellent bass reproduction.
The subwoofer is ideal for combining with the SI SERIES P10, but is also compatible with many other HK Audio products. An optional U-bracket enables flexible mounting in all common variants, including flown installations with up to two S210s. The connection impedance can be switched between 4 ohms and 16 ohms. Certifications include protection class IP 66 (EN 60529) and ball-proof according to DIN 18032-3.
