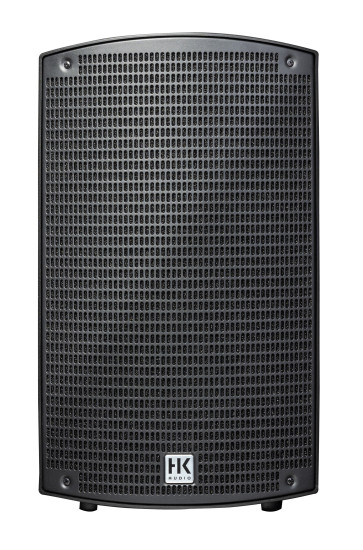

SONAR 110 Xi

THE MODERN ART OF SOUND

SONAR 110 Xi is a particularly compact active loudspeaker that shows its strengths as a full-range loudspeaker, as an unobtrusive stage monitor or as a satellite in combination with a subwoofer.

The versatile input section and app control allow for simple and versatile control and operation.

Concept	Active 2-way loudspeaker
Analog input	2 x XLR/jack combo symm. (Mic/Line), 1 x 3.5 mm (1/8") stereo mini jack
Power amplifier output peak	800 W
Bluetooth	Yes (5.0), TWS
DSP functions	Master Volume, Level Metering, 3-Band-EQ, Low-Cut-Filter, Front LED, Screensaver, BT Auto Pairing, Delay, Output Pre/Post Master
Remote app	HK Audio SONAR REMOTE (iOS, Android)

technical data

Characteristics

ConceptActive 2-way loudspeaker

Cabinet principleBass reflex

Max. SPL peak³123 dB

Max. SPL calculated126 dB

Frequency range -6 dB64 Hz - 18 kHz

Frequency range -10 dB59 Hz - 20 kHz

Dispersion angle -6 dB (horizontal x vertical)90° x 60°

Index

Index 3)1 x unit @ 1 m, 10 % THD, half space

Components

Mid/high frequency1 x 10" cone speaker

High frequency1 x 1" compression driver

HornConstant directivity horn

Connections

Analog input2 x XLR/jack combo symm. (Mic/Line), 1 x 3.5 mm (1/8") stereo mini jack

Mix output1 x Mix Out XLR symm.

Electronical data

Power amplifierClass AB + D

Power amplifier output peak800 W

Power consumption0.4 A / 220-240 V AC 0.8 A / 100-120 V AC

Speaker protectionThermo-Protection, Overload-Protection, Subsonic Filter, Peak and RMS Limiter

Display1.83" color display

DSP functionsMaster Volume, Level Metering, 3-Band-EQ, Low-Cut-Filter, Front LED, Screensaver, BT Auto Pairing, Delay, Output Pre/Post Master

Remote appHK Audio SONAR REMOTE (iOS, Android)

Filter presetsLive/DJ/Monitor

BluetoothYes (5.0), TWS

Mechanical data

Cabinet features/riggingpole mount 35 mm, tiltable (0°/-7.5°), 3 x M10, monitor angle 35°

Carrying handles1 x SingleGrip

Cabinet materialplastic

ColorJet black (RAL 9005)

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

Dimensions (W x H x D), metric31 x 53.5 x 30 cm

Dimensions (W x H x D), imperial12-7/32 x 21-1/16 x 11-13/16 inch

Weight, metric11.5 kg

Weight, imperial25.4 lbs

The SONAR 110 Xi is an extremely compact active speaker that comes into its own as a full-range speaker, as an inconspicuous stage monitor or as a satellite in combination with a subwoofer. Powerful components and meticulous HK Audio acoustic engineering guarantee a rich and powerful sound.

SONAR 110 Xi offers three input channels: two for microphone or line signals plus one AUX channel, which receives analogue signals as well as via Bluetooth 5.0. Music can be streamed in stereo to two SONAR Xi speakers via Bluetooth TWS (True Wireless Stereo). The volume and 3-band EQ for each channel can be adjusted intuitively using the rotary control and colour display. Thanks to the free SONAR REMOTE app (for iOS and Android), all functions can also be controlled remotely for added convenience.
