SONAR 112 Xi

THE MODERN ART OF SOUND

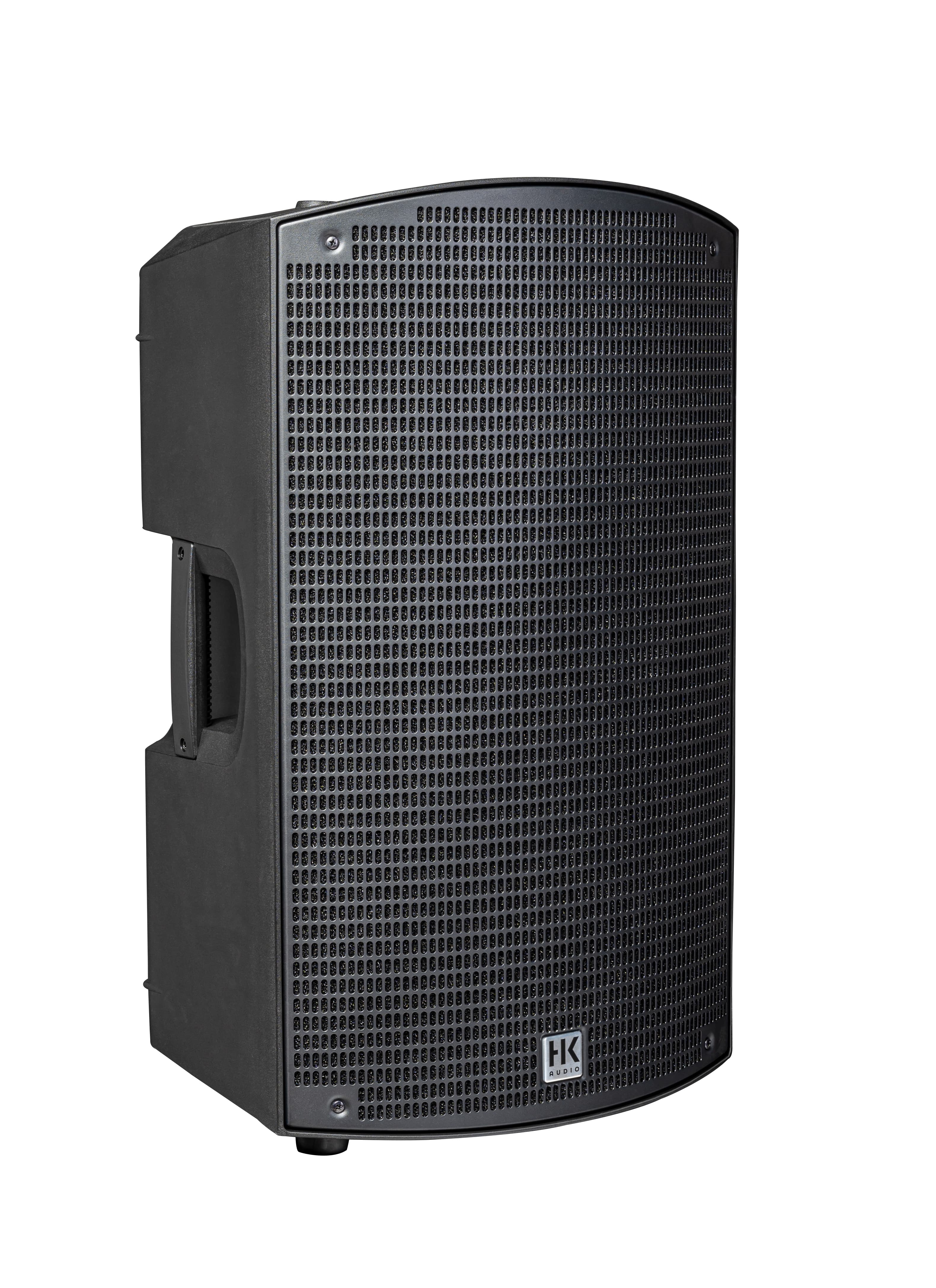

SONAR 112 XI is an active, state-of-the-art loudspeaker for medium-sized sound reinforcement scenarios such as speech applications or musical performances.

The intuitive app control of the input channels simplifies operation and eliminates the need for an external mixing console in many applications.

With the SONAR 115 Sub D subwoofer, you can build the setup into a large PA system and easily adapt it to your requirements.

Concept	Active 2-way loudspeaker
Analog input	2 x XLR/jack combo symm. (Mic/Line), 1 x 3.5 mm (1/8") stereo mini jack
Power amplifier output peak	1200 W
Bluetooth	Yes (5.0), TWS
DSP functions	Master Volume, Level Metering, 3-Band-EQ, Low-Cut-Filter, Front LED, Screensaver, BT Auto Pairing, Delay, Output Pre/Post Master
Remote app	HK Audio SONAR REMOTE (iOS, Android)

technical data

Characteristics

ConceptActive 2-way loudspeaker

Cabinet principleBass reflex

Max. SPL peak³127 dB

Max. SPL calculated130 dB

Frequency range -6 dB58 Hz - 18 kHz

Frequency range -10 dB54 Hz - 20 kHz

Dispersion angle -6 dB (horizontal x vertical)90° x 60°

Index

Index 3)1 x unit @ 1 m, 10 % THD, half space

Components

Mid/high frequency1 x 12" cone speaker

High frequency1 x 1" compression driver

HornConstant directivity horn

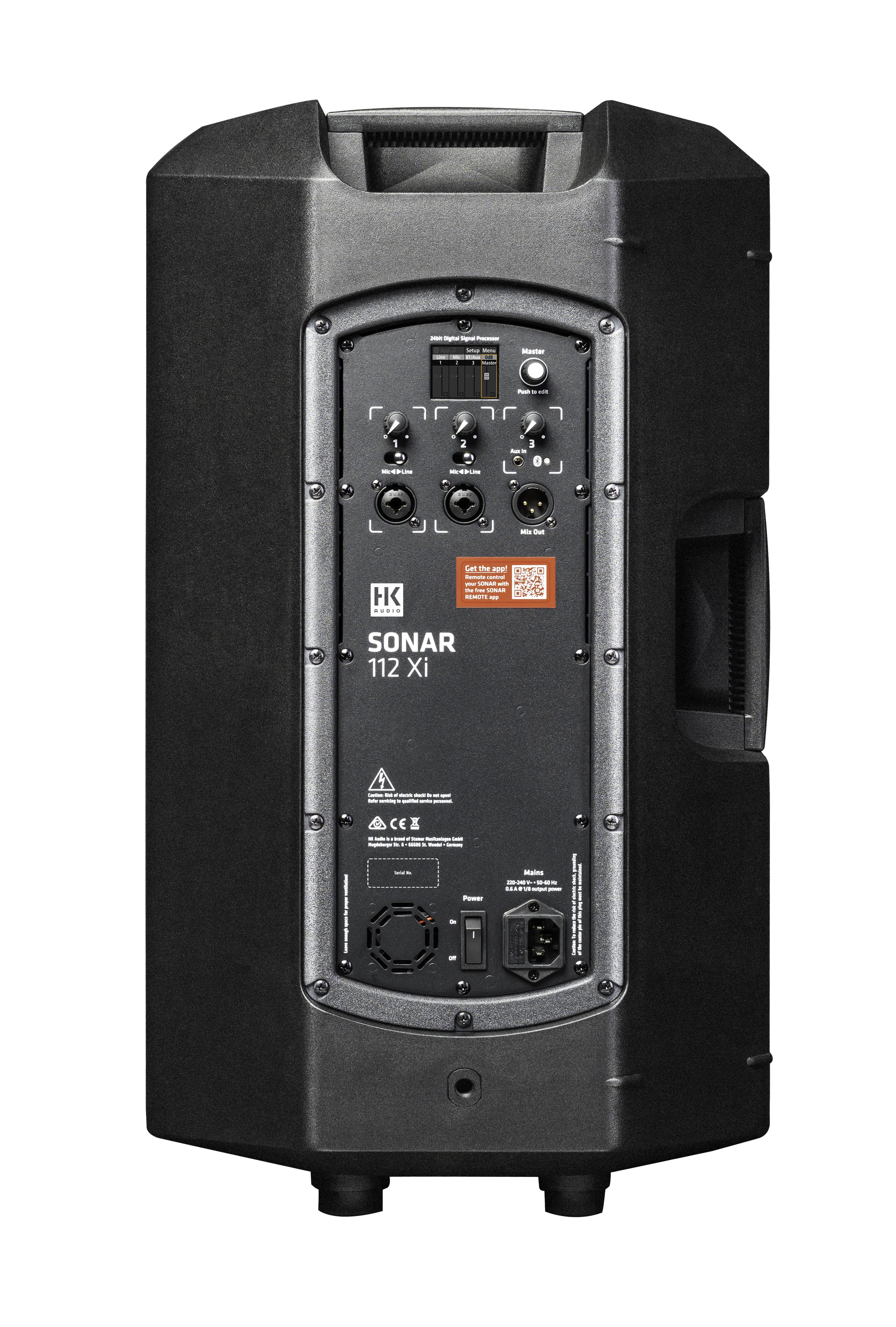

Connections

Analog input2 x XLR/jack combo symm. (Mic/Line), 1 x 3.5 mm (1/8") stereo mini jack

Mix output1 x Mix Out XLR symm.

Electronical data

Power amplifierClass AB + D

Power amplifier output peak1200 W

Power consumption0.6 A / 220-240 V AC 1.2 A / 100-120 V AC

Speaker protectionThermo-Protection, Overload-Protection, Subsonic Filter, Peak and RMS Limiter

Display1.83" color display

DSP functionsMaster Volume, Level Metering, 3-Band-EQ, Low-Cut-Filter, Front LED, Screensaver, BT Auto Pairing, Delay, Output Pre/Post Master

Remote appHK Audio SONAR REMOTE (iOS, Android)

Filter presetsLive/DJ/Monitor

BluetoothYes (5.0), TWS

Mechanical data

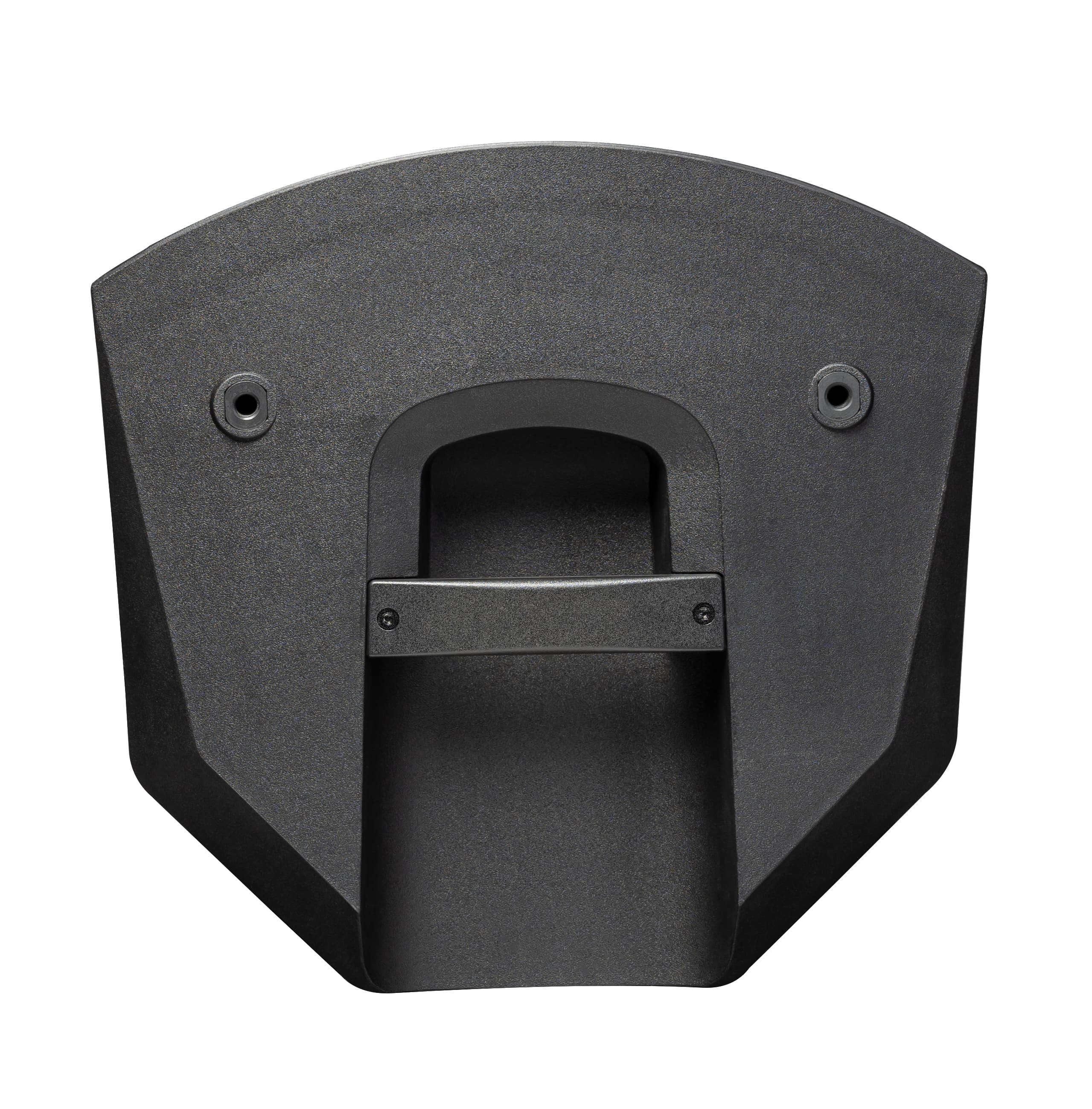

Cabinet features/riggingpole mount 35 mm, tiltable (0°/-7.5°), 3 x M10, monitor angle 35°

Carrying handles2 x SingleGrip

Cabinet materialplastic

ColorJet black (RAL 9005)

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

Dimensions (W x H x D), metric36.5 x 62.9 x 35.5 cm

Dimensions (W x H x D), imperial14-3/8 x 24-3/4 x 13-31/32 inch

Weight, metric15.9 kg

Weight, imperial35.1 lbs

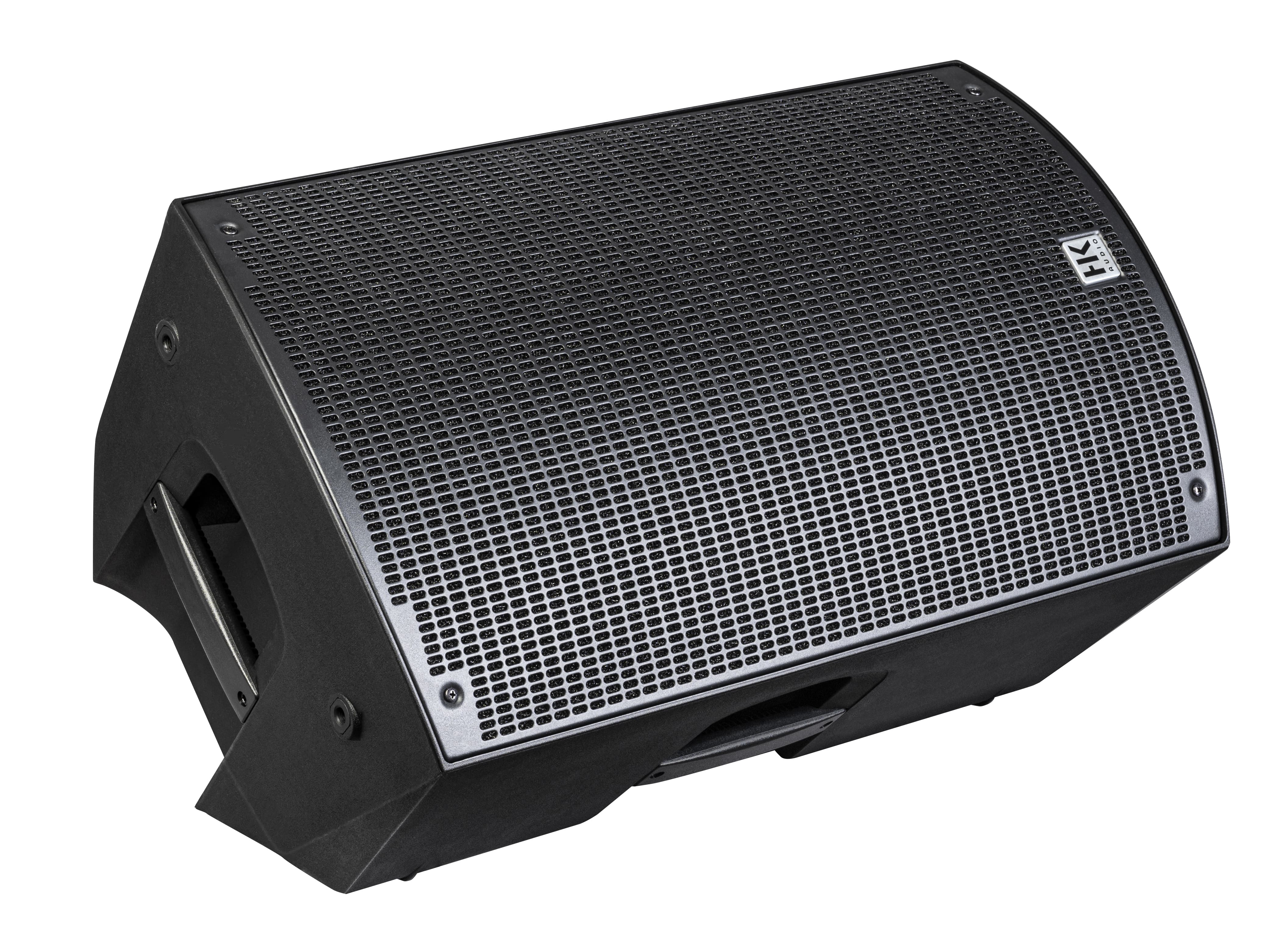

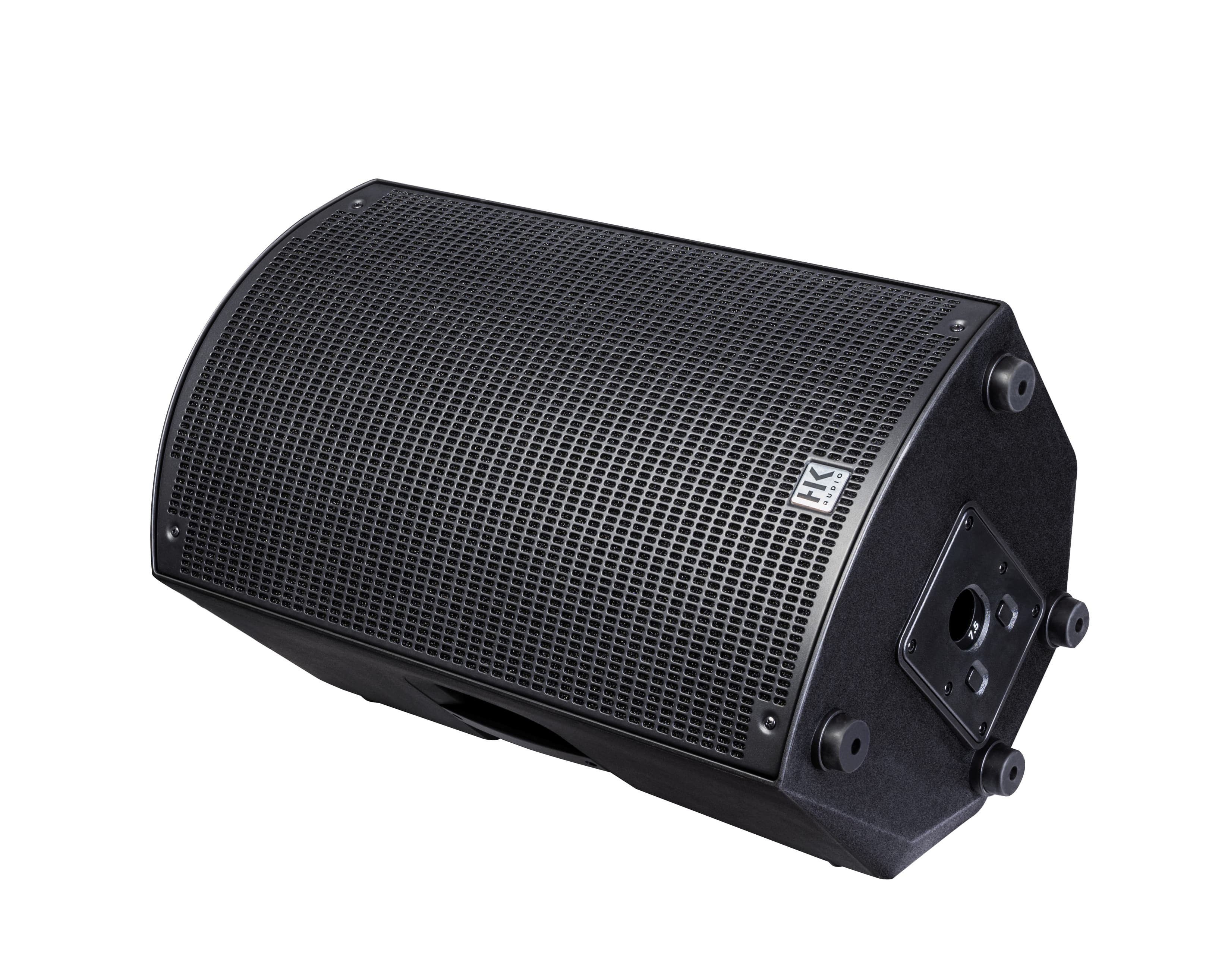

The SONAR 112 Xi is an active, state-of-the-art speaker that provides top sound, whether as a full-range speaker, as a stage monitor or in combination with a subwoofer. Powerful components and meticulous HK Audio acoustic engineering guarantee an impressive sound experience with a strong bass.

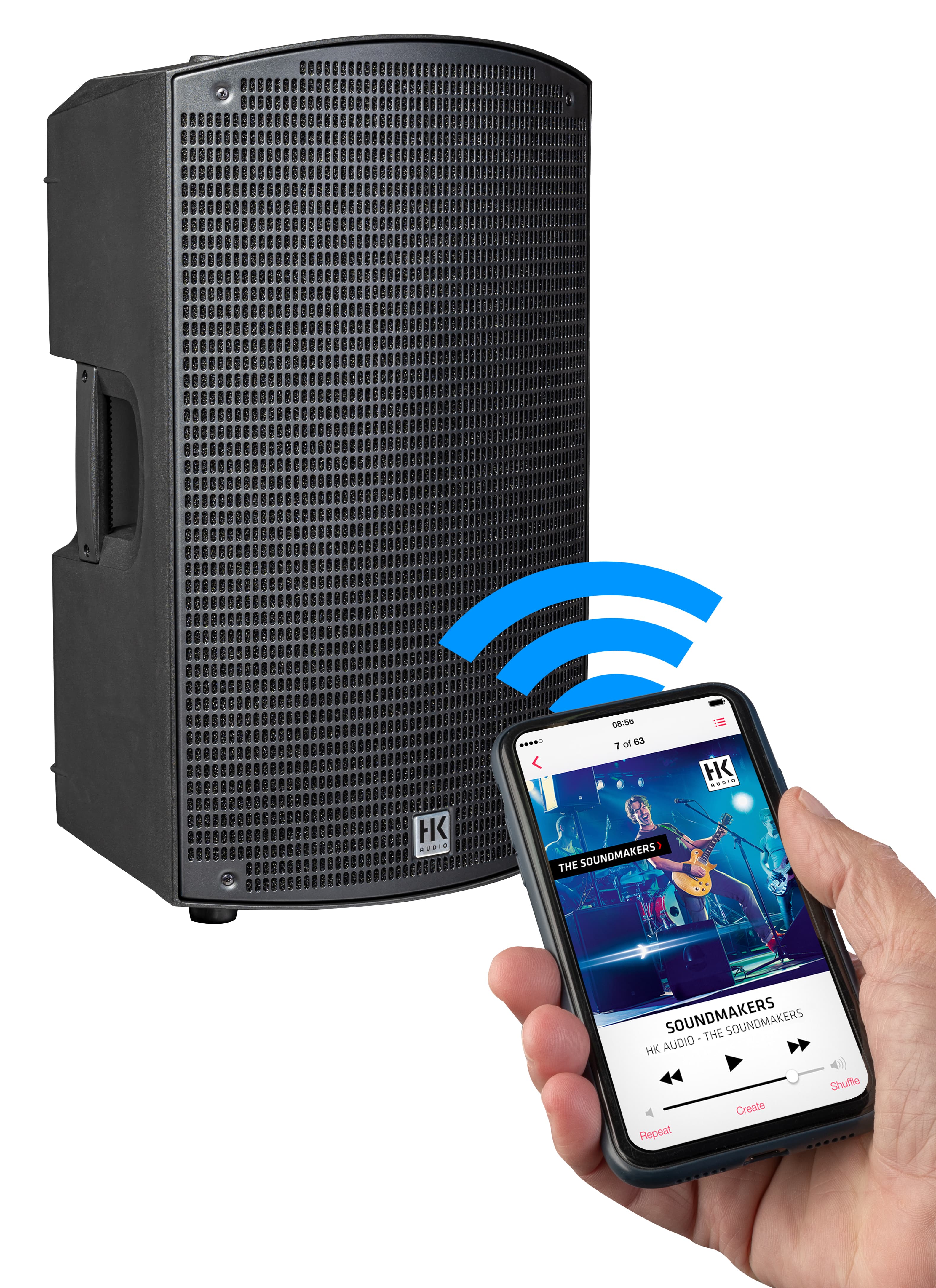

SONAR 112 Xi offers three input channels: two for microphone or line signals plus one AUX channel, which receives analogue signals as well as via Bluetooth 5.0. Music can be streamed in stereo to two SONAR Xi speakers via Bluetooth TWS (True Wireless Stereo). The volume and 3-band EQ for each channel can be adjusted intuitively using the rotary control and colour display. Thanks to the free SONAR REMOTE app (for iOS and Android), all functions can also be controlled remotely for added convenience.
