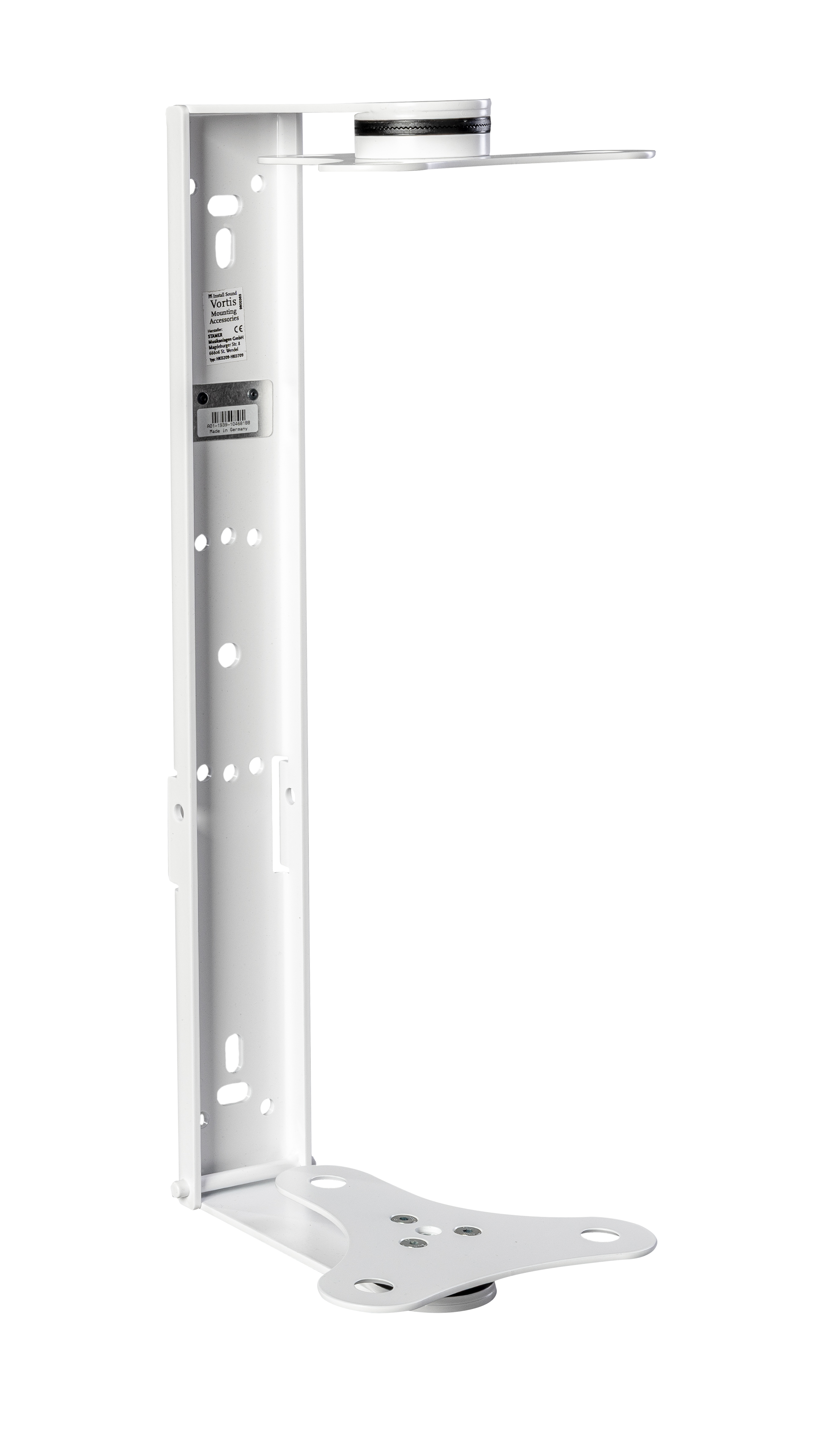

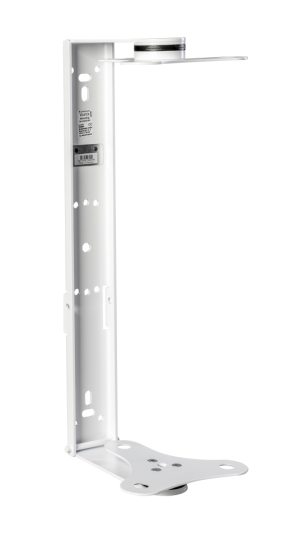

This U-bracket serves to mount VORTIS speakers to walls and
ceilings.
You can aim and align cabinets using a combination

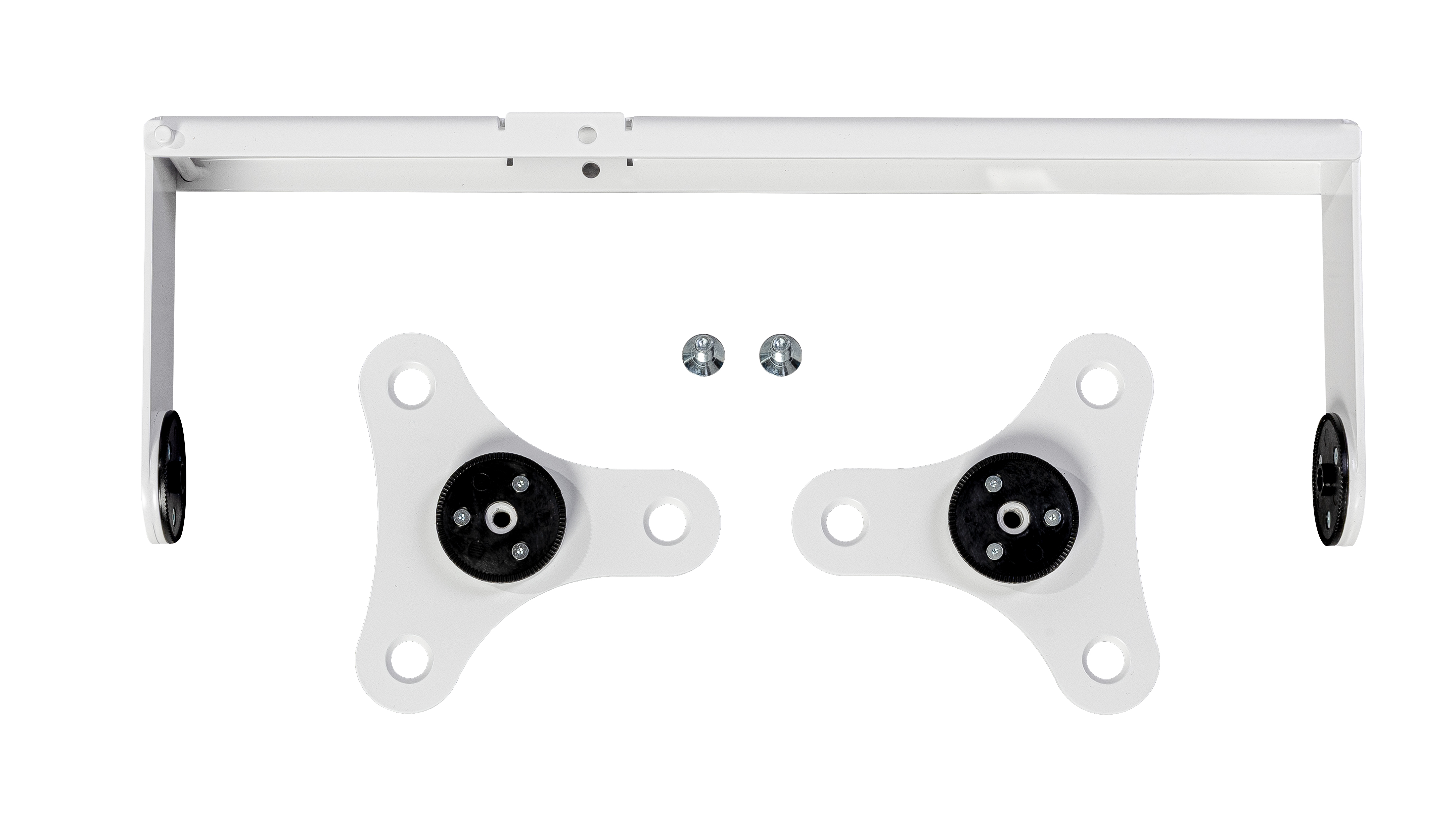

of speaker tilt and/or wall plate. The U-bracket comes factoryequipped
with two mounting plates that attach it to the
enclosure. For each model of loudspeaker is a different
U-bracket available.
Mounting type
Fixed installation on walls or ceilings
Material
Steel
Surface finish
Galvanised and smooth powder-coated (black, white or RAL according to requirements)
Functional description
Mounting/alignment of a loudspeaker with grid discs and additional tilt/rotation in combination with tilt unit/wall plate
MWL
70 kg (double lateral suspension)
Dimensions (W x H x D)
8.4 x 54.9 x 19.0 cm / 3.31 x 21.61 x 7.48 inch (without mounting plates)
