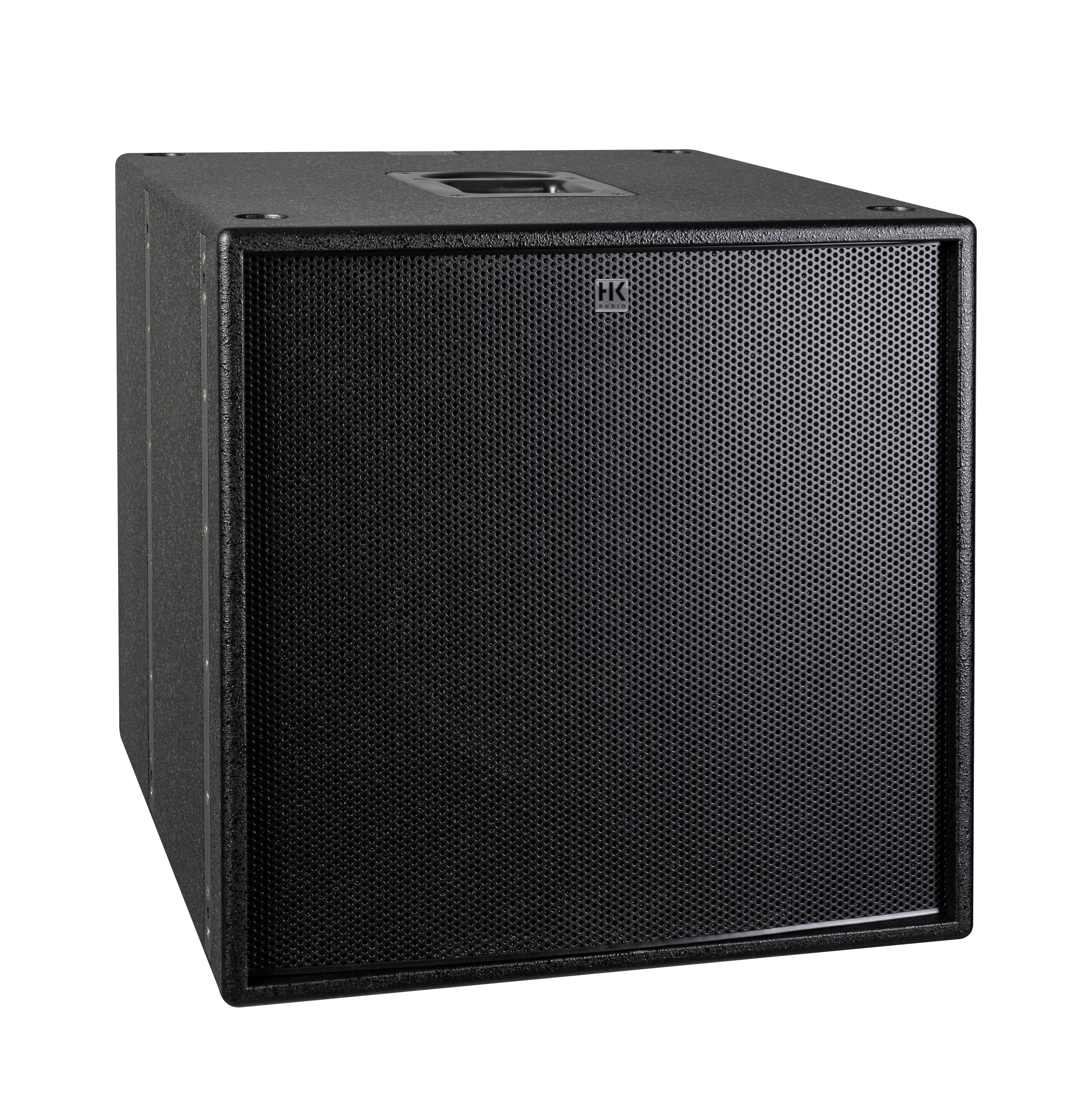

CAD 115 Sub
VERSATILE. ECONOMICAL. WEATRHERPROOF.
technical data
Characteristics
ConceptFlight capable passive subwoofer
Cabinet principleBass reflex
Power handling RMS600 W
Power handling program1200 W
Power handling peak2400 W
Nominal impedance18 Ohms
Max. SPL average2122 dB
Max. SPL peak3125 dB
Sensitivity 1 W/1 m496 dB
Frequency range -6 dB47 Hz - 150 Hz
Frequency range -10 dB42 Hz - 150 Hz
Dispersion angle -6 dB (horizontal x vertical)omnidirectional
Index
Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)
Index 2)1 m, 10 % THD @ 60 Hz - 150 Hz, (EN 60268-21), full space
Index 3)1 m, 10 % THD @ 80 Hz, full space
Index 4)45 Hz - 150 Hz, full space
Certifications
IP-Protection class (EN 60529)nicht spezifiziert
Components
Low frequency1 x 15" B&C cone speaker with neodymium magnet and 3"-voice coil
Crossoverno integrated crossover
Connections

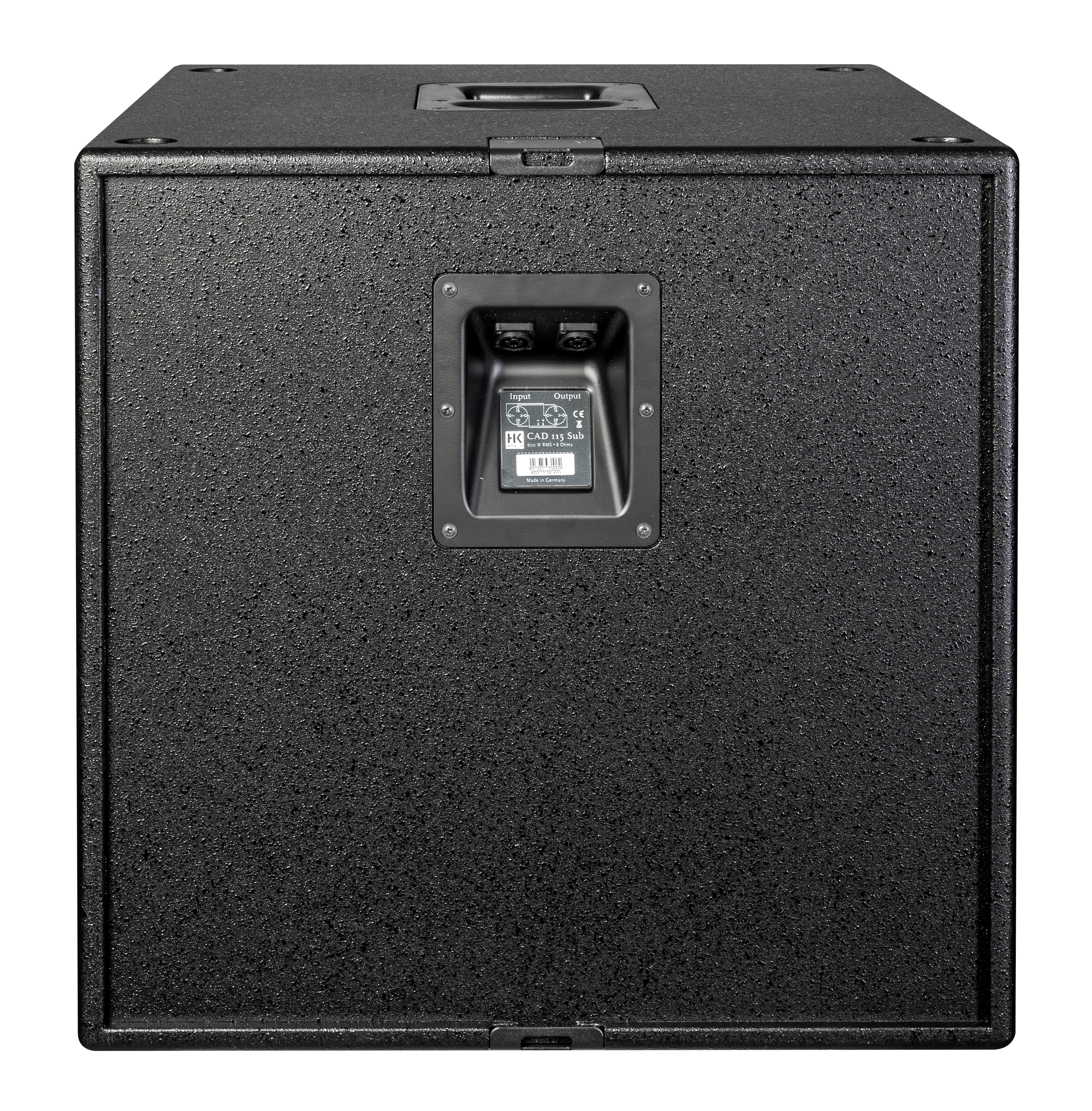

Input1 x NL4 Speakon, optional PG cabling with fixed cable connection
Output/parallel output1 x NL4 Speakon, optional PG cabling with fixed cable connection
Pin assignment2+/- (input/parallel output), 1+/- (looped through)
Amping/Presets
Lab.gruppenLake
PowersoftArmonia+
othersLEA Professional Sharkware, HK Audio DSM 2060, HK Audio FIRNET
Amping/Filter Sheets
Lab.GruppenIPD Series, IPX Series
Mechanical data
Cabinet features/riggingIntegrated 4-point rigging points

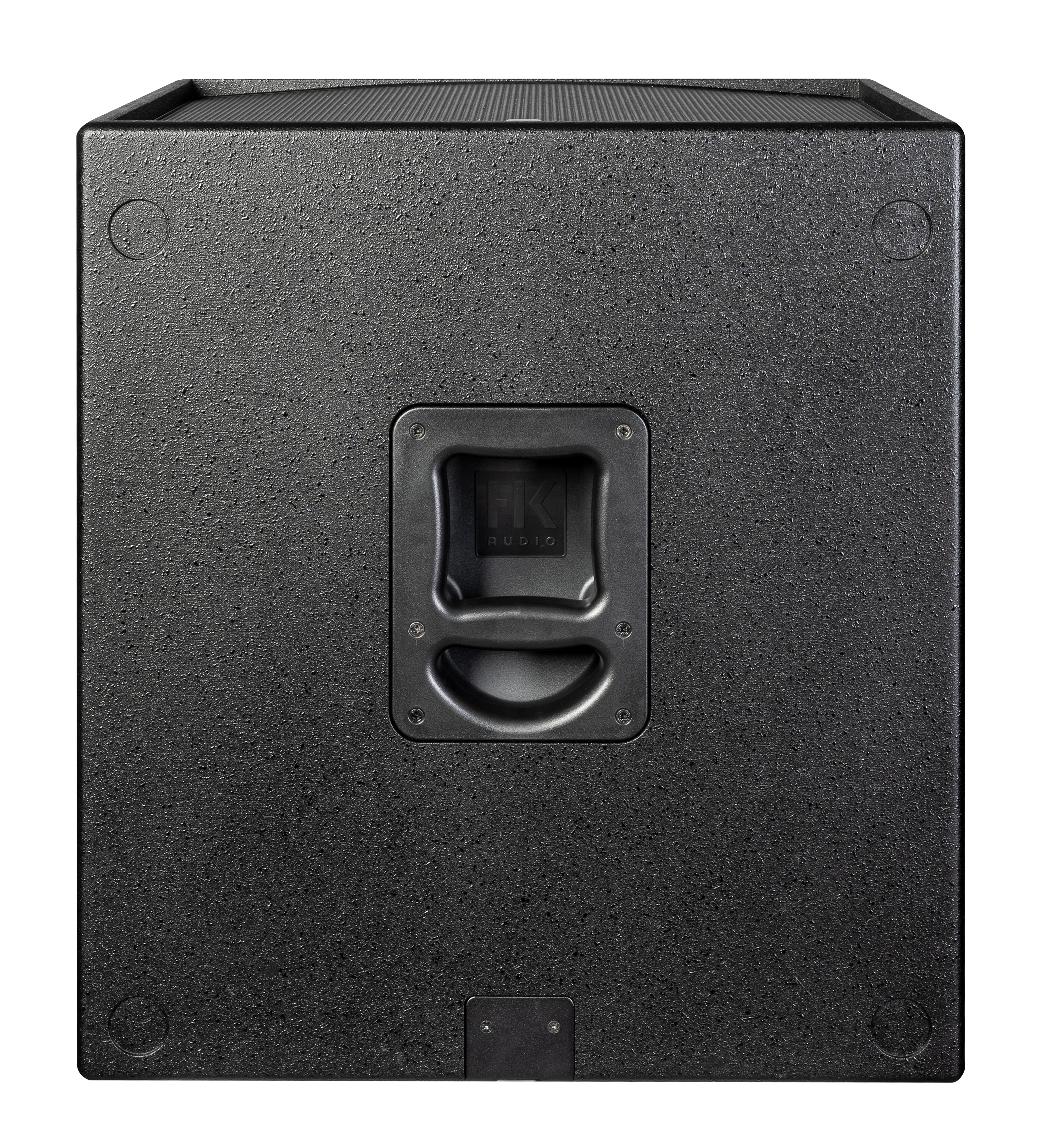

Carrying handles2 x HK Audio MultiGrip
Cabinet materialBirch plywood
Cabinet surface2-component textured coating
ColorJet black (RAL 9005), Signal white (RAL 9003) or special color according to catalog (over 30 colors), also optional PU coating for installation in unroofed outdoor areas

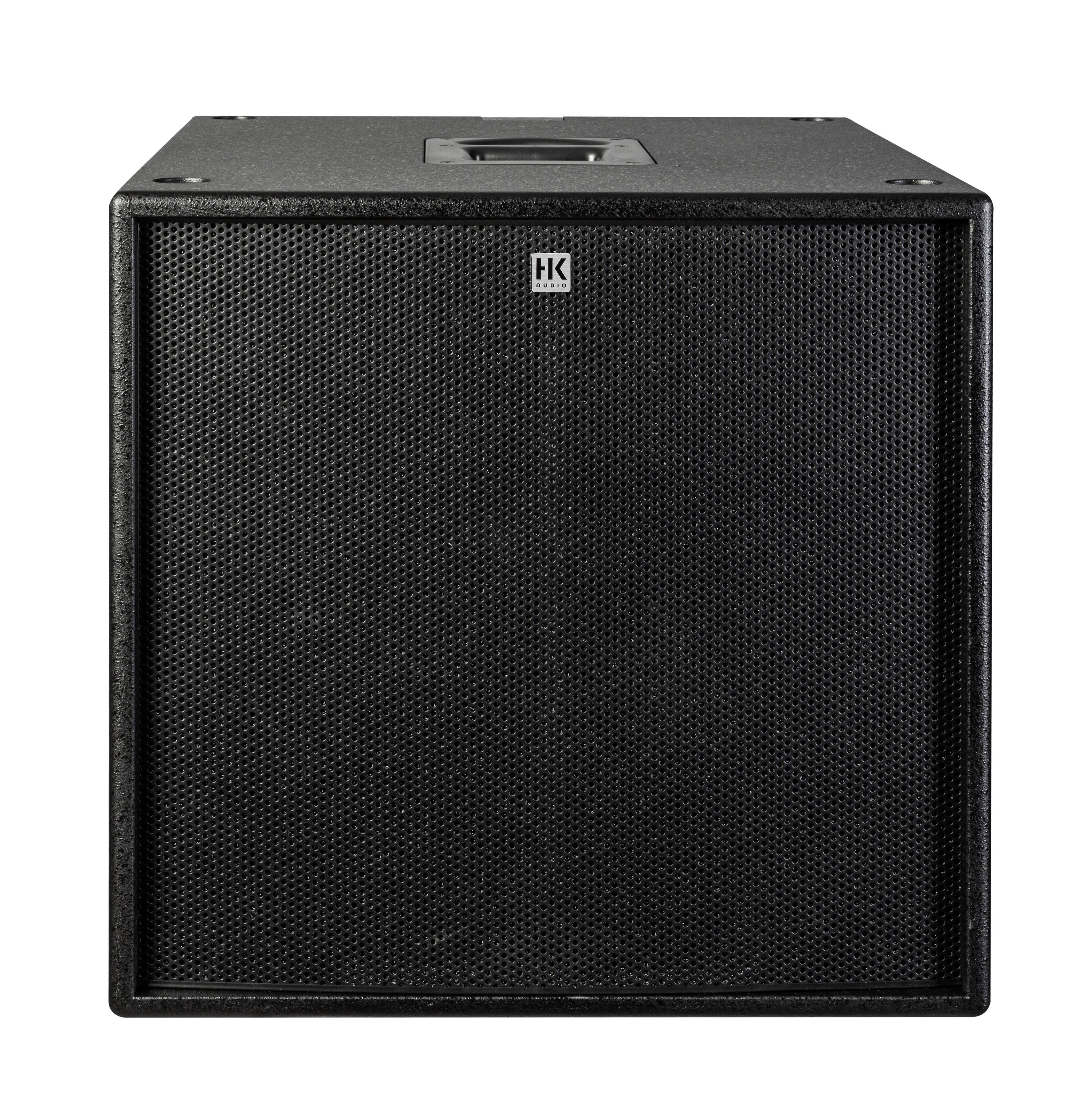

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W x H x D), metric57.3 x 58.3 x 64.0 cm
Dimensions (W x H x D), imperial22-9/16 x 22-15/16 x 25-3/16 inch
Weight, metric38.0 kg
Weight, imperial83.8 lbs

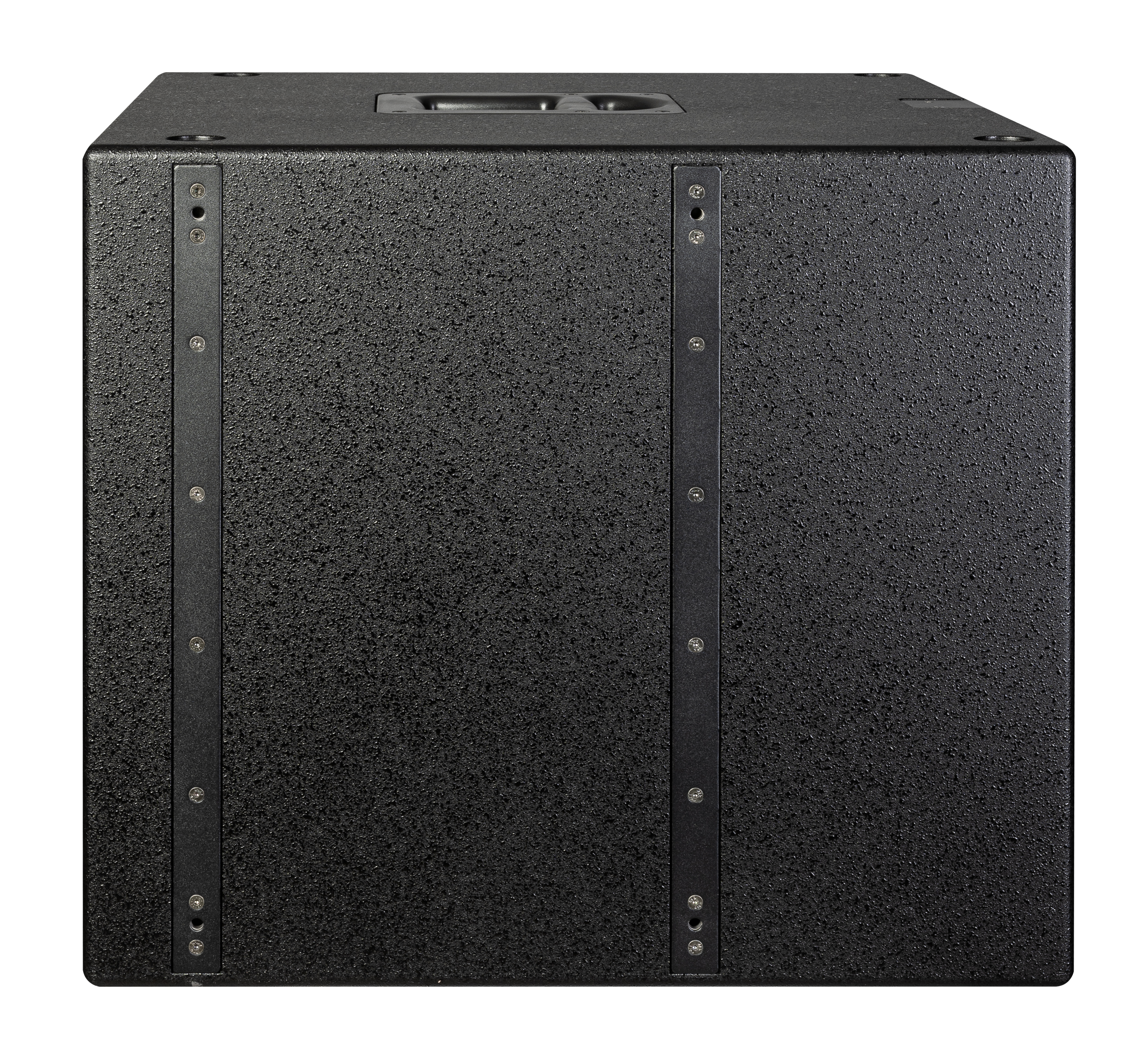

Side recessed rigging bars allow mechanical compatibility with the CADIS system. Can be attached to the CADIS Rigging/Stacking Frame and/or mounted on the CADIS Connector Frame in combination with the CAD 208. Can also be used as a ground-stack base for CADIS systems.
