CAD 208
VERSATILE. ECONOMICAL. WEATRHERPROOF.
technical data
Characteristics
ConceptPassive 2.5-way line array mid/high unit
Cabinet principleBass reflex
Power handling RMS250 W
Power handling program500 W
Power handling peak1000 W
Nominal impedance18 Ohms
Max. SPL average2131 dB
Max. SPL peak3136 dB
Sensitivity 1 W/1 m495 dB
Crossover frequency1.2 kHz/2.1 kHz
Frequency range -6 dB100 Hz - 18 kHz
Frequency range -10 dB100 Hz - 18 kHz
Dispersion angle -6 dB (horizontal x vertical)100° x 15°
Index
Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)
Index 2)4 x unit @ 1 m, 10 % THD @ 100 Hz - 20 kHz, (EN 60268-21), full space
Index 3)4 x unit @ 1 m, 10 % THD @ 1.5 kHz, full space
Index 4)100 Hz - 20 kHz, full space
Certifications
IP-Protection class (EN 60529)IP 44 (Intertek)
Components
Low frequency2 x 8" Sica cone speaker with ferrite magnet and 1.5"-voice coil
High frequency2 x 1" Sica compression driver with ferrite magnet and 1"-voice coil
CrossoverHigh pass: 12 dB/oct., Low pass: 18 dB/oct.
Horn2 x Constant directivity HF Horn, 1 x Lambda/4-Resonator for 8"-low/mid speaker

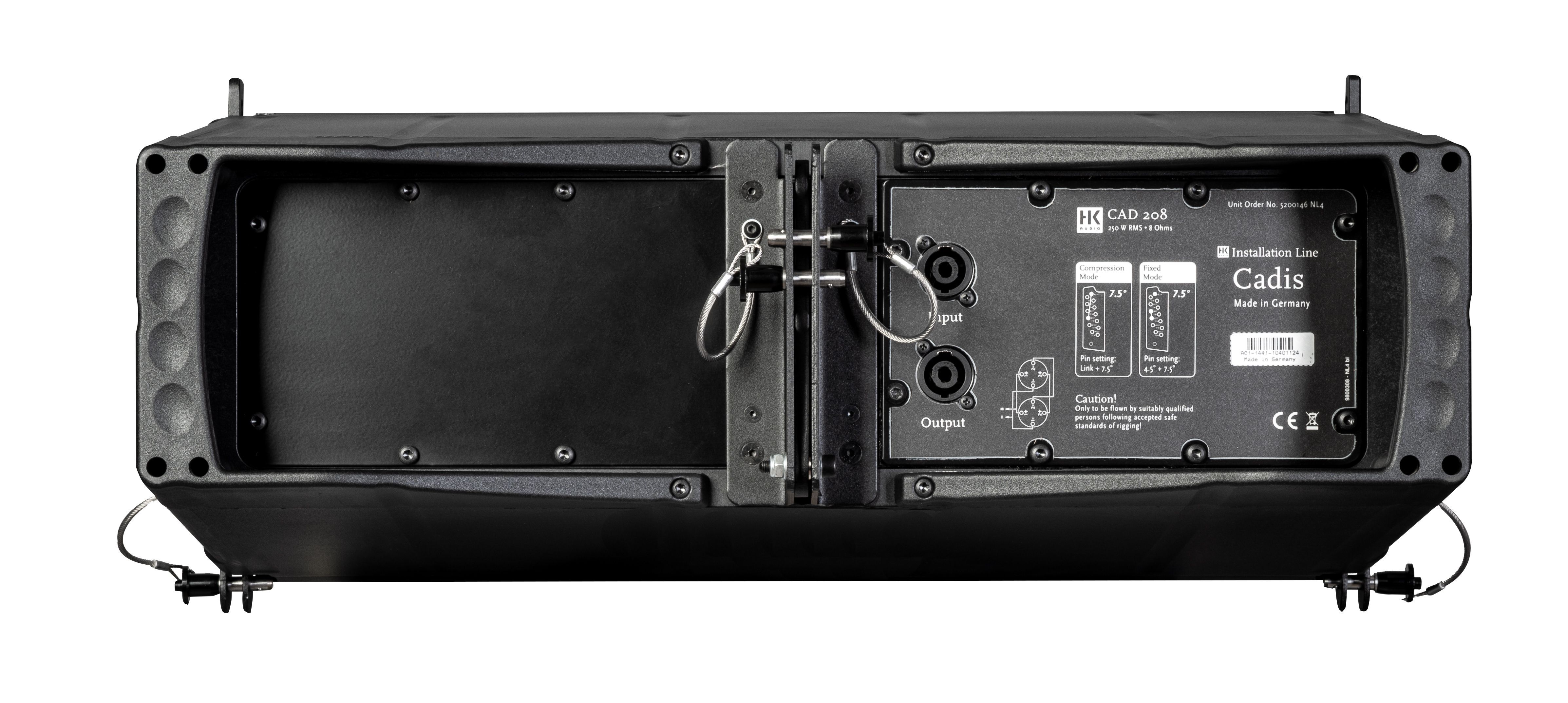

Connections
Input1 x NL4 Speakon, optional PG cabling with fixed cable connection
Output/parallel output1 x NL4 Speakon, optional PG cabling with fixed cable connection
Pin assignment1+/- (input/parallel output), 2+/- (looped through)
Amping/Presets
Lab.gruppenLake
PowersoftArmonia+
othersLEA Professional Sharkware, HK Audio DSM 2060, HK Audio FIRNET
Amping/Filter Sheets
Lab.GruppenIPD Series, IPX Series
Mechanical data

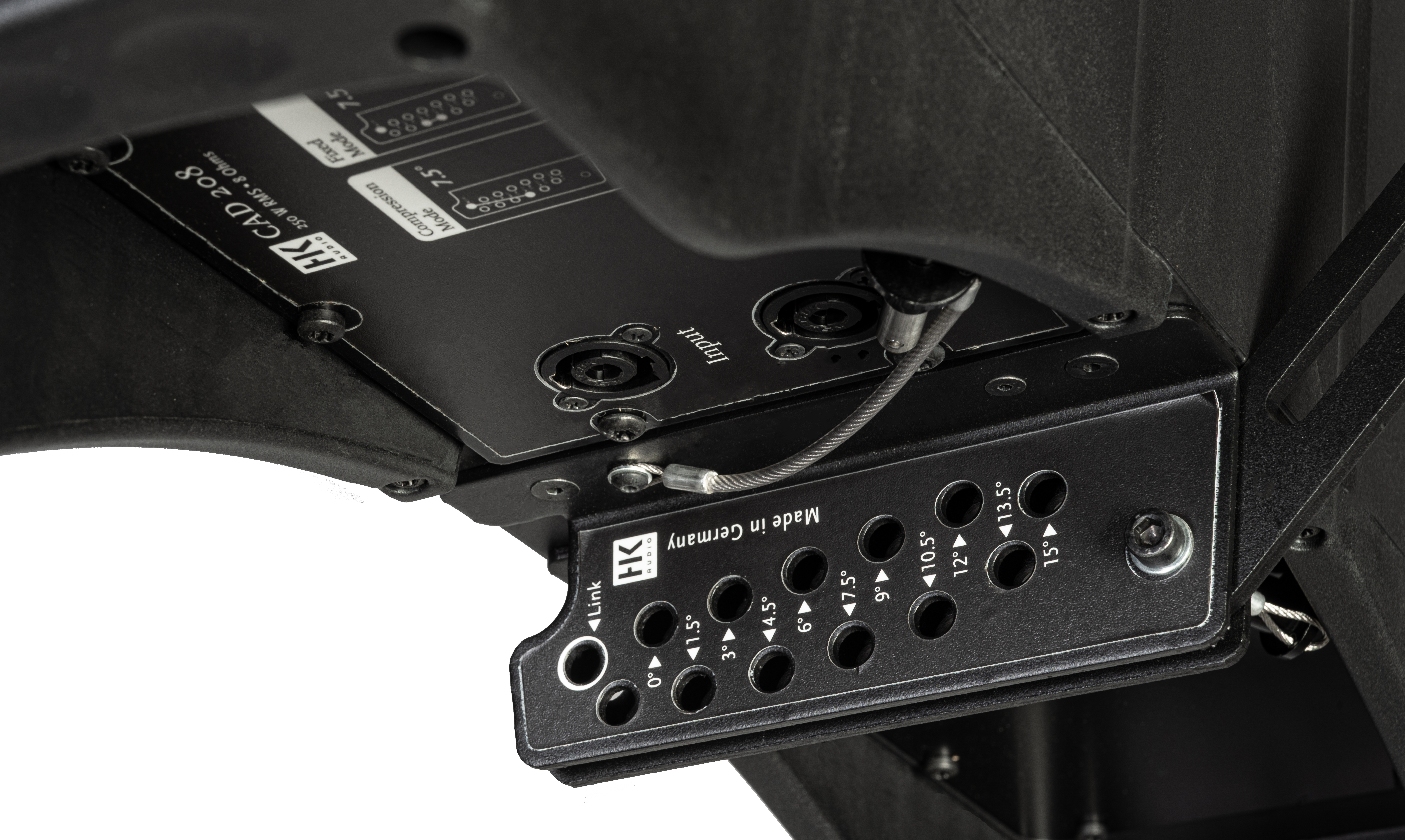

Cabinet features/riggingIntegrated 3-point rigging points
Carrying handles2 x grip edge on rear of housing

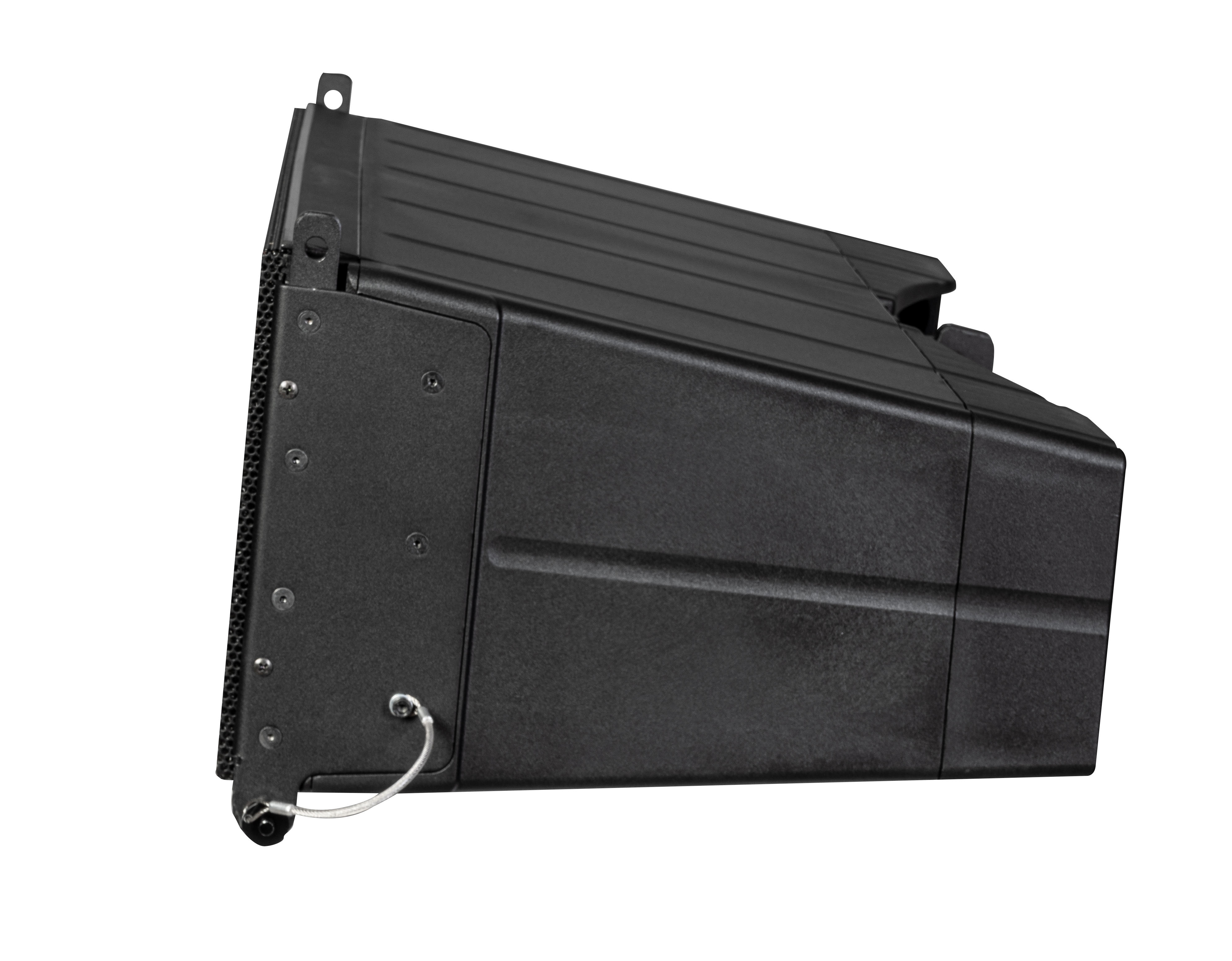

Cabinet materialPolyamide
Cabinet surfacefinely grained
ColorBlack or special color according to catalog

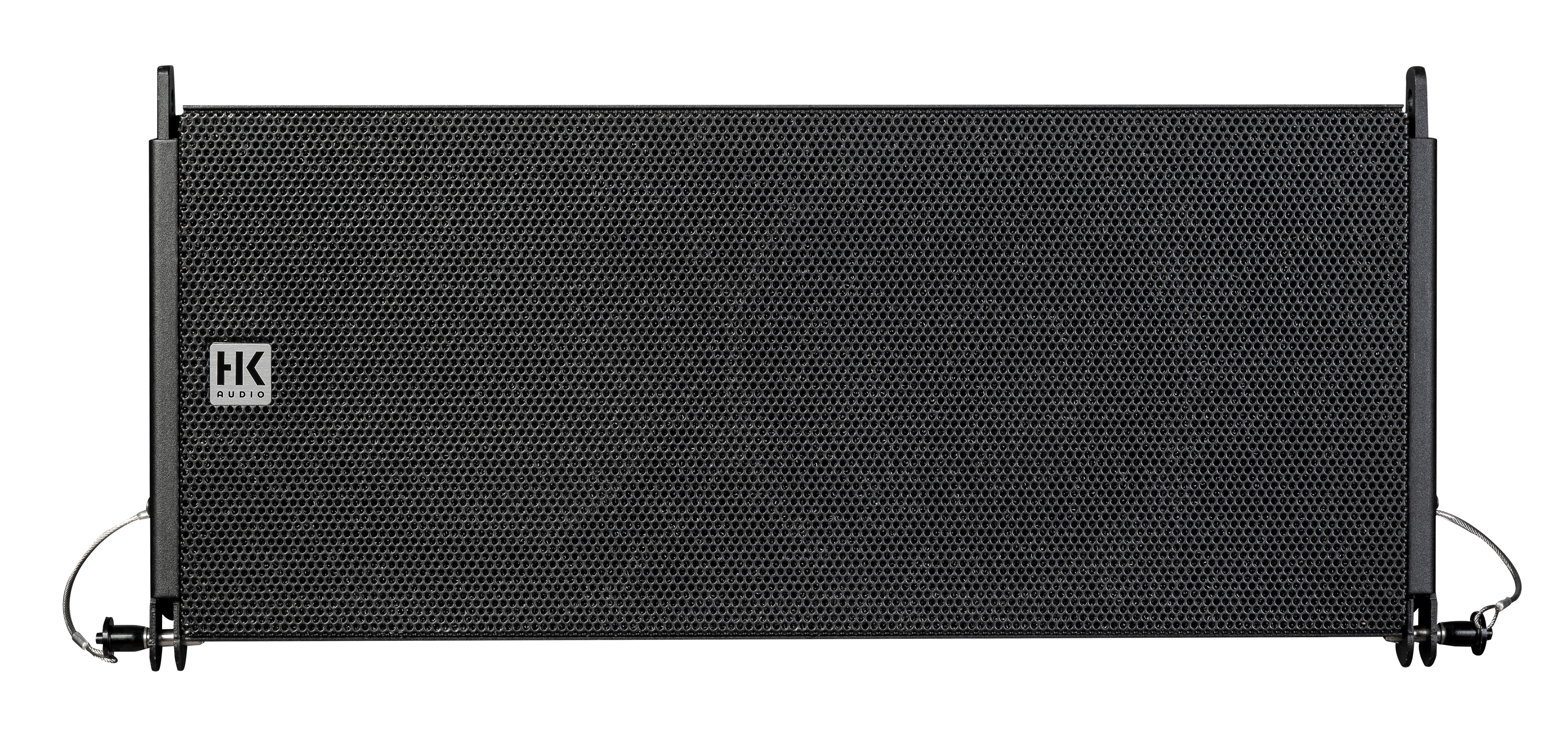

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam
Accessories included2 x Quick Release Pin
Dimensions (W x H x D), metric58.1 x 23.8 x 37.3 cm
Dimensions (W x H x D), imperial22-7/8 x 9-3/8 x 14-11/16 inch
Weight, metric17.5 kg
Weight, imperial38.6 lbs
Limited weather resistance in the standard version with Speakon NL4. Other connection solutions, such as PG cable glands, are optional. For use in combination with the mechanically compatible CAD 115 flyable subwoofer. Available in black and white as standard, RAL colours optional. Certification: Protection class IP 44 (EN 60529).
