CONTOUR X CX 12
EXCELLENCE THROUGH EFFICIENCY
technical data
Characteristics
ConceptPassive 2-way mid/high unit
Cabinet principleBass reflex
Power handling RMS500 W
Power handling program1000 W
Power handling peak2000 W
Nominal impedance18 Ohms
Max. SPL average2127 dB
Max. SPL peak3131 dB
Sensitivity 1 W/1 m499 dB
Crossover frequency1.2 kHz
Frequency range -6 dB70 Hz - 18 kHz
Frequency range -10 dB61 Hz - 19 kHz
Dispersion angle -6 dB (horizontal x vertical)75° x 55°, rotatable
Index
Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)
Index 2)3 x unit @ 1 m, 10 % THD, 100 Hz - 5 kHz, (EN 60268-21), full space, @ 1.2 kW
Index 3)3 x unit @ 1 m, 10 % THD @ 2.5 kHz,full space, @ 1.2 kW
Index 4)100 Hz - 10 kHz, full space
Components
Mid/high frequency1 x 12" Beyma cone speaker with neodymium magnet and 3"-voice coil
High frequency1 x 1.4" B&C compression driver with neodymium magnet and 3"-voice coil
CrossoverHigh pass: 24 dB/oct., Low pass: 24 dB/oct.
HornConstant directivity horn, rotatable

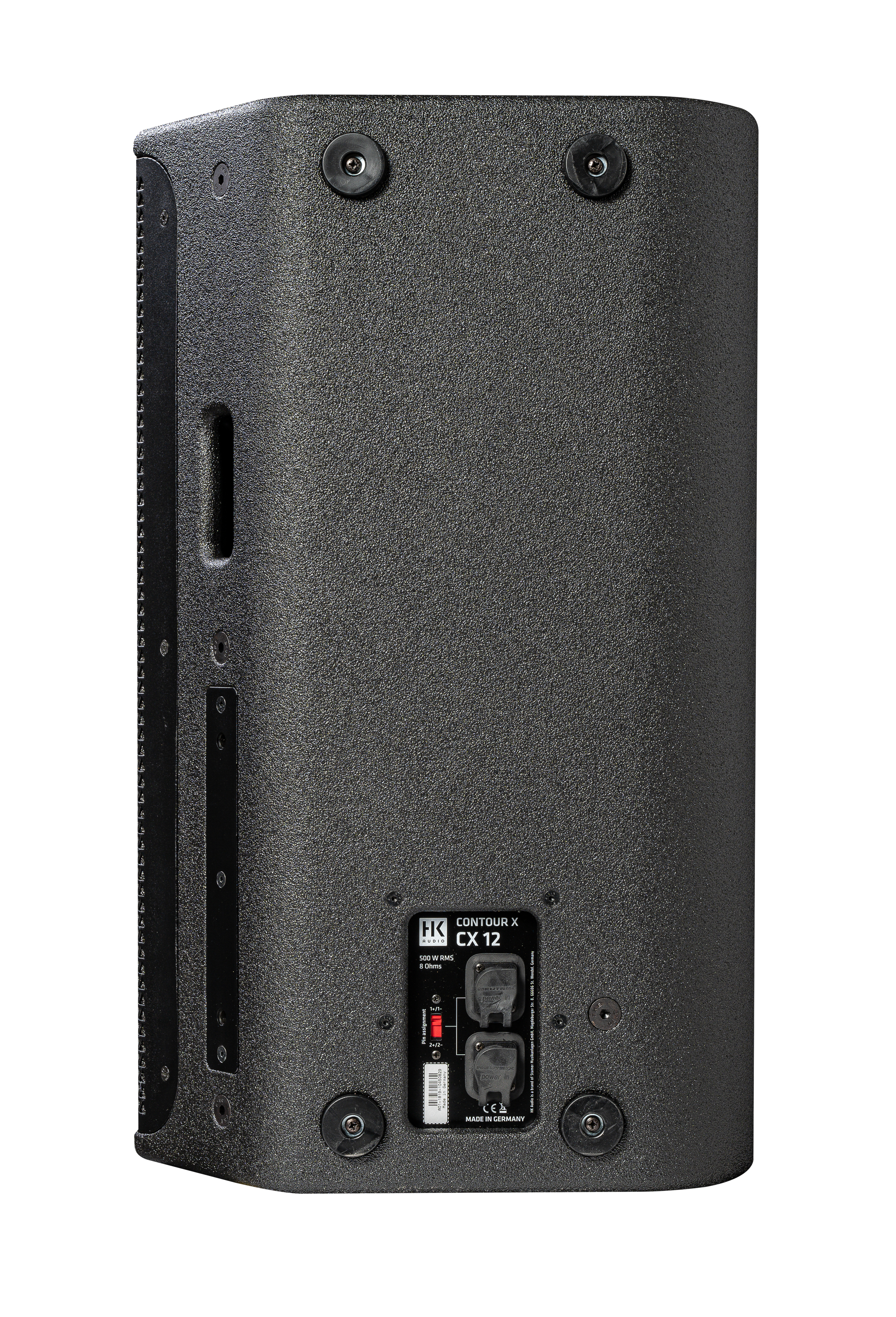

Connections
Input2 x NL4 Speakon
Output/parallel output2 x NL4 Speakon
Pin assignment1+/-, 2+/-, switchable
Amping/Presets
Lab.gruppenIPX Series, IPD Series, Lake
PowersoftArmonia+
Amping/Filter Sheets
Lab.GruppenIPX Series, IPD Series (limiter settings incl.)
Mechanical data
Cabinet features/rigging10 x rigging point M10, 1 x Aeroquip, pole mount HK Audio DuoTilt (3°/7°) monitor angle: 35° and 55°
Carrying handles3 x integrated carrying handle
Cabinet materialBirch plywood
Cabinet surfacePU coating
ColorJet black (RAL 9005)
Front grilleSteel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W x H x D), metric37.0 x 67.0 x 32.5 cm
Dimensions (W x H x D), imperial14-9/16 x 26-3/8 x 12-25/32 inch
Weight, metric22.8 kg
Weight, imperial50.3 lbs
The homogeneous phase response, the remarkably wide dynamic range and the BEM (Boundary Element Method)-optimized high-frequency horn form the basis for a strikingly detailed resolution, a very precise dispersion pattern and simple clustering. For symmetrical monitor arrangements, the CX 12 is available in both left and right cabinet versions. It is suitable for a range of areas of application, from full-range to close-range sound applications with high SPL requirements to applications as an FoH mid-high unit, frontfill, sidefill or drumfill, as well as monitoring on large stages.
