ELEMENTS MK2 110 Sub A
technical data
System
Specifications
ConceptAcitve subwoofer
Cabinet principleBass reflex
Max. SPL average2122 dB
Max. SPL peak3123 dB
Max. SPL calculated5124 dB
Crossover frequency175 Hz
Frequency range -6 dB52 Hz - X-Over
Frequency range -10 dB49 Hz - X-Over
Index
Index 2)1 x loudspeaker @1 m, 10 % THD, XX Hz - XX kHz averaged (EN60268-21), full-space
Index 3)1 x louspeaker at 1 m, 10% THD, at 70 Hz full-space
Index 5)calculated with 500 W at 65 Hz and 98 dB /1W /1m, halfspace
Components
Low frequency1x 10" with 2,5" VC

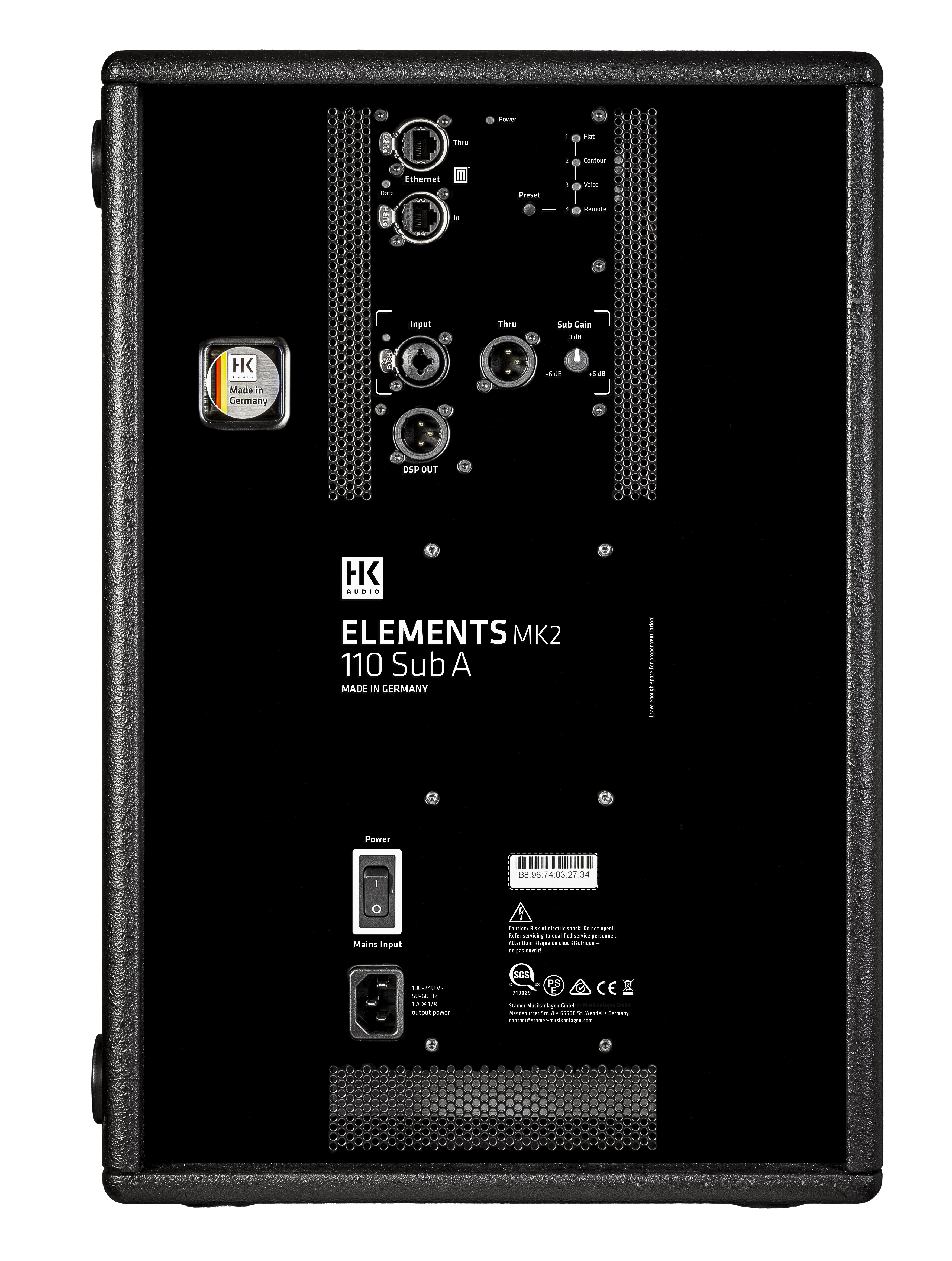

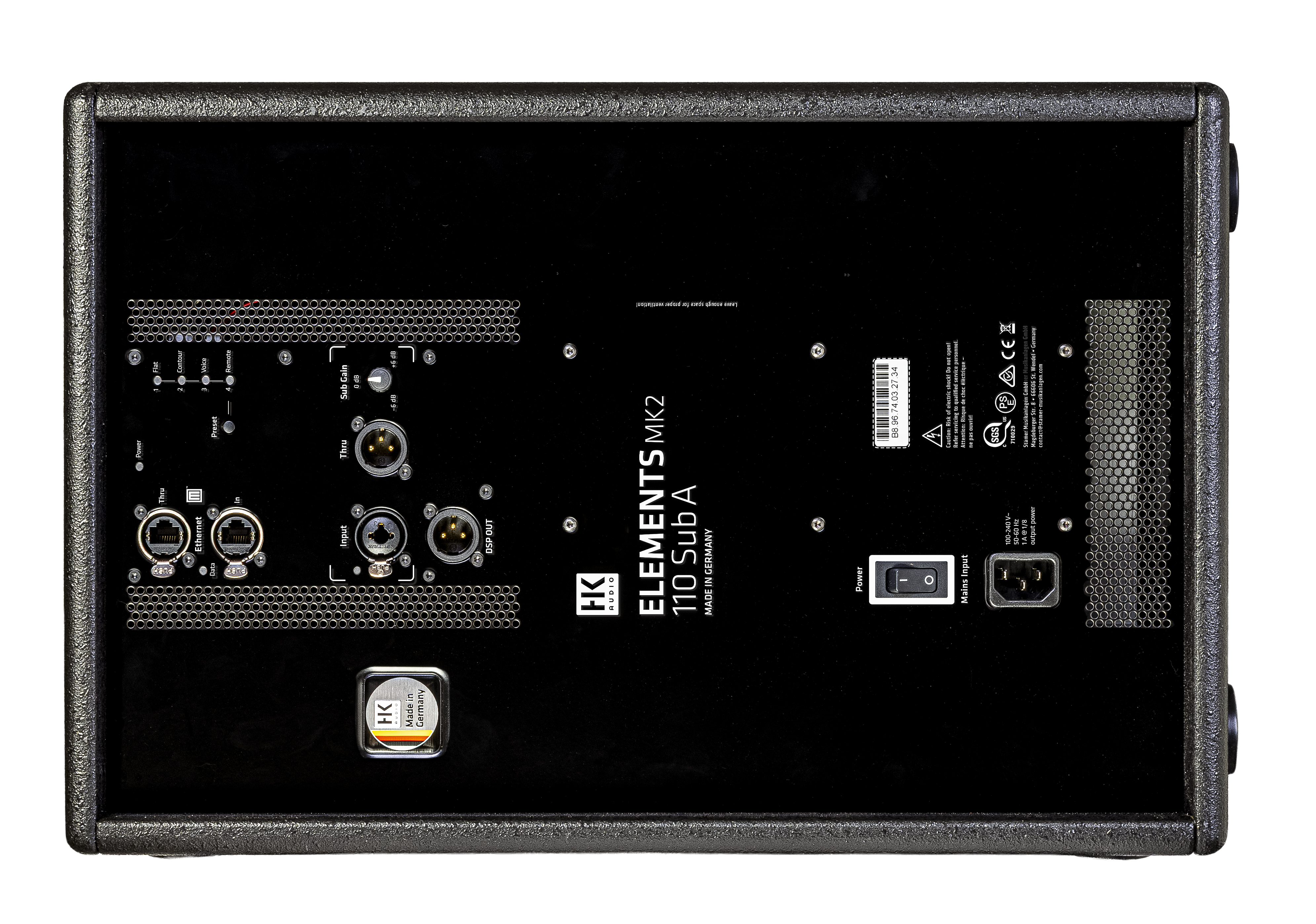

Connections
Power supply1 x IEC 14
Analog input1 x XLR/jack balanced
Analog output1 x XLR balanced
DSP output1 x XLR balanced
Sattelite output2 x E-Connect MK2
Network input1 x Ethercon RJ45
Network output1 x Ethercon RJ45
Electronic data
PreamplifierDSP-preamp
Power amplifierClass D - biamped
Power amplifier output RMS900 W
Power amplifier output peak1800 W
Power consumption1,0 A / 100-240 V nominal according to EN 62368-1
Maximum input level20 dBu
Speaker protectionRMS-/Peak-Limiter
Sample rate48 kHz
Latency6 ms
DisplayN.A.
DSP functionsparametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity Delay DSP-Out(50ms), limiter, mute
Remote softwareDSP-Control
Filter presetsFlat, Contour, Voice, Remote
Digital audio transmissionMilan AVB
Mechanical data
Accessories included1x Top Lid
Subwoofer
Charecteristics and components
ConceptAcitve subwoofer
Cabinet principleBass reflex
Low frequency1x 10" with 2,5" VC
Crossoveractive
Mechanical data
Cabinet materialHybrid housing
Cabinet surfacewater based acrylic enamel

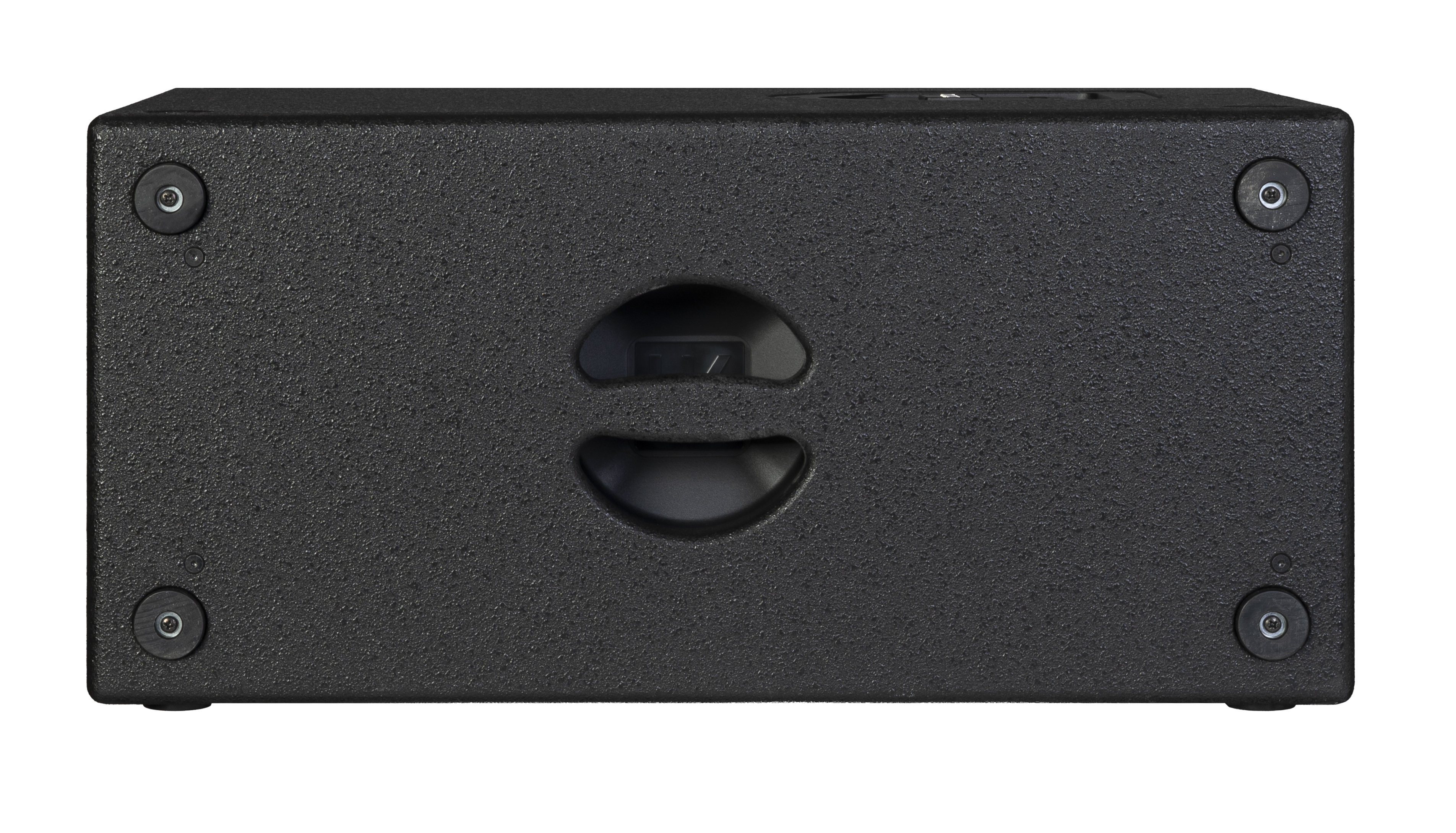

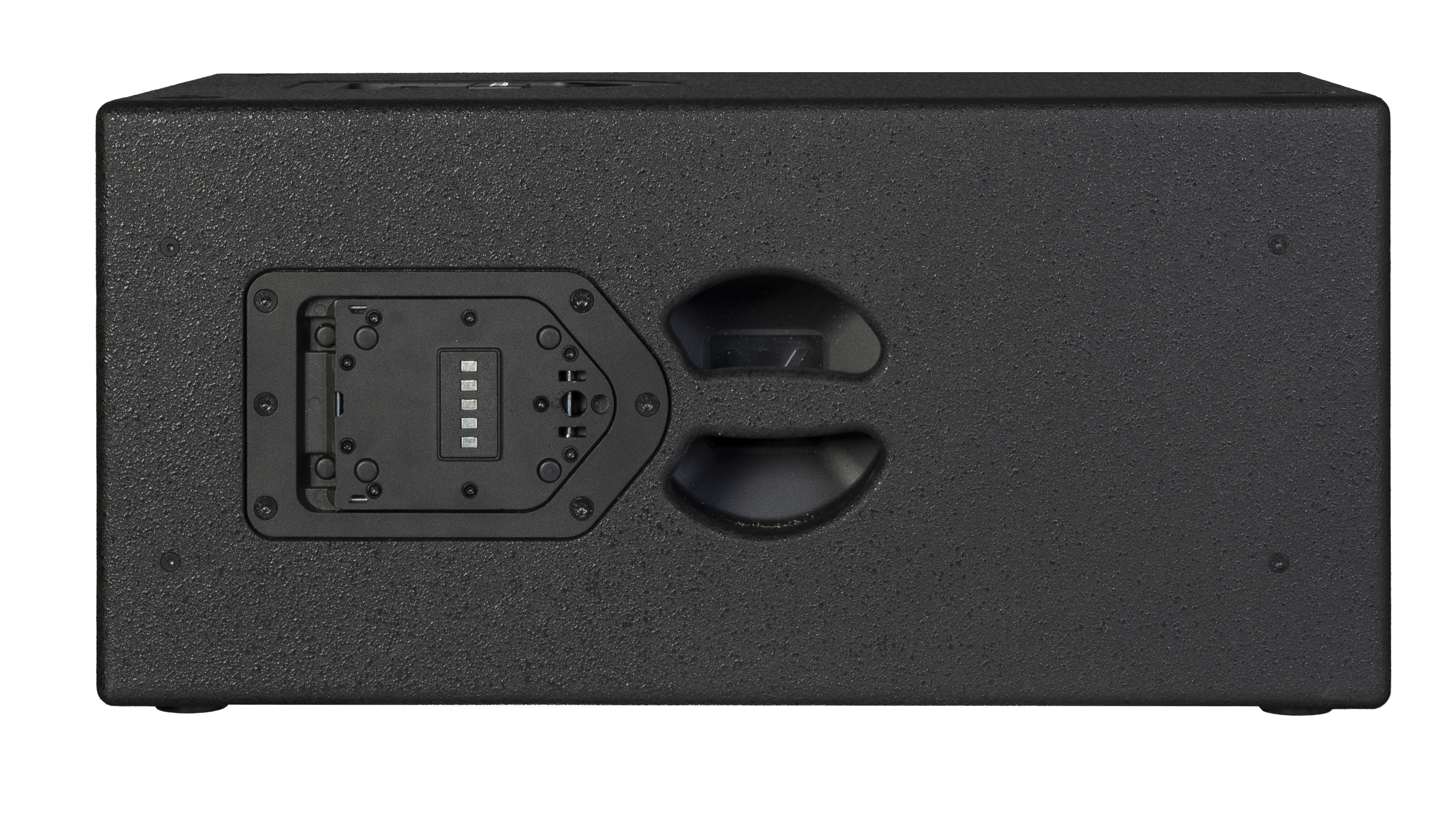

Carrying handles2 x Single Grip

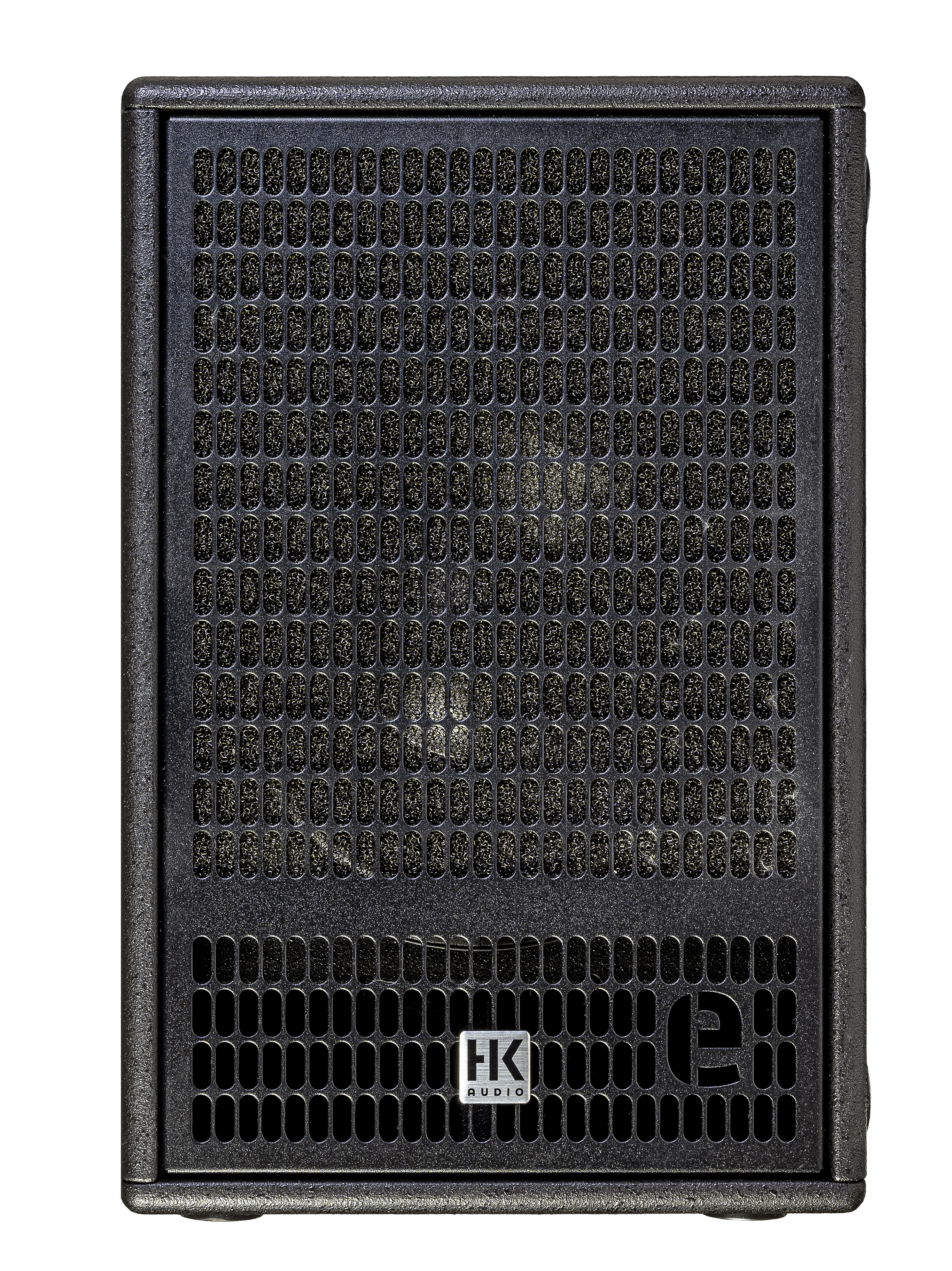

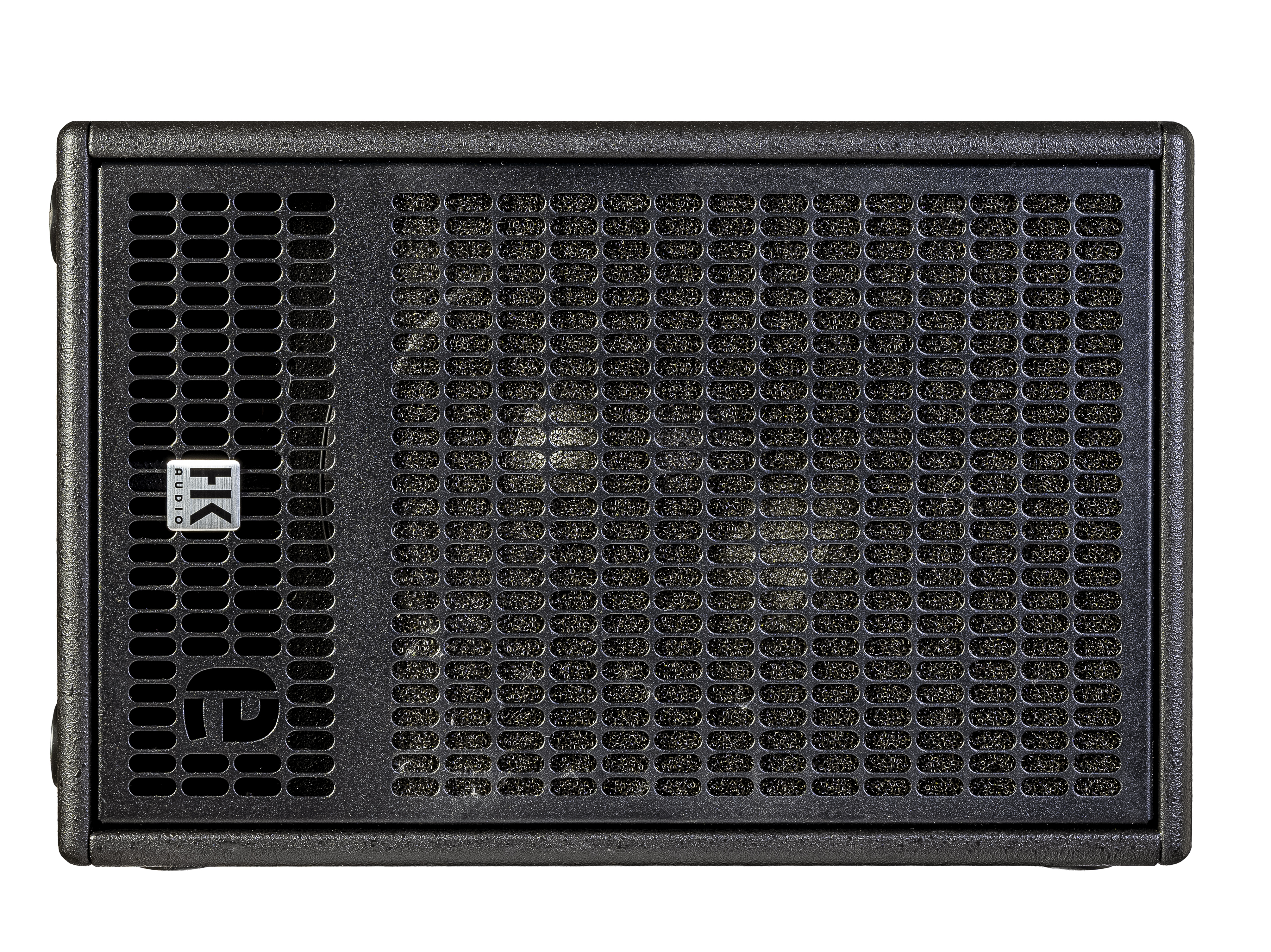

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W x H x D), metric32,8 cm x 48,6 cm x 67,3 cm
Dimensions (W x H x D), imperial12,91 inch x 19,13 inch x 26,50 inch
Weight, metric28,5 kg
Weight, imperial62.83 lbs
