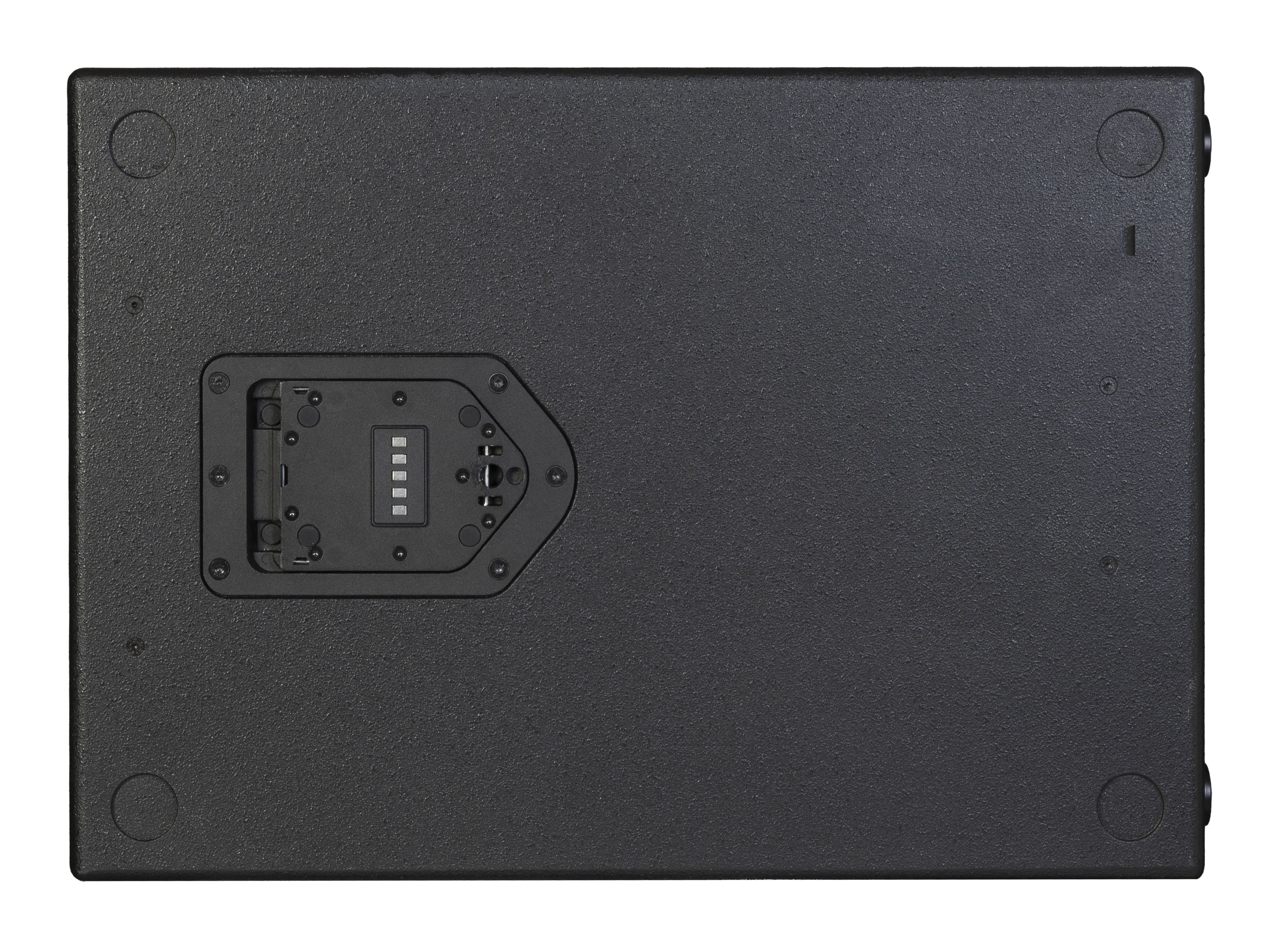

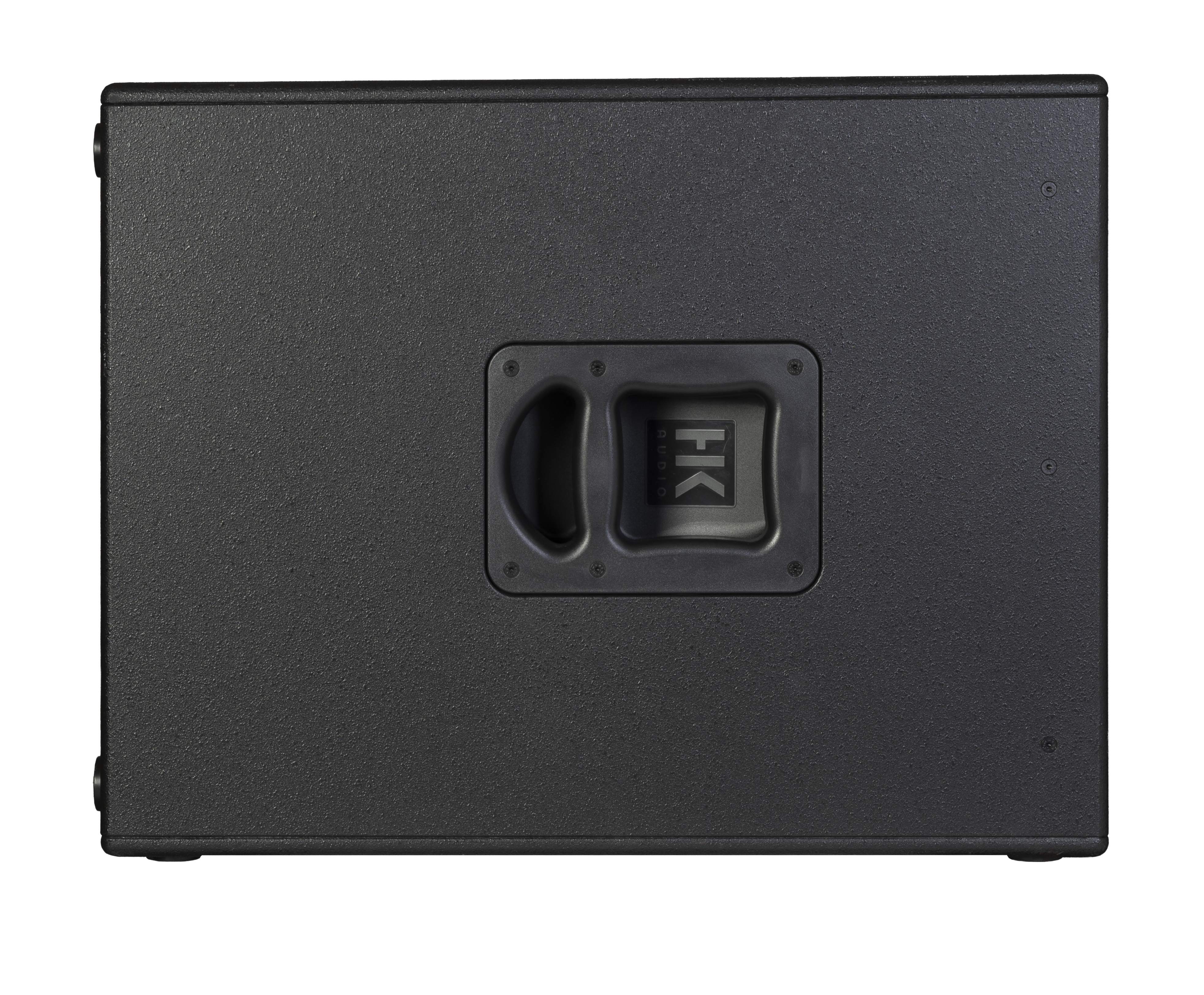

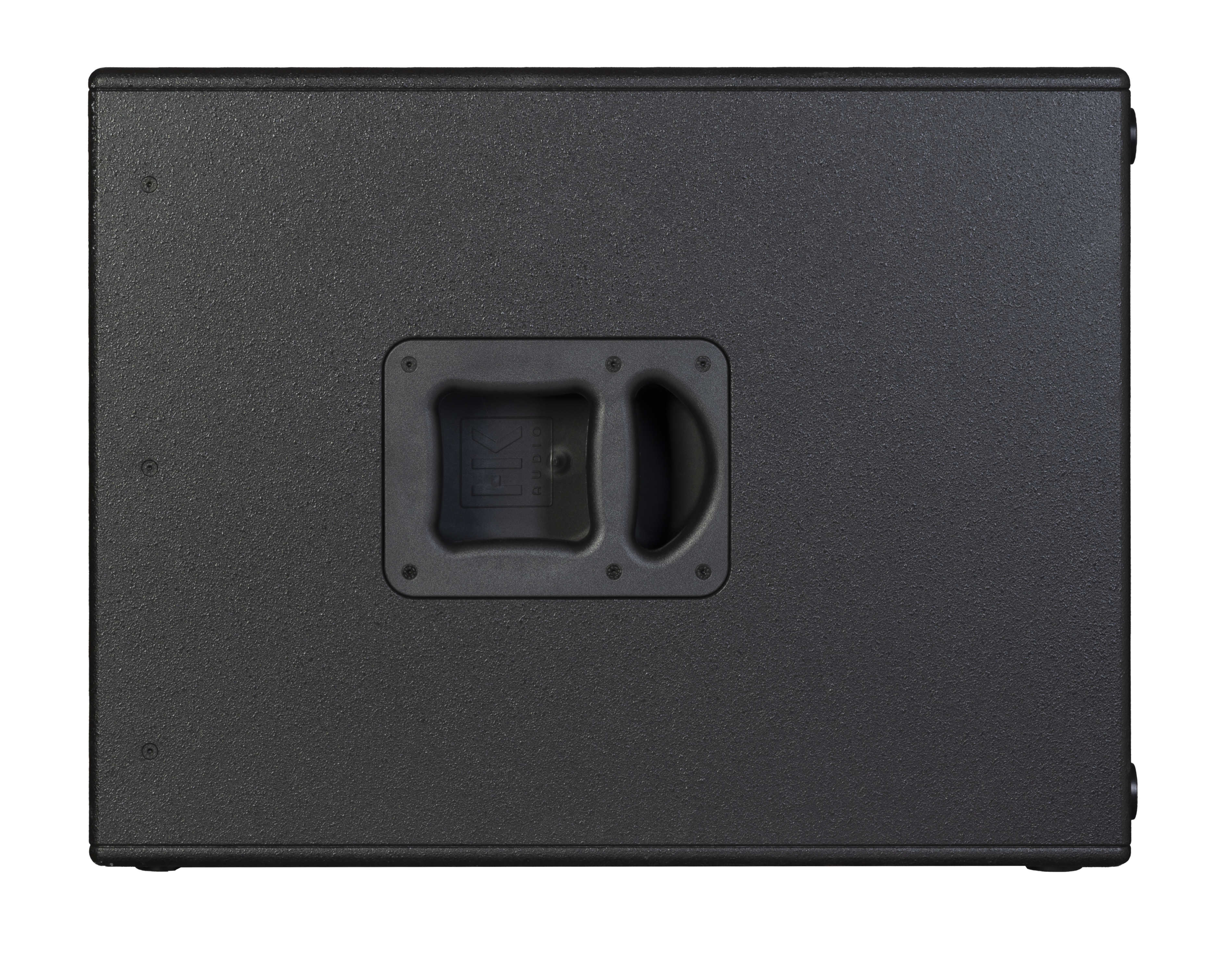

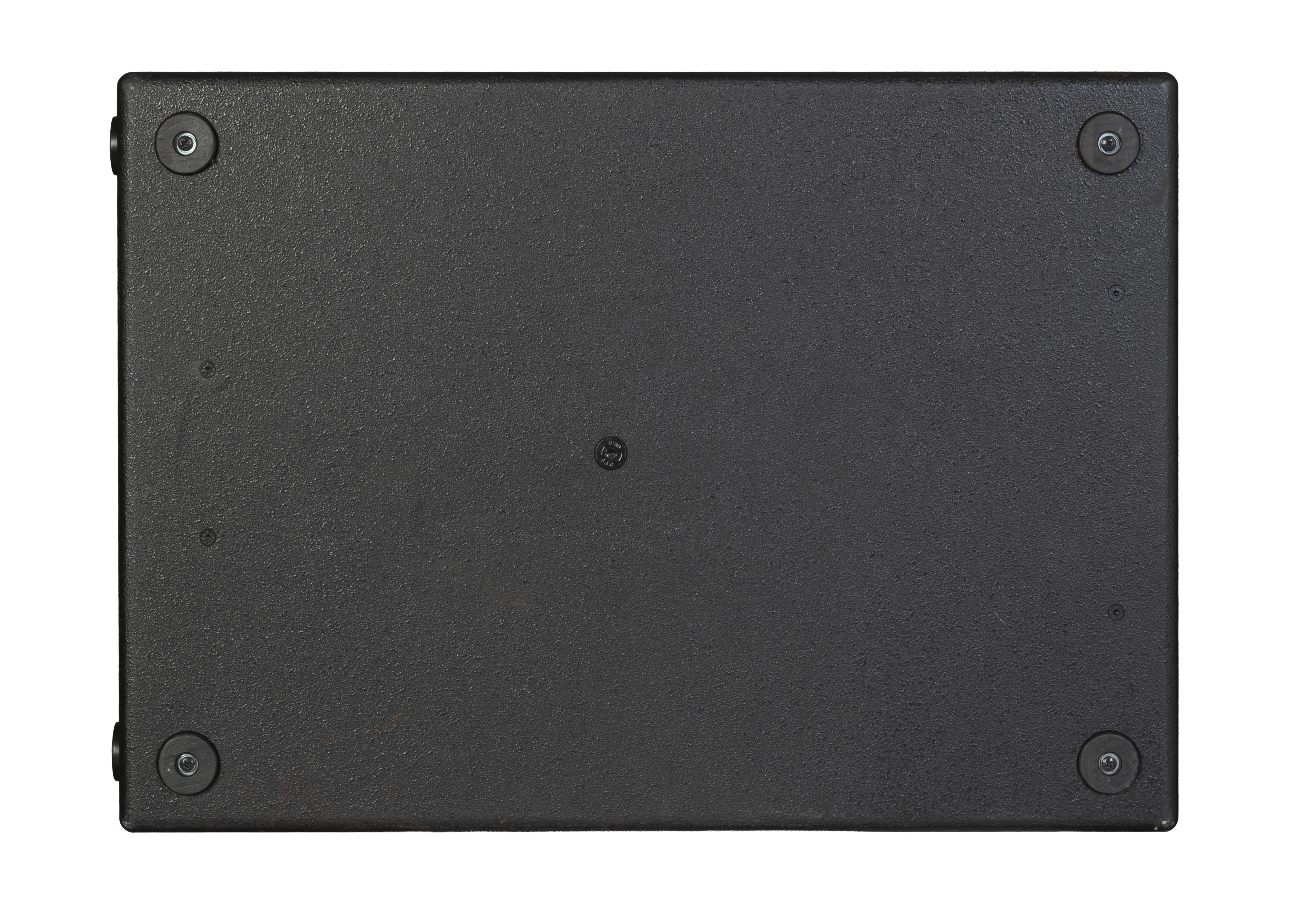

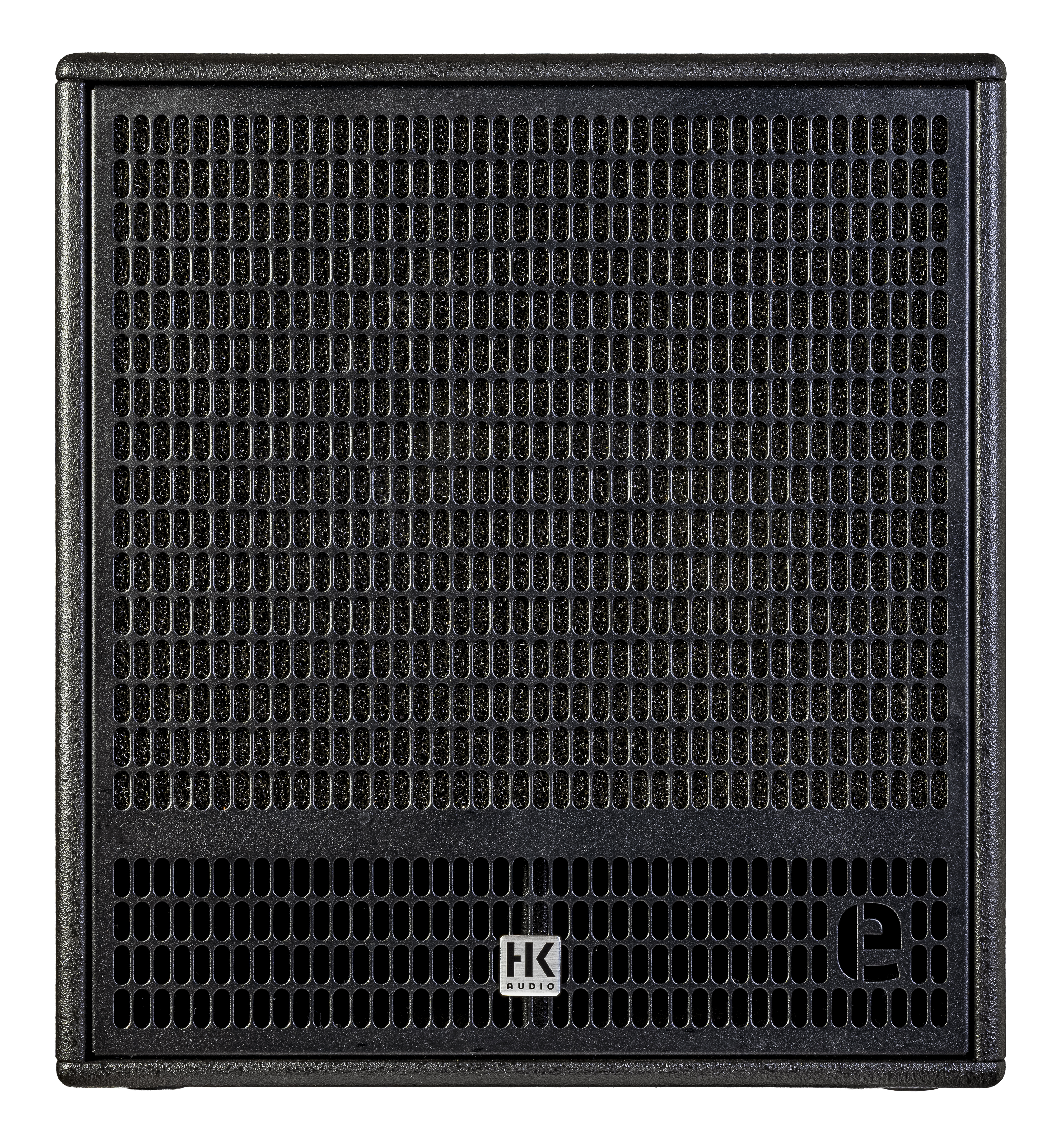

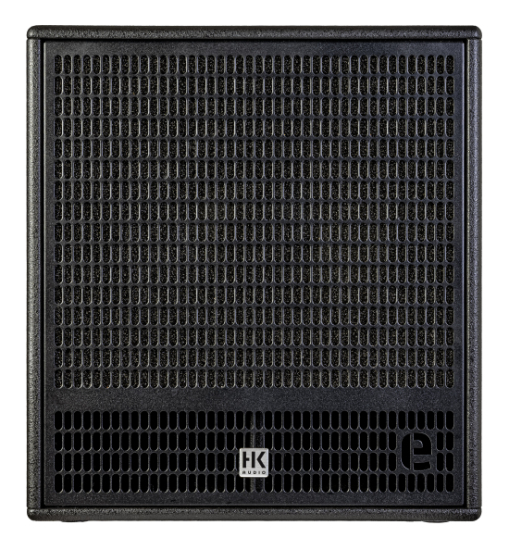

ELEMENTS MK2 115 Sub A

The HK Audio ELEMENTS MK2 115 Sub A offers high level headroom, an extended low-frequency response, and high sound pressure levels. This makes it particularly well suited to demanding music and event applications, providing a powerful bass foundation for the HK Audio ELEMENTS MK2 system.

Concept	Active subwoofer
Digital audio transmission	Milan AVB
Frequency range -10 dB	35 Hz - X-Over
Power amplifier output RMS	1500 W
Remote software	DSP-Control

technical data

System

Specifications

ConceptActive subwoofer

Cabinet principleBass reflex

Max. SPL average²126 db

Max. SPL peak³128 dB

Max. SPL calculated⁵130 dB

Crossover frequency175 Hz

Frequency range -6 dB38 Hz - X-Over

Frequency range -10 dB35 Hz - X-Over

Index

Index 2)1 x loudspeaker @1 m, 10 % THD, XX Hz - XX kHz averaged (EN60268-21), full-space

Index 3)1 x louspeaker at 1 m, 10% THD, at 100 Hz full-space

Index 5)calculated with 1 kW at 100 Hz and 100 dB /1W /1m, halfspace

Components

Low frequency1x 15" with 3,5" VC

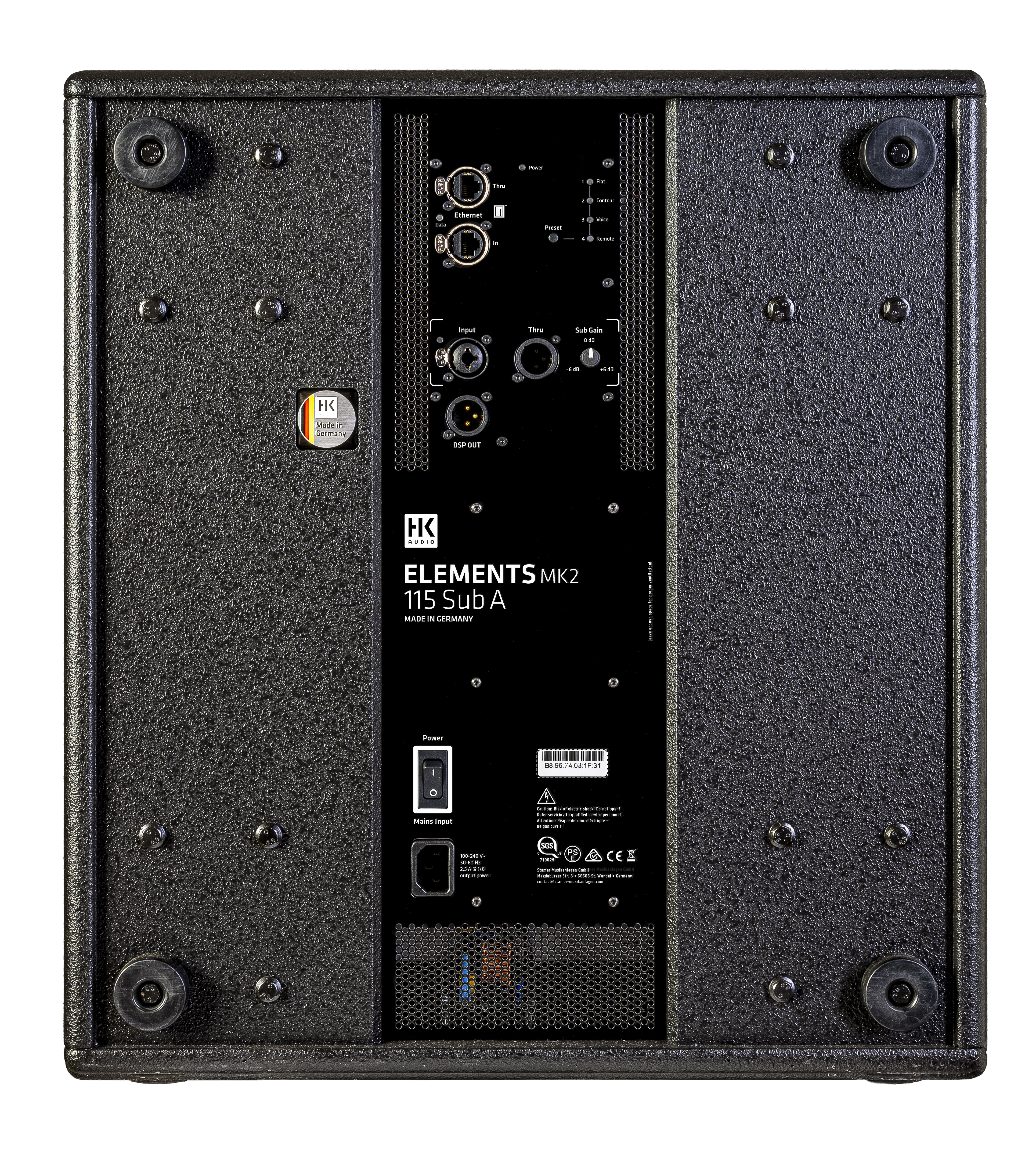

Connections

Power supply1 x IEC 14

Analog input1 x XLR/jack balanced

Analog output1 x XLR balanced

DSP output1 x XLR balanced

Sattelite output1 x E-Connect MK2

Network input1 x Ethercon RJ45

Network output1 x Ethercon RJ45

Electronic data

PreamplifierDSP-preamp

Power amplifierClass D - biamped

Power amplifier output RMS1500 W

Power amplifier output peak3000 W

Power consumption2,5 A / 100-240 V nominal according to EN 62368-1

Maximum input level20 dBu

Speaker protectionRMS-/Peak-Limiter

Sample rate48 kHz

Latency6 ms

DisplayN.A.

DSP functionsparametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity Delay DSP-Out(50ms), limiter, mute

Remote softwareDSP-Control

Filter presetsFlat, Contour, Voice, Remote

Digital audio transmissionMilan AVB
