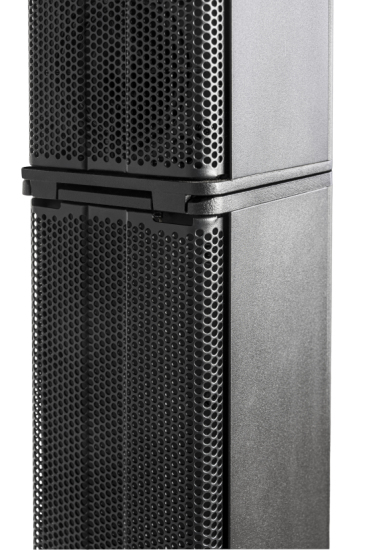

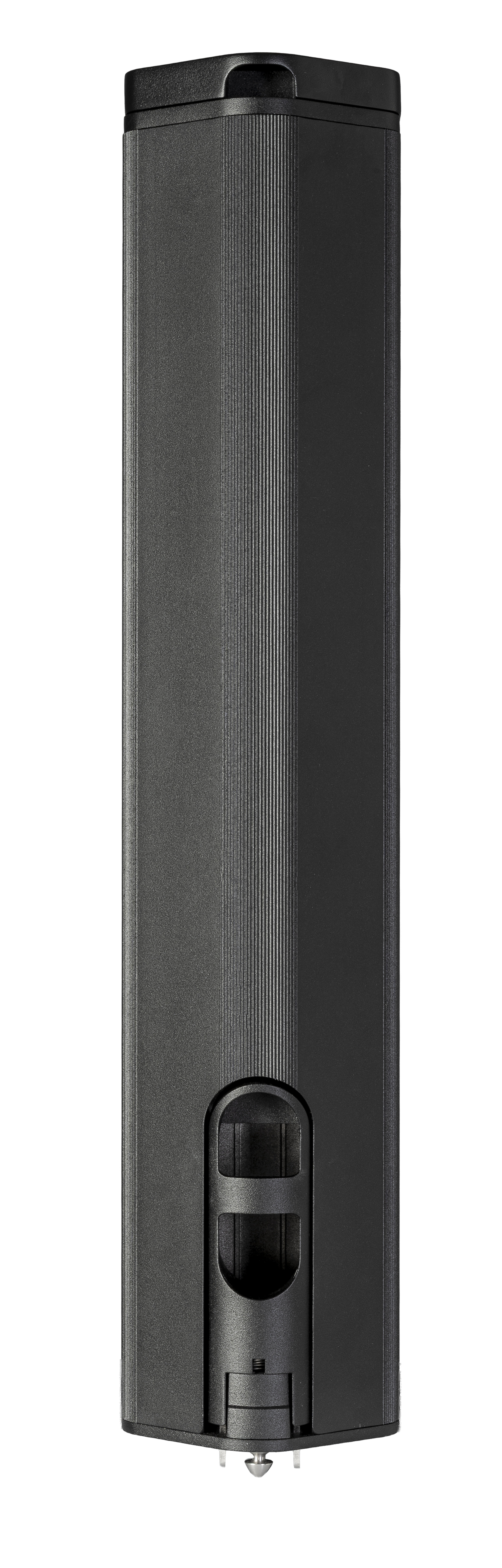

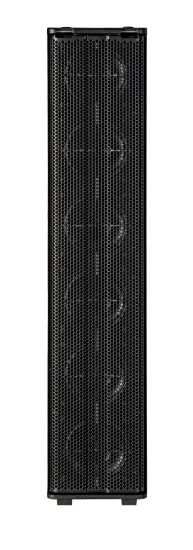

ELEMENTS MK2 635
technical data
System
Specifications
ConceptPassive broadband column loudspeaker
System componentsAcitve subwoofer
Cabinet principleClosed
Power handling RMS250 W
Max. SPL average2127 dB
Max. SPL peak3132 dB
Max. SPL calculated5135 dB
Crossover frequency175 Hz
Frequency range -6 dB170 Hz - 18 kHz
Frequency range -10 dB145 Hz - 20 kHz
Dispersion angle -6 dB (horizontal x vertical)90° x 5°
Index
Index 2)1 × loudspeaker at 1 m, 10% THD, averaged over 150 Hz-16 kHz (EN 60268-21), full-space
Index 3)1 x loudspeaker at 1 m, 10% THD, at 16 kHz full-space
Index 5)calculated with 250 W at 16 kHz an 105 dB /1W /1m, halfspace
Components

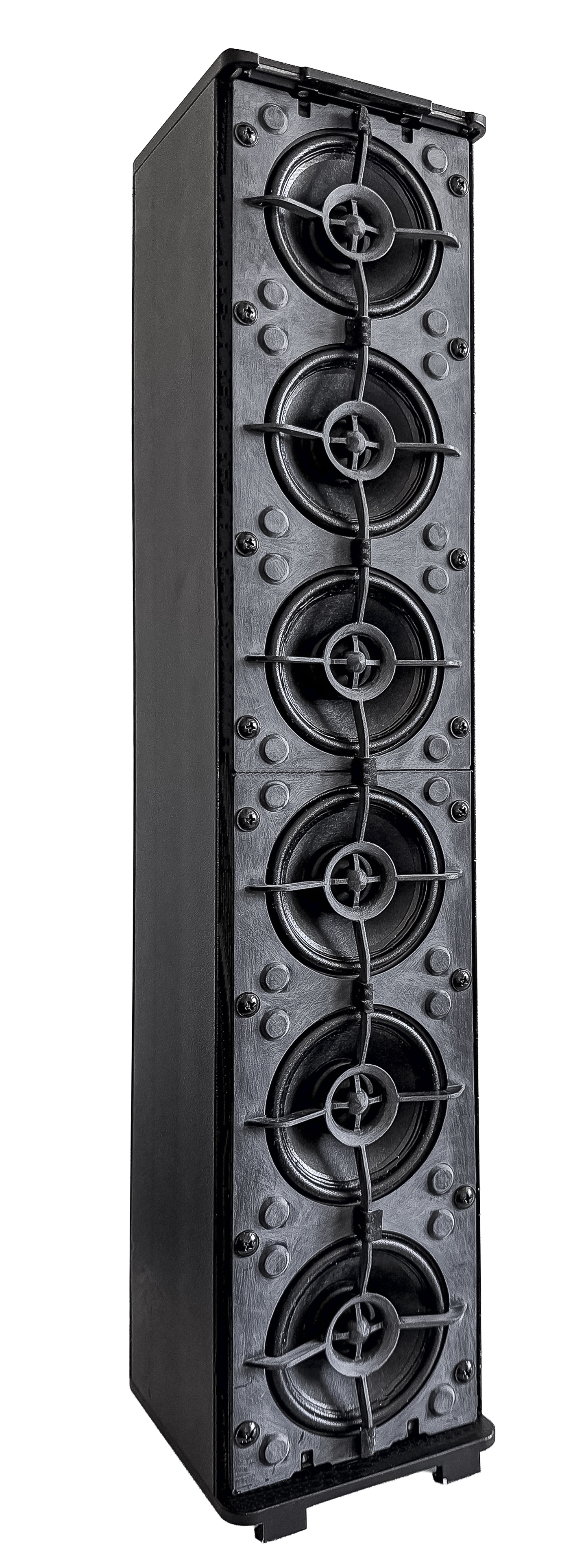

Mid/high frequency6x 3,25"
Horn6x Phaseplug
Connections

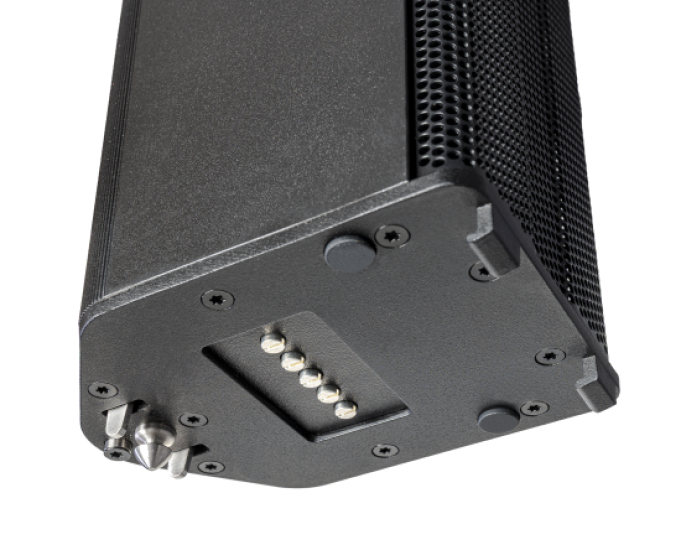

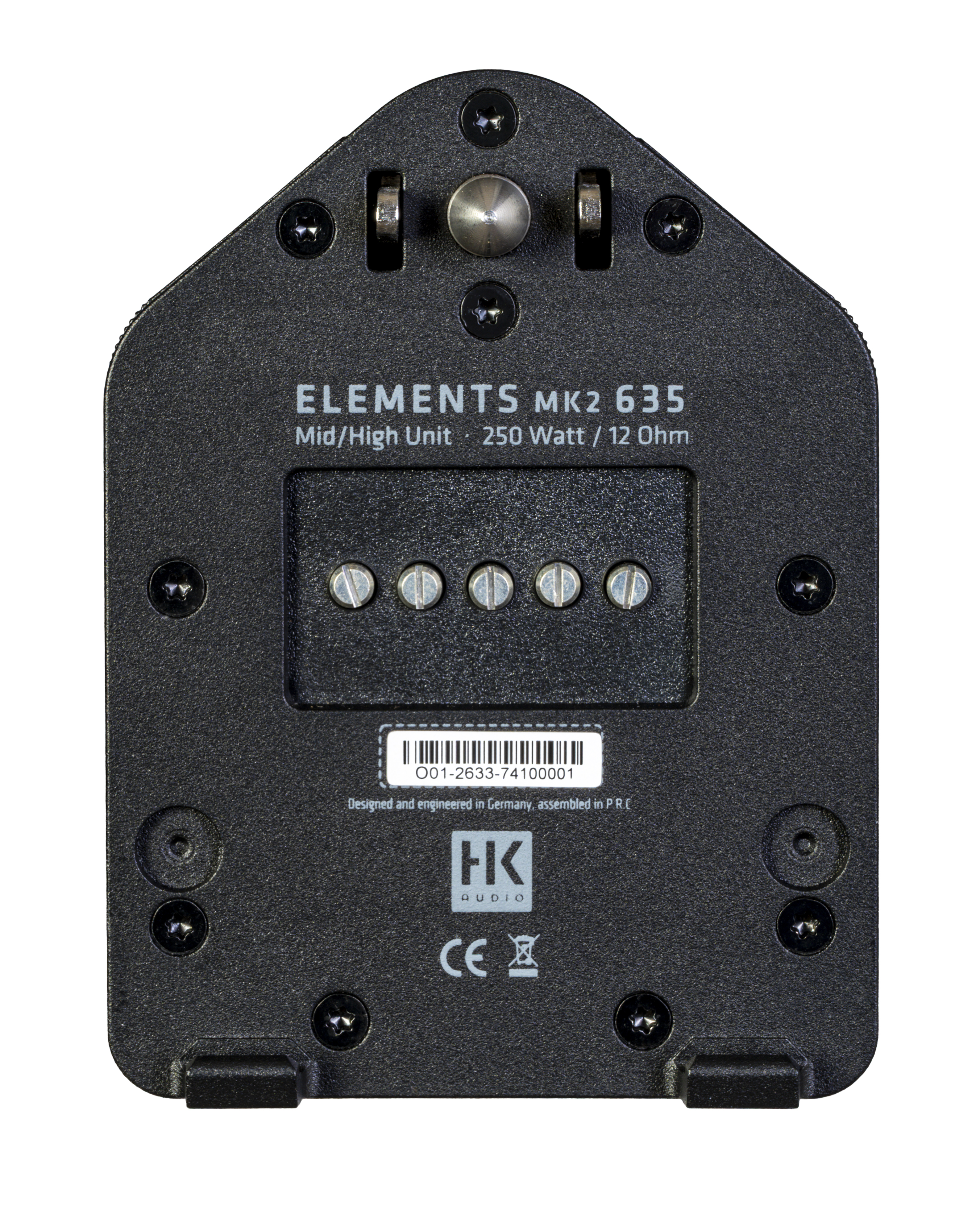

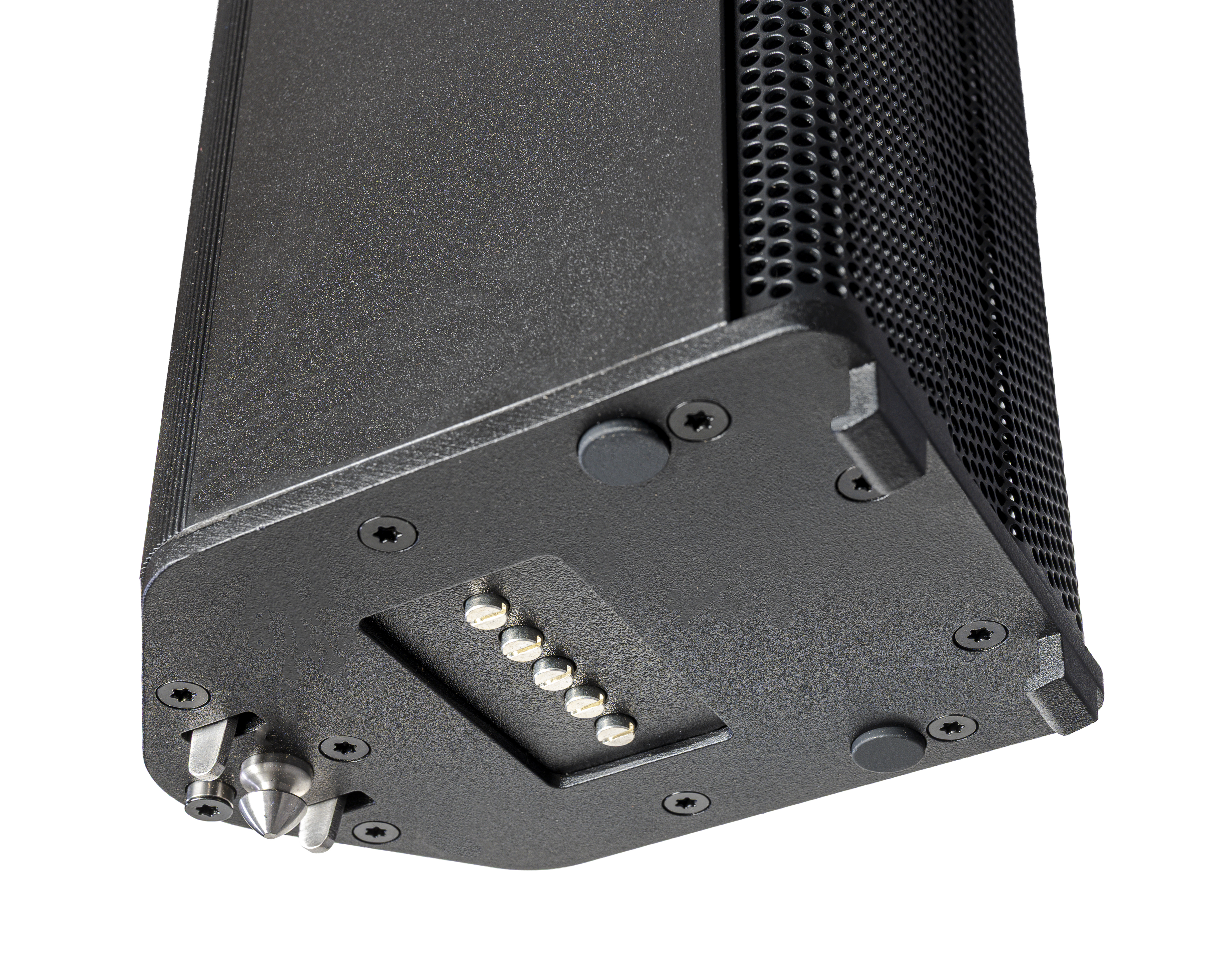

Input1 x E-Connect MK2

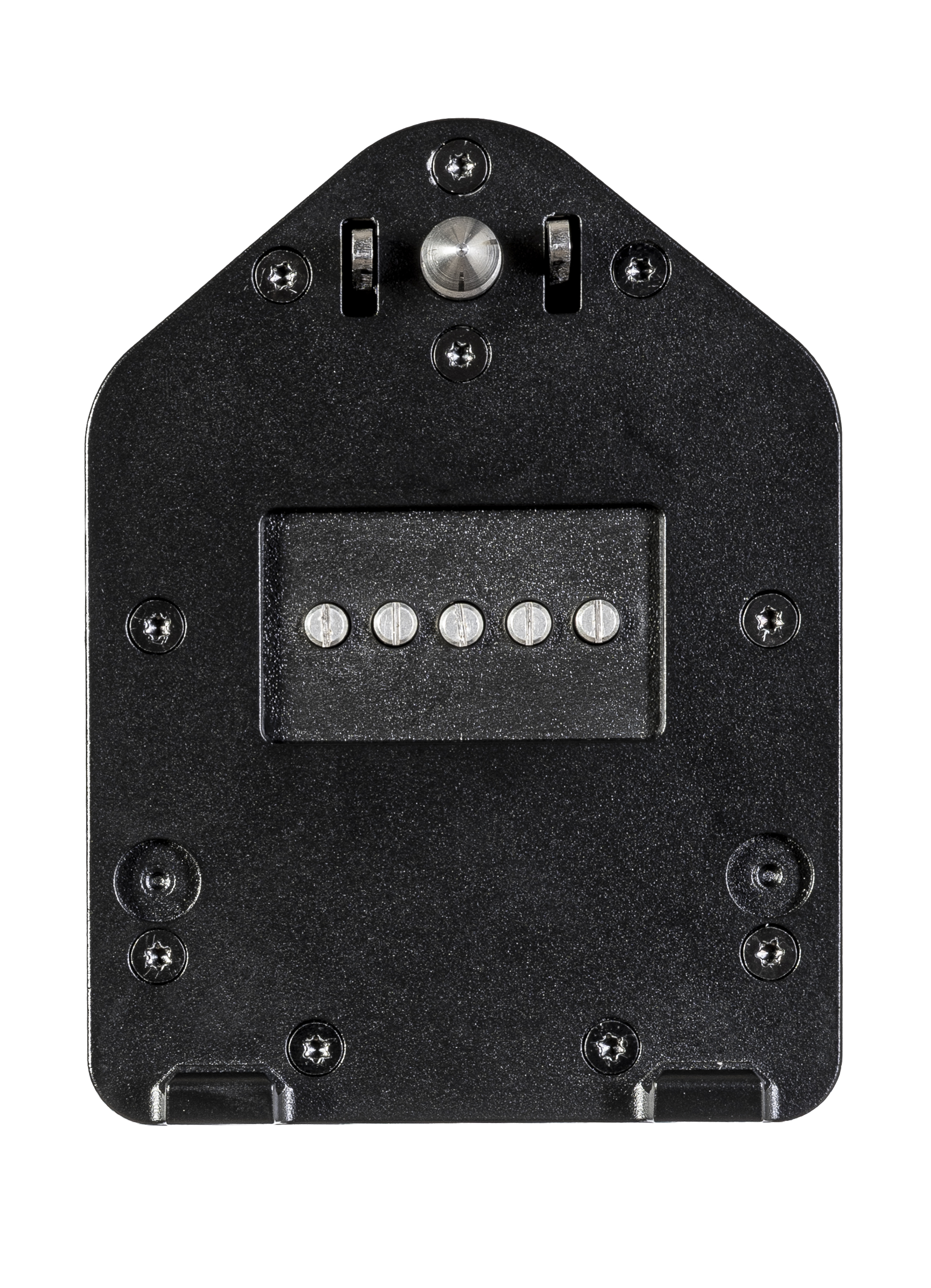

Output/parallel output1 x E-Connect MK2
Mechanical data
Cabinet materialAluminum
Cabinet surfacePowder coating
Colorblack
Front grilleSteel front grille with anticorrosive coating
Dimensions (W x H x D), metric11.2 cm x 56 cm x 15.1 cm
Dimensions (W x H x D), imperial4.41 inch × 22.05 inch × 5.94 inch
Weight, metric7.3 kg
Weight, imperial16.09 lbs
Mid/High Unit
Characteristics and components
ConceptPassive broadband column loudspeaker
Cabinet principleClosed
Mechanical data
Cabinet materialAluminum
Cabinet surfacePowder coating black
Front grilleSteel front grille with anticorrosive coating
Dimensions (W x H x D), metric11,2 cm x 56 cm x 15,1 cm
Dimensions (W x H x D), imperial4.41 inch × 22.05 inch × 5.94 inch
Weight, metric7,3 kg
Weight, imperial16.09 lbs
