FINEO FO 10
THE NEW INSTALLATION STANDARD
technical data
Characteristics
ConceptPassive 2-way mid/high unit
Cabinet principleBass reflex
Power handling RMS300 W
Power handling program600 W
Power handling peak1200 W
Nominal impedance18 Ohms
Max. SPL average2119 dB
Max. SPL peak3123 dB
Sensitivity 1 W/1 m491 dB
Crossover frequency2.9 kHz
Frequency range -6 dB71 Hz - 20 kHz
Frequency range -10 dB67 Hz - 20 kHz
Dispersion angle -6 dB (horizontal x vertical)80° x 60°
Index
Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)
Index 2)1 m, 10 % THD @ 80 Hz - 20 kHz, (EN 60268-21), full space
Index 3)1 m, 10 % THD @ 1.3 kHz, full space
Index 4)80 Hz - 20 kHz, full space
Certifications
Ball impact resistance (DIN 18032-3)certified (MPA Uni Stuttgart)
IP-Protection class (EN 60529)not specified (installation only in dry indoor areas)
Components
Low frequency1 x 10" Sica cone speaker with ferrite magnet and 2"-voice coil
High frequency1 x 1" Sica compression driver with ferrite magnet and 1"-voice coil
CrossoverHigh pass: 18 dB/oct., Low pass: 18 dB/oct.
High frequency protection circuitPTC circuit
HornBEM optimized Constant directivity horn, rotatable
Connections
Input1 x NL4 Speakon
Output/parallel output1 x NL4 Speakon
Pin assignment1+/- (input/parallel output), 2+/- (looped through)
Amping/Presets
Lab.gruppenIPX Series
othersLEA Professional Sharkware
Amping/Filter Sheets
Lab.GruppenIPX Series
othersBiamp Tesira, BSS, Lab.Gruppen Lake, Linea Research, Marani, Powersoft, QSC Q-SYS, Ram Audio, Symetrix (Filter specifications in tabular form for frequency response equalization, without limiter specifications)
Mechanical data

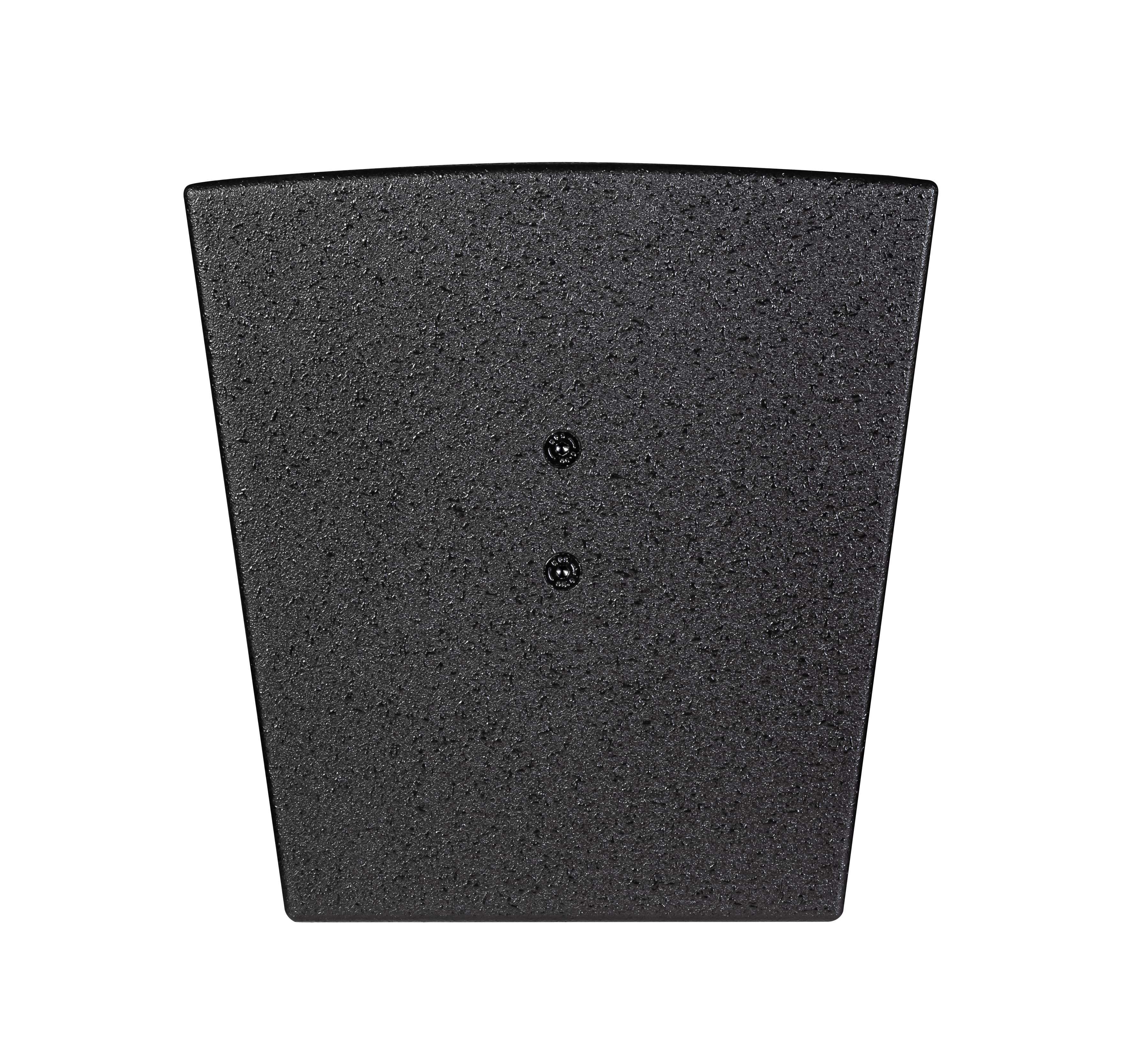

Cabinet features/rigging2 x M8 on the side, 2 x M8 bottom/lid, 1 x M8 on the back, 4 x M4 on the back (VESA MIS-D 100 x 100 mm)
Cabinet materialMDF
Cabinet surface1-component-acrylic enamel
ColorJet black (RAL 9005), Signal white (RAL 9003) or special color according to catalog
Front grilleSteel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W x H x D), metric32.1 x 52.1 x 32.8 cm
Dimensions (W x H x D), imperial12-5/8 x 20-1/2 x 12-29/32 inch
Weight, metric15.2 kg
Weight, imperial33.5 lbs
The combination of a 10" woofer with a 1.75" voice coil and the rotatable constant directivity horn from the CONTOUR X series, which was developed for the rough and tumble of touring, with a powerful 1" compression driver, results in an assertive full-range solution for speech and music. With a dispersion angle of 80° x 60°, the horn can be rotated by 90°, allowing the speaker to be used upright, lying on its side or suspended on its side with optimum dispersion in any situation.
The FO 10 is an assertive system speaker that works perfectly with the S118 or S218 subwoofers, delivering rich and precise mids.
