FINEO FO 5
THE NEW INSTALLATION STANDARD
technical data
Characteristics
ConceptPassive 2-way mid/high unit
Cabinet principleBass reflex
Power handling RMS100 W
Power handling program200 W
Power handling peak400 W
Nominal impedance18 Ohms
Max. SPL average2109 dB
Max. SPL peak3112 dB
Sensitivity 1 W/1 m487 dB
Crossover frequency3.1 kHz
Frequency range -6 dB81 Hz - 20 kHz
Frequency range -10 dB75 Hz - 20 kHz
Dispersion angle -6 dB (horizontal x vertical)110°
Index
Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)
Index 2)1 m, 10 % THD @ 100 Hz - 20 kHz, (EN 60268-21), full space
Index 3)1 m, 10 % THD @ 2 kHz, full space
Index 4)100 Hz - 20 kHz, full space
Certifications
Ball impact resistance (DIN 18032-3)certified (MPA Uni Stuttgart)
IP-Protection class (EN 60529)not specified (installation only in dry indoor areas)
Components

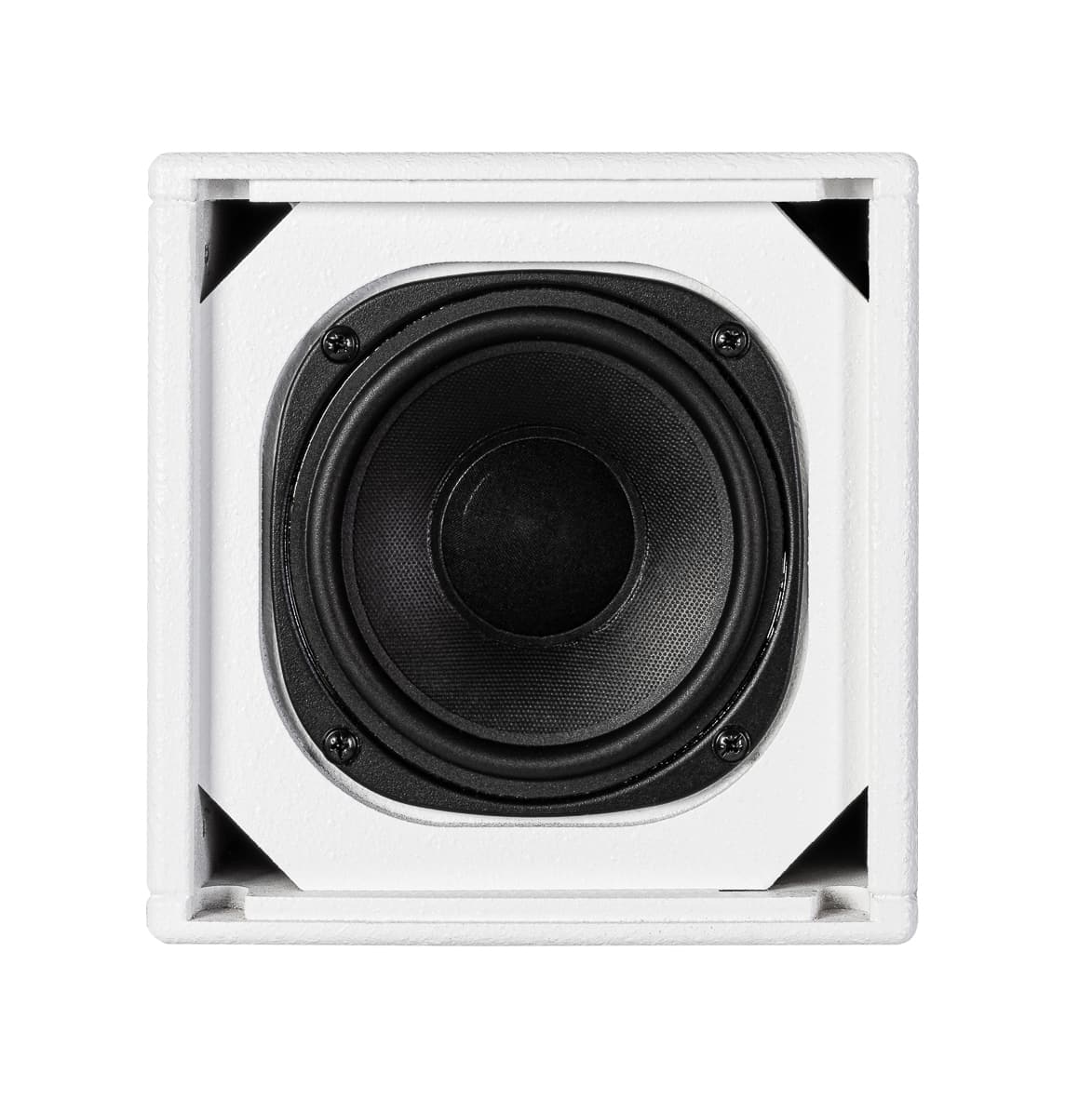

Low frequency1 x 5" Celestion Koaxiallautsprecher with ferrite magnet and 1.5"-voice coil
High frequency1 x 1" Celestion silk dome tweeter with neodymium magnet and 1"-voice coil
CrossoverHigh pass: 18 dB/oct., Low pass: 12 dB/oct.
High frequency protection circuitPTC circuit
Horncoaxial diaphragm acts as a horn funnel

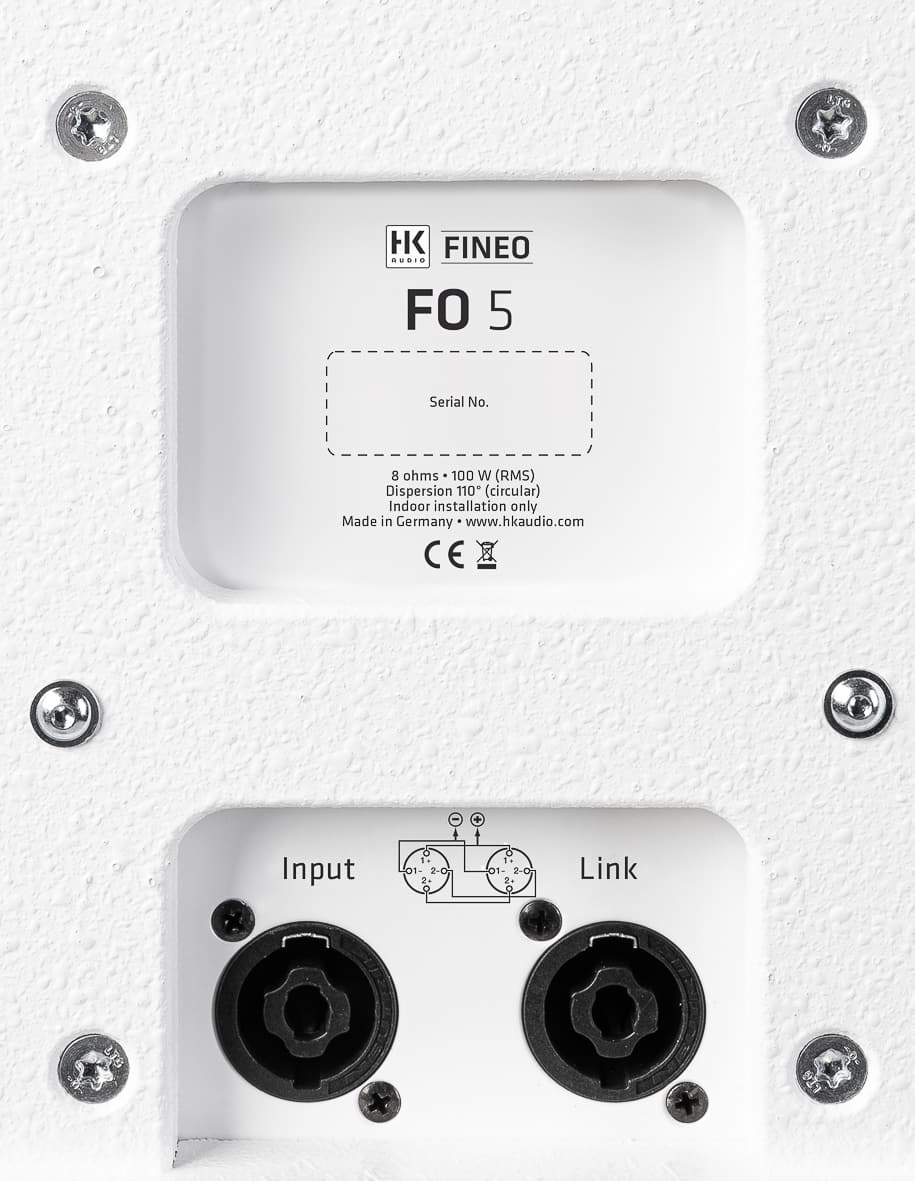

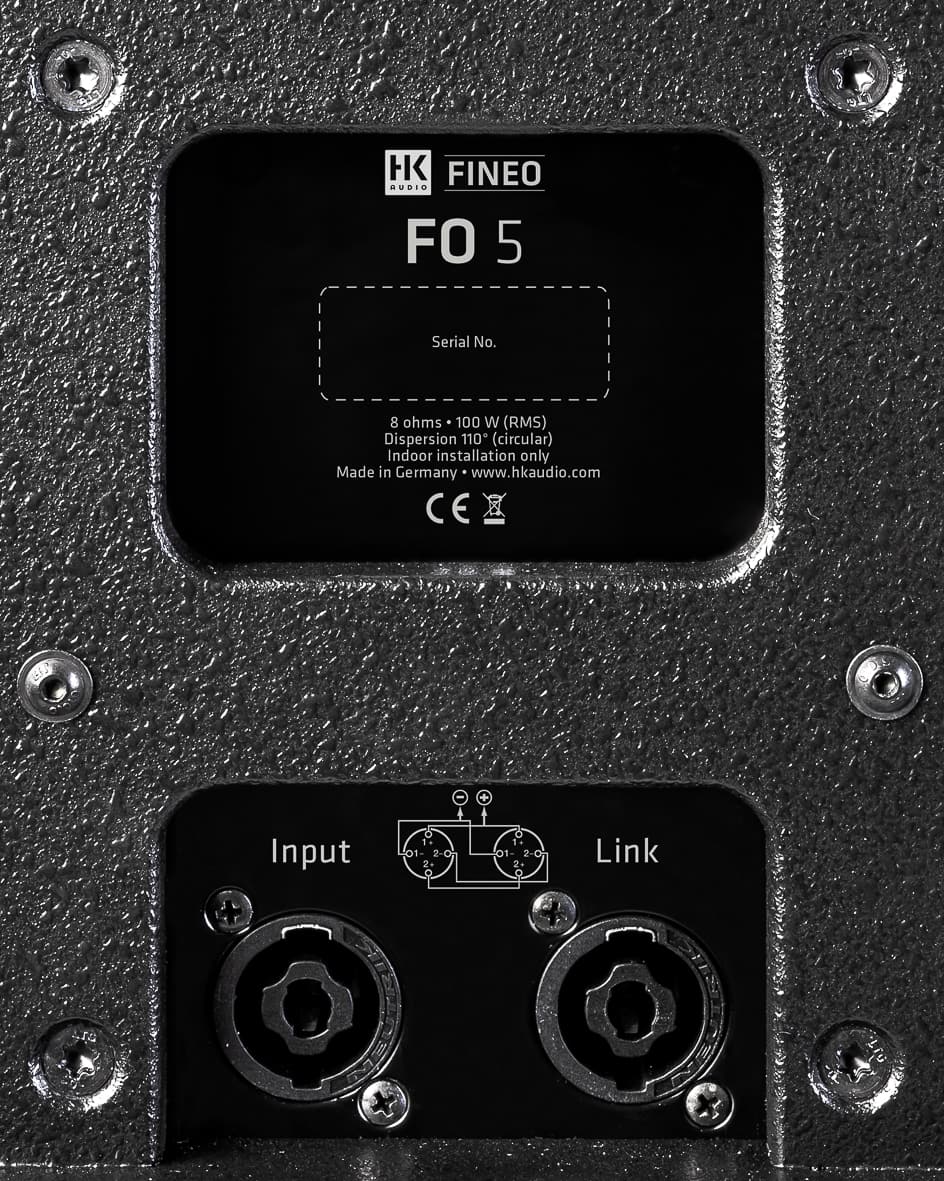

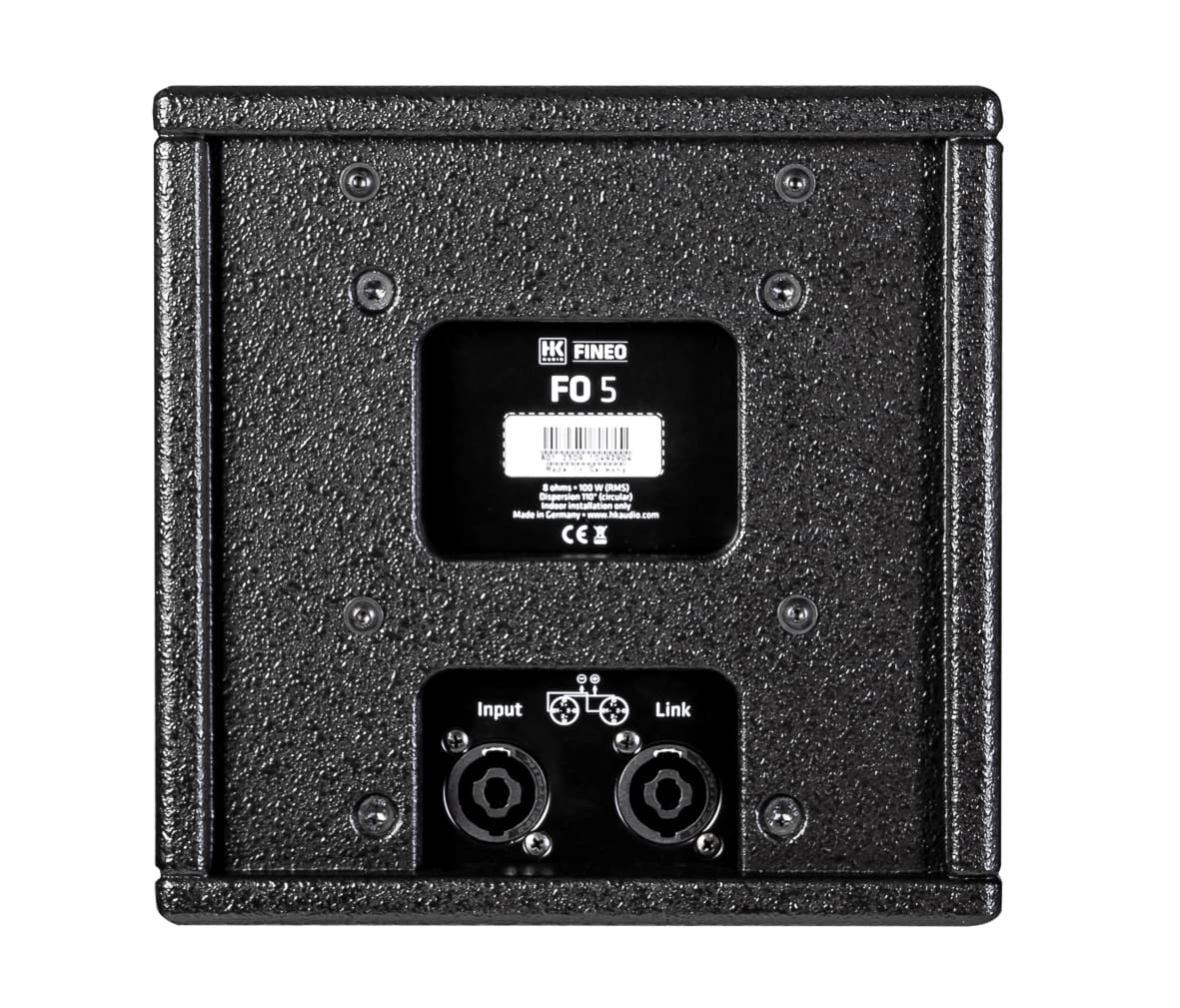

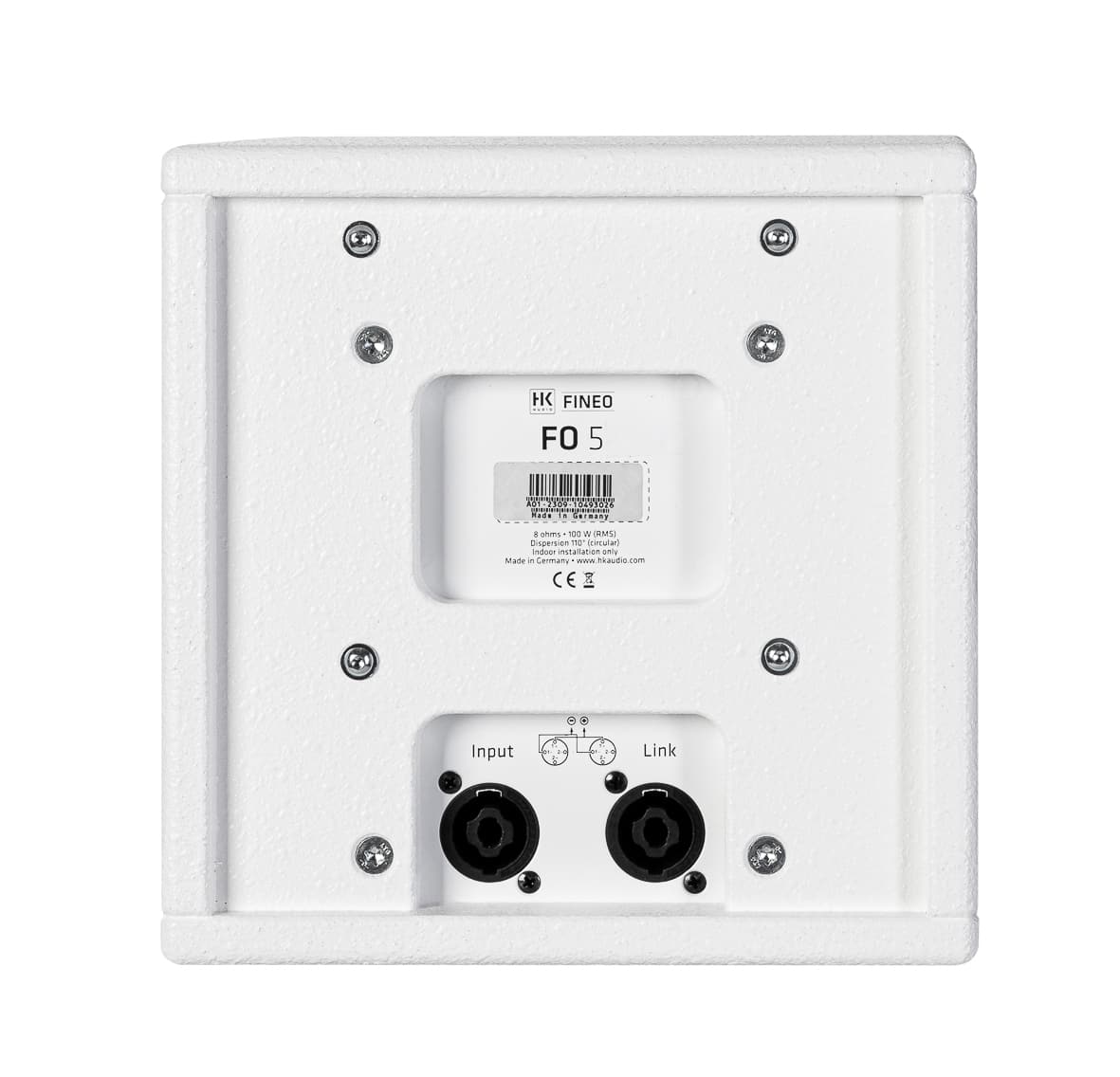

Connections
Input1 x NL4 Speakon
Output/parallel output1 x NL4 Speakon
Pin assignment1+/- (input/parallel output), 2+/- (looped through)
Amping/Presets
Lab.gruppenIPX Series
othersLEA Professional Sharkware
Amping/Filter Sheets
Lab.GruppenIPX Series
othersBiamp Tesira, BSS, Lab.Gruppen Lake, Linea Research, Marani, Powersoft, QSC Q-SYS, Ram Audio, Symetrix (Filter specifications in tabular form for frequency response equalization, without limiter specifications)
Mechanical data

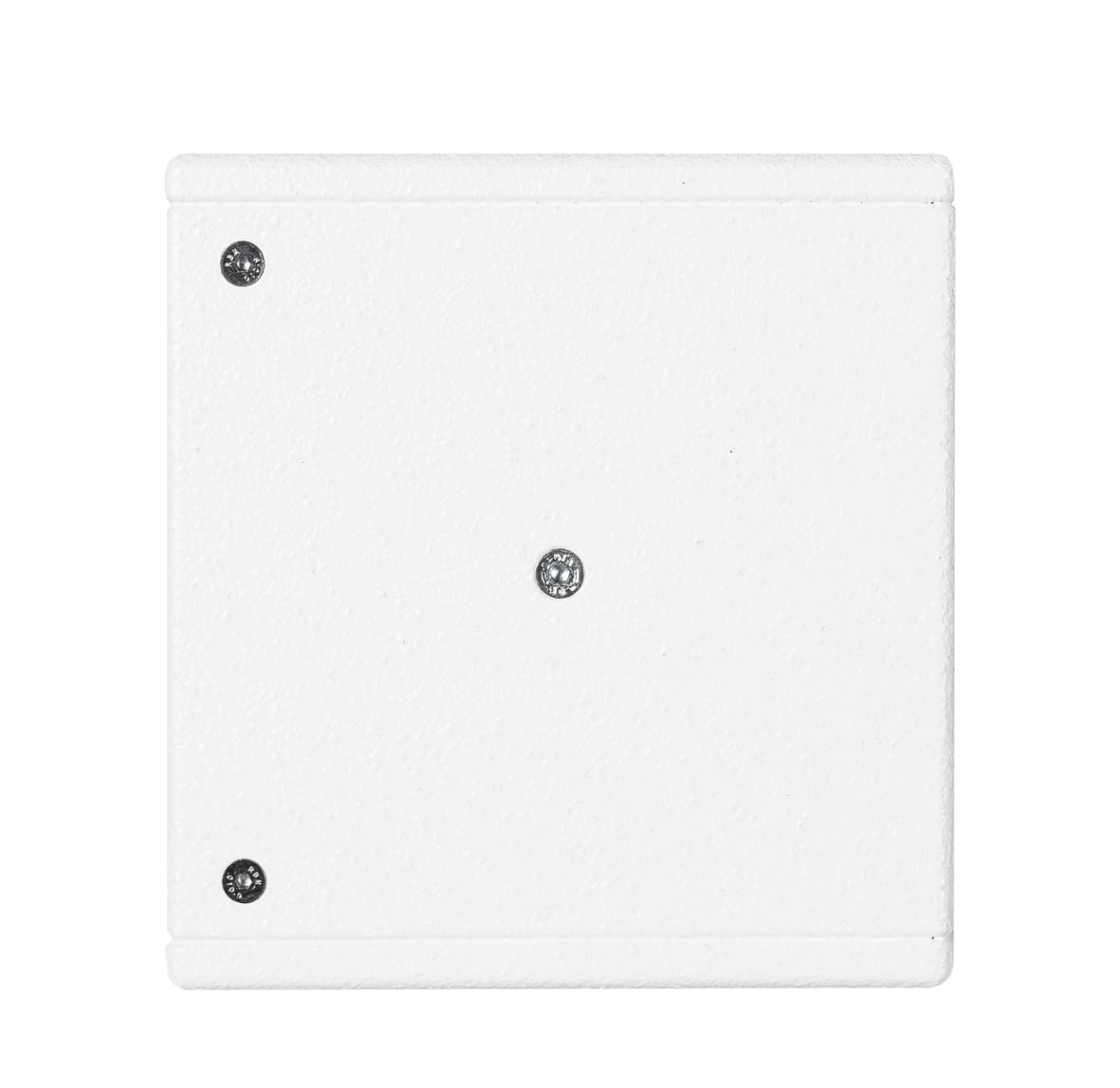

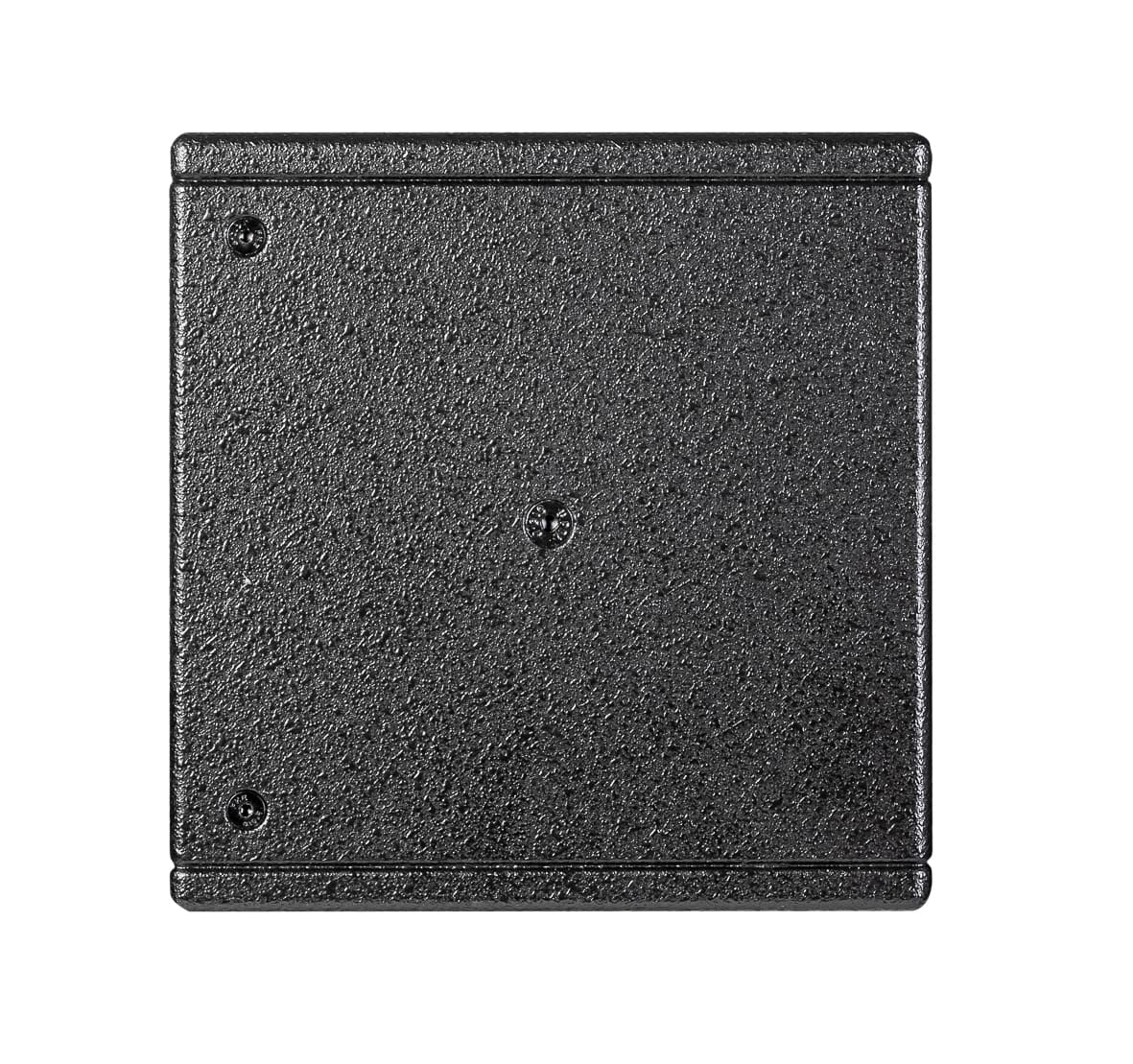

Cabinet features/rigging2 x M6 on the side, 4 x M4 on the back (VESA MIS-D 100 x 100 mm)
Cabinet materialMDF

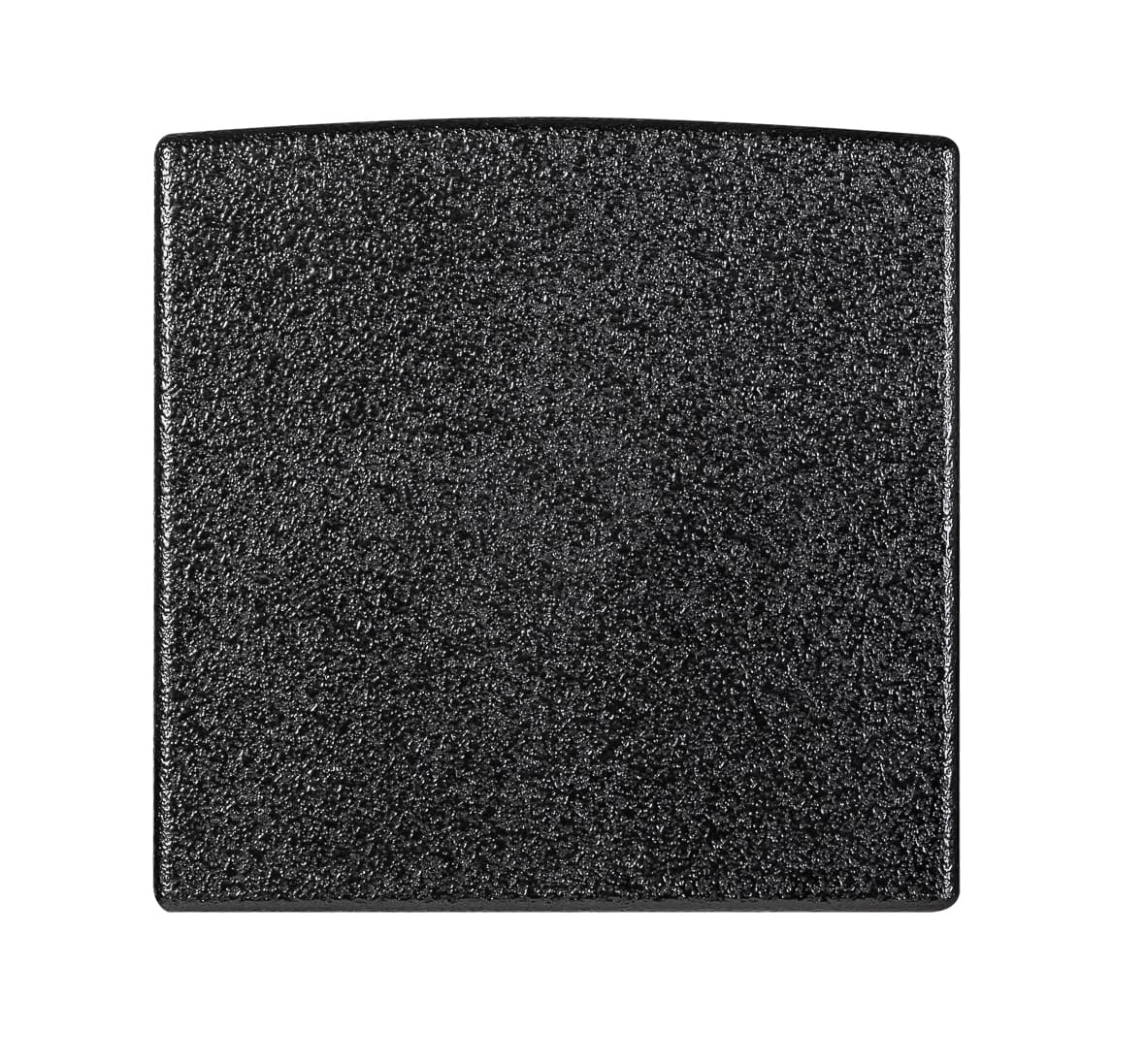

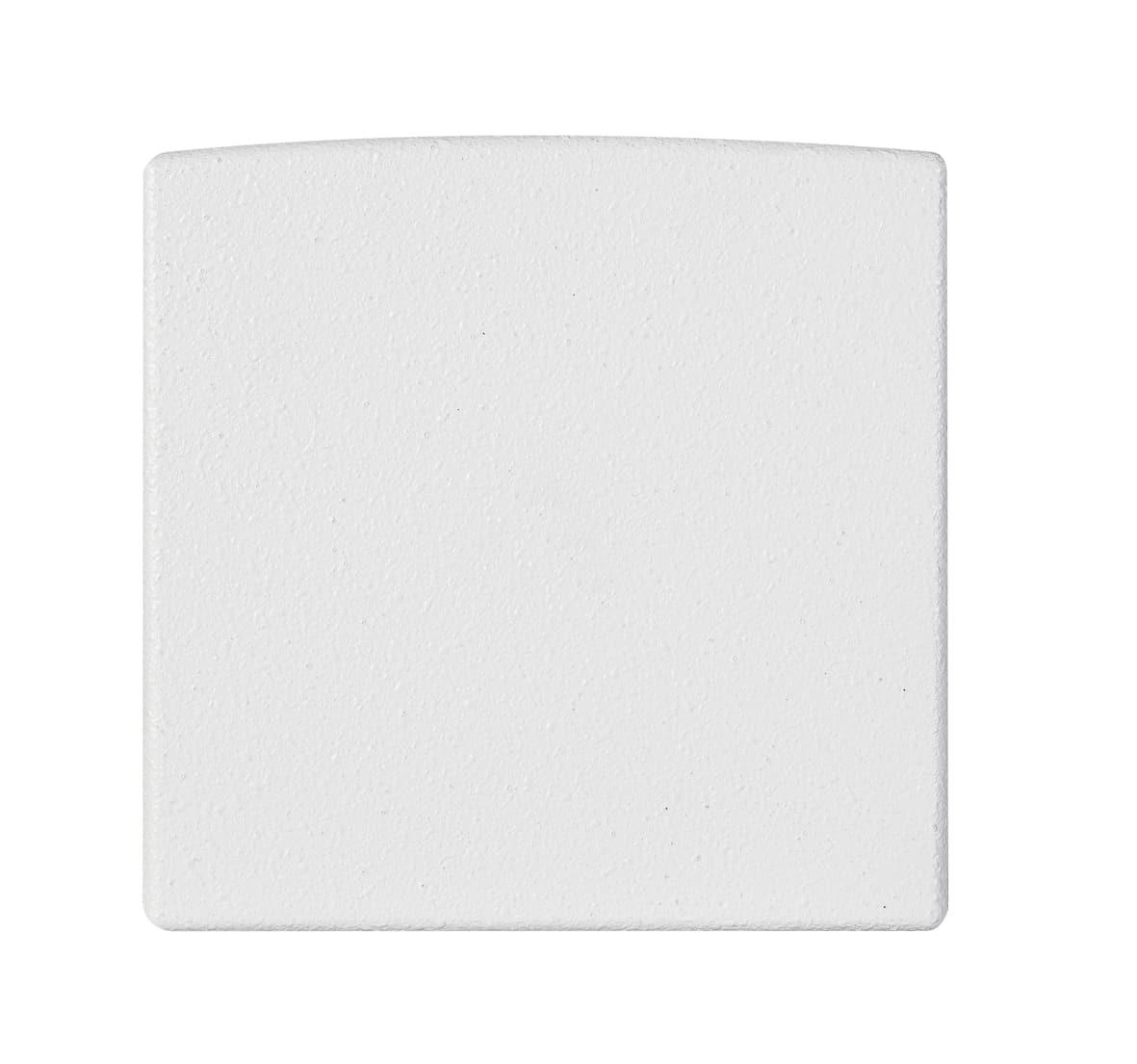

Cabinet surface1-component-acrylic enamel

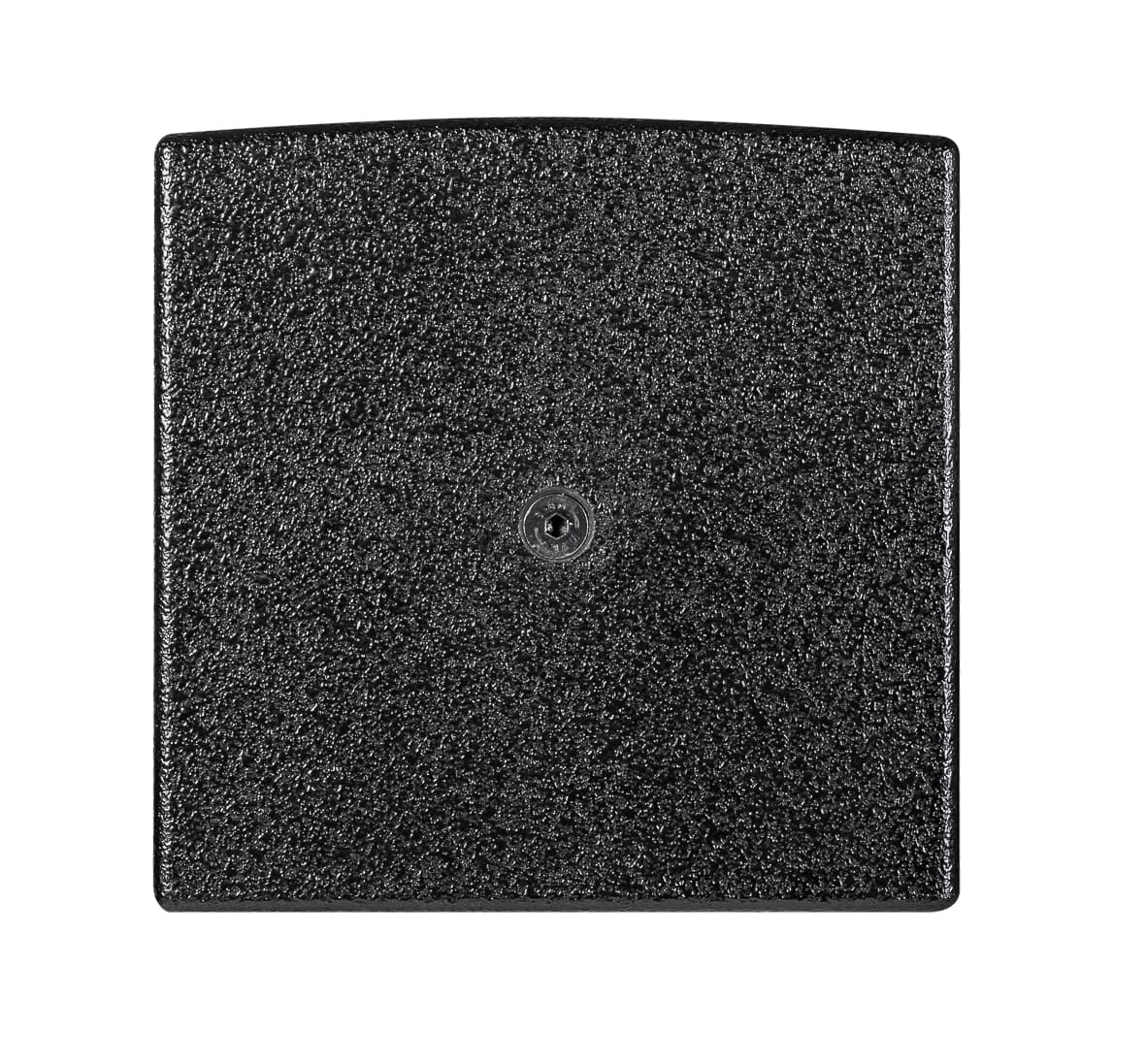

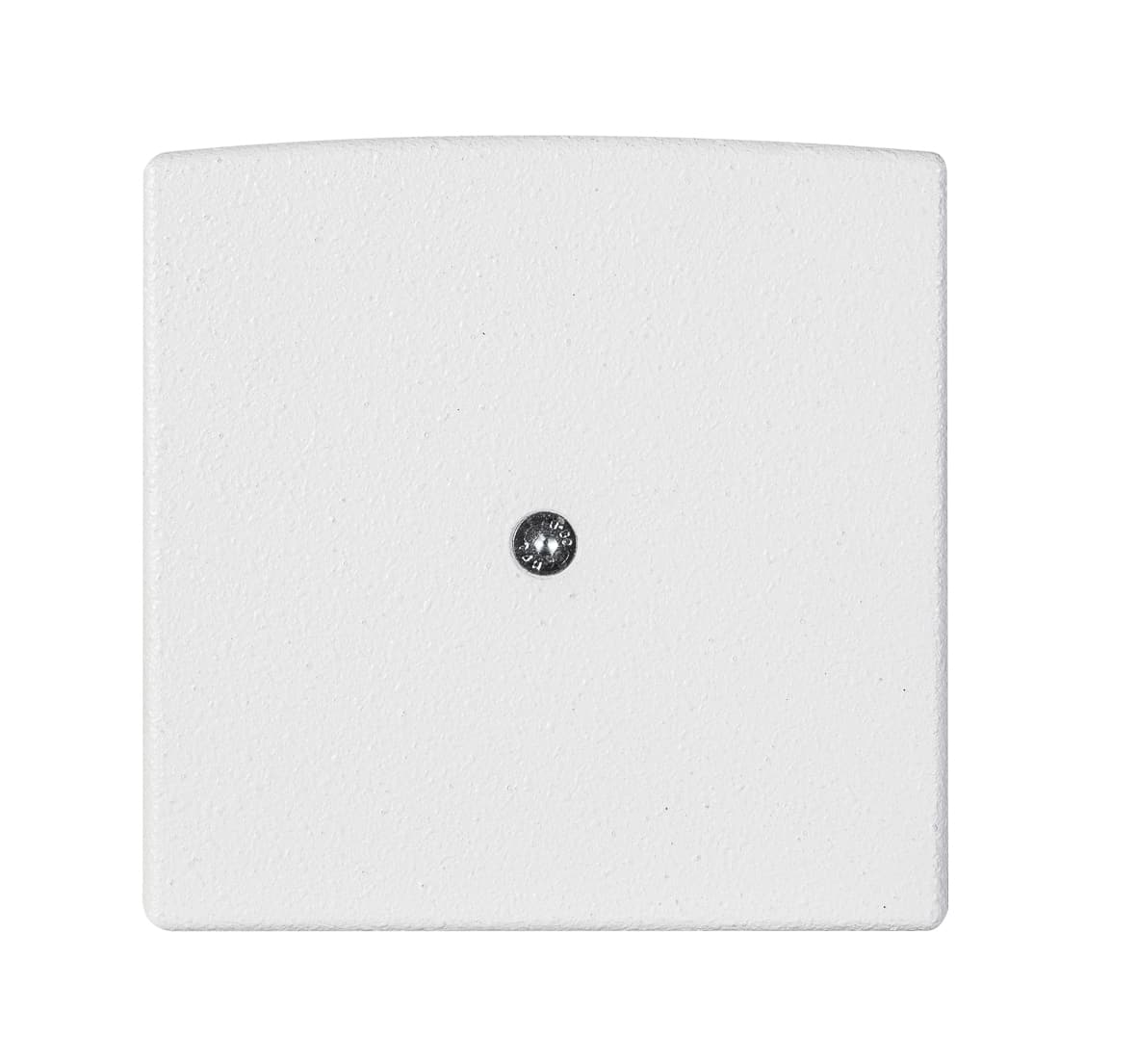

ColorJet black (RAL 9005), Signal white (RAL 9003) or special color according to catalog

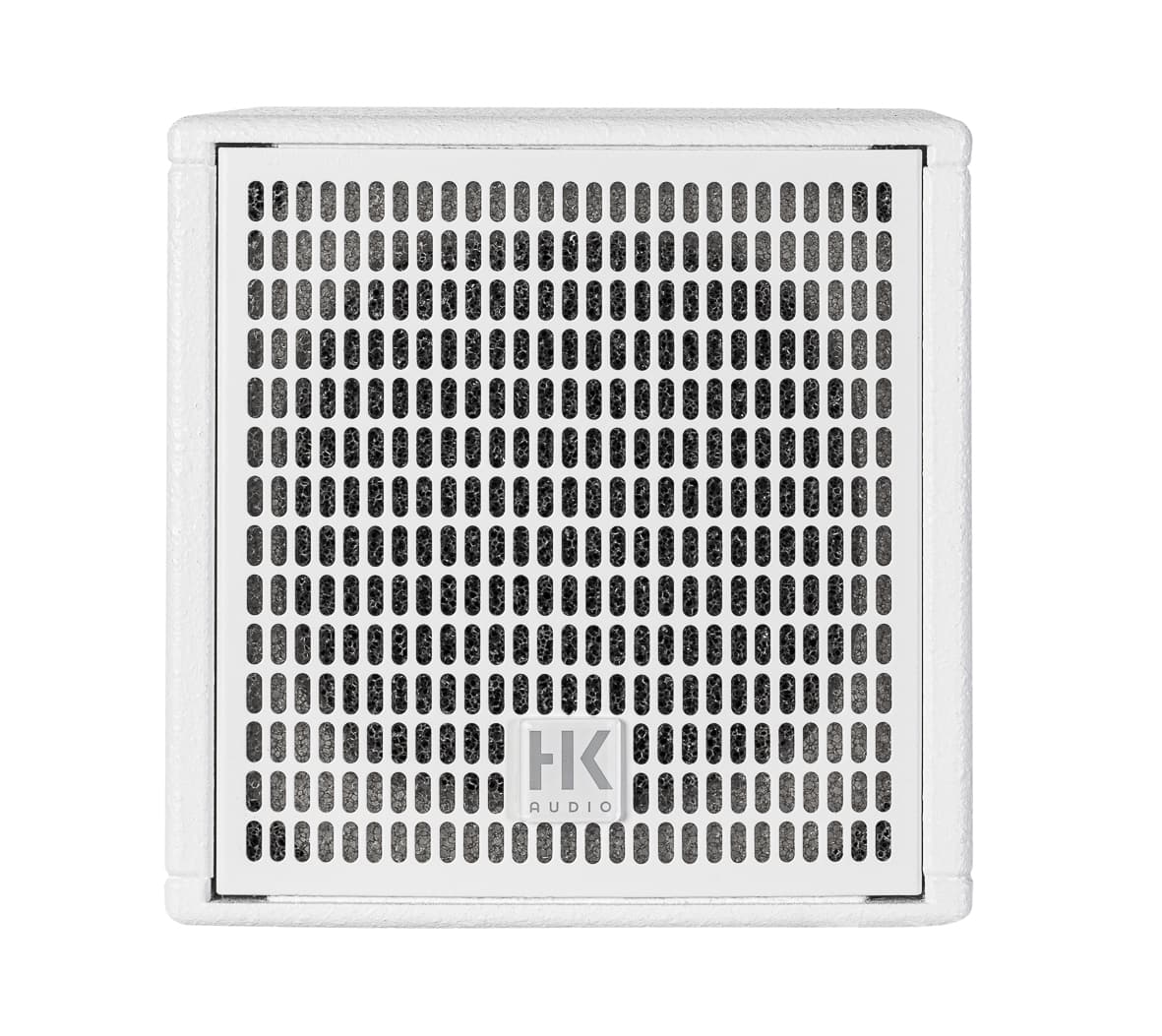

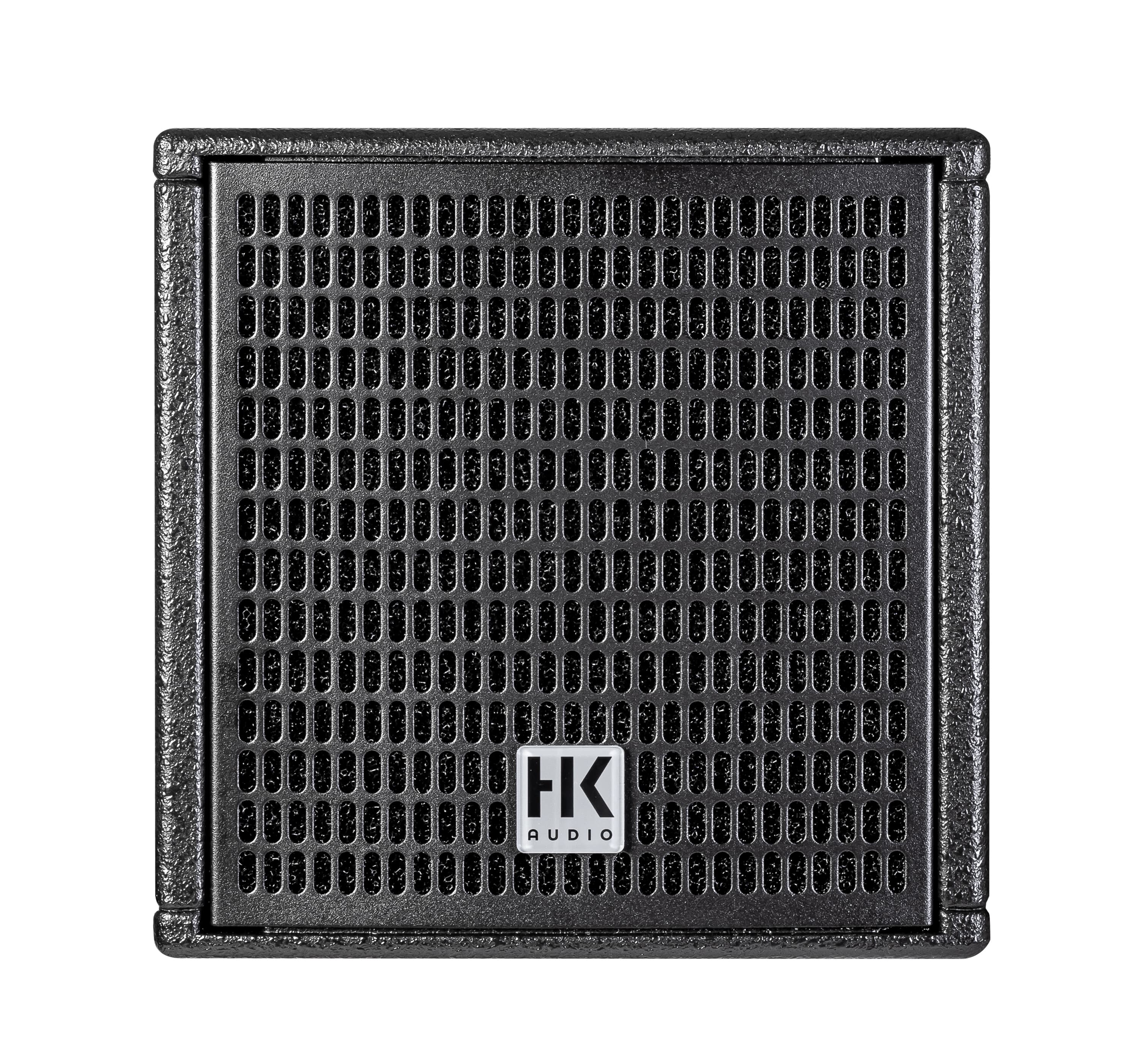

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W x H x D), metric19.5 x 19.5 x 19.5 cm
Dimensions (W x H x D), imperial7-11/16 x 7-11/16 x 7-11/16 inch
Weight, metric4.2 kg
Weight, imperial9.3 lbs
In combination with the S112 (F) subwoofer, it grows to full size and offers a powerful full-range sound reinforcement solution that will please even the most discerning ears. In addition to nearfield monitoring at lecterns, other areas of application include high-quality hospitality or background sound reinforcement as well as unobtrusive placement in exhibitions, for elaborate immersive audio applications with many sources or simply for use by Power Hi-Fi enthusiasts. With its extensive range of accessories, the FO 5 can be quickly and safely installated in all standard applications, but can also handle more specialised requirements with ease.
