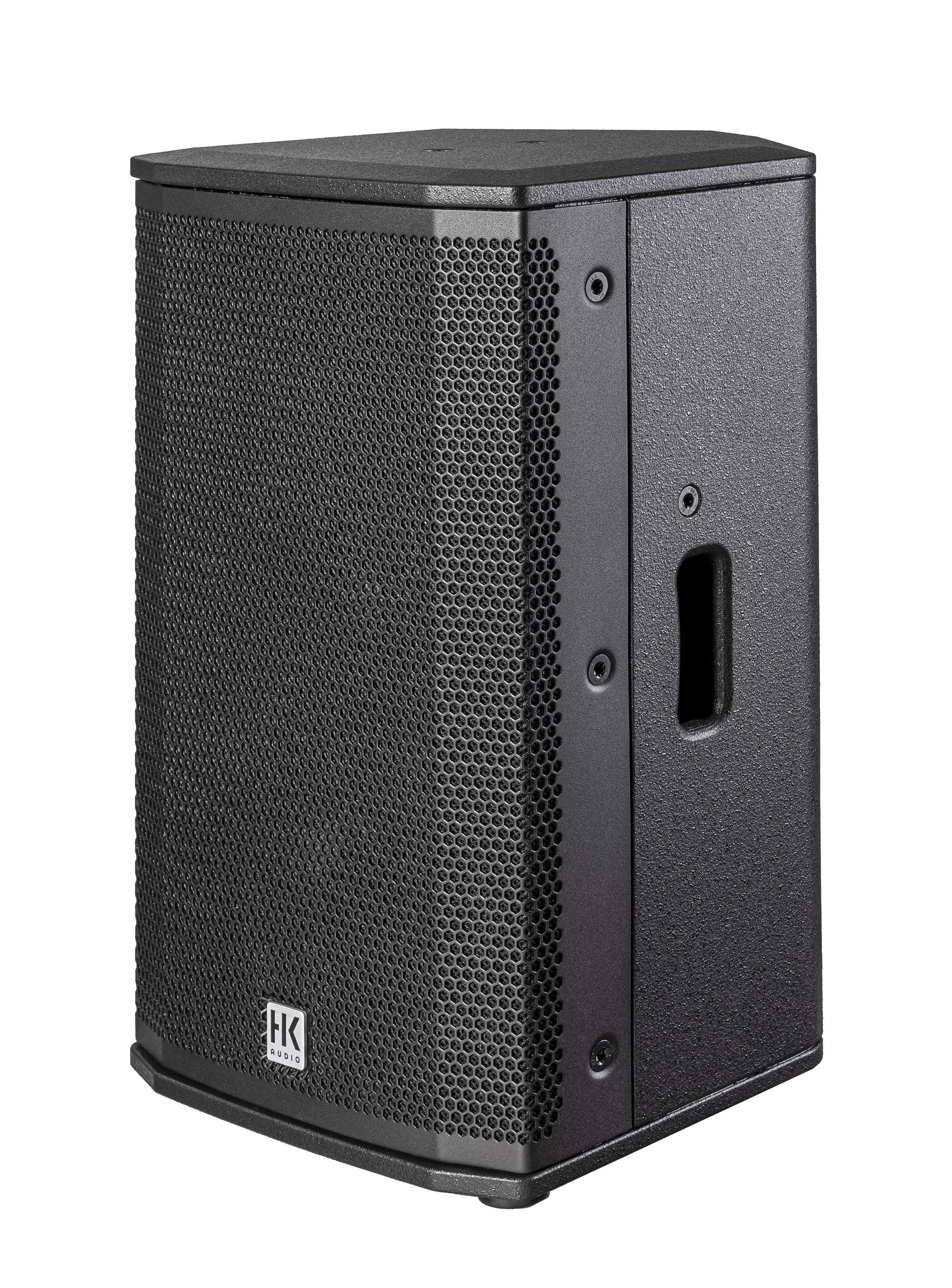

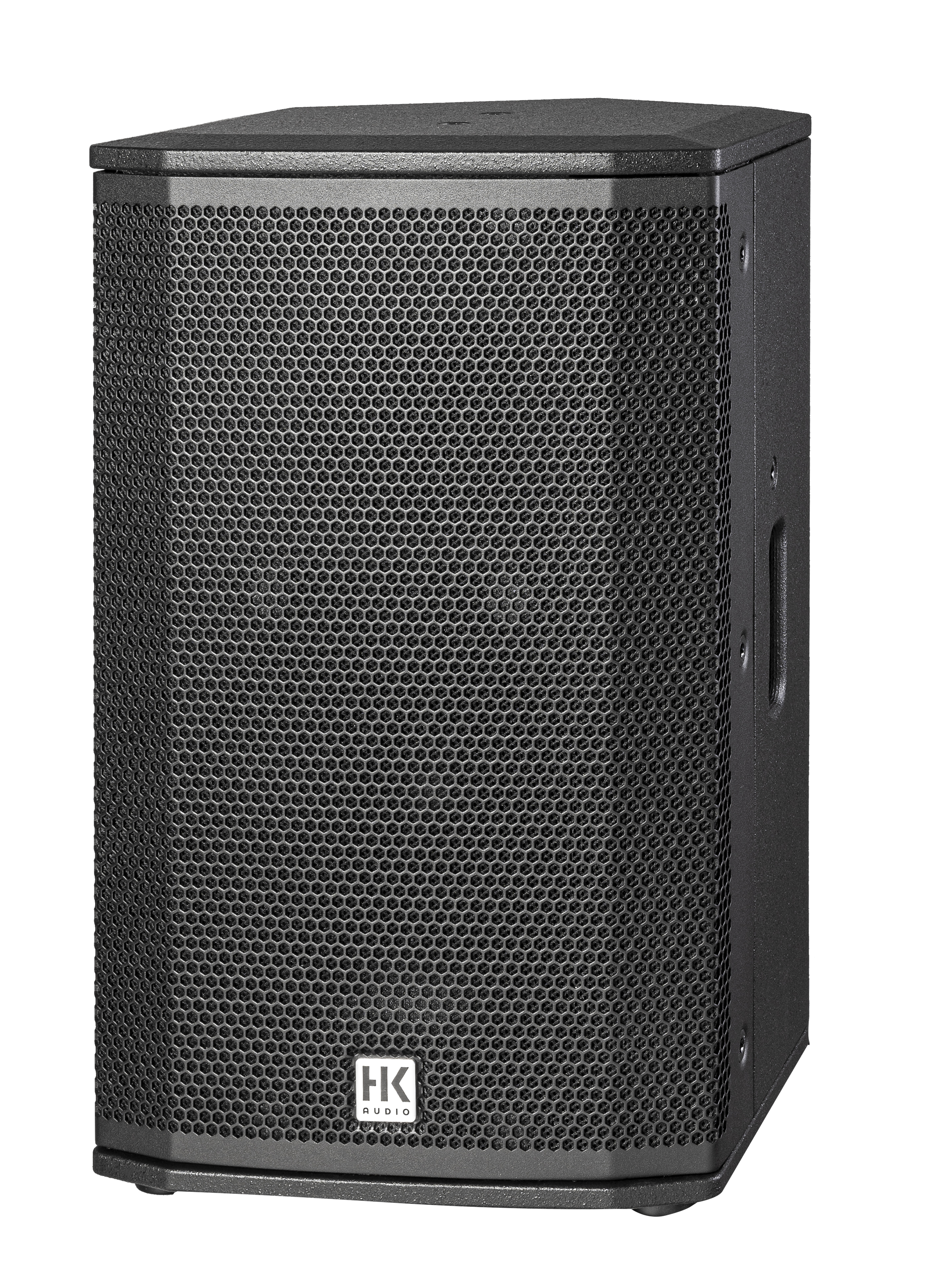

LUNAR 110 XA

The LUNAR 110 XA is an impressive, compact yet powerful solution for mobile setups, monitoring or smaller events. Despite its compact size, it delivers a surprisingly powerful and clear sound.

technical data

Specifications

ConceptActive 2-way loudspeaker

Cabinet principleBass reflex

Max. SPL peak³128 dB

Crossover frequency2,5 kHz FIR X-Over with 60 dB/oct.

Frequency range -6 dB66 Hz - 18 kHz

Frequency range -10 dB61 Hz - 20 kHz

Dispersion angle -6 dB (horizontal x vertical)90° x 55°

Index

Index 3)1 x unit @ 1 m, 10 % THD, half space

Components

Mid/high frequency1 x 10" cone speaker with 2" voice coil

High frequency1 x 1" compression driver with 1" voice coil

Crossover2,5 kHz FIR X-Over with 60 dB/oct.

HornConstant directivity horn

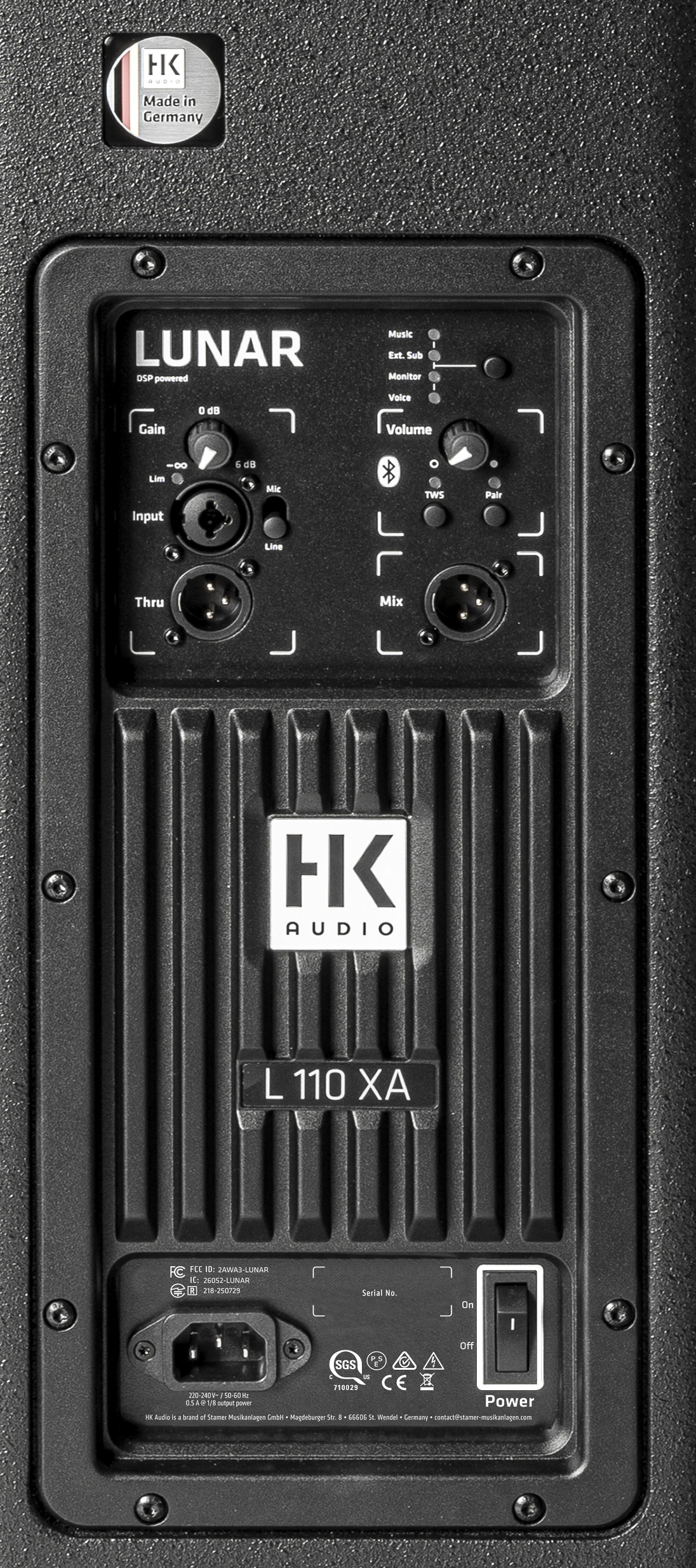

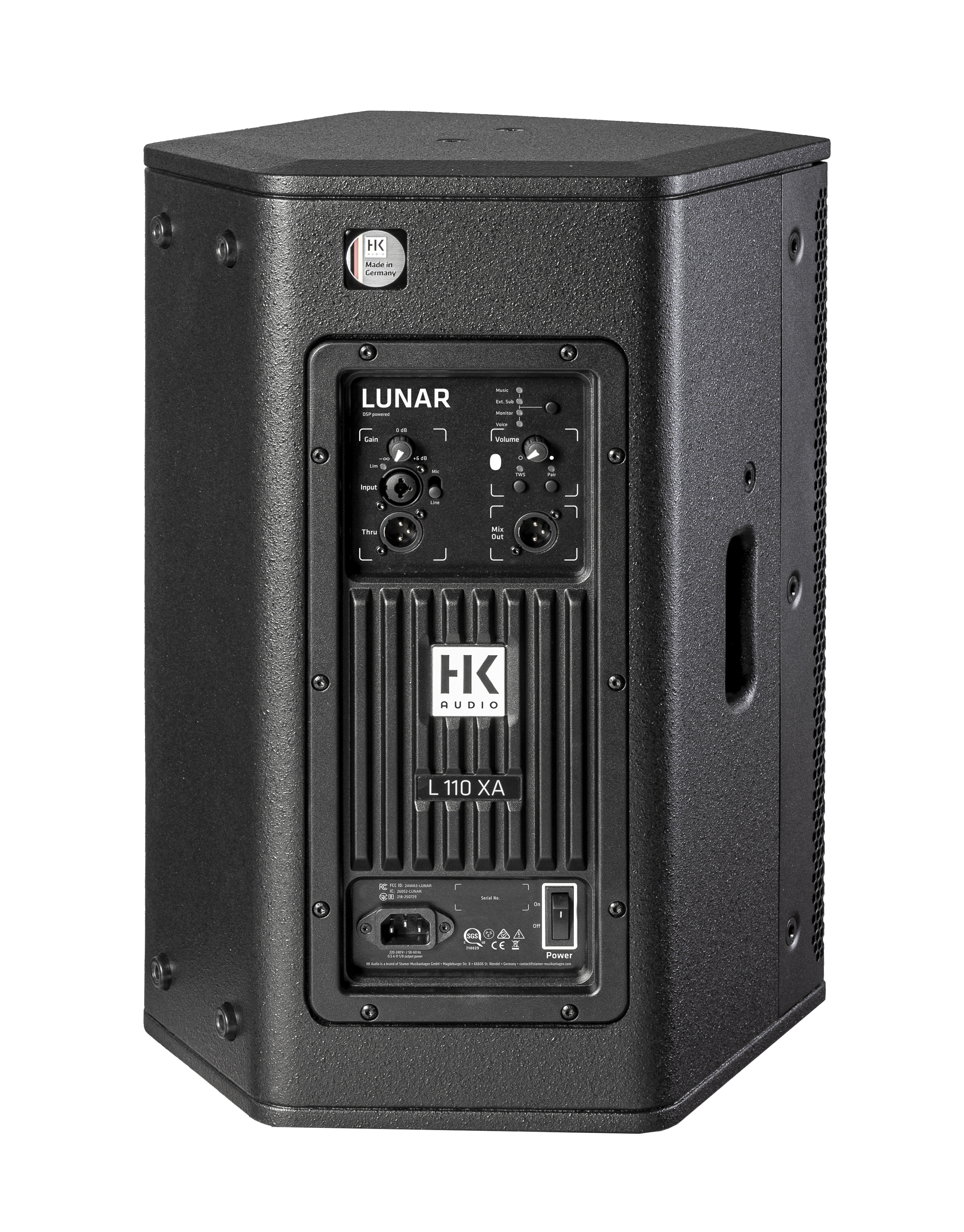

Connections

Power supply1 x IEC connector

Analog input1 x XLR/jack combo symm. (Mic/Line)

Analog output1 x XLR-Thru symm.

Mix output1 x Mix Out XLR symm.

Electronic data

PreamplifierDSP preamp

Power amplifierClass D - Biamped

Power amplifier output RMS600 W

Power amplifier output peak1200 W

Power consumption0,5 A / 220-240 V AC @ 1/8 output power 0,9 A / 100-120 V AC @ 1/8 output power

Maximum input level20 dBu

Speaker protectionSubsonic Filter, Peak and RMS Limiter, Multiband-Limiter

Sample rate48 kHz

Latency3ms

Filter presetsMusic/Ext. Sub/Monitor/Voice

BluetoothYes (5.4), TWS

Mechanical data

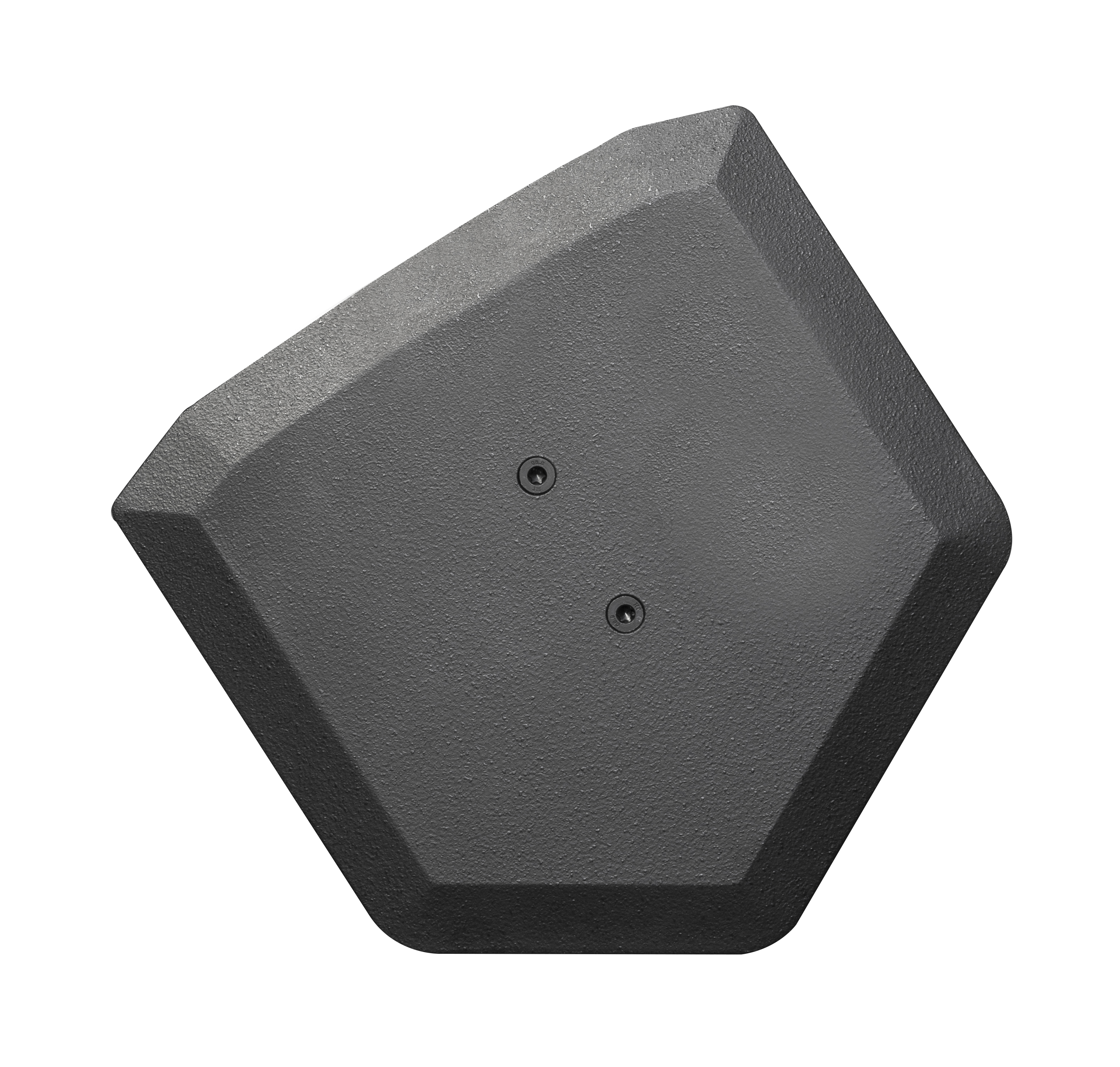

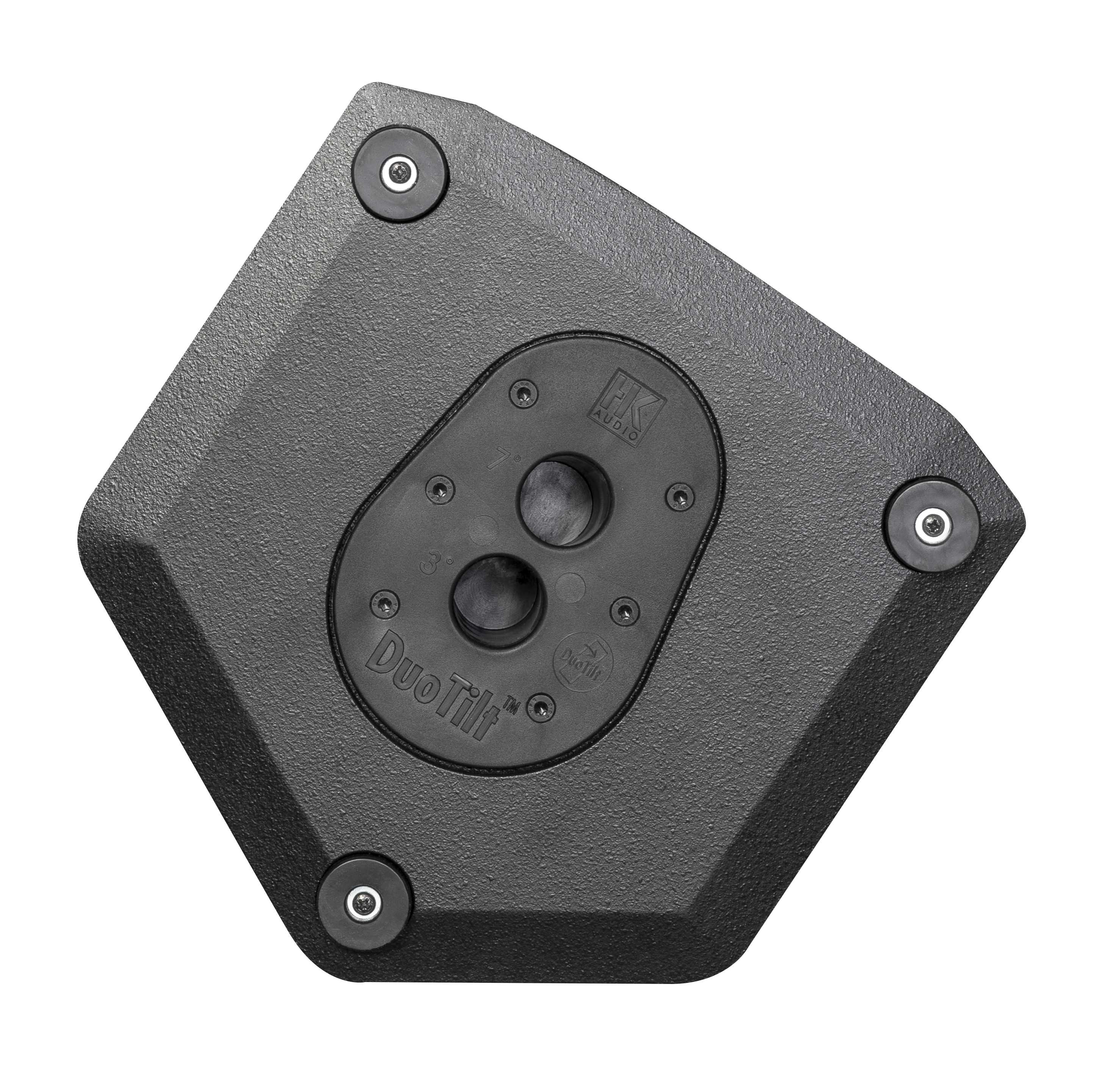

Cabinet features/riggingDuoTilt 3/7, 4 x M8 mounting point for AP-8, monitor angle 33°

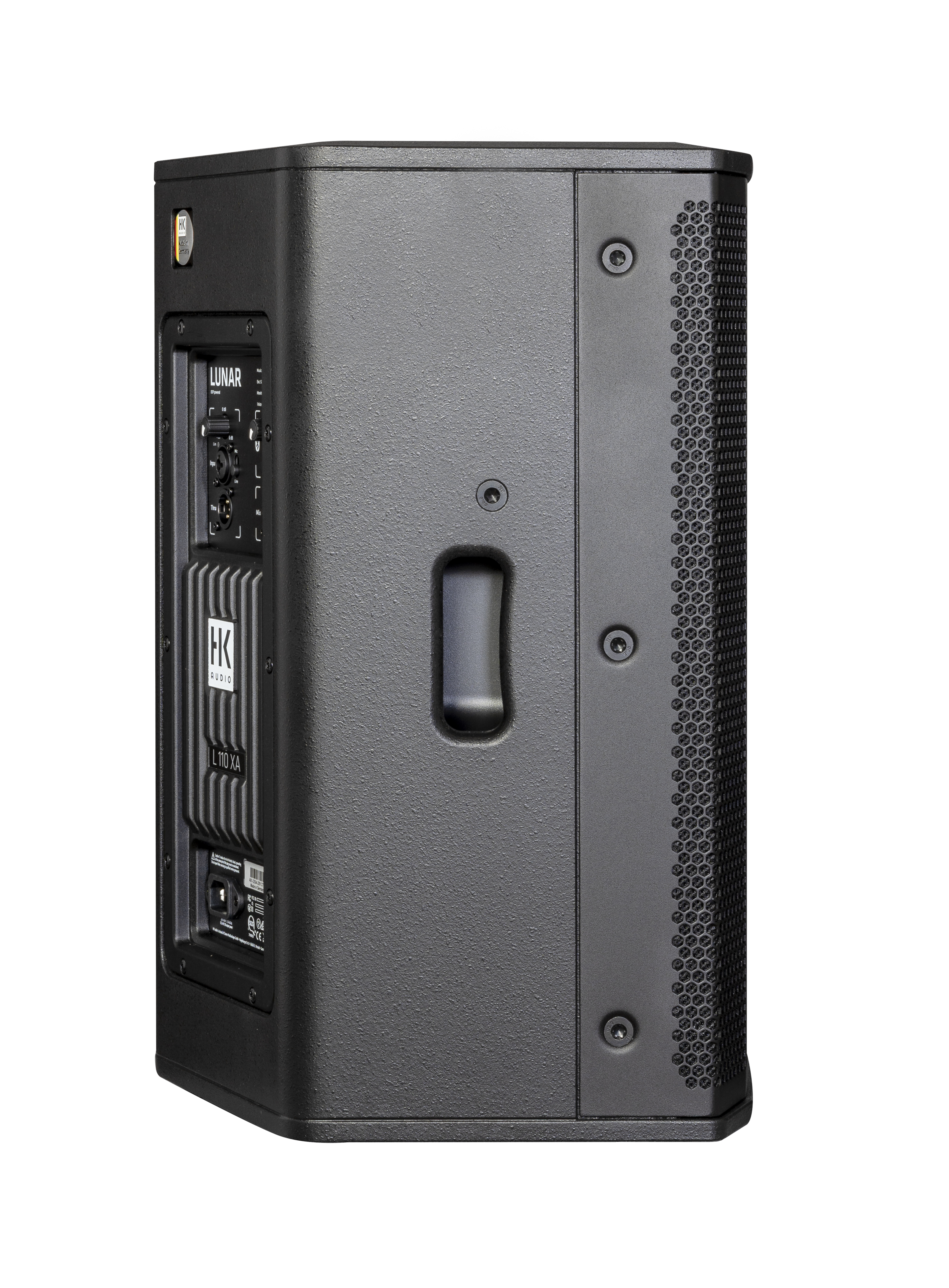

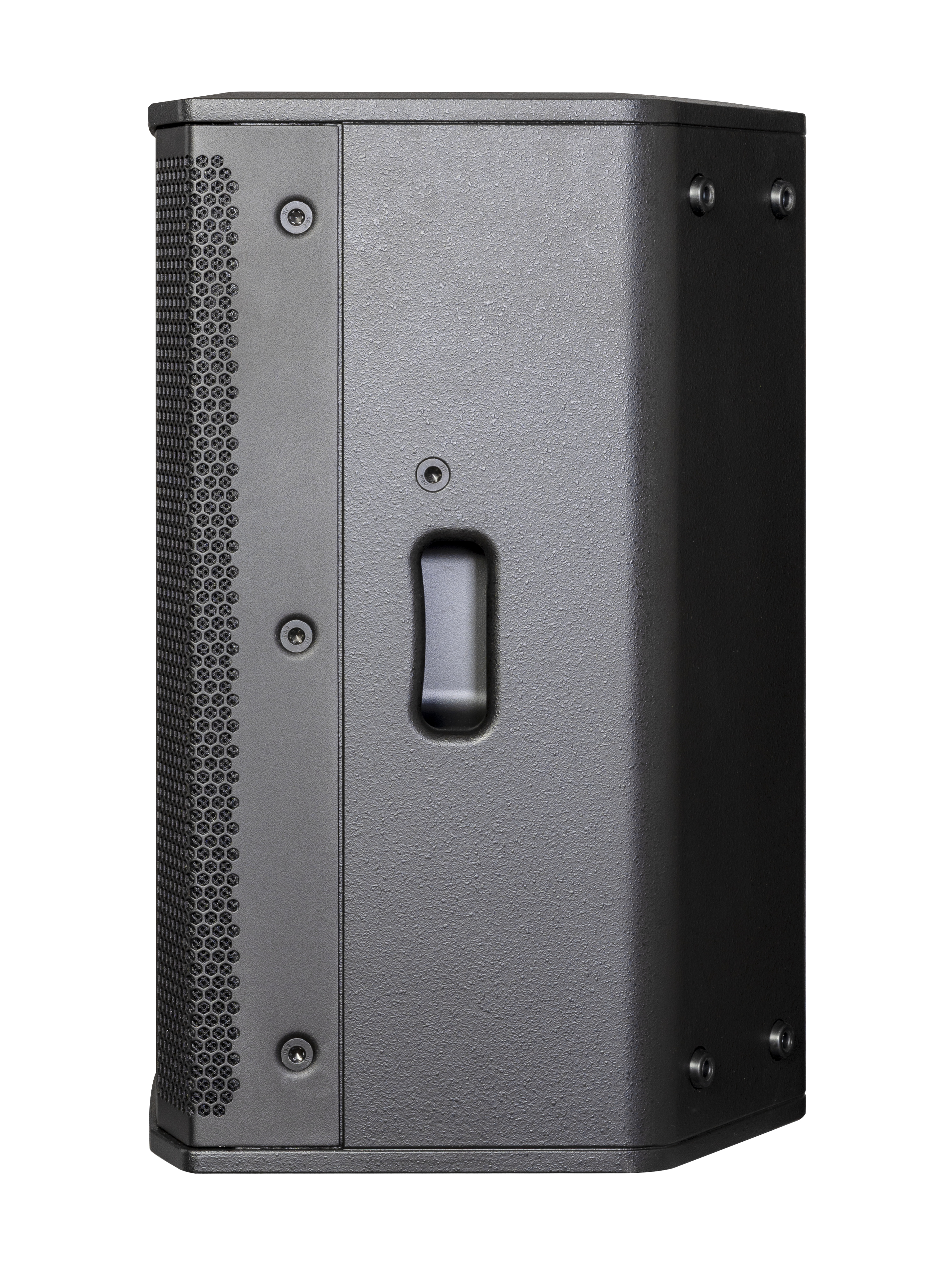

Carrying handles2 x SingleGrip

Cabinet materialMDF

Cabinet surfaceacrylic enamel

ColorJet black (RAL 9005)

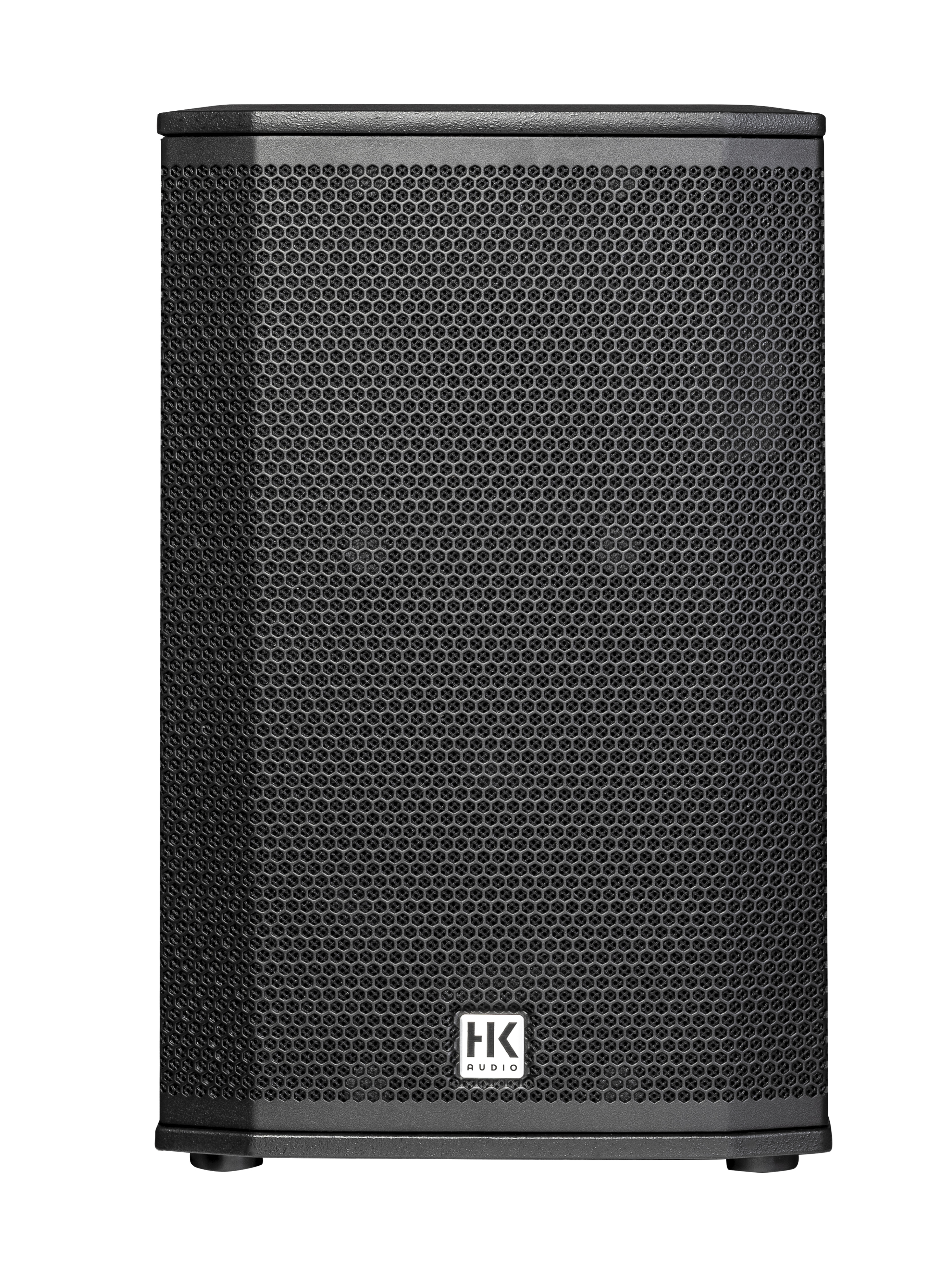

Front grilleSteel front grille, backed with acoustic foam

Dimensions (W x H x D), metric32.4 x 52.4 x 33.4 cm

Dimensions (W x H x D), imperial12-3/4 x 20-39/64 x 13-1/8 inch

Weight, metric16 kg

Weight, imperial35.28 lbs

The LUNAR series delivers powerful, precise sound and is designed for simplicity of use. Developed for DJs, live acts and professional sound reinforcement applications, it excels wherever speed and reliability are essential. Perfectly tuned presets deliver the ideal sound instantly – leaving you free to focus on your performance.

Features & Specs

• Integrated presets: Music, Monitor, Voice, Subwoofer

• Intuitive operation without complex menu navigation

• Combined mic/line input

• Bluetooth audio streaming with True Wireless Stereo

• 32-bit DSP with FIR filter and phase correction

• Clear, dynamic and balanced sound reproduction

• Flexible applications: full-range, monitor, or as a system with a subwoofer

• Robust wooden cabinet in a professional design

• Made in Germany

• 5-year manufacturer’s warranty (upon registration)

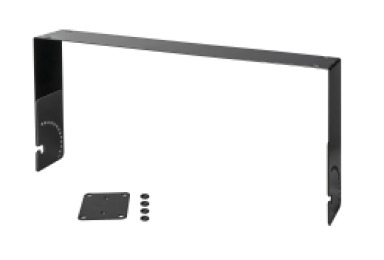

Discover suitable accessories
