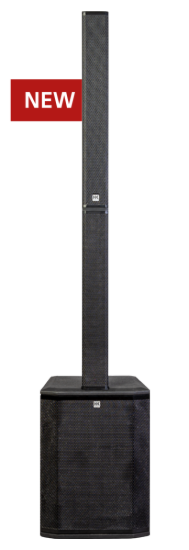

POLAR 15 MK2

PUT YOUR SOUND IN POLE POSITION

POLAR 15 MK2 combines powerful bass performance with the flexibility of a portable column PA system. Its larger low-frequency enclosure, 15″ subwoofer and new M20 FlexMount offer added versatility for professional setups. Easy to transport, quick to set up and intuitive to operate, it’s ready for action in no time-delivering powerful sound in a compact, elegant design.

Bluetooth	Yes (5.0), TWS
DSP functions	Presets, 5 storable user presets, delay, LCD dimmable, 3-band EQ, semi-parametric mid-EQ
Power amplifier output peak	2000 W
Concept	Active column loudspeaker system

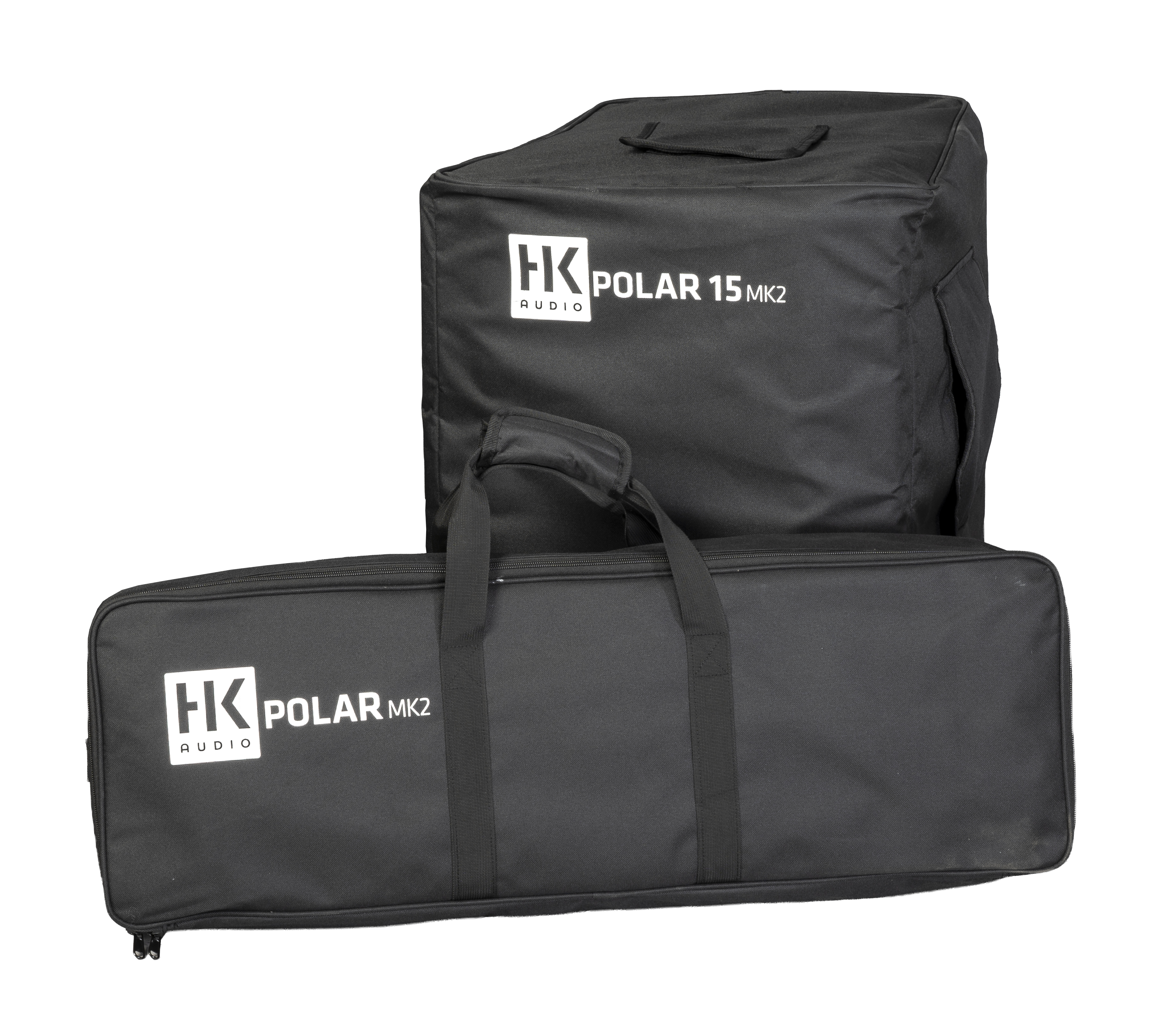

Accessories included	Protection cover (Sub), transport bag (Mid/High unit)

technical data

System

Specifications

ConceptActive column loudspeaker system

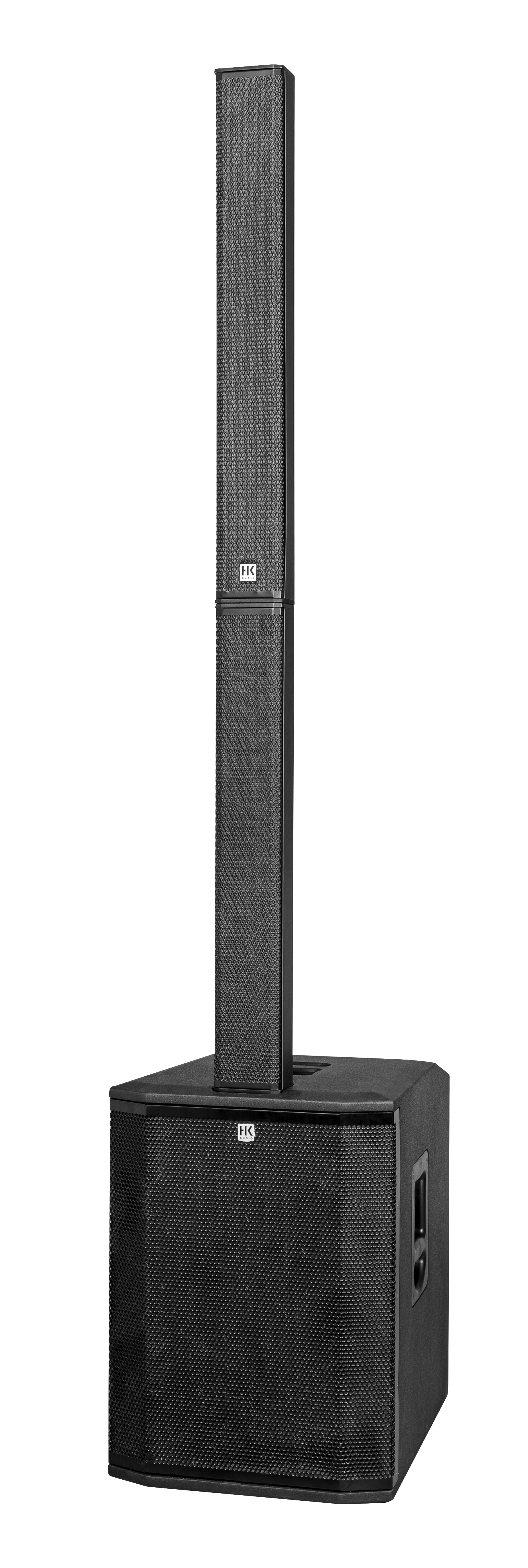

System components1 x Subwoofer, 1 x Spacer, 1 x Mid/High unit

Max. SPL peak³130 dB

Frequency range -10 dB35Hz - 20kHz

Dispersion angle -6 dB (horizontal x vertical)120° x 30°

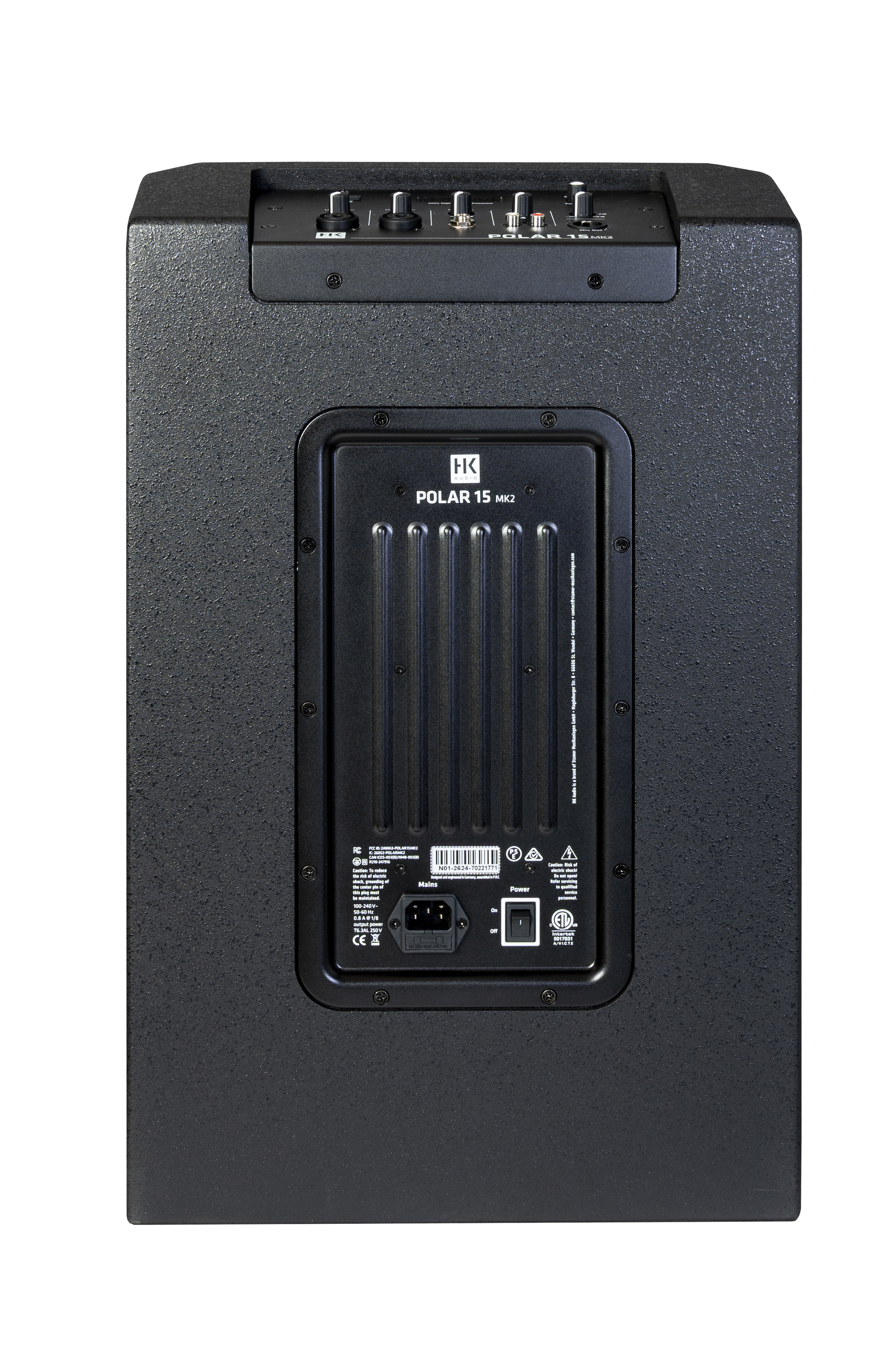

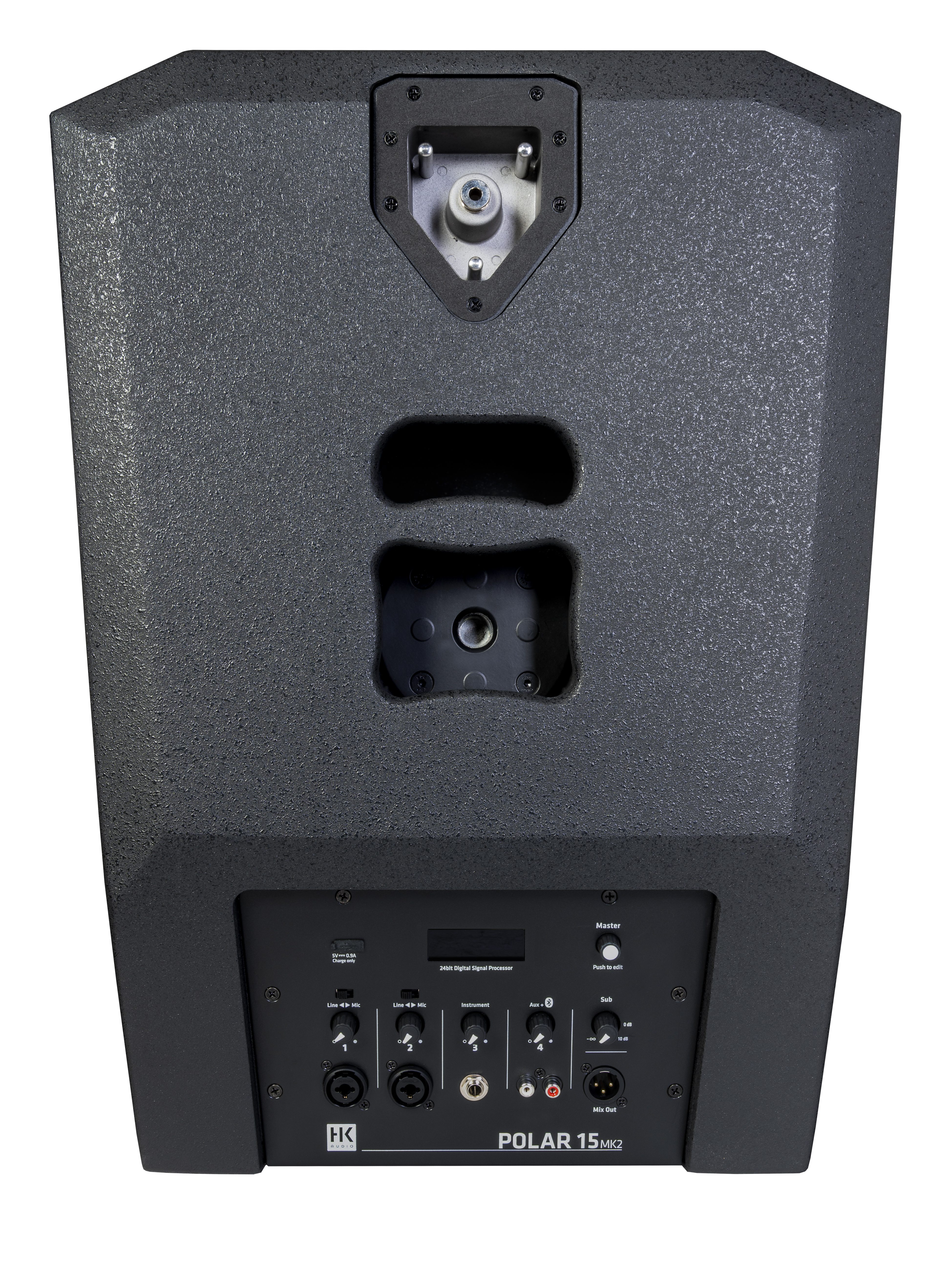

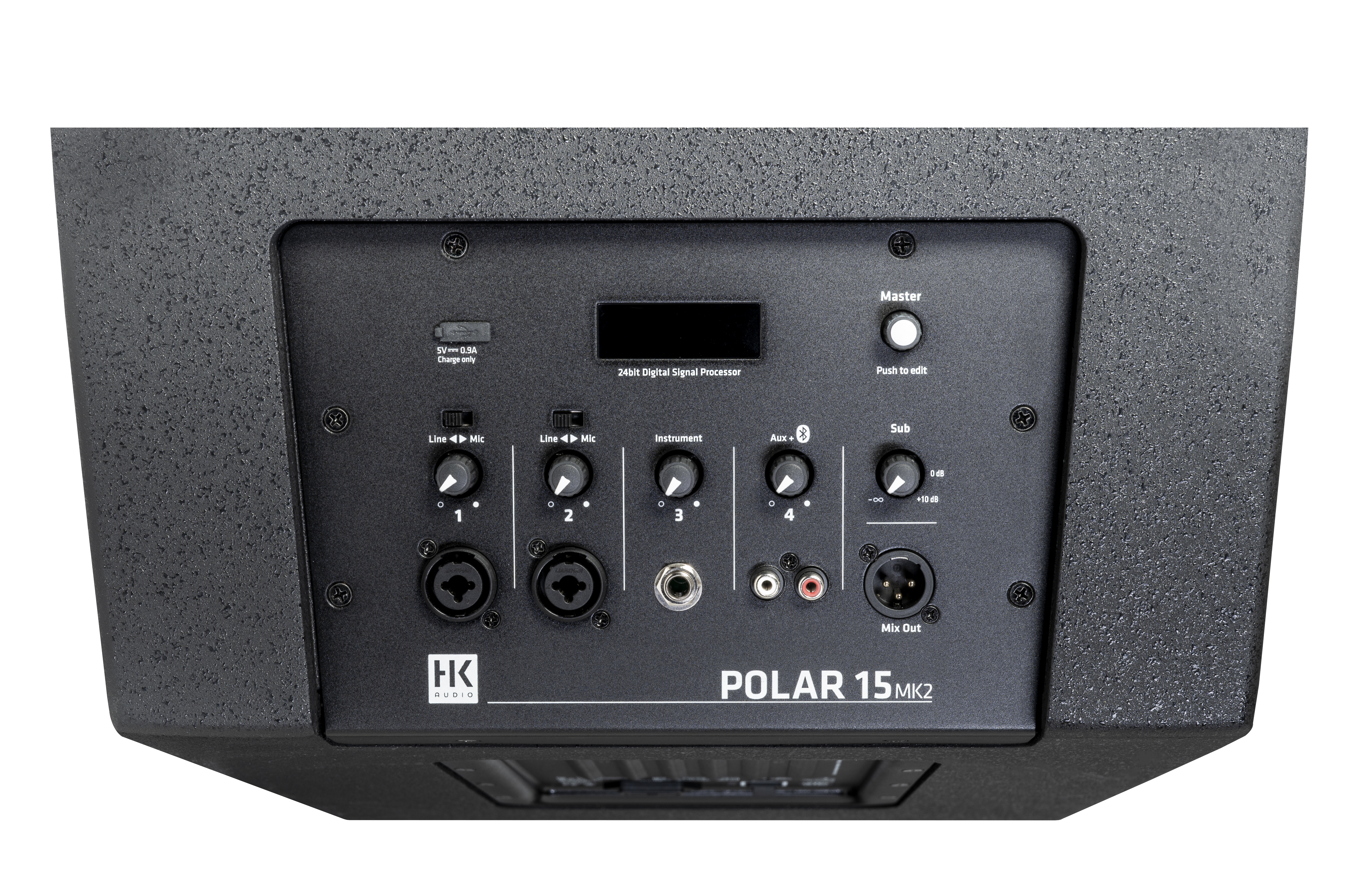

Connections

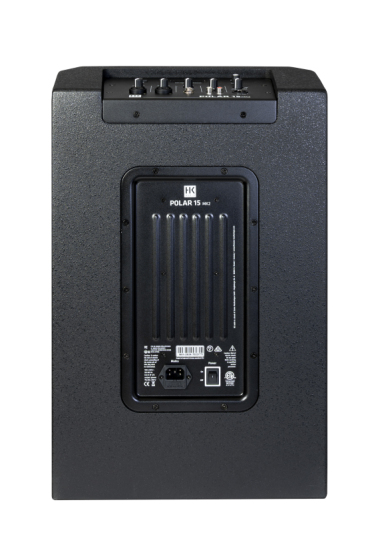

Power supply1 x IEC connector

Analog input2 x XLR/jack combo (Mic/Line), 1 x 6.3 mm (1/4") jack plug (Instrument), 1 x Cinch Stereo

Mix output1 x XLR

Electronic data

PreamplifierDSP preamplifier

Power amplifierClass D-Biamped

Power amplifier output peak2000 W

Power consumption0.8 A/100 - 240 V nominal (EN 62368-1)

Maximum input level16 dBu

DisplayLCD

DSP functionsPresets, 5 storable user presets, delay, LCD dimmable, 3-band EQ, semi-parametric mid-EQ

Filter presetsMusic, Voice, DJ

BluetoothYes (5.0), TWS

Mechanical data

Cabinet features/rigging1 x M20 FlexMount

Carrying handles2 x HK Audio MultiGrip, 2 x handling grips (top and bottom)

Cabinet materialPlywood, aluminum

ColorJet black (RAL 9005)

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

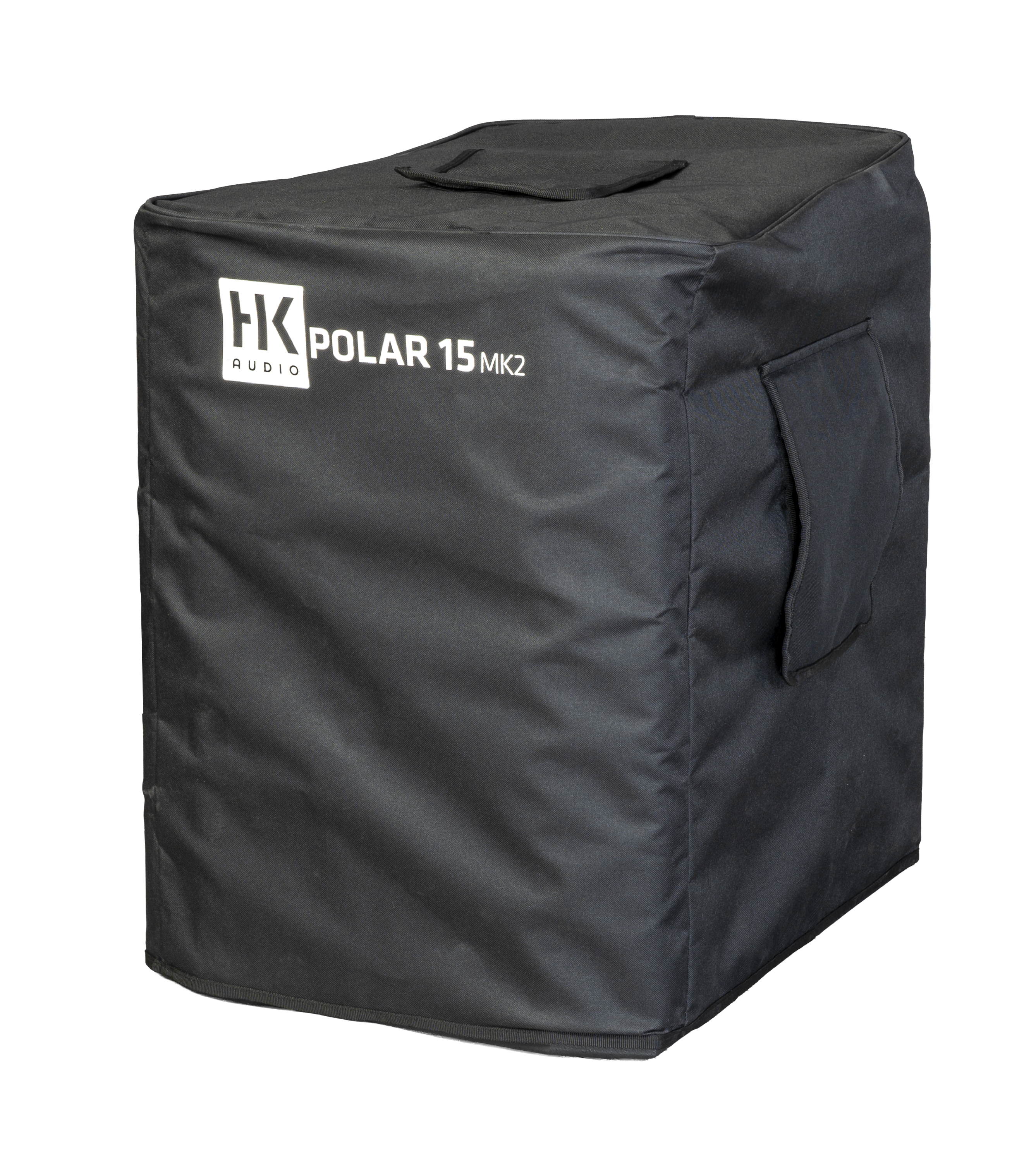

Accessories includedProtection cover (Sub), transport bag (Mid/High unit)

Dimensions (W x H x D), metric45.1 x 213.6 x 59.4 cm

Dimensions (W x H x D), imperial17-3/4 x 84-1/8 x 23-3/8 inch

Weight, metric38.1 kg

Weight, imperial88.41 lbs

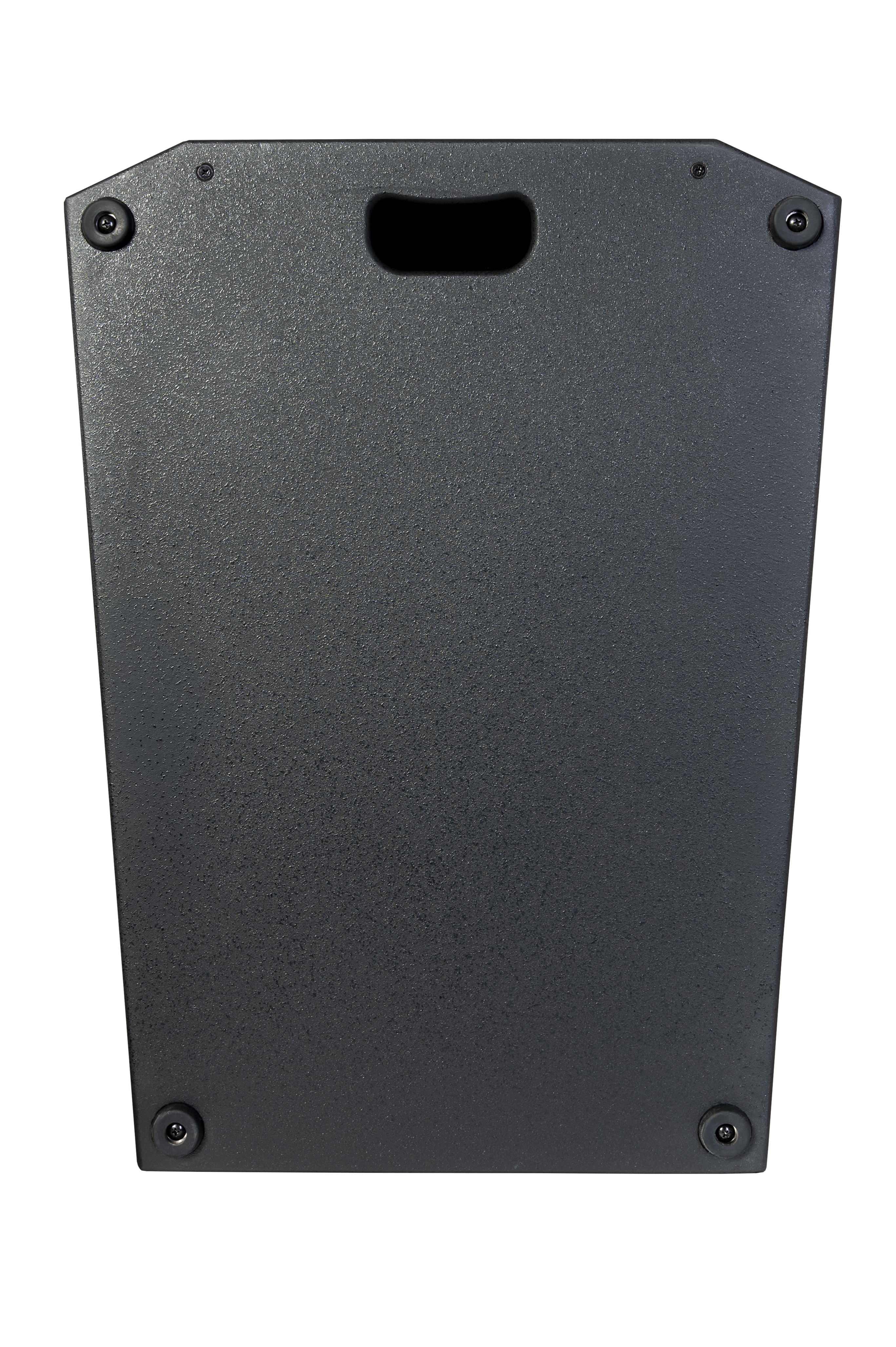

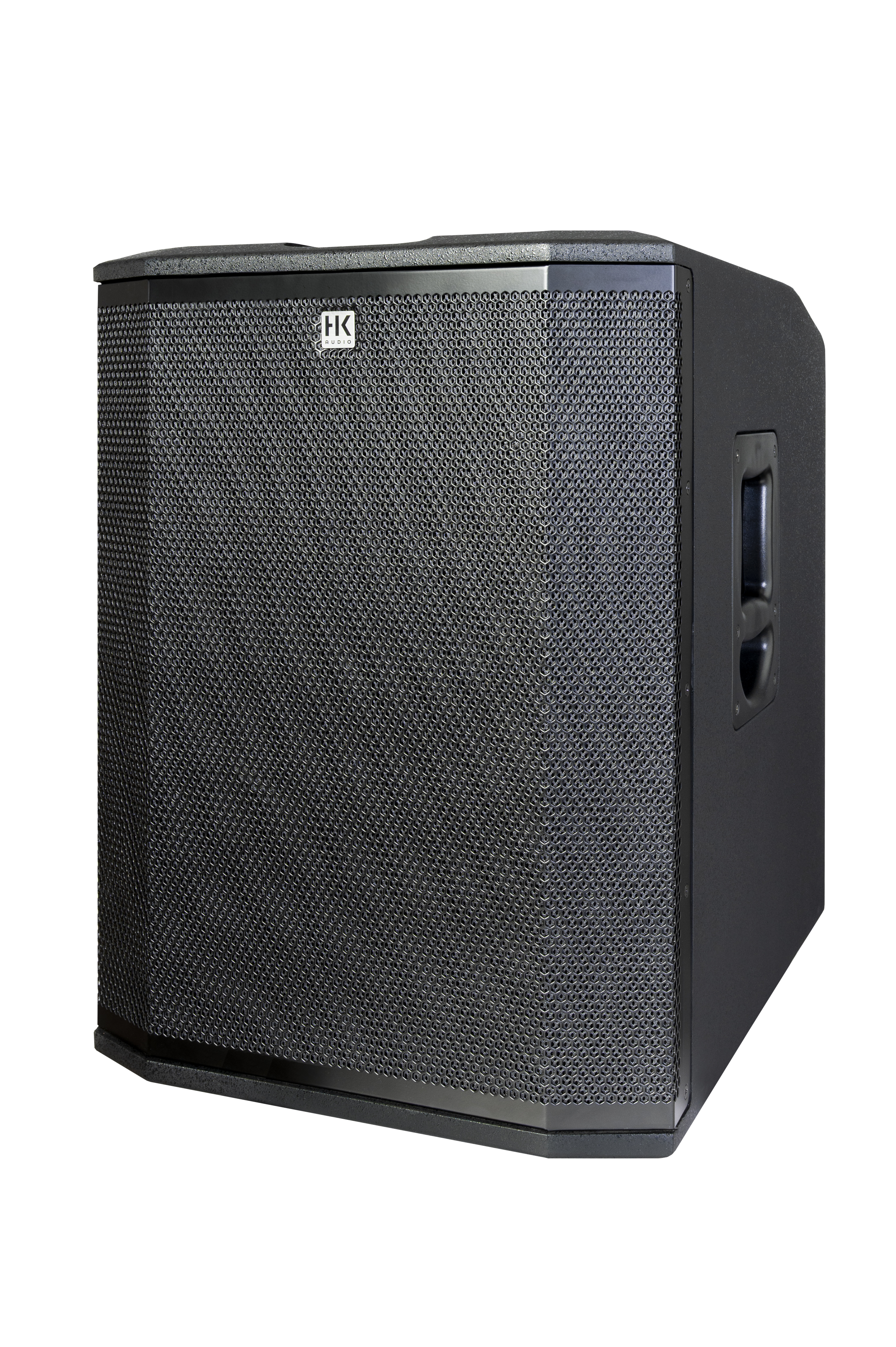

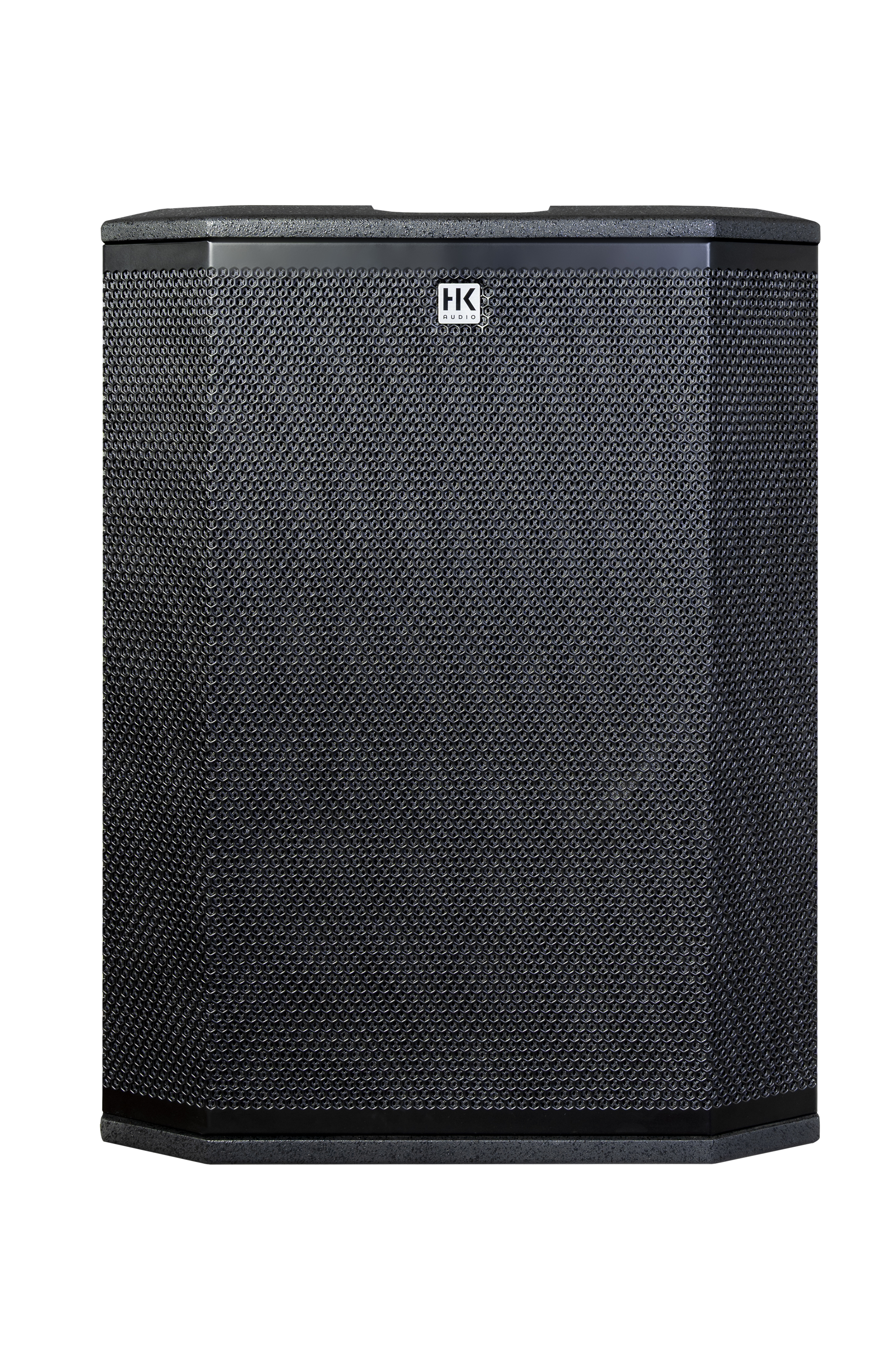

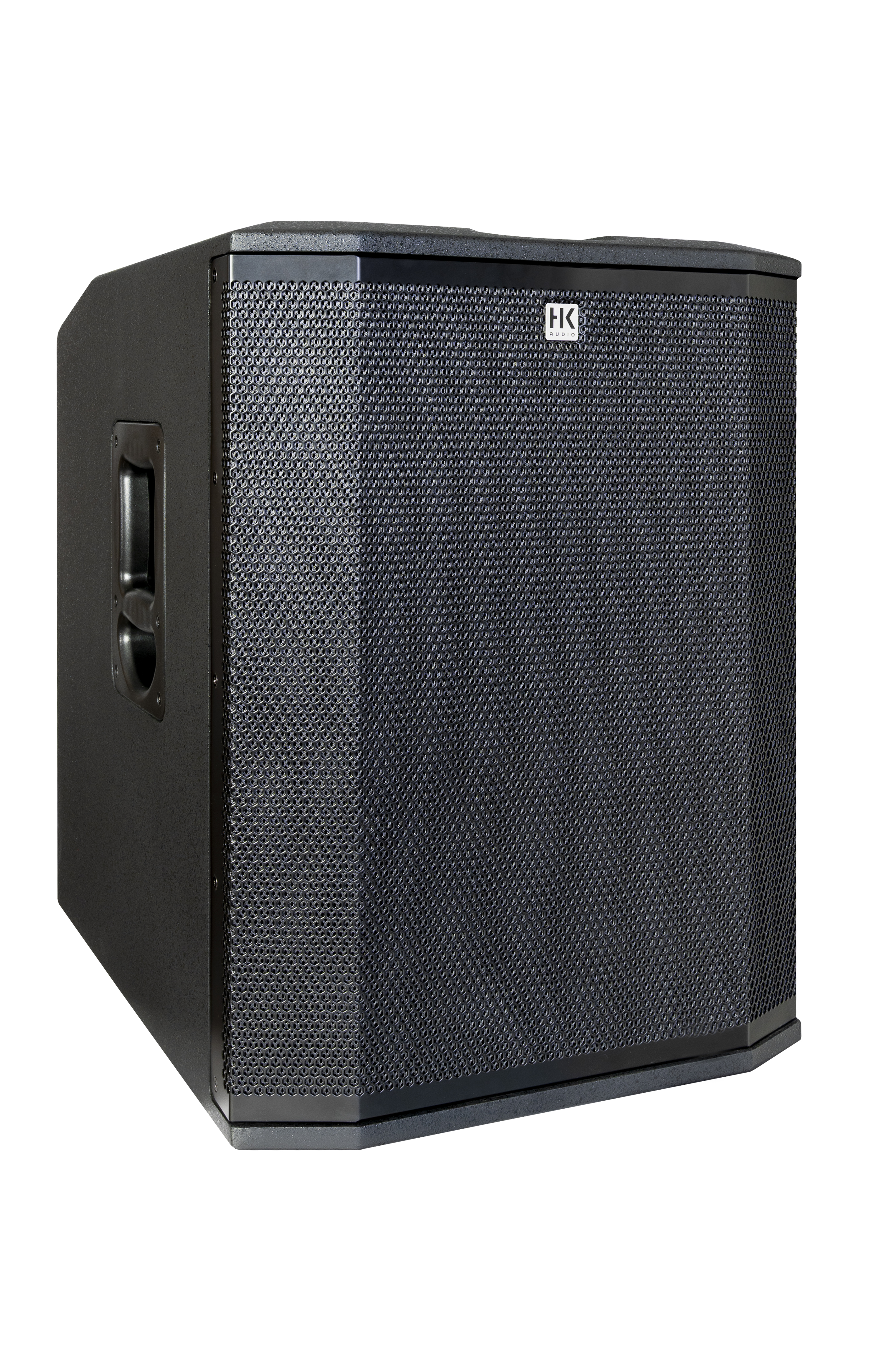

Subwoofer

Charecteristics and components

ConceptActive subwoofer

Cabinet principleBass reflex

Low frequency15" Cone Speaker

CrossoverHigh pass: 24 dB/oct., Low pass: 24 dB/oct.

Mechanical data

Cabinet materialPlywood

Cabinet surfaceBlack acrylic enamel

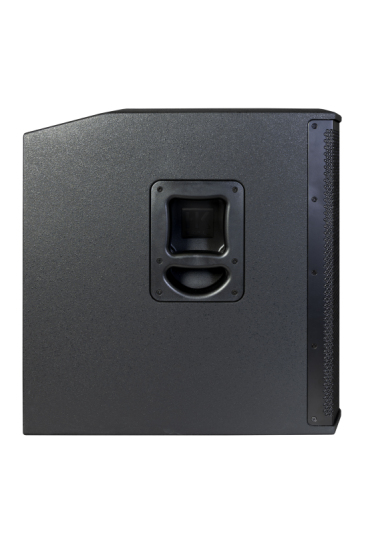

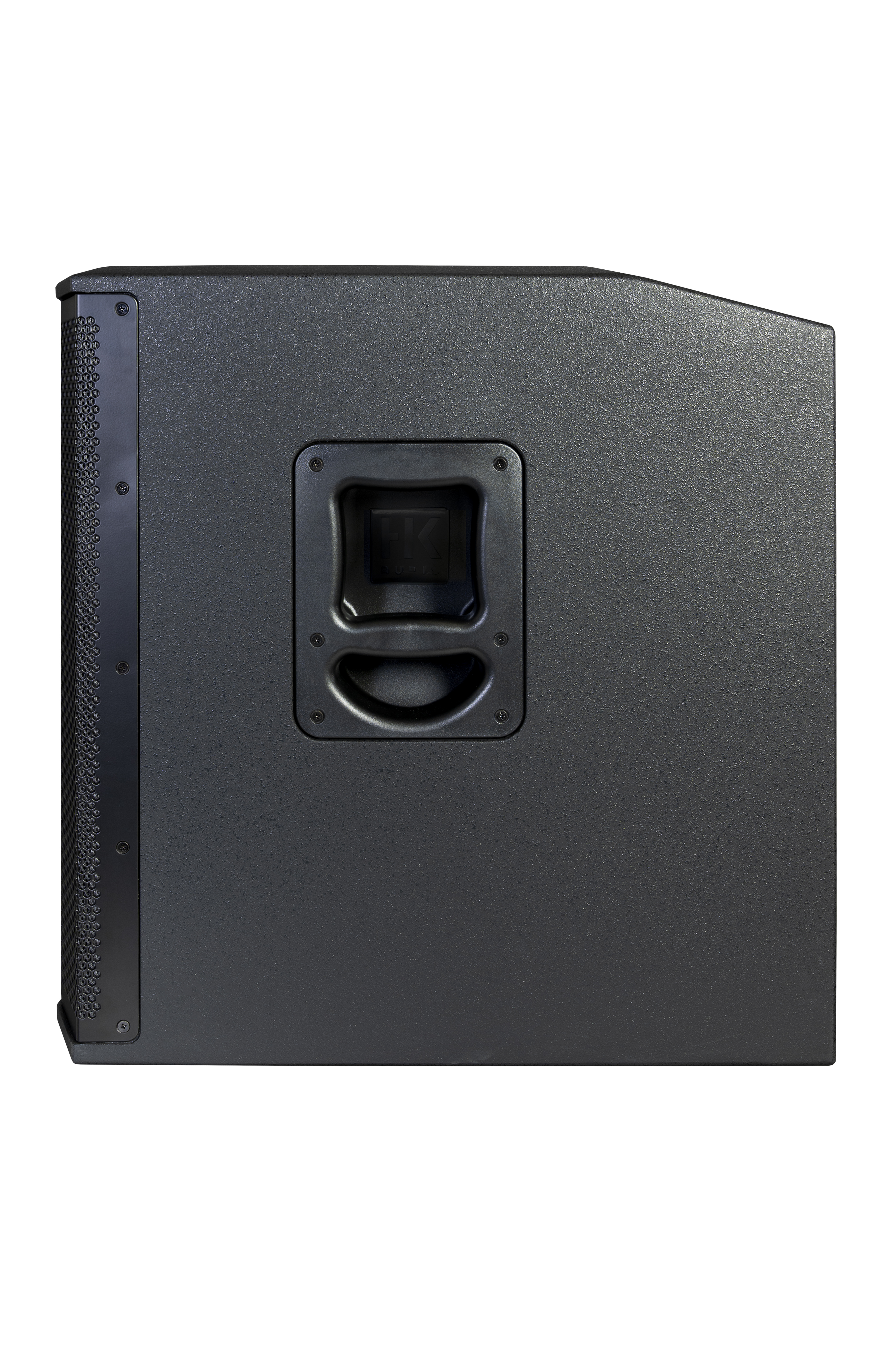

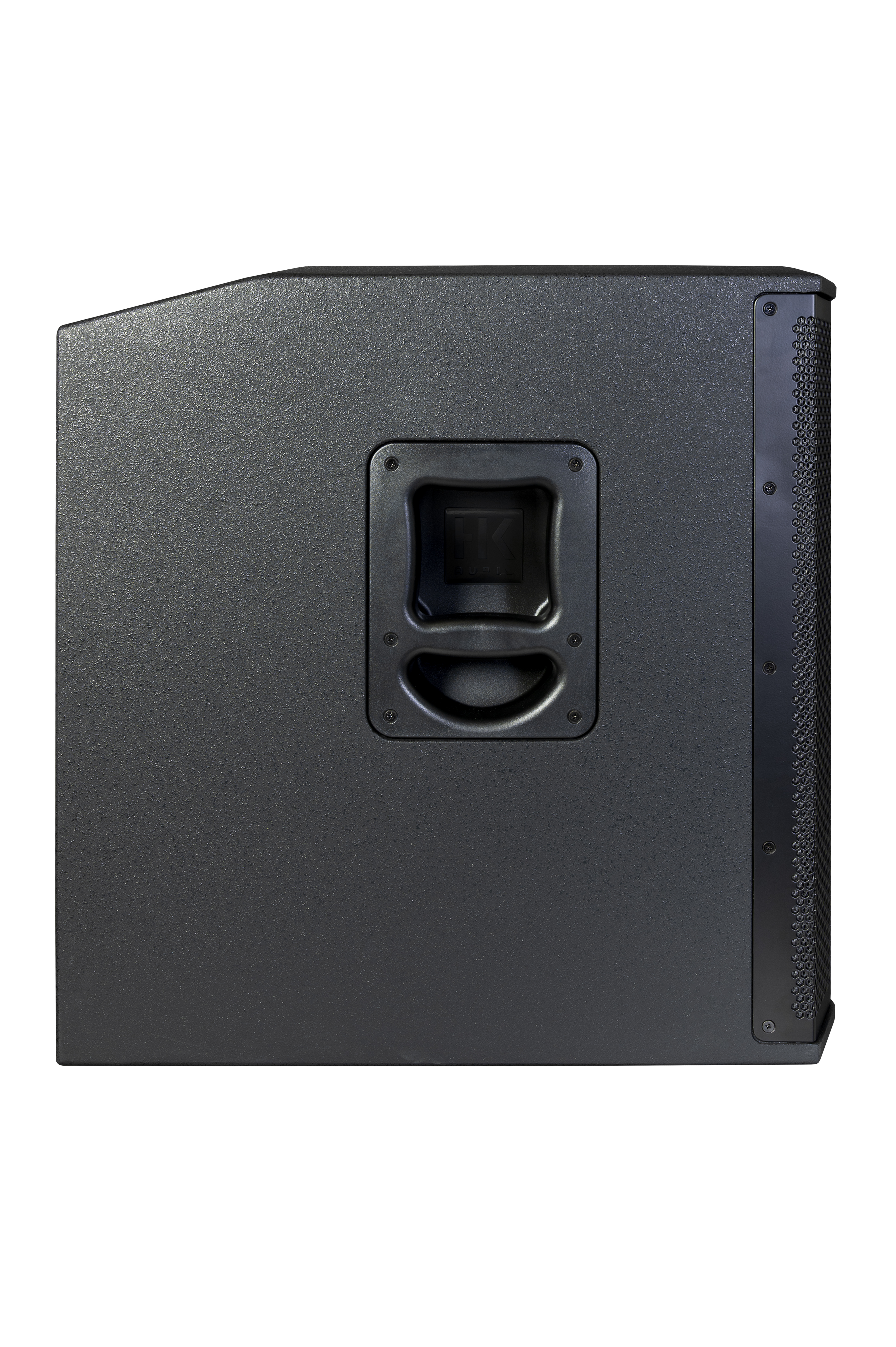

Carrying handles2 HK Audio Multi-Grip handles on the sides, carrying handles on the lid and bottom

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

Dimensions (W x H x D), metric45.1 x 61.4 x 59.4 cm

Dimensions (W x H x D), imperial17.8 x 24.2 x 23.4 in

Weight, metric30,5kg

Weight, imperial67,2 lb

Mid/High Unit

Characteristics and components

Conceptpassive column speaker

Cabinet principleClosed

Mid/high frequency6 x 3" cone speaker

High frequency1 x 1" compression driver

HornConstant directivity horn

Dispersion angle -6 dB (horizontal x vertical)120° x 30°

Mechanical data

Cabinet materialAluminum

Cabinet surfacepowder-coated black

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

Dimensions (W x H x D), metric10.7 x 76.9 x 12.8 cm

Dimensions (W x H x D), imperial4-7/32 x 30-9/32 x 5-1/32 inch

Weight, metric4.75 kg

Weight, imperial10.47 lbs

Spacer

Mechanical data

Cabinet materialaluminum

Cabinet surfacepowder-coated black

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

Weight, metric2.8 kg

Weight, imperial6.17 lbs

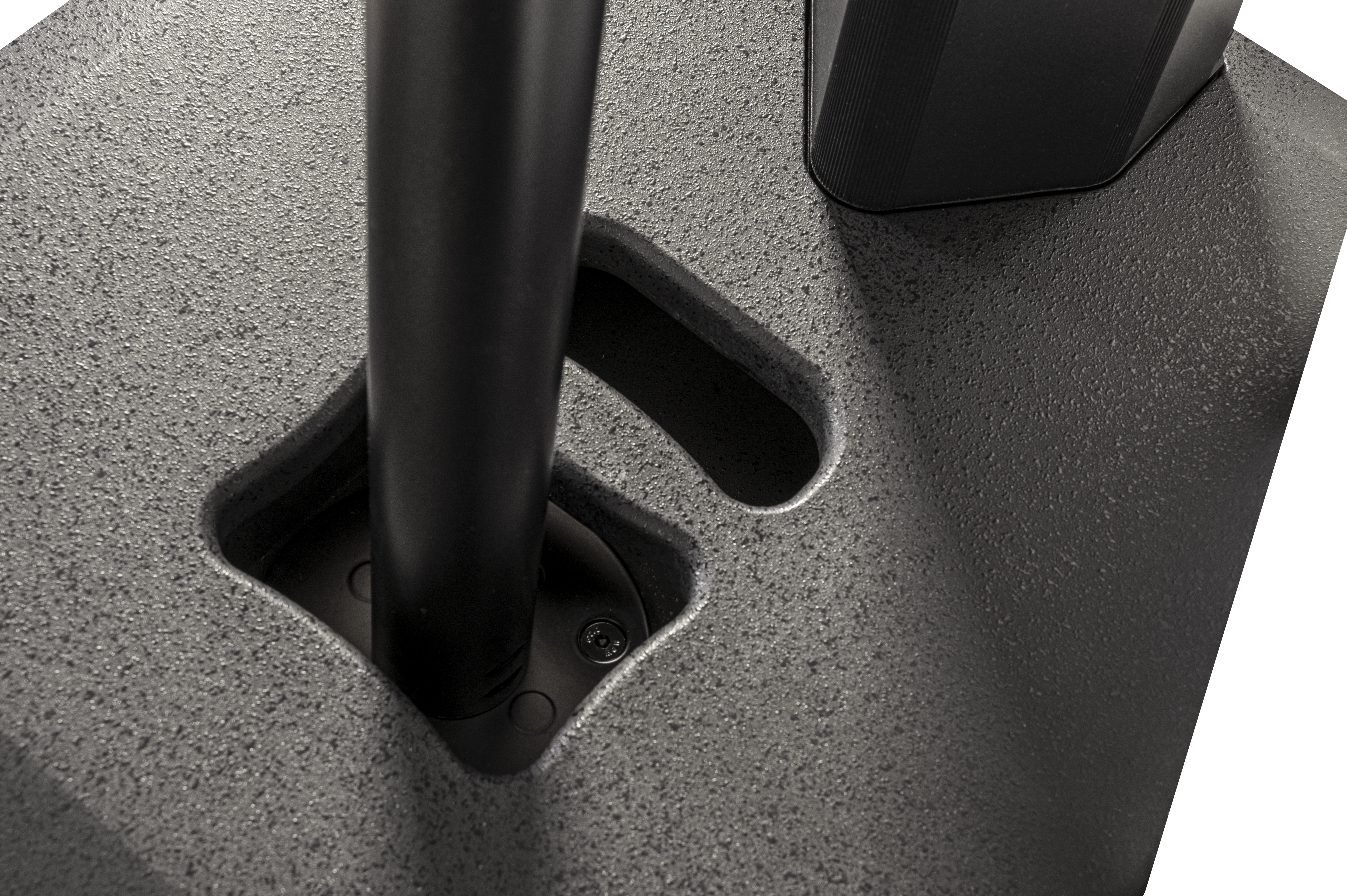

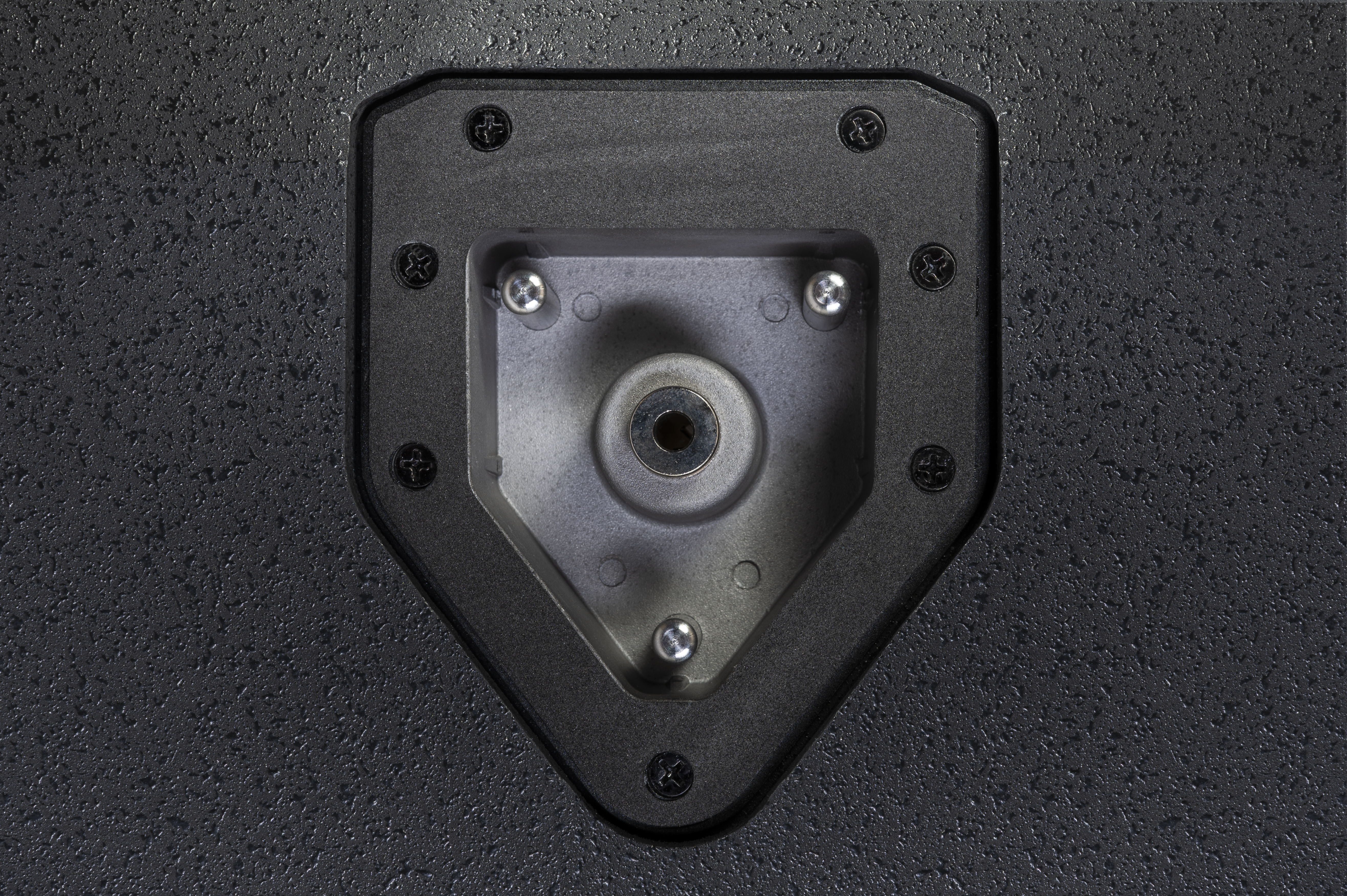

M20 FlexMount

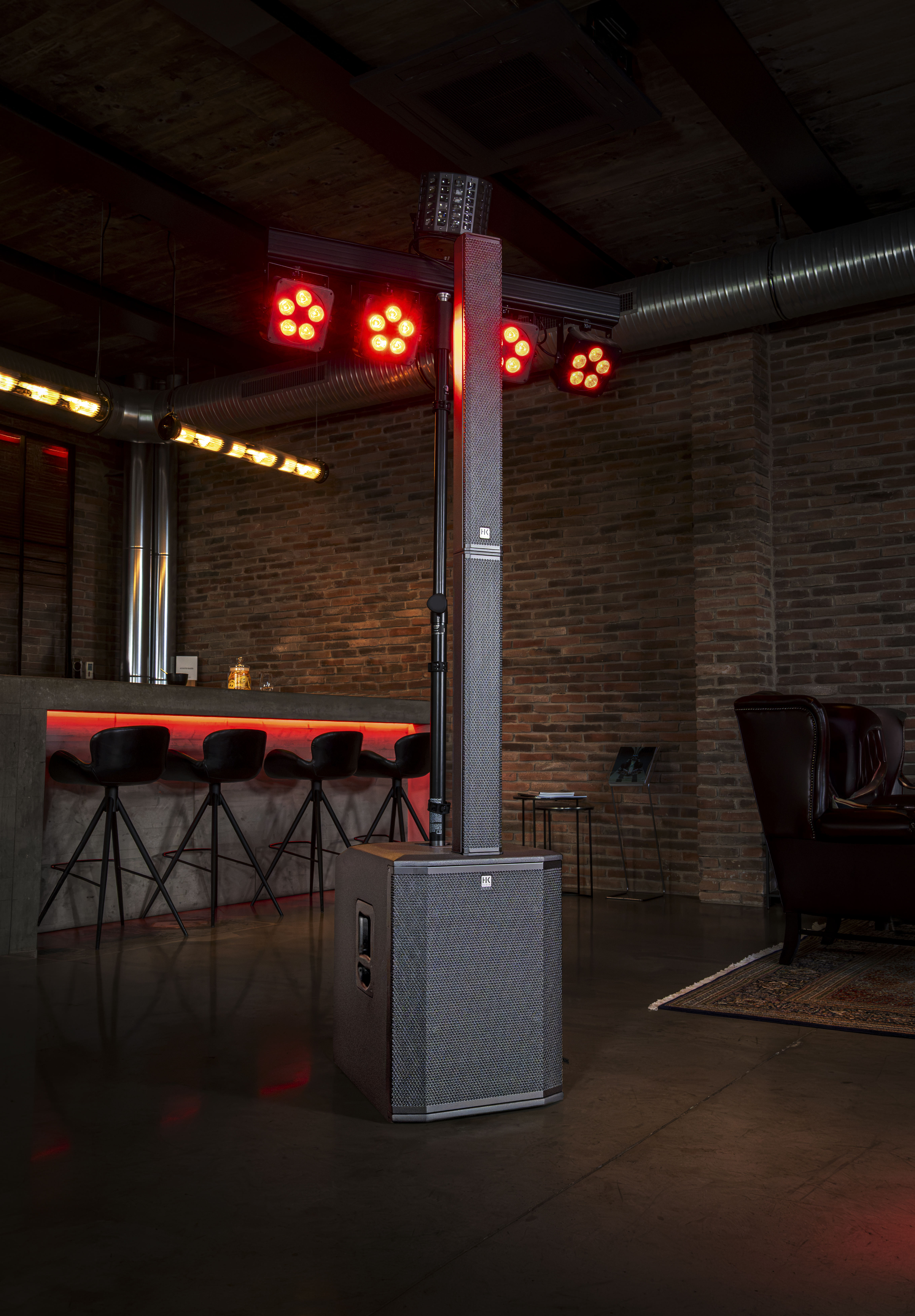

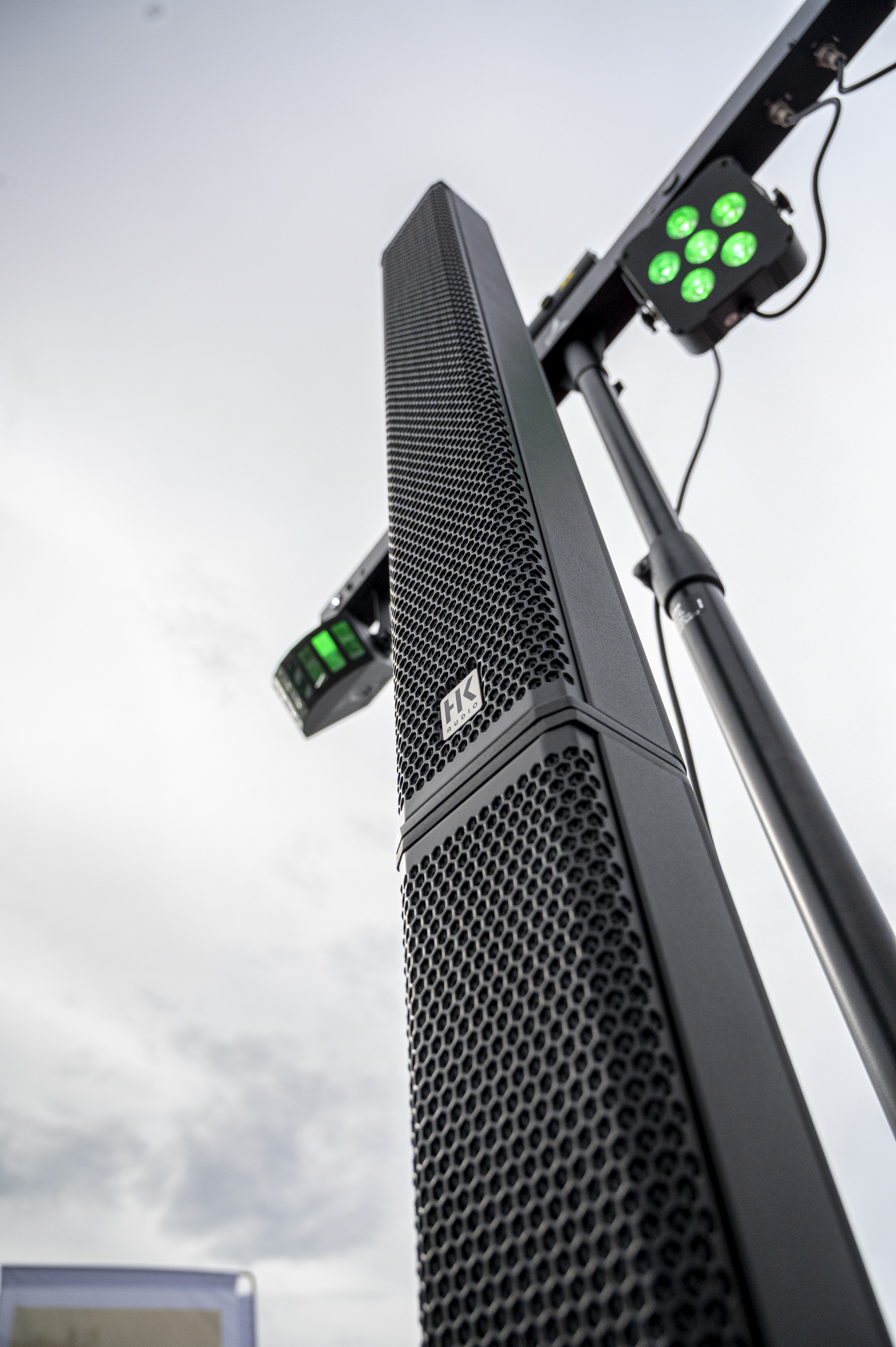

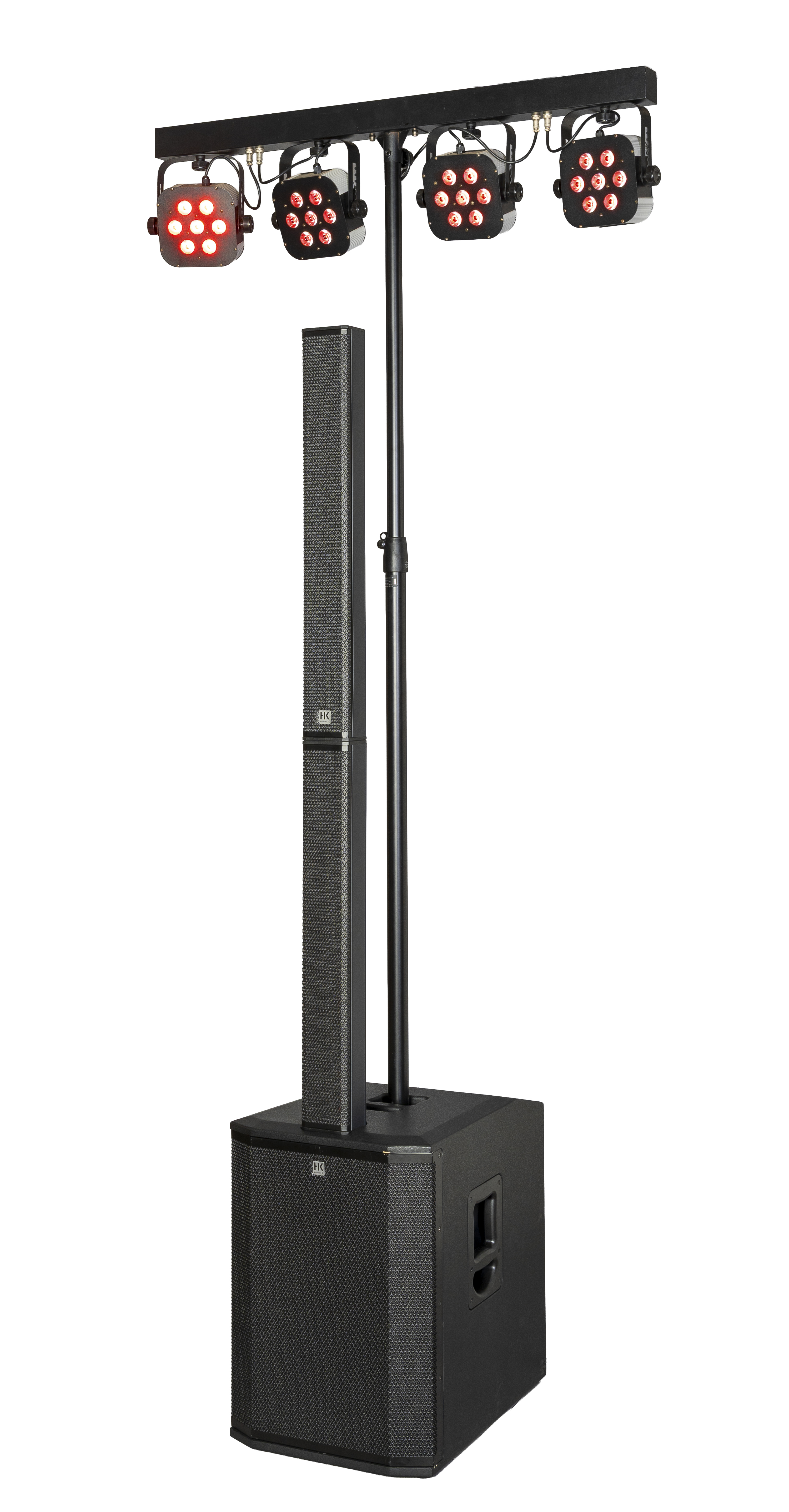

The POLAR 15 MK2’s integrated M20 thread lets you securely mount lighting, show and other accessories directly on the subwoofer-reducing the need for extra stands and making setups faster and tidier.
