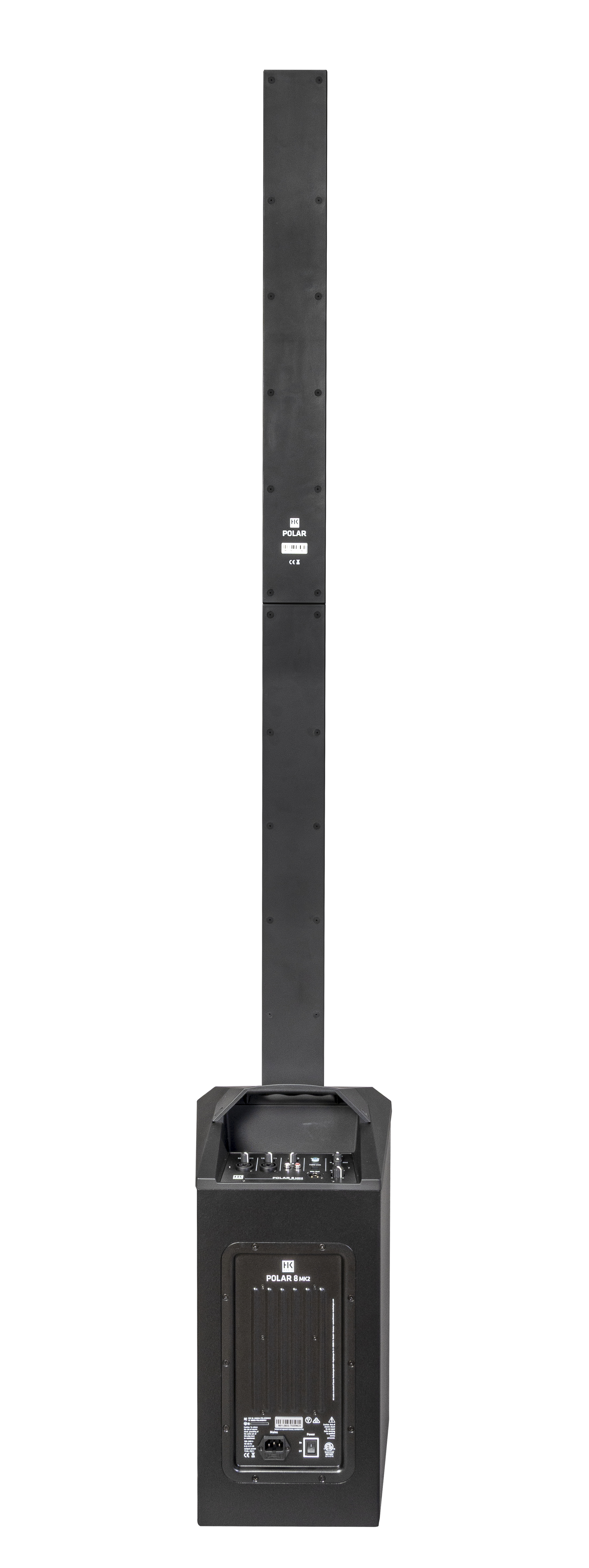

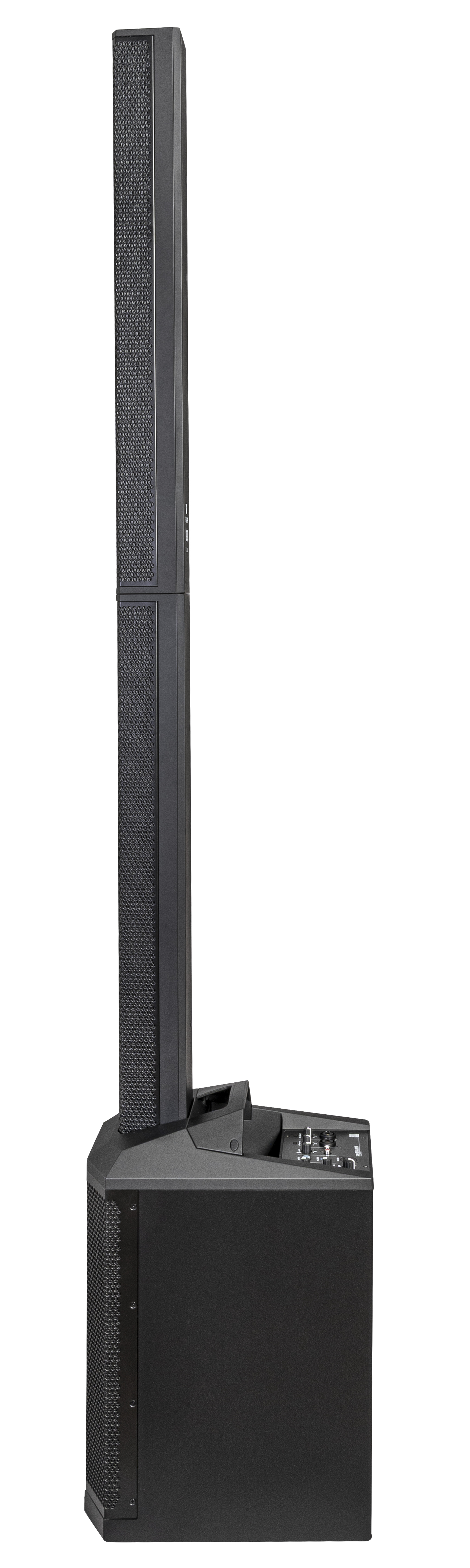

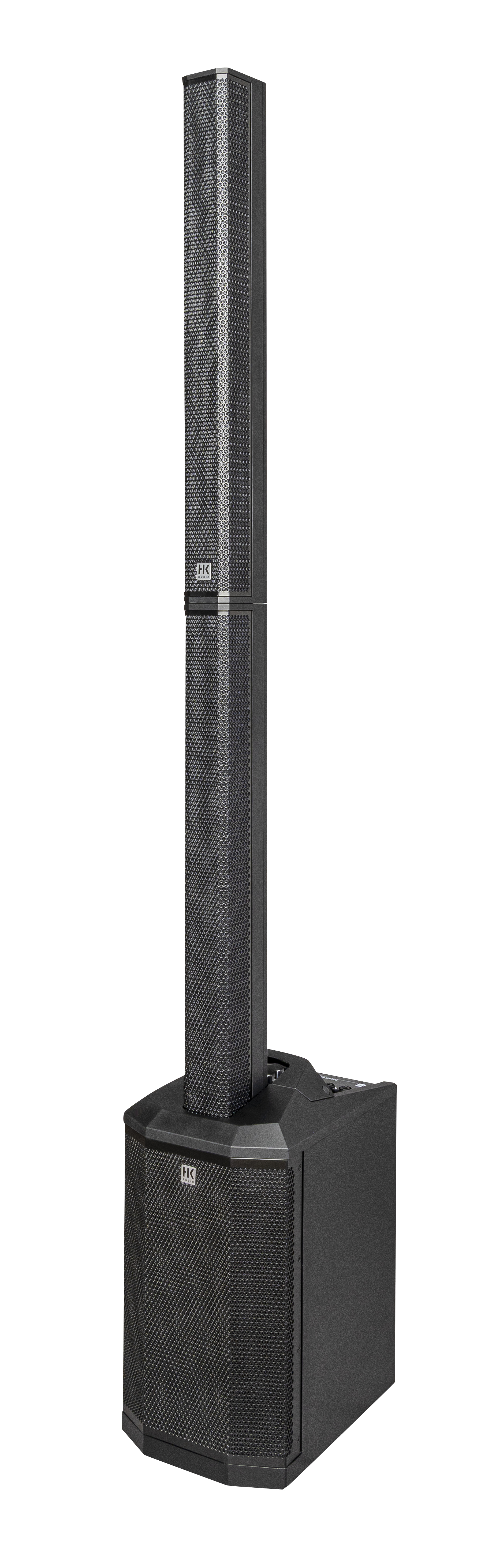

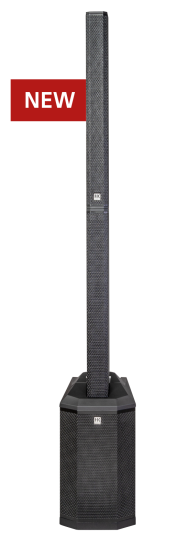

POLAR 8 MK2

PUT YOUR SOUND IN POLE POSITION

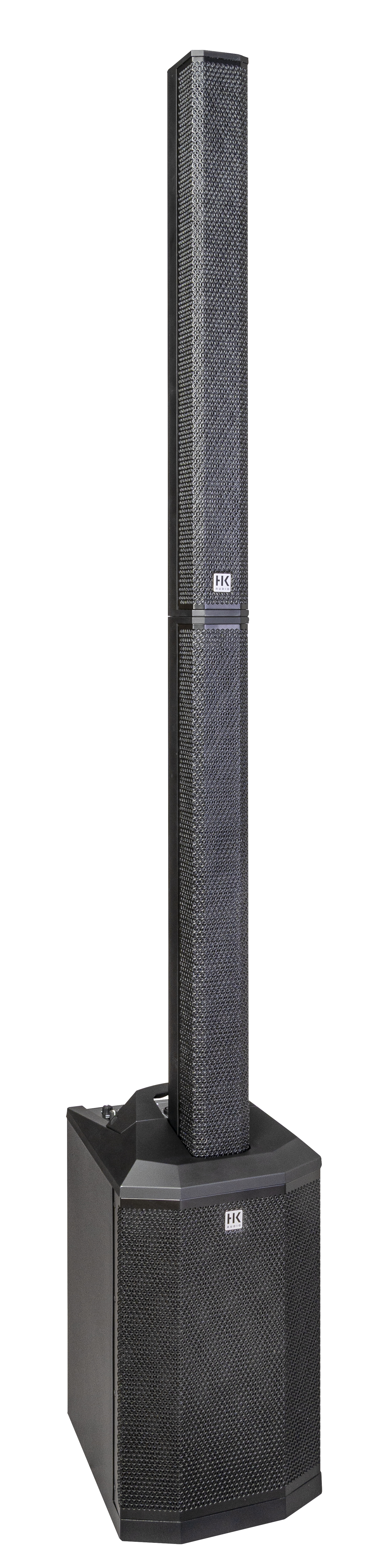

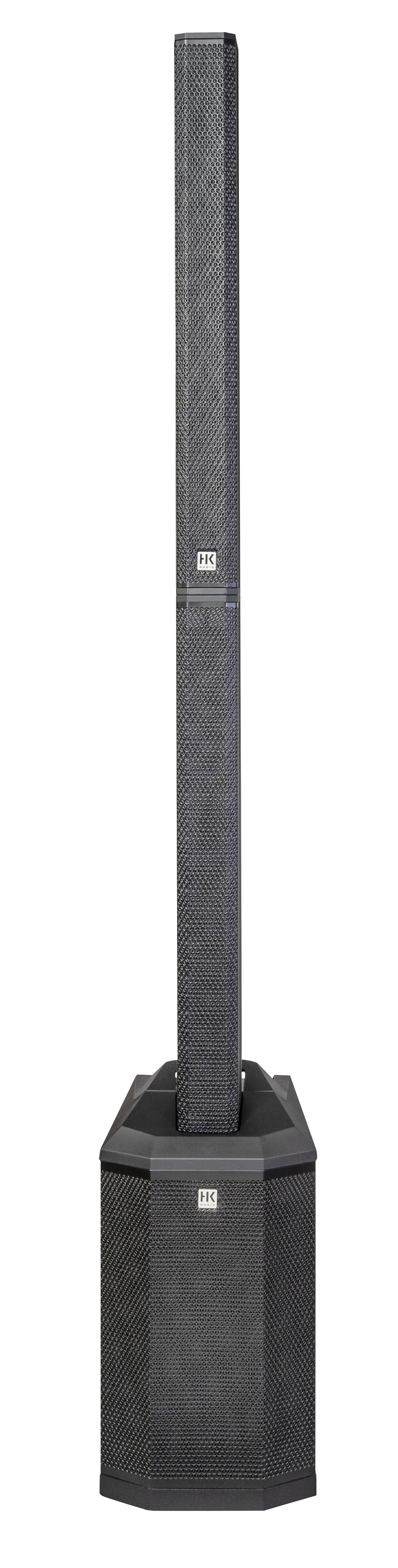

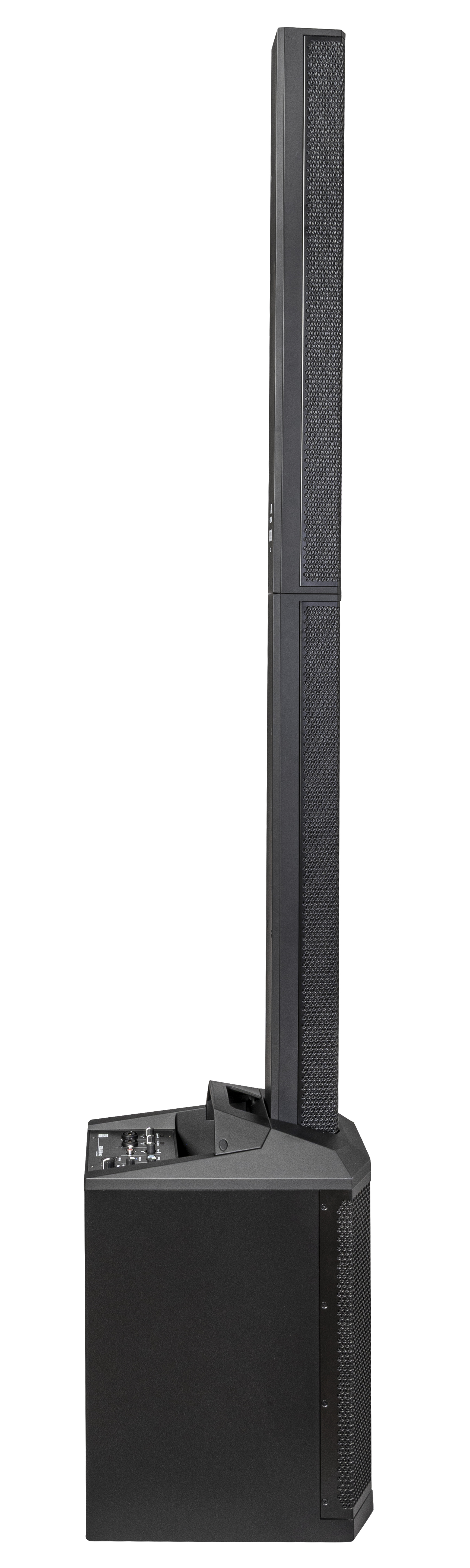

The POLAR 8 MK2 is a compact all-in-one column system designed for DJs, small stages and events. It delivers powerful, clear sound, is easy to use and quick to set up.

Analog input	2 x XLR/jack combo symm. (Mic/Line), 1 x cinch stereo
Bluetooth	Yes (5.0), TWS
Power amplifier output peak	1200 W
Concept	Active column loudspeaker system
Accessories included	Protection cover (Sub), transport bag (Mid/High unit and Spacer)

technical data

System

Specifications

ConceptActive column loudspeaker system

System components1 x Subwoofer, 1 x Spacer, 1 x Mid/High unit

Cabinet principlebass reflex subwoofer

Max. SPL peak³120 dB

Crossover frequency200 Hz

Frequency range -10 dB50 Hz - 20 kHz

Dispersion angle -6 dB (horizontal x vertical)120° x 45°

Index

Index 3)Mid-/High unit 1 x @ 2,5m, 10 % THD, half space

Components

Low frequency1× 8", 1.5" voice coil

Mid/high frequency6× 2.5" Broadband speaker, 1" voice coil, Neodym

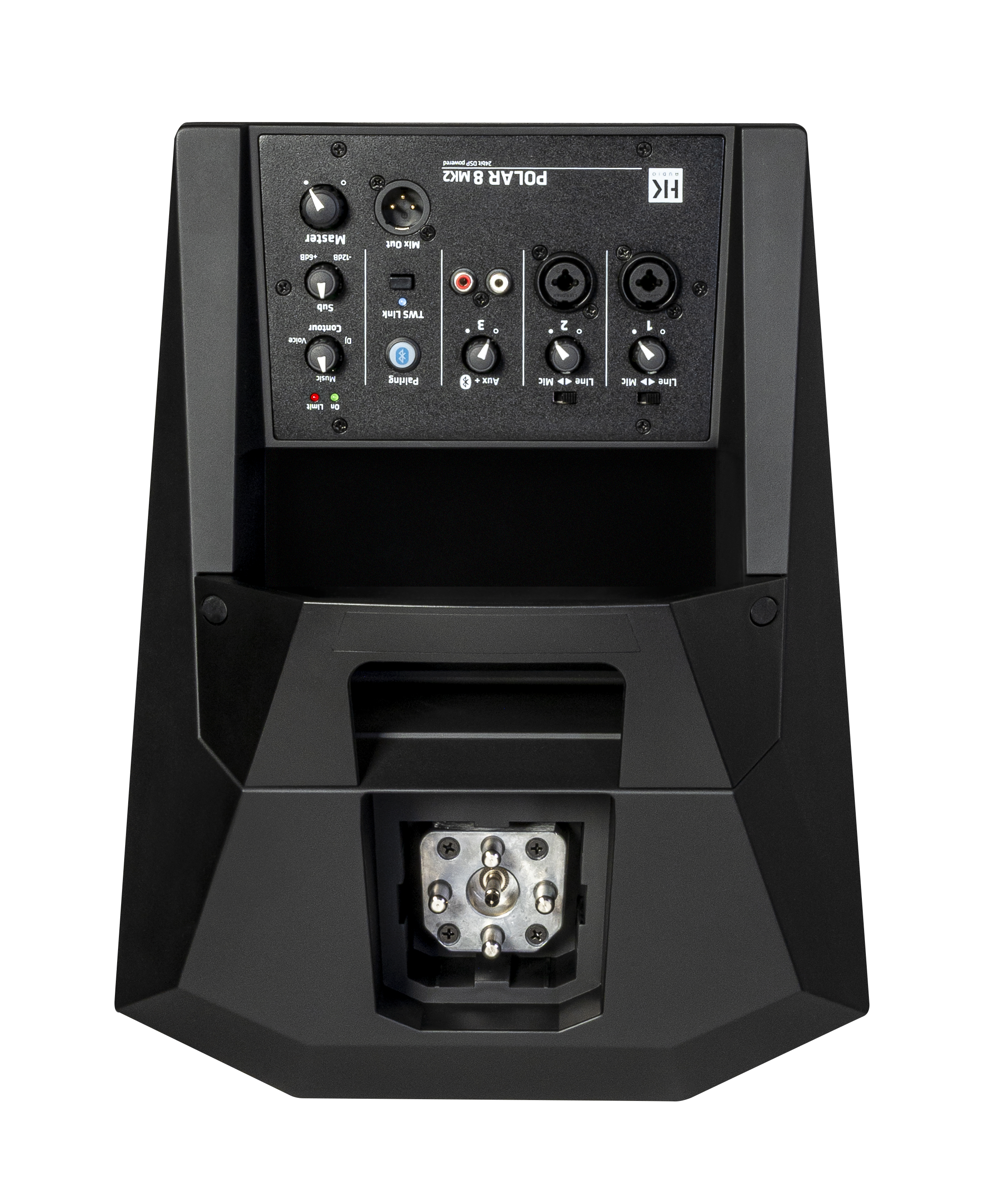

Connections

Analog input2 x XLR/jack combo symm. (Mic/Line), 1 x cinch stereo

Mix output1 x XLR

Electronic data

PreamplifierDSP preamplifier

Power amplifierClass D-Biamped

Power amplifier output RMS300 W

Power amplifier output peak1200 W

Power consumption0.8 A/100 - 240 V nominal (EN 62368-1)

Maximum input level19 dBu

Speaker protectionRMS-/Peak-Limiter

Sample rate48 kHz

DSP functionsContour control, continuously adjustable (DJ, Music, Voice)

Filter presetsDJ, Music, Voice

BluetoothYes (5.0), TWS

Mechanical data

Carrying handles1 x Carrying handle

Cabinet materialABS

Cabinet surface Partially painted

ColorJet black (RAL 9005)

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

Accessories includedProtection cover (Sub), transport bag (Mid/High unit and Spacer)

Dimensions (W x H x D), metric30,2 x 202,9 x 39 cm

Dimensions (W x H x D), imperial11-7/8 x 79-7/8 x 15-11/32 inch

Weight, metric19,7 kg

Weight, imperial43,4 lbs

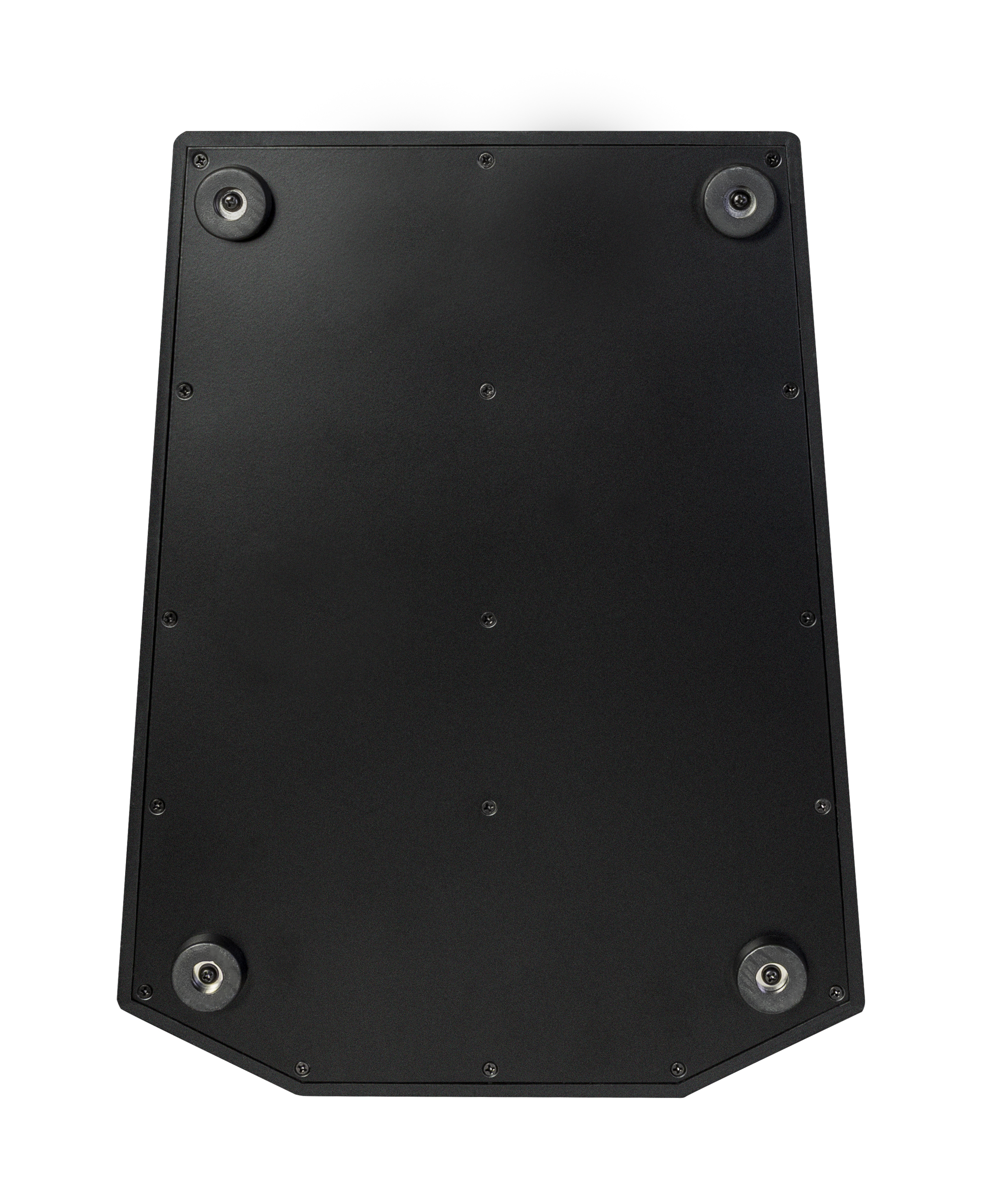

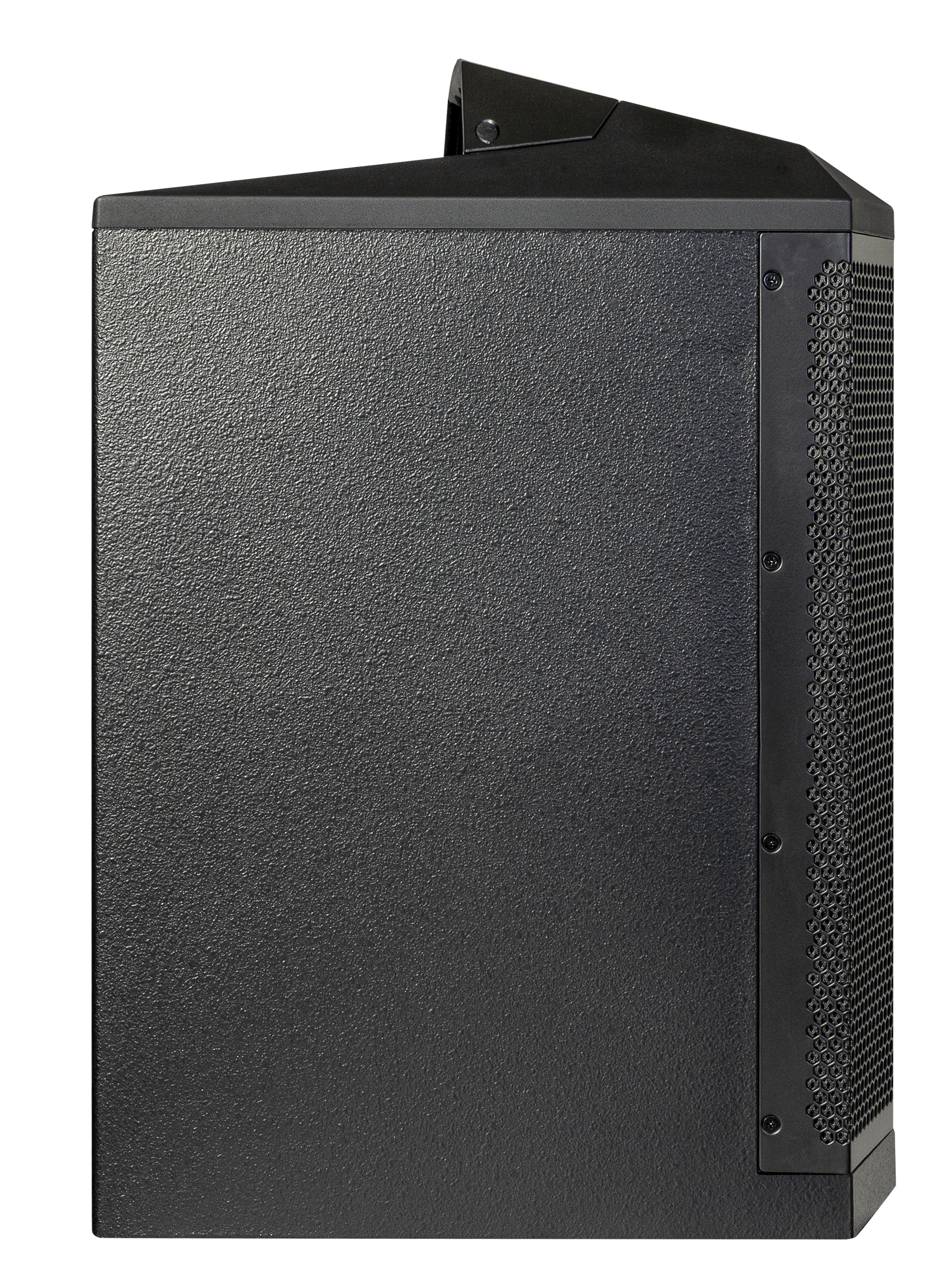

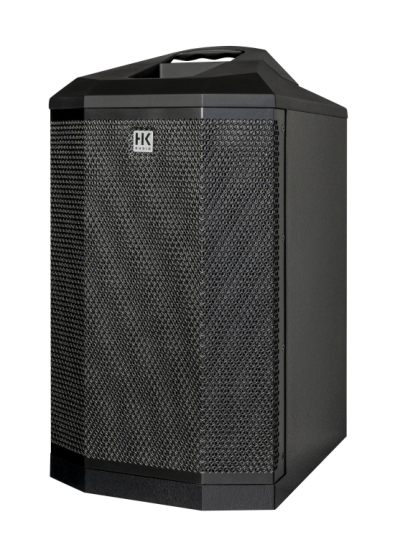

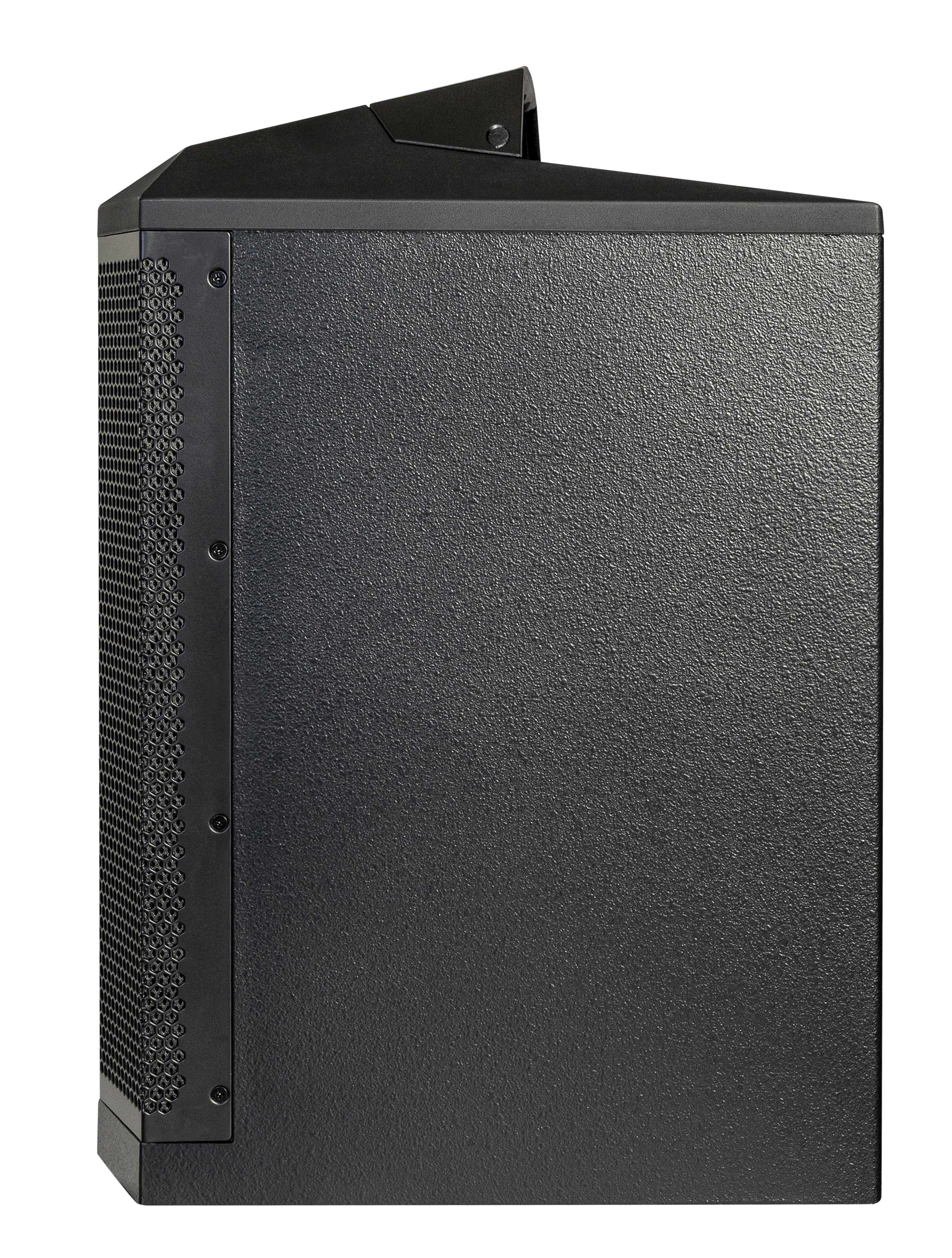

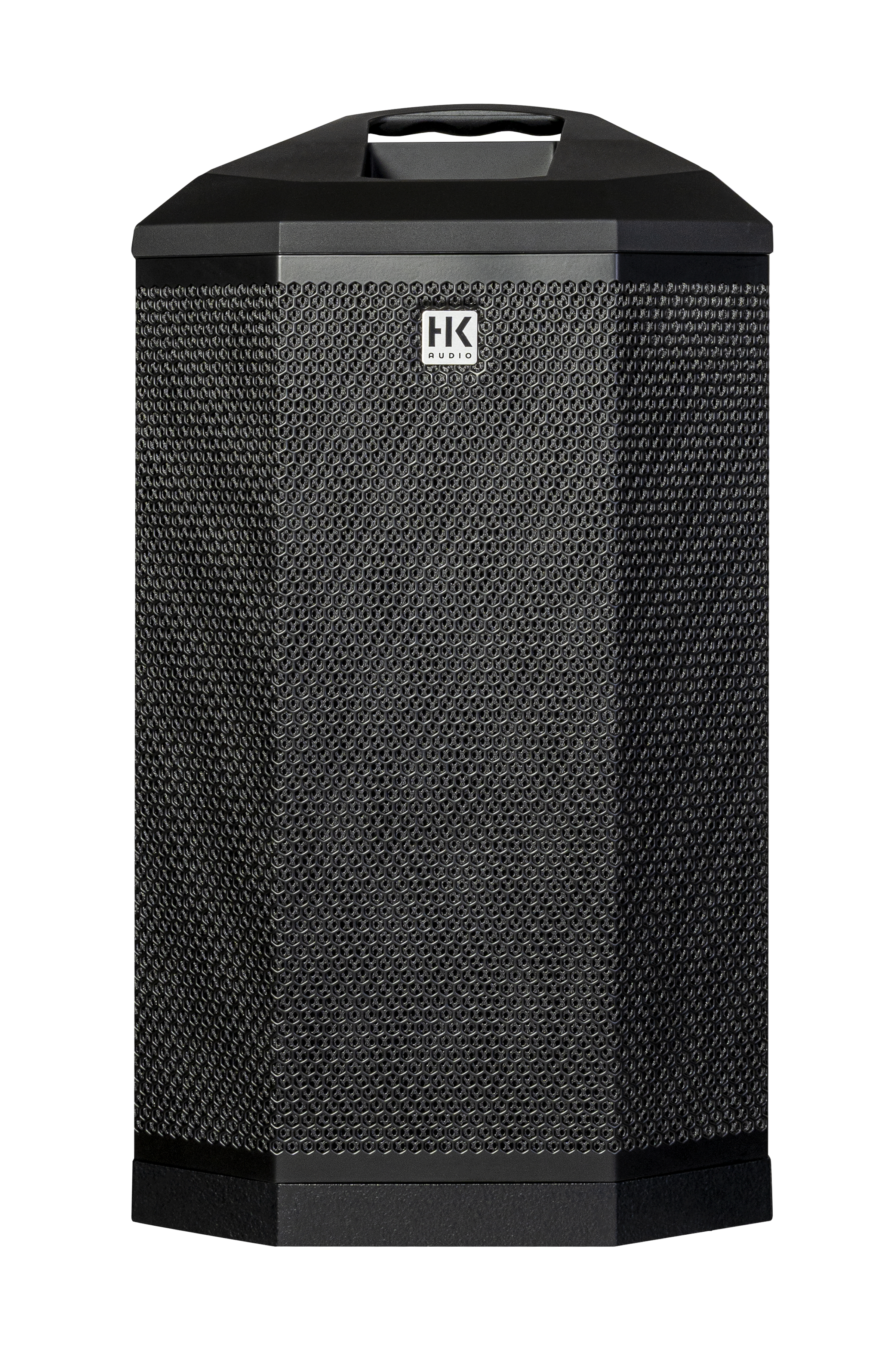

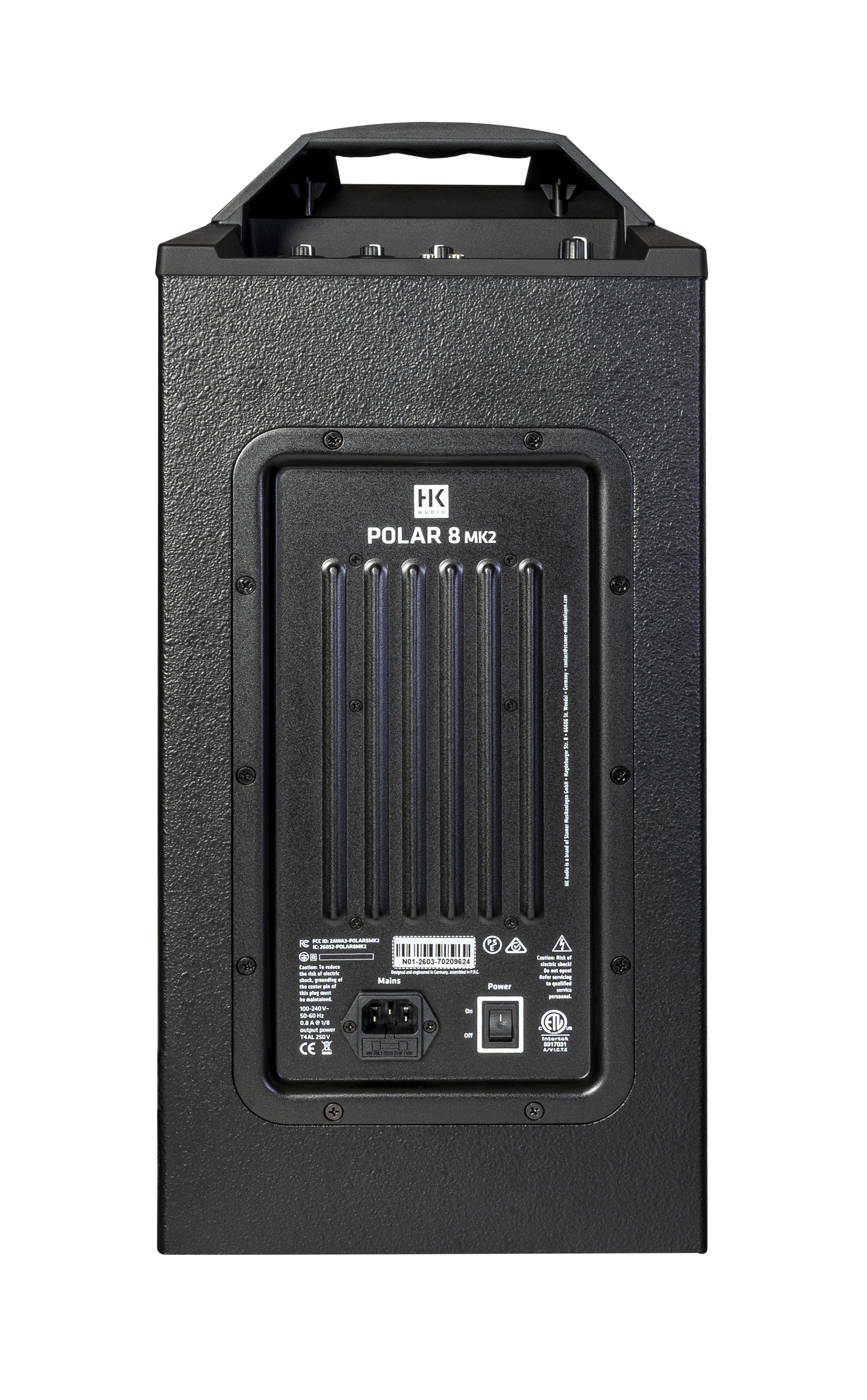

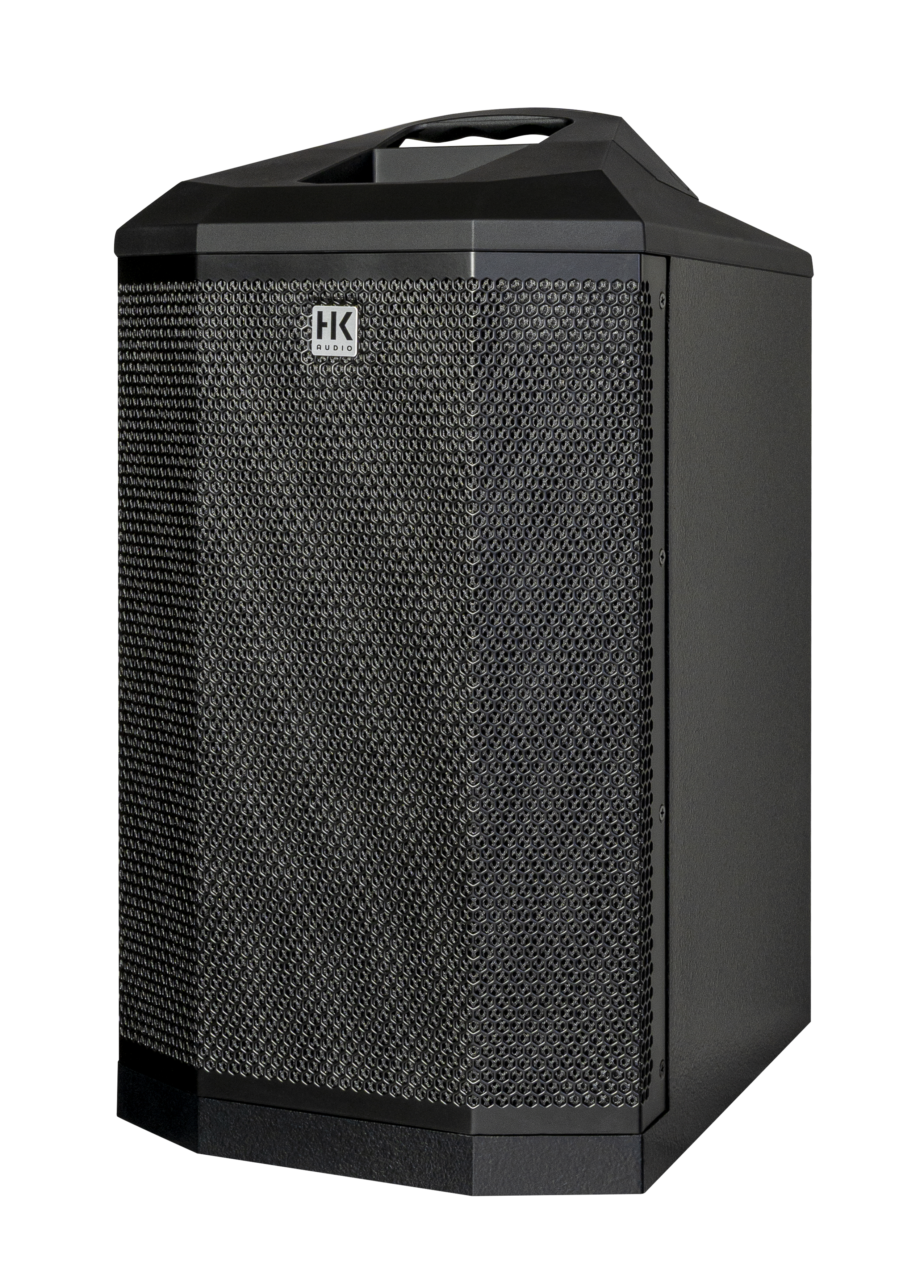

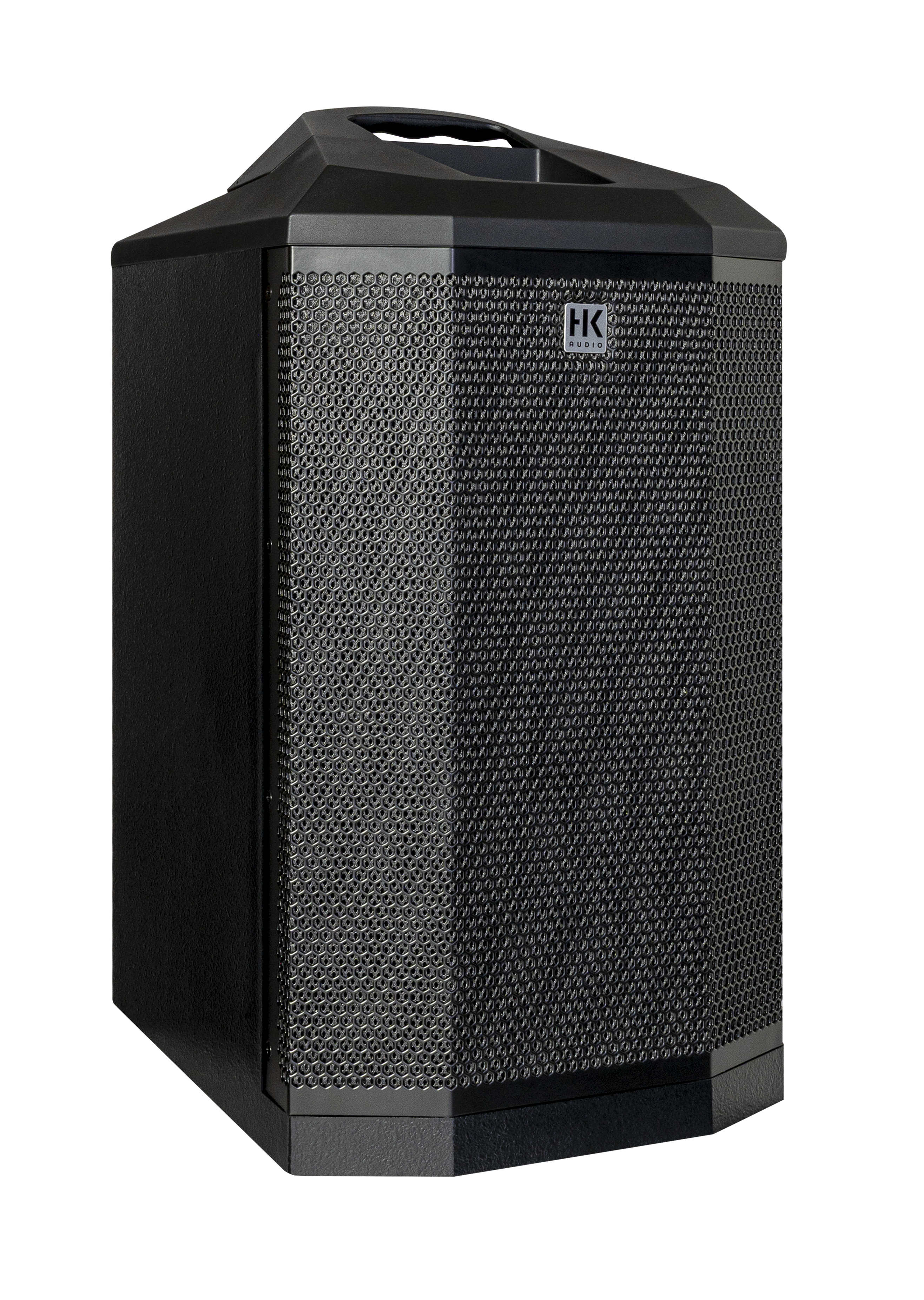

Subwoofer

Charecteristics and components

ConceptActive subwoofer

Cabinet principleBass reflex

Low frequency1 x 8" cone speaker

CrossoverHigh pass: 24 dB/oct., Low pass: 24 dB/oct.

Mechanical data

Cabinet materialABS

Cabinet surfaceacrylic enamel

Carrying handles1 x Carrying handle

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

Dimensions (W x H x D), metric30,2 × 57 × 39 cm

Dimensions (W x H x D), imperial11-7/8 x 22-7/16 x 15-11/32 inch

Weight, metric14,5 kg

Weight, imperial32 lbs

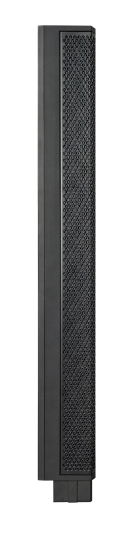

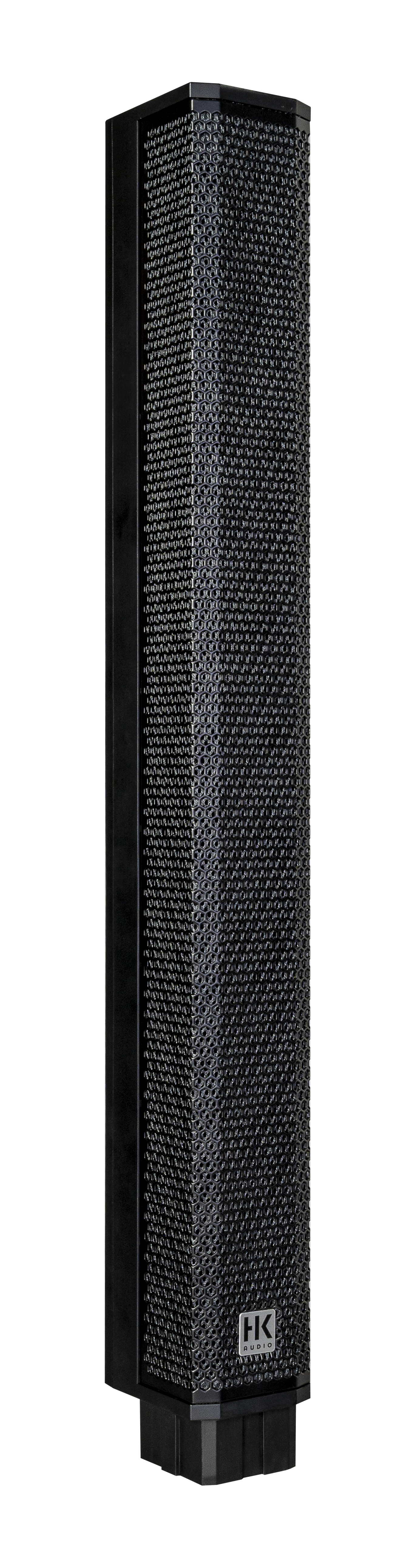

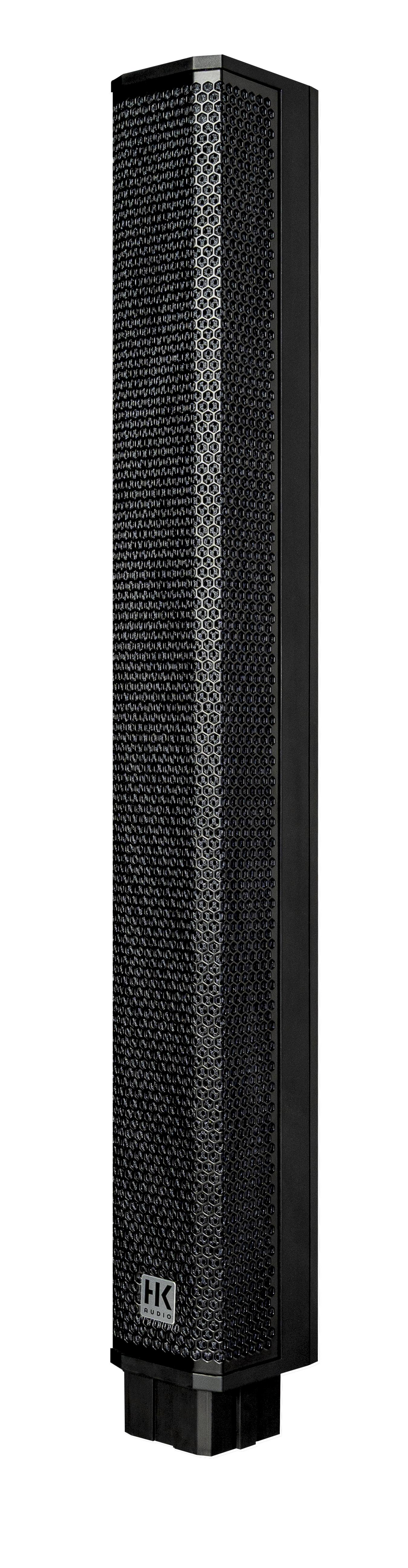

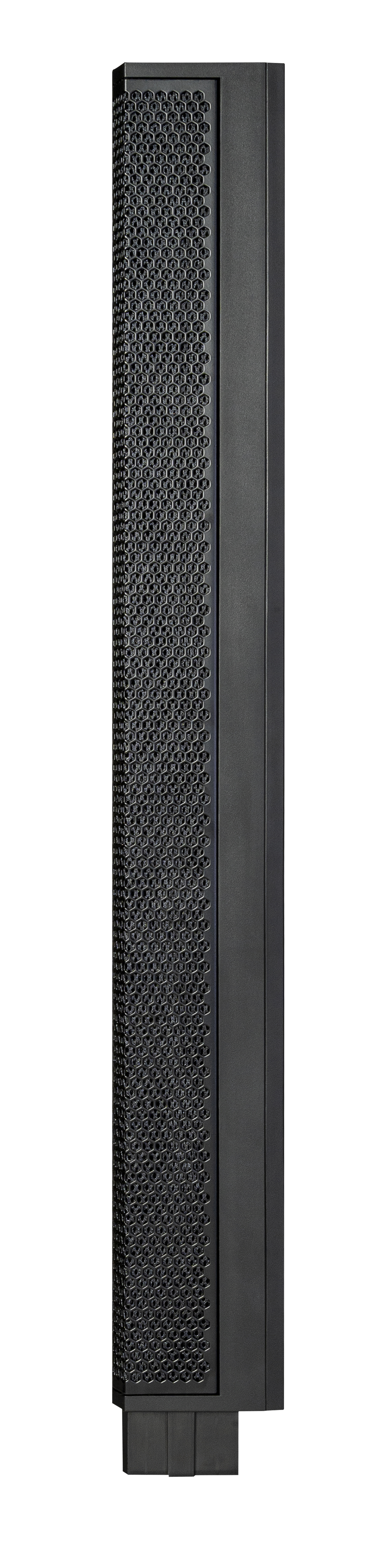

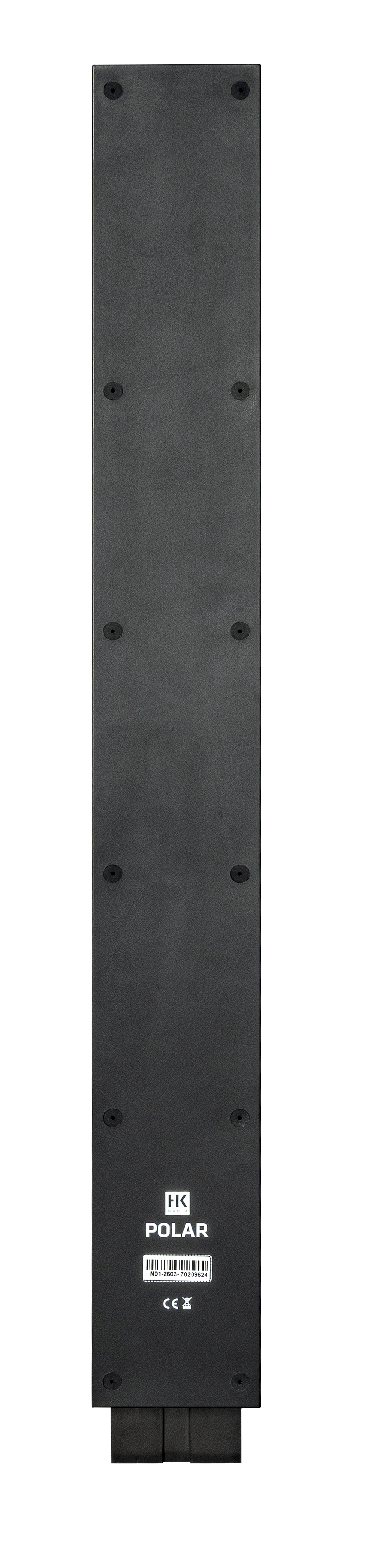

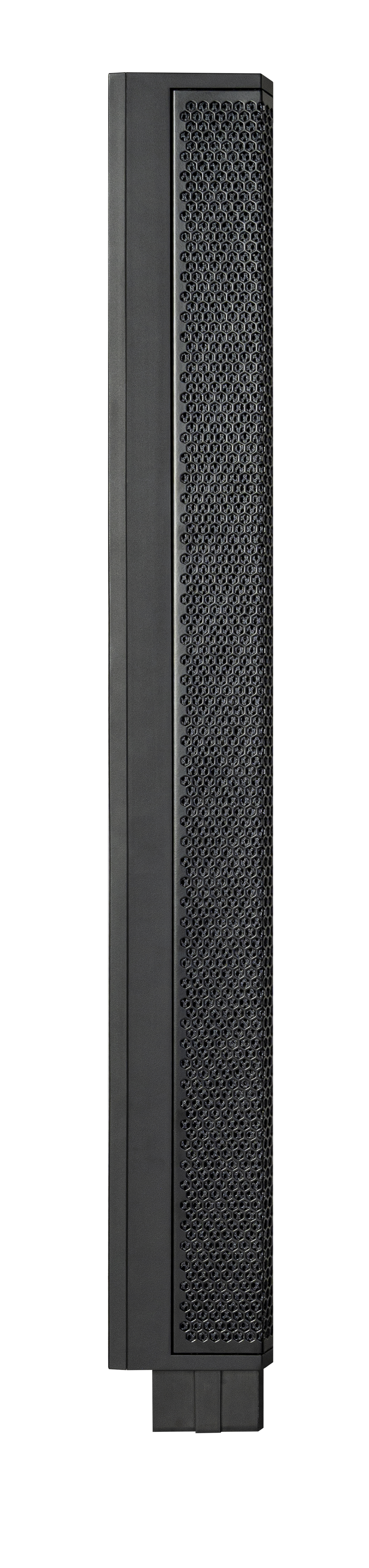

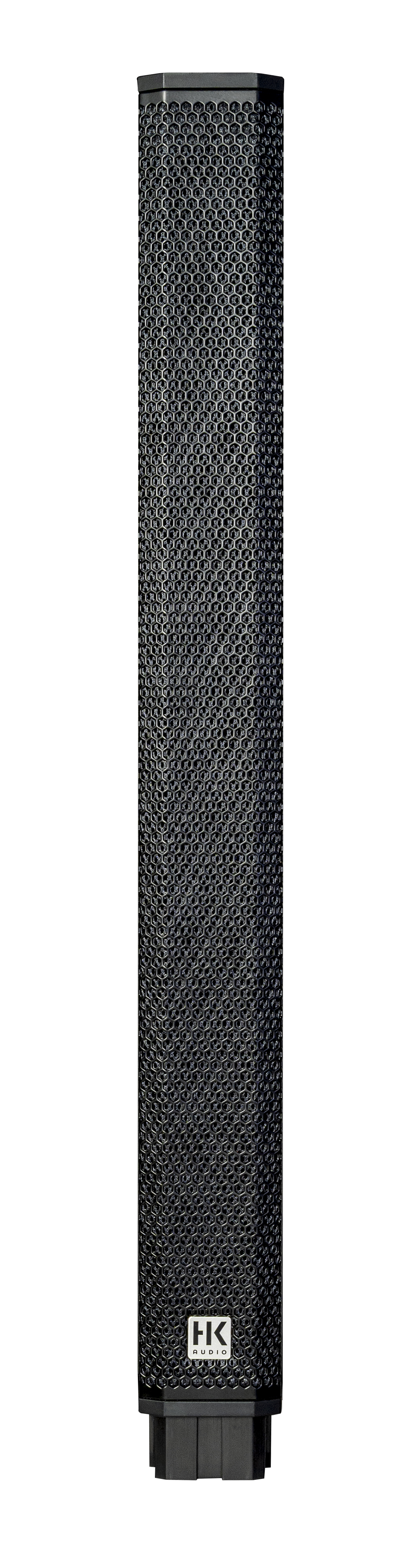

Mid/High Unit

Characteristics and components

Conceptpassive column speaker

Cabinet principleClosed

Mid/high frequency6 x 2.5" cone speaker

Dispersion angle -6 dB (horizontal x vertical)120° x 45°

Mechanical data

Cabinet materialABS

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

Dimensions (W x H x D), metric9.4 x 82.0 x 9.8 cm

Dimensions (W x H x D), imperial3-11/16 x 32-9/32 x 3-27/32 inch

Weight, metric3.1 kg

Weight, imperial6.8 lbs

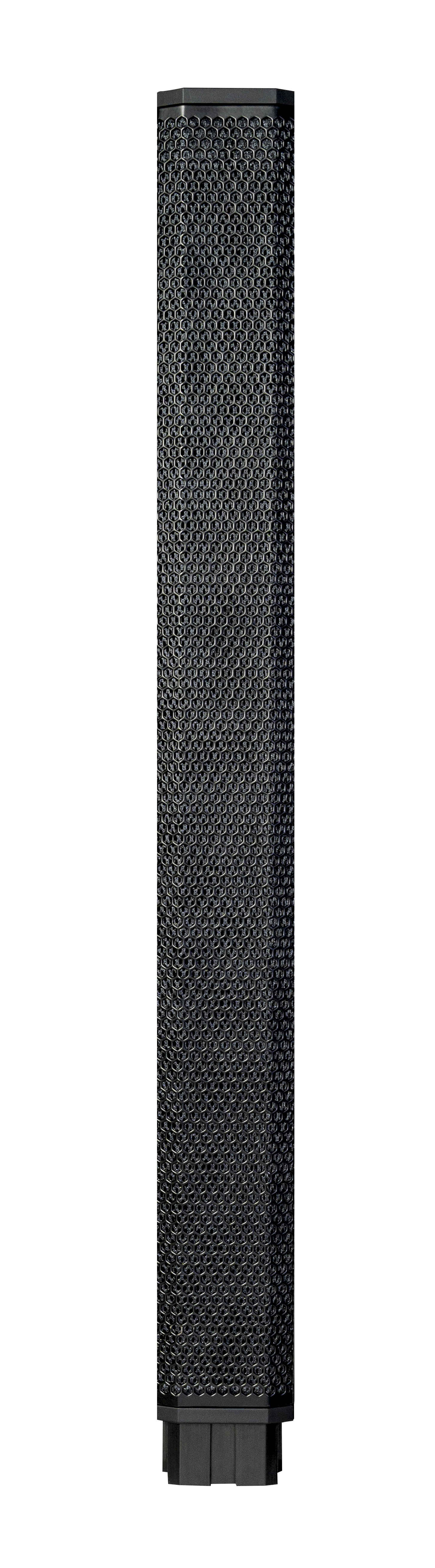

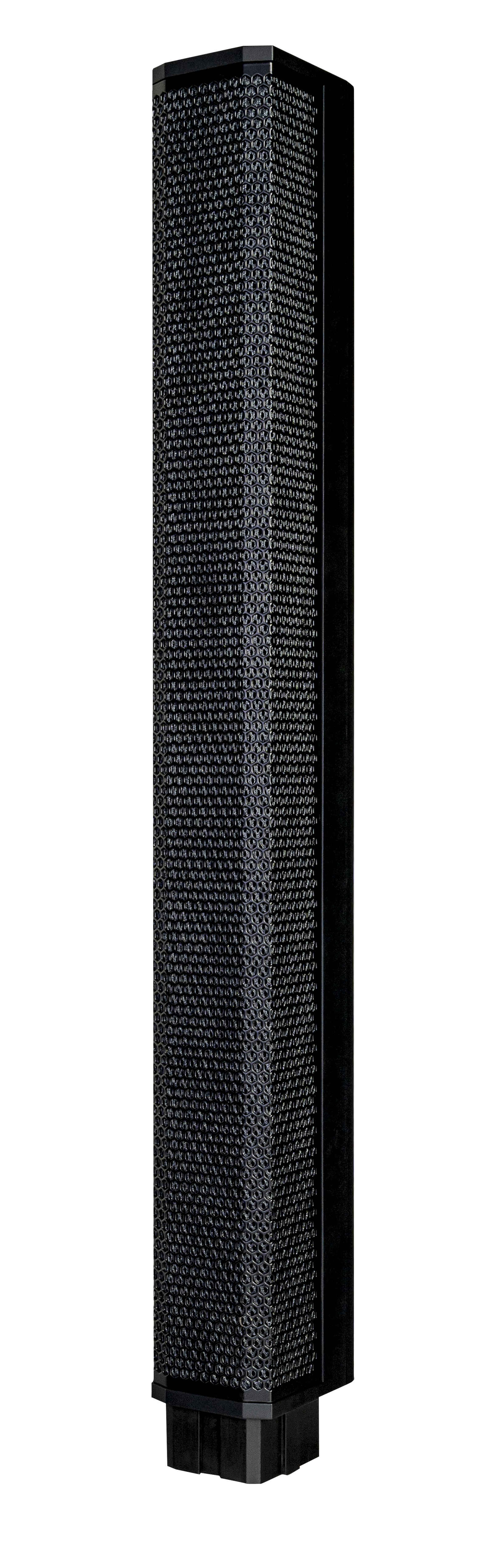

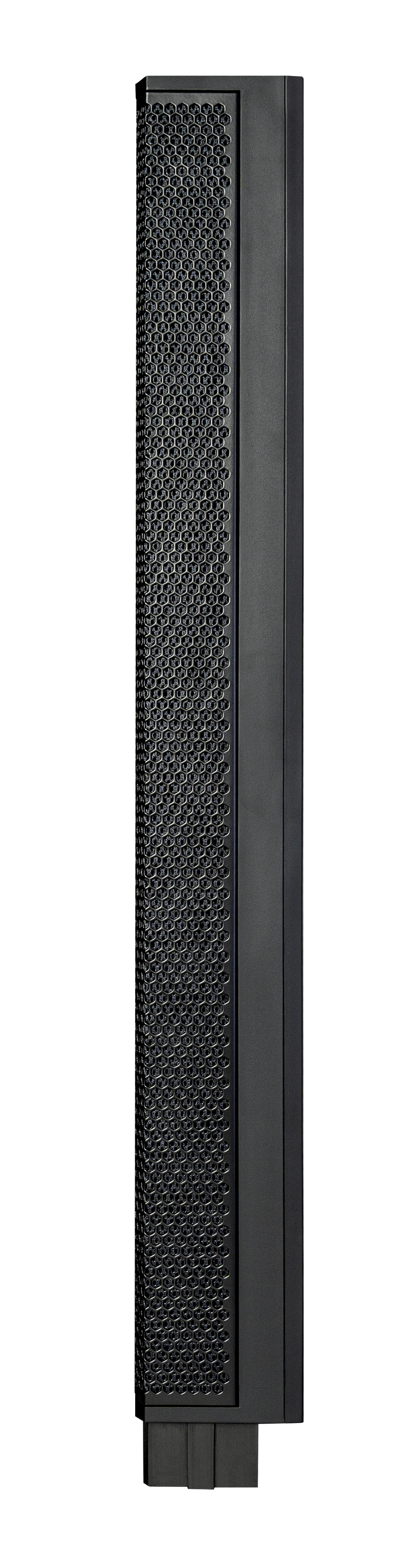

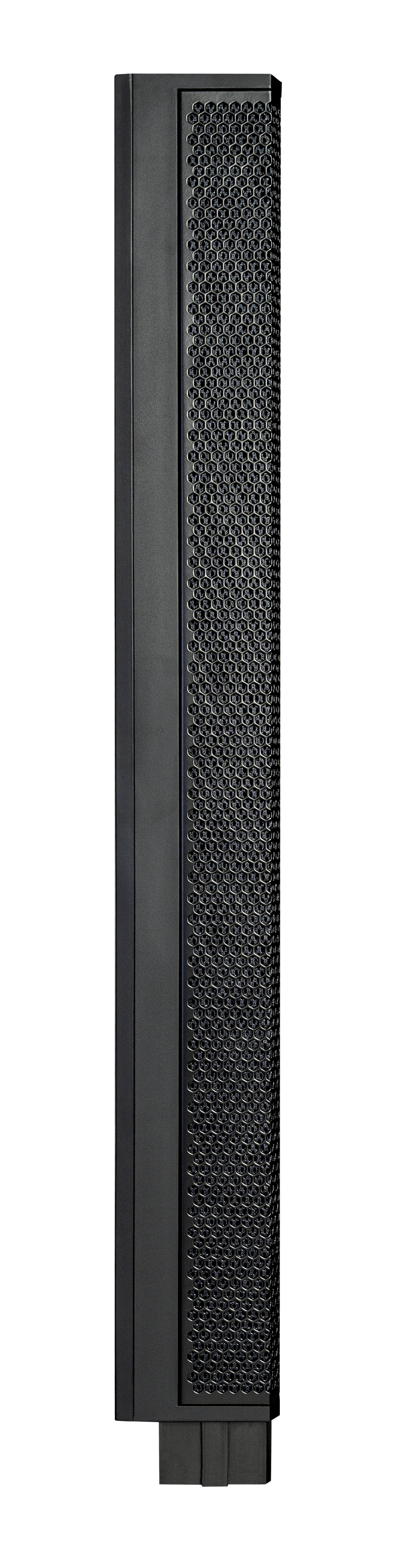

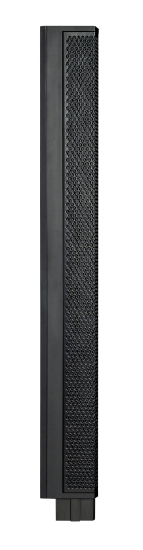

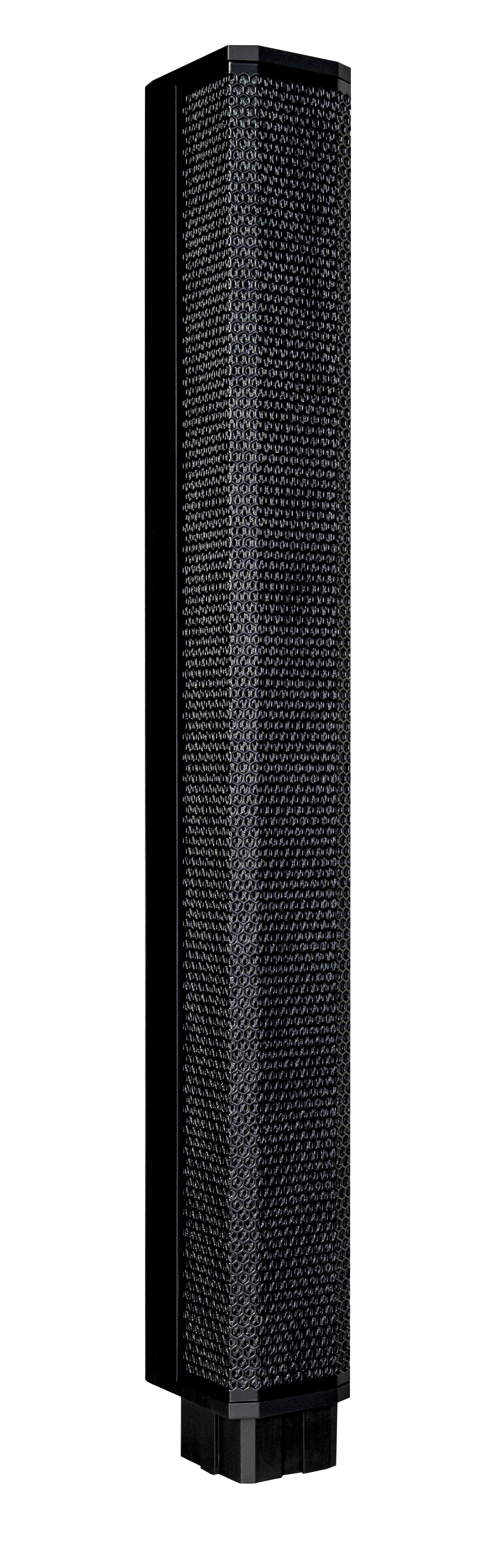

Spacer

Mechanical data

Cabinet materialABS

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

Dimensions (W x H x D), metric9,4 x 82,0 x 9,8 cm

Dimensions (W x H x D), imperial3-11/16 x 32-9/32 x 3-27/32 inch

Weight, metric2.2 kg

Weight, imperial4.85 lbs

• Compact and powerful:
The POLAR 8 MK2 is the smallest column system in the MK2 series and, as an all-in-one solution, delivers impressive sound quality whilst taking up minimal space – ideal for stages, conferences, rehearsal rooms and events.

• Precise sound distribution:
Six 2.5″ neodymium midrange drivers in an innovative curved column arrangement ensure even sound coverage with a 120° horizontal and 45° vertical dispersion angle – for clear speech intelligibility and balanced sound.

• Powerful, precise bass:
The integrated 8-inch subwoofer delivers punchy bass in a low-resonance, metal-reinforced enclosure, guaranteeing precise and dynamic low-frequency reproduction.

• Powerful amplifier and intelligent DSP:
The 1,200-watt Class D amplifier and high-resolution 24-bit DSP ensure maximum dynamics, detail and distortion-free sound – even at high volumes.

• Flexible sound control:
The innovative Contour control allows for seamless adjustment between DJ, Music and Voice modes, ensuring optimal sound for every application.

• Integrated mixer and wireless freedom:
The 3-channel mixer with Mic/Line and Aux/Bluetooth inputs, as well as Bluetooth 5.0 with True Wireless Stereo, offers versatile connectivity options and true wireless stereo streaming.

• Portable and stylish:
Thanks to quick assembly, a well-thought-out transport concept and included protective covers, the system is ready for use straight away. Also available in white as an option – perfect for elegant events and weddings.
