VR 21214
FLEXIBLE INDOOR SOLUTIONS
technical data
Characteristics
ConceptPassives 2.5-Wege-Topteil
Cabinet principleBass reflex
Power handling RMS700 W
Power handling program1400 W
Power handling peak2800 W
Nominal impedance14 Ohms
Max. SPL peak3131 dB
Sensitivity 1 W/1 m4101 dB
Crossover frequency800 Hz/1.1 kHz
Frequency range -6 dB70 Hz - 16 kHz
Frequency range -10 dB60 Hz - 20 kHz
Dispersion angle -6 dB (horizontal x vertical)depending on horn variant
Index
Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)
Index 3)1 m, 10 % THD @ 300 Hz, full space
Index 4)100 Hz - 20 kHz, full space
Certifications
Ball impact resistance (DIN 18032-3)certified (MPA Uni Stuttgart)
IP-Protection class (EN 60529)not specified (installation only in dry indoor areas)
Components

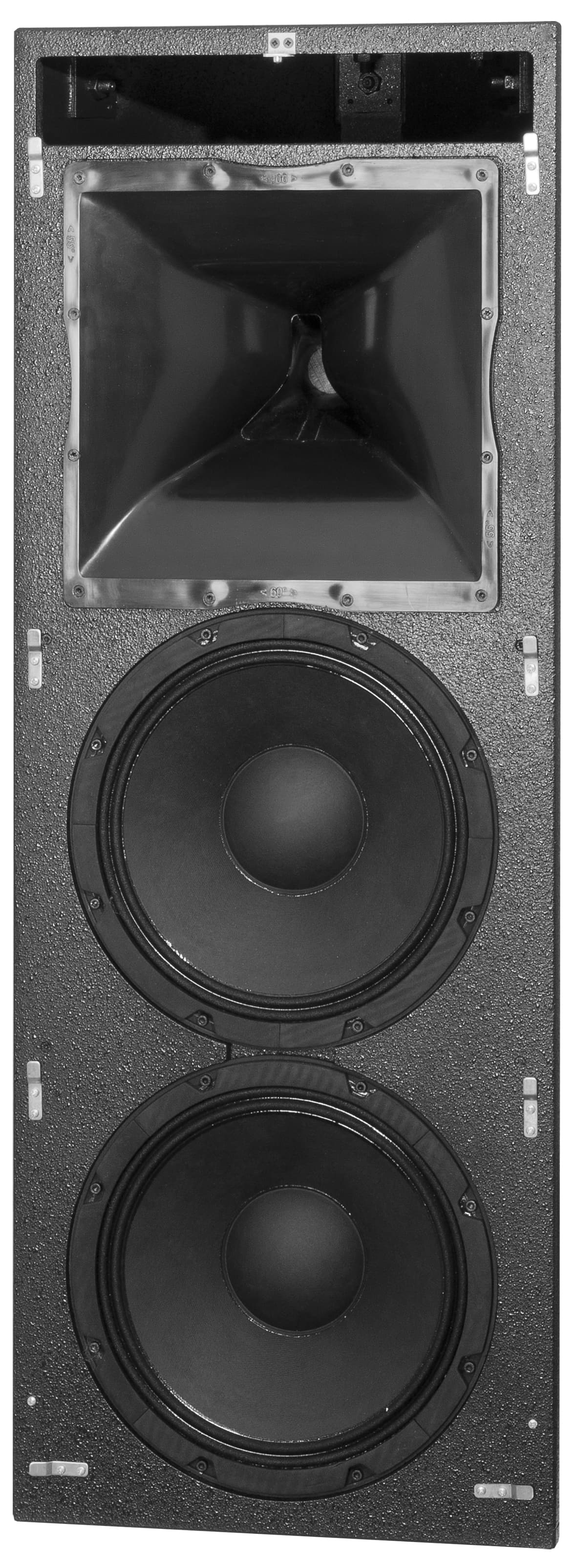

Low frequency2 x 12" Sica cone speaker with neodymium magnet and 3"-voice coil
High frequency1 x 1.4" B&C compression driver with ferrite magnet and 3"-voice coil
CrossoverHigh pass: 24 dB/oct., Low pass: 24 dB/oct.
Horn60° x 40° or 90° x 55° or 60-90° x 55° (asymm.), each 90° rotatable

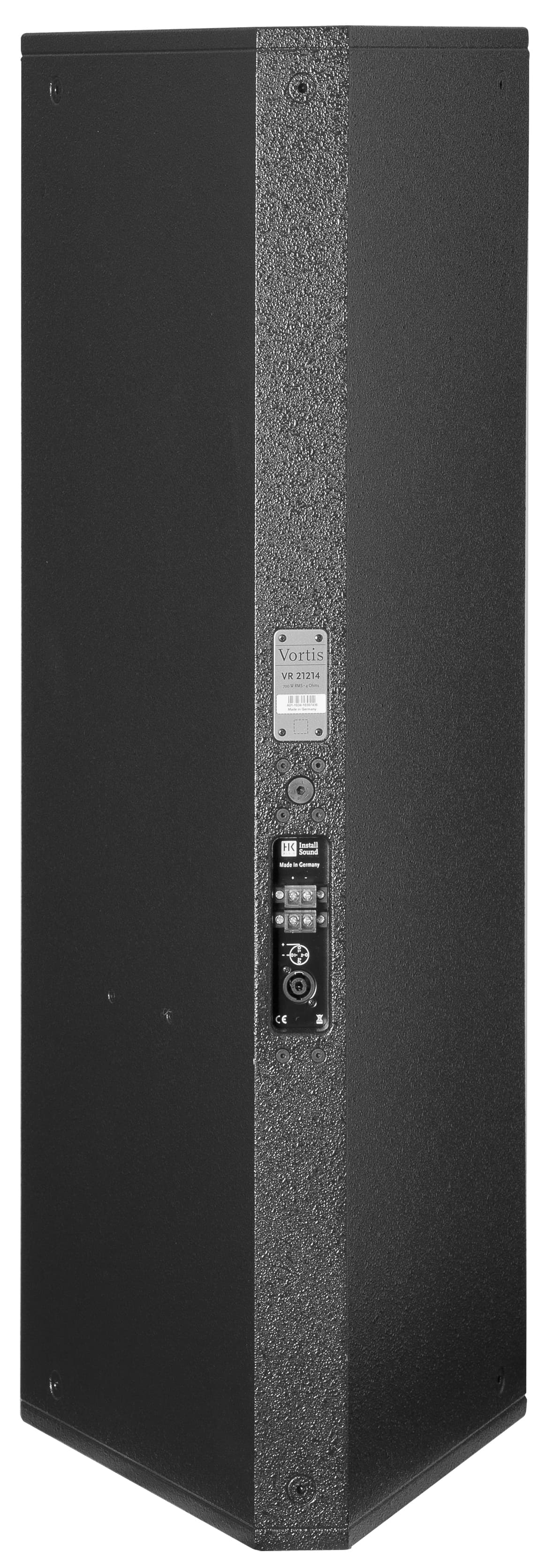

Connections
Input1x Speakon NL4
Output/parallel output2x Screw terminals with contact protection cover
Pin assignment1+/- (Input)
Amping/Presets
Lab.gruppenIPX Series, IPD Series, Lake
PowersoftArmonia+
othersQSC Q-SYS (Filter container)
Amping/Filter Sheets
Lab.GruppenIPD Serie, IPX Serie
othersWAV files of the filter curves for metrological comparison with any DSPs
Mechanical data
Cabinet features/rigging4 x M10 on the side, 6 x M10 Lid/bottom, 3 x M10 on the back
Cabinet materialMDF
Cabinet surface1-component-acrylic enamel
ColorJet black (RAL 9005), Signal white (RAL 9003) or special color according to catalog (over 30 colors)

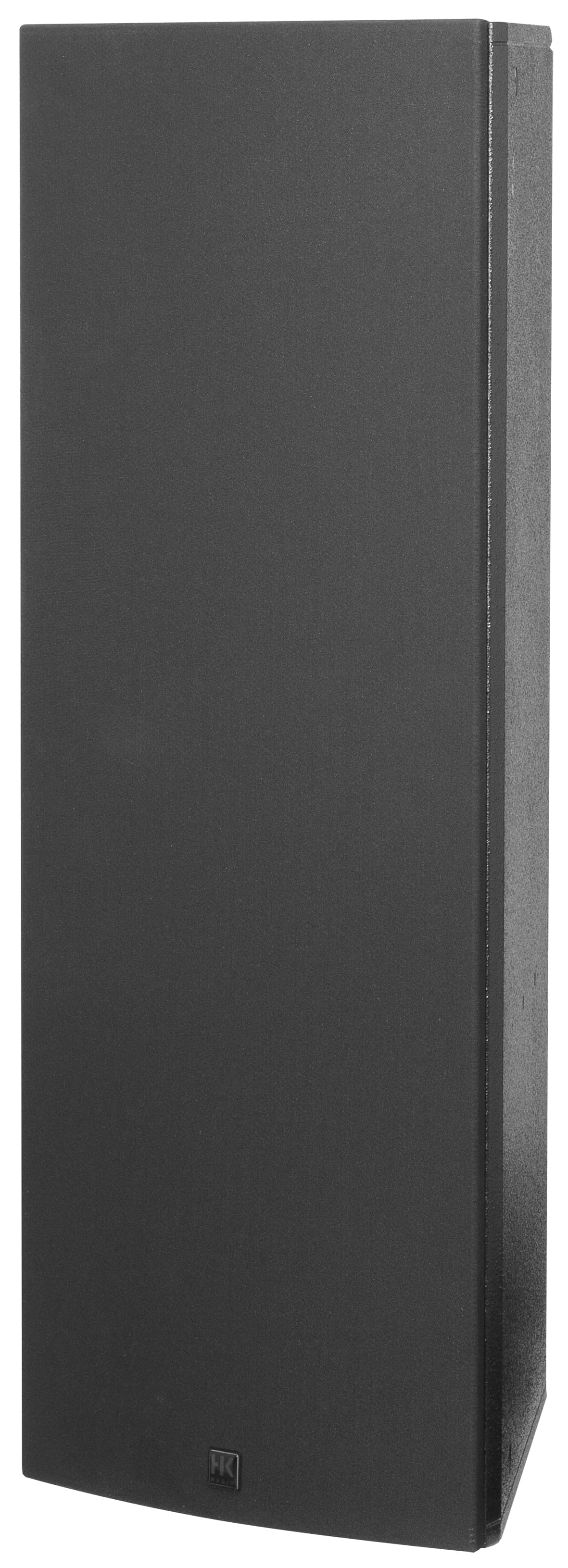

Front grilleSteel front grille with anticorrosive coating and with external acoustic fabric, flame retardant as standard
Dimensions (W x H x D), metric40.5 x 109.0 x 41.9 cm
Dimensions (W x H x D), imperial15-15/16 x 42-29/32 x 16-1/2 inch
Weight, metric34.0 kg
Weight, imperial75.0 lbs
Extensive range of mounting accessories for installation on walls and ceilings or for flown operation. Three different high-frequency horns for adapting the directivity to the acoustic requirements of the space. High maximum sound pressure level for demanding applications. Can be visually adapted to suit any environment (black and white as standard, over 40 colours possible). Certification: Ball impact safety (DIN 18032-3)
