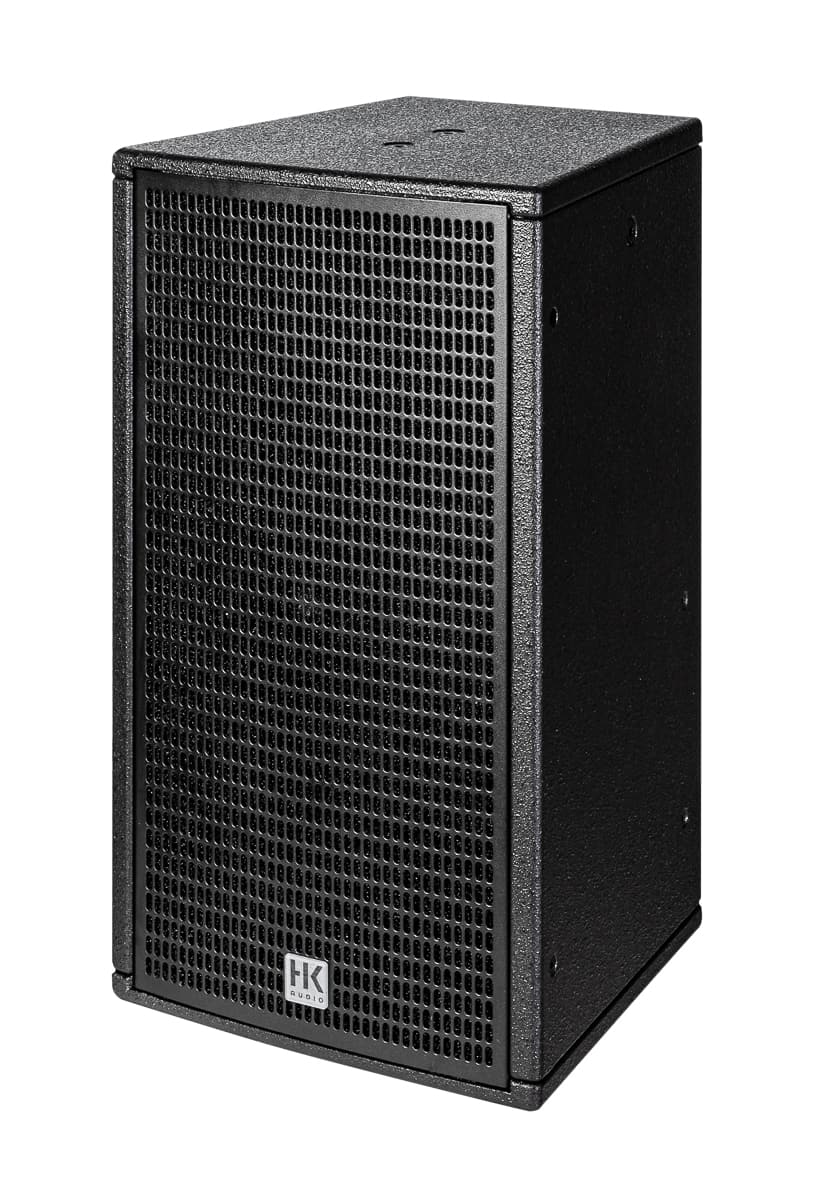

FINEO FO 8
THE NEW INSTALLATION STANDARD
technical data
Characteristics
ConceptPassive 2-way mid/high unit
Cabinet principleBass reflex
Power handling RMS200 W
Power handling program400 W
Power handling peak800 W
Nominal impedance18 Ohms
Max. SPL average2116 dB
Max. SPL peak3119 dB
Sensitivity 1 W/1 m491 dB
Crossover frequency3.2 kHz
Frequency range -6 dB72 Hz - 20 kHz
Frequency range -10 dB69 Hz - 20 kHz
Dispersion angle -6 dB (horizontal x vertical)80° x 60°
Index
Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)
Index 2)1 m, 10 % THD @ 80 Hz - 20 kHz, (EN 60268-21), full space
Index 3)1 m, 10 % THD @ 3.3 kHz, full space
Index 4)80 Hz - 20 kHz, full space
Certifications
Ball impact resistance (DIN 18032-3)certified (MPA Uni Stuttgart)
IP-Protection class (EN 60529)not specified (installation only in dry indoor areas)
Components
Low frequency1 x 8" Sica cone speaker with ferrite magnet and 1.75"-voice coil
High frequency1 x 1" Sica compression driver with ferrite magnet and 1"-voice coil
CrossoverHigh pass: 18 dB/oct., Low pass: 18 dB/oct.
High frequency protection circuitPTC circuit
HornBEM optimized Constant directivity horn, rotatable
Connections
Input1 x NL4 Speakon
Output/parallel output1 x NL4 Speakon
Pin assignment1+/- (input/parallel output), 2+/- (looped through)
Amping/Presets
Lab.gruppenIPX Series
othersLEA Professional Sharkware
Amping/Filter Sheets
Lab.GruppenIPX Series
othersBiamp Tesira, BSS, Lab.Gruppen Lake, Linea Research, Marani, Powersoft, QSC Q-SYS, Ram Audio, Symetrix (Filter specifications in tabular form for frequency response equalization, without limiter specifications)
Mechanical data
Cabinet features/rigging2 x M8 on the side, 2 x M8 bottom/lid, 1 x M8 on the back, 4 x M4 on the back (VESA MIS-D 100 x 100 mm)
Cabinet materialMDF
Cabinet surface1-component-acrylic enamel
ColorJet black (RAL 9005), Signal white (RAL 9003) or special color according to catalog
Front grilleSteel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W x H x D), metric26.3 x 47.4 x 26.3 cm
Dimensions (W x H x D), imperial10-11/32 x 18-21/32 x 10-11/32 inch
Weight, metric11.0 kg
Weight, imperial24.3 lbs
The BEM-optimized constant directivity horn with the powerful 1" compression driver, which is well-known from the CONTOUR X series, specially developed for the rough and tumble of touring, has a dispersion angle of 80° x 60° and thus delivers a large sound area without causing excessive acoustic excitation on the walls or ceilings. The horn can be rotated, meaning that the FO 8 can be used upright, on its side or with altered horizontal and vertical dispersion. The compact speaker can therefore always be positioned optimally, even in small or architecturally complex rooms.
