INSTALLATION LINE

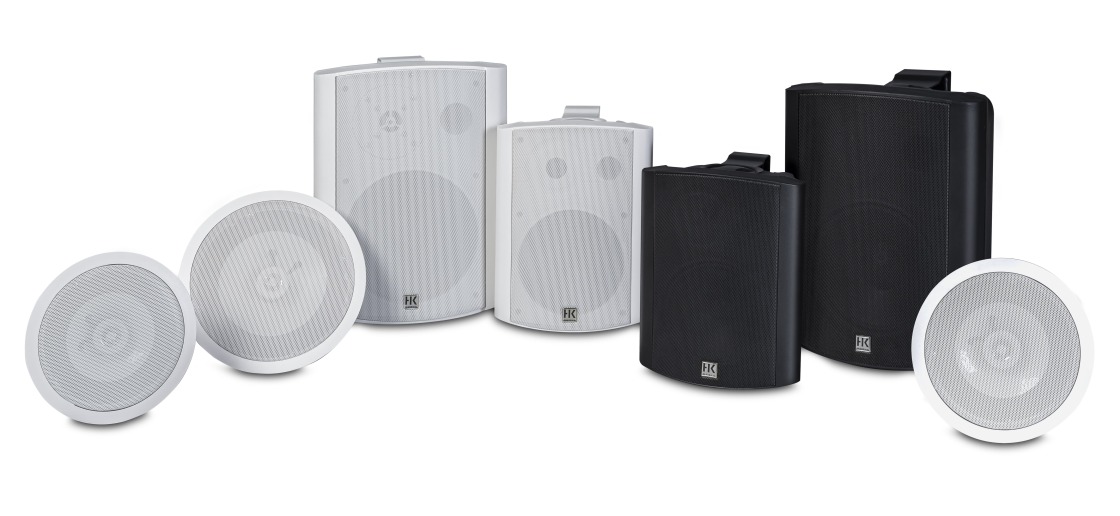

The INSTALLATION LINE is the classic product family for installations from HK Audio.

Loudspeakers that have been tried and tested over decades and installed tens of thousands of times underline the well-known quality standard of these products.

The ceiling- and wall-mounted of the INSTALLATION LINE series are used whenever powerful components with high sound quality and a particularly interesting price/performance ratio are required as part of an installation project.

IL 60-CTC

Ceiling loudspeaker with rear chamber for ceilings from 10 – 40 mm. Integrated mounting brackets and pluggable protective grille. Equipped with 6.5″ woofer and 0.75″ tweeter in coaxial arrangement, for short listening distances. Integrated passive crossover and switchable 100 V transformer with five power taps (1 W/ 2 W/ 4 W/ 8 W/ 15 W). Modification of the power tapping in the installed state via switch possible. Standard finish is white, repainting possible.

Technical data


Product Class	Install Sound
Headline	Ceiling Speaker IL 60-CT
Power-handling nominal (RMS)	40 W
Power-handling, program	120 W
Power-handling, peak	80 W
Nominal impedance	8 ohms
Maximum SPL, @ 10% THD	106 dB
Maximum SPL, 1W/1m (@ 3% THD)	104 dB
Sensitivity 1W/1m	89 dB
Frequency response +/- 3 dB	70 Hz to 20 kHz
Frequency response -10 dB	60 Hz to 20 kHz
Low/Mid Speaker	6,5" woofer
HF Driver	3/4" tweeter
Crossover frequency	3 kHz
Connections	1 terminal strip, 1, 2, 4, 8, 15 W, Off
Enclosure	polymer
Grille	metal grille
Finish	white
Dimensions (WxHxD)	18 cm, 7 1/16” x 12.7 cm, 5”
Weight	1.7 kg/ 3.74 lbs

IL 60-CT

Ceiling loudspeaker without rear chamber for ceilings from 10 – 40 mm. Integrated mounting brackets and pluggable protective grille. Equipped with 6.5″ woofer and 0.75″ tweeter in coaxial arrangement, for short listening distances. Integrated passive crossover and switchable 100 V transformer with five power taps (1 W/ 2 W/ 4 W/ 8 W/ 15 W). Modification of the power tapping in the installed state via switch possible. Standard finish is white, repainting possible.

Technical data


Product Class	Install Sound
Headline	Ceiling Speaker IL 60-CT
Power-handling nominal (RMS)	40 W
Power-handling, program	80 W
Power-handling, peak	120 W
Nominal impedance	8 ohms
Maximum SPL, 1W/1m (@ 3% THD)	104 dB
Maximum SPL, @ 10% THD	106 dB
Sensitivity 1W/1m	89 dB
Frequency response +/- 3 dB	70 Hz to 20 kHz
Frequency response -10 dB	60 Hz to 20 kHz
Low/Mid Speaker	6,5" woofer
HF Driver	3/4" tweeter
Crossover frequency	3 kHz
Connections	1 terminal strip, 1, 2, 4, 8, 15 W, Off
Enclosure	polymer
Grille	metal grille
Finish	white
Dimensions (WxHxD)	18 cm, 7 1/16” x 7 cm/ 2 3/4”
Weight	1.2 kg /2.64 lbs.

IL 80-CT

Ceiling loudspeaker without rear chamber for ceilings from 10 – 40 mm. Integrated mounting brackets and pluggable protective grille. Equipped with 8″ woofer and 0.75″ tweeter in coaxial arrangement, for short listening distances. Integrated passive crossover and switchable 100 V transformer with five power taps (1 W/ 2 W/ 4 W/ 8 W/ 15 W). Modification of the power tapping in the installed state via switch possible. Standard finish is white, repainting possible.

Technical data


Product Class	Install Sound
Headline	Ceiling Speaker IL 80-CT
Power-handling nominal (RMS)	60 W
Power-handling, program	120 W
Power-handling, peak	180 W
Nominal impedance	8 ohms
Maximum SPL, @ 10% THD	106 dB
Maximum SPL, 1W/1m (@ 3% THD)	104 dB
Sensitivity 1W/1m	89 dB
Frequency response +/- 3 dB	60 Hz - 20 kHz
Frequency response -10 dB	50 Hz - 20 kHz
Low/Mid Speaker	8" woofer
HF Driver	1" tweeter
Crossover frequency	3 kHz
Connections	1 terminal strip, 1, 2, 4, 8, 15 W, Off
Enclosure	polymer
Grille	metall grille
Finish	white
Dimensions (WxHxD)	22 cm/ 8 2/3" x 9.5 cm/ 3 2/3"
Weight	1,4 kg / 3.08lbs

IL 60-TB/TW

Compact speaker system for short listening distances. Trapezoidally slanted plastic housing, equipped with 6.5″ woofer and 0.75″ tweeter with passive crossover with 40 W program power handling. Switchable 100 V transformer with five power taps (2 W/ 5 W/ 10 W/ 20 W/ 30 W). Available in black (TB) or white (TW). U-bracket for wall and ceiling mounting included as standard.

Technical data


Product Class	Install Sound
Power-handling nominal (RMS)	40 W
Power-handling, program	80 W
Power-handling, peak	120 W
Nominal impedance	8 ohms
Maximum SPL, @ 10% THD	106 dB
Maximum SPL, 1W/1m (@ 3% THD)	104 dB
Sensitivity 1W/1m	89 dB
Frequency response +/- 3 dB	70 Hz bis 20 kHz
Frequency response -10 dB	60 Hz bis 20 kHz
Low/Mid Speaker	6,5"
HF Driver	1" tweeter
Crossover frequency	2,5 kHz
Connections	binding posts, 2, 5, 10, 20, 30 W, Off
Enclosure	polymer
Grille	metal grille
Finish	white or black
Dimensions (WxHxD)	21,5 cm x 29 cm x 17,2 cm
Weight	3,4 kg / 7.48 lbs.

IL 80-TB/TW

Compact speaker system for short listening distances. Trapezoidally slanted plastic housing, equipped with 8″ woofer and 0.75″ tweeter with passive crossover with 60 W program power handling. Switchable 100 V transformer with five power taps (2 W/ 5 W/ 10 W/ 20 W/ 40 W). Available in black (TB) or white (TW). U-bracket for wall and ceiling mounting included as standard.

Technical data


Product Class	Install Sound
Power-handling nominal (RMS)	60 W
Power-handling, program	120 W
Power-handling, peak	180 W
Nominal impedance	8 ohms
Maximum SPL, 1W/1m (@ 3% THD)	107 dB
Maximum SPL, @ 10% THD	109 dB
Sensitivity 1W/1m	89 dB
Frequency response +/- 3 dB	60 Hz bis 20 kHz
Frequency response -10 dB	50 Hz bis 20 kHz
Low/Mid Speaker	8"
HF Driver	1" tweeter
Crossover frequency	2,5 kHz
Connections	binding posts 2, 5, 10, 20, 40 W, Off
Enclosure	polymer
Grille	metal grille
Finish	White or Black
Dimensions (WxHxD)	27 cm x 37 cm x 22 cm
Weight	5,4 kg / 11.88 lbs.

Accessories

Eye Bolts EB8 (M8x17) and EB10 (M10x30)

more

Professional eye bolts with M8 or M10 threads for fastening steel wires/chains for loudspeaker suspension.

EB8 = M8 x 17 mm, zinc plated (black or bright)
EB10 = M10 x 30 mm, zinc plated (black or bright)

TR 500

more

Transformer for high-power loudspeakers connected to 100 V systems. The TR500 transforms a 100 V input signal to 500 W at 8 ohms. The transformer features excellent audio quality with lowest inductance.

Without enclosure, with mounting material, connection via open cable ends with 30 cm length. An external enclosure is required for installation. Dimensions of the transformer: Diameter approx. 150 mm, height approx. 60 mm.

For use with mid/high units from SI SERIES, VORTIS (2 EN54) and FINEO.

TR 200 MK II

more

High-quality 100/70 transformer „made in Germany“, fully encapsulated enclosure with 3 m connection cable and three power taps: 200 W, 100 W and 50 W (each referred to 8 Ohm impedance).

For use with mid/high units from SI SERIES, VORTIS (2 EN54) and FINEO.
