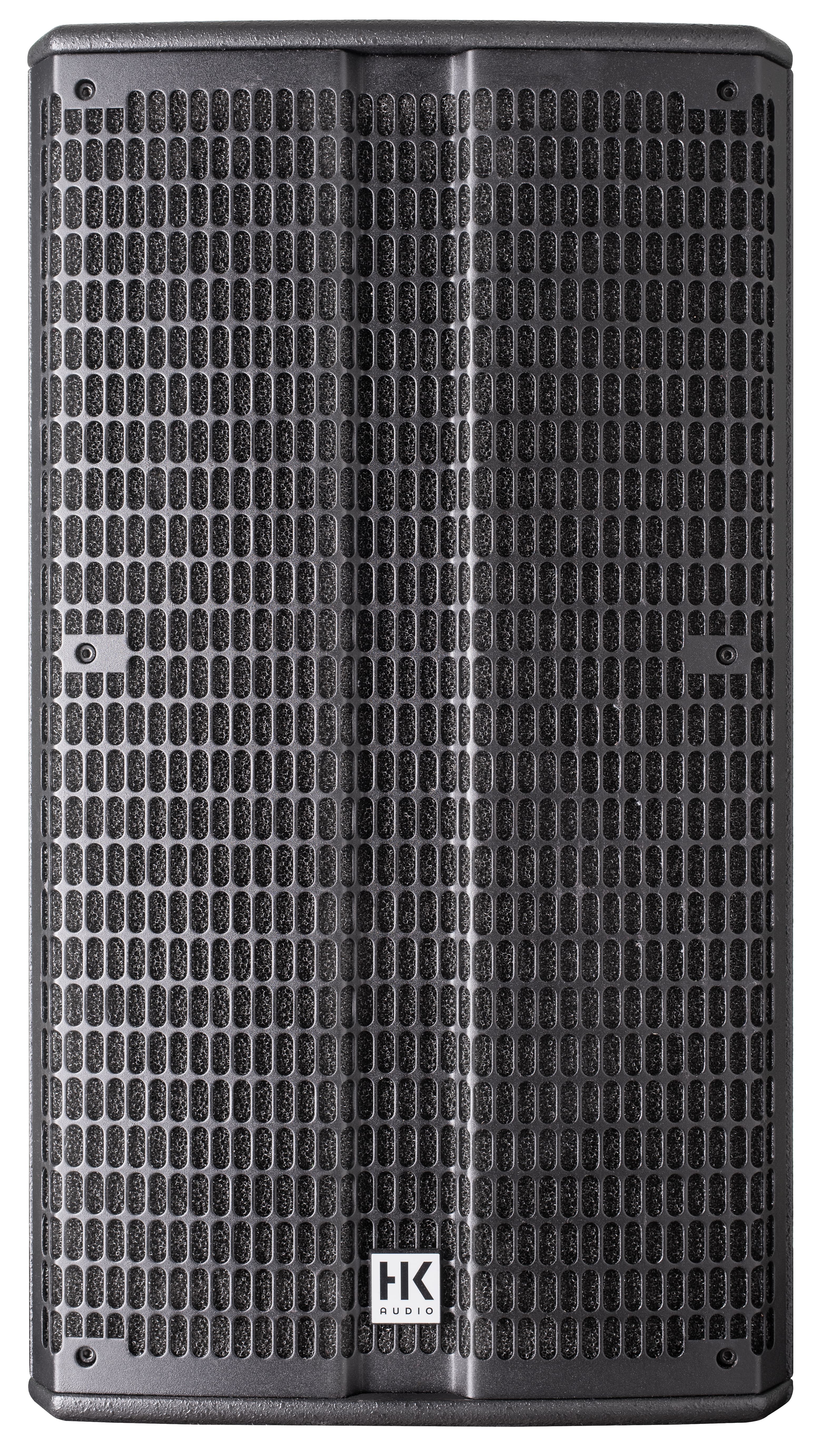

LINEAR 5 112 X

THE NEW PERFORMANCE CLASS

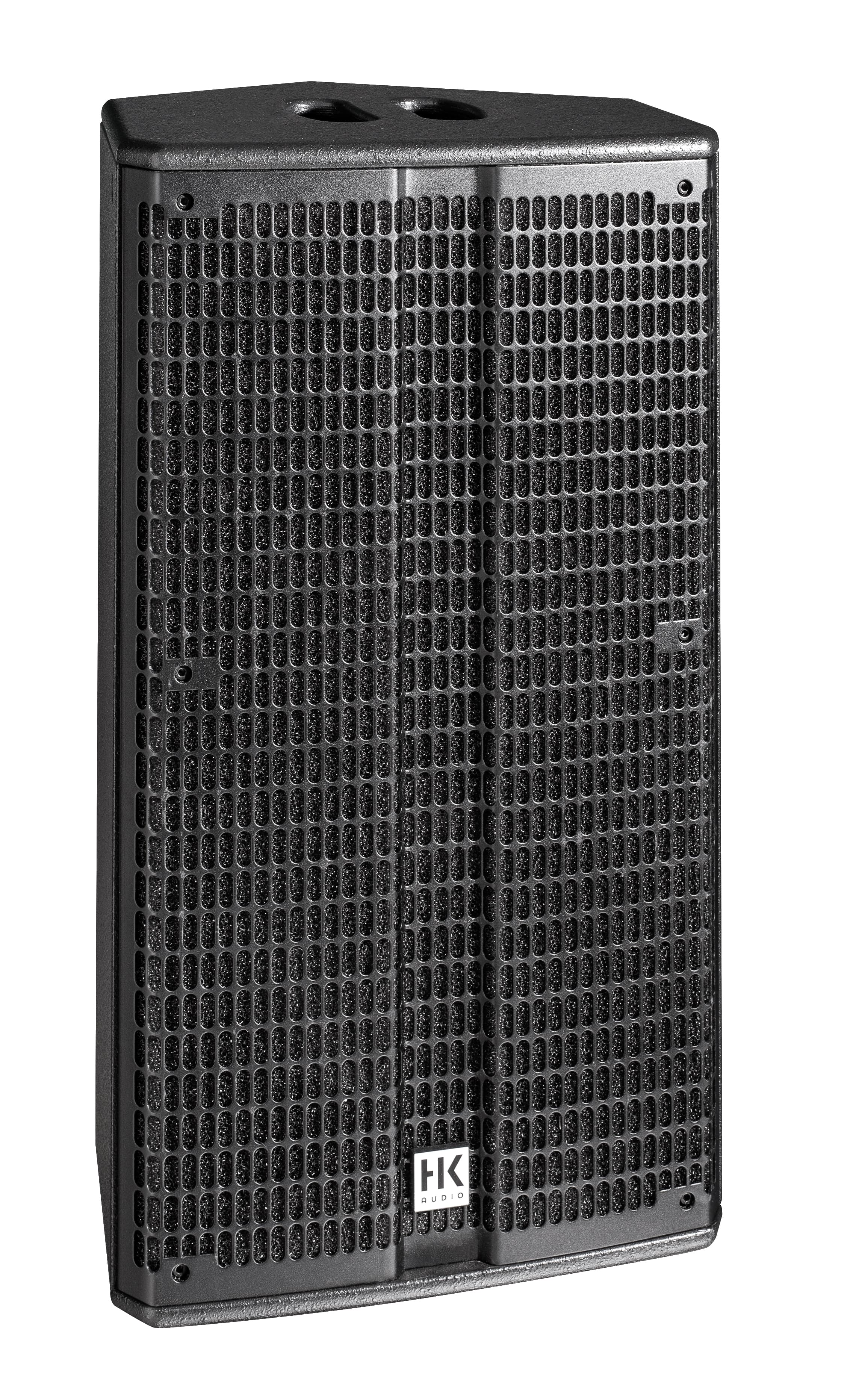

12"/1" model in a multifunctional housing with exceptional maximum sound pressure (135dB max. SPL peak) in combination with the Linear Sub 2000 for system applications. The LINEAR 5 112 X is also ideally suited as a monitor with plenty of gain before feedback; the rotatable 60° x 40° CD horn produces exemplary dispersion.

Concept	Passive 2-way mid/high unit
Power handling RMS	500 W
Max. SPL peak	135 dB
Frequency range -6 dB	100 Hz - 18 kHz
Dispersion angle -6 dB (horizontal x vertical)	60° x 40°, rotatable

technical data

Characteristics

ConceptPassive 2-way mid/high unit

Cabinet principleBass reflex

Power handling RMS500 W

Power handling program1000 W

Nominal impedance¹8 Ohms

Max. SPL average²130 dB

Max. SPL peak³135 dB

Sensitivity 1 W/1 m⁴104 dB

Crossover frequency1.7 kHz

Frequency range -6 dB100 Hz - 18 kHz

Frequency range -10 dB72 Hz - 19 kHz

Dispersion angle -6 dB (horizontal x vertical)60° x 40°, rotatable

Index

Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)

Index 2)1 x unit @ 1 m, 10 % THD, 100 Hz - 12 kHz, (EN 60268-21), half space

Index 3)1 x unit @ 1 m, 10 % THD, half space

Index 4)half space

Components

Mid/high frequency1 x 12" cone speaker, 2.5" voice coil

High frequency1 x 1" compression driver, 1.75" voice coil

CrossoverHigh pass: 12 dB/oct., Low pass: 12 dB/oct.

High frequency protection circuitPTC circuit

HornConstant directivity horn, rotatable

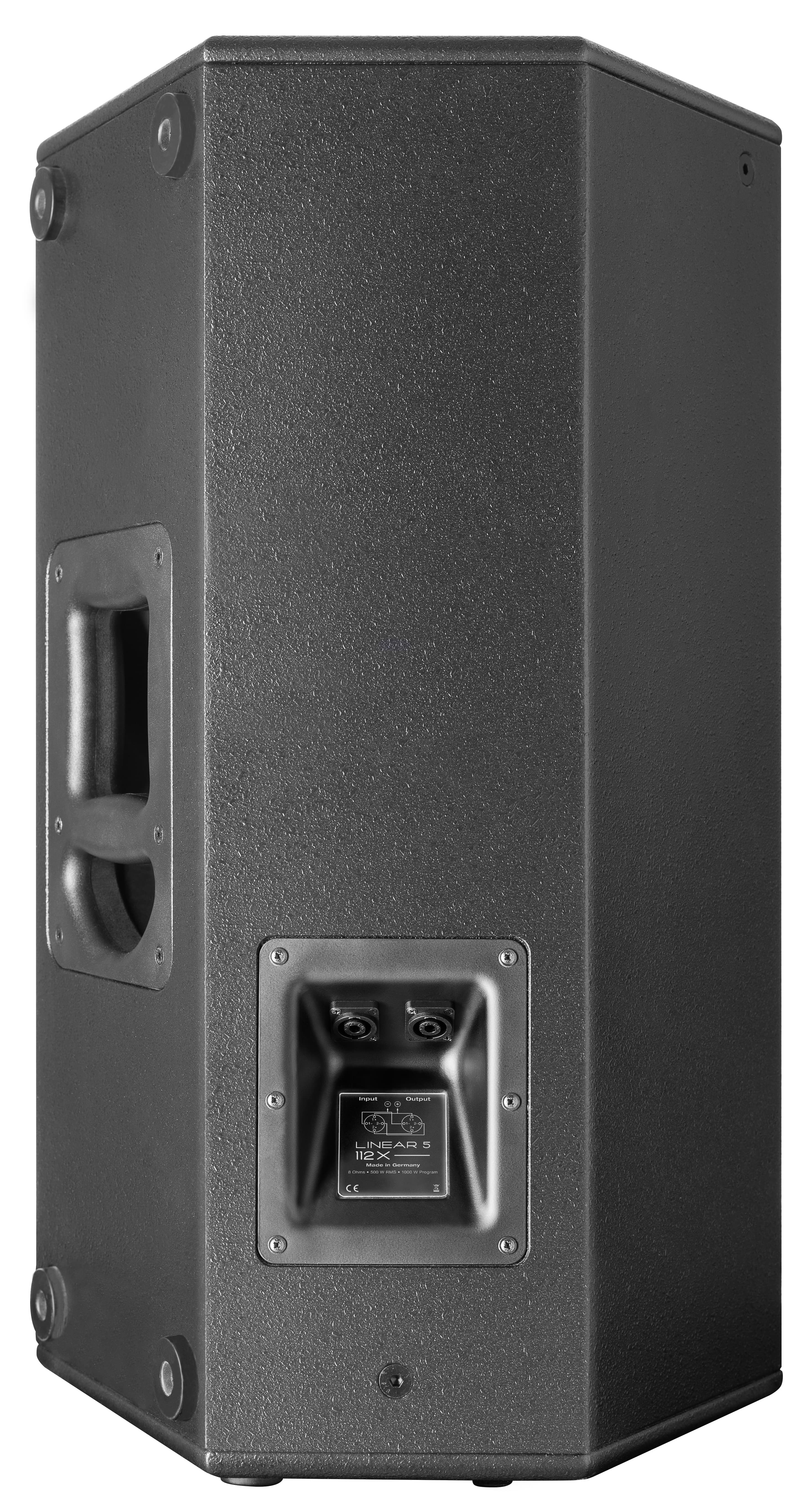

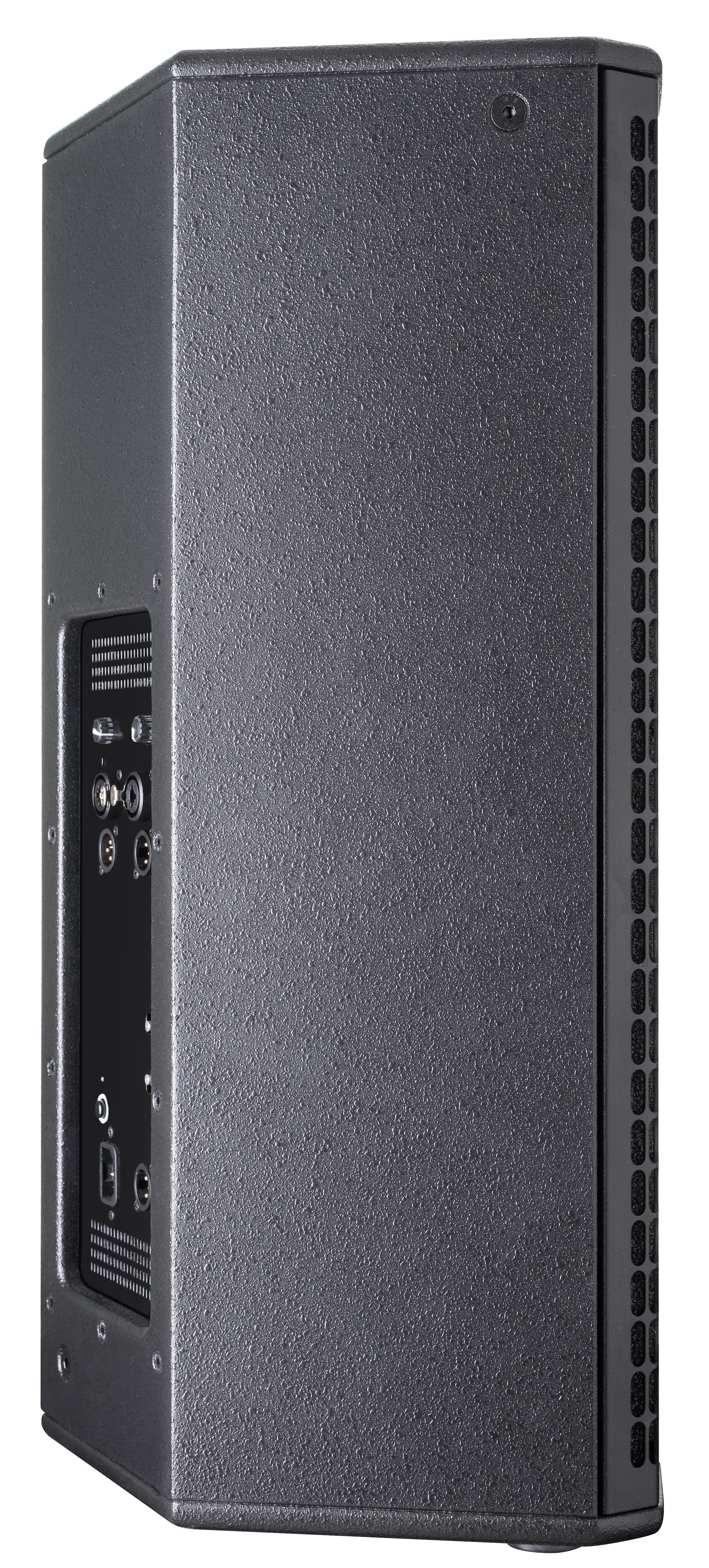

Connections

Input1 x NL4 Speakon

Output/parallel output1 x NL4 Speakon

Pin assignment1+/-

Amping/Presets

Lab.gruppenIPX Series, IPD Series, Lake

Amping/Filter Sheets

Lab.GruppenIPX Series, IPD Series (limiter settings incl.)

Mechanical data

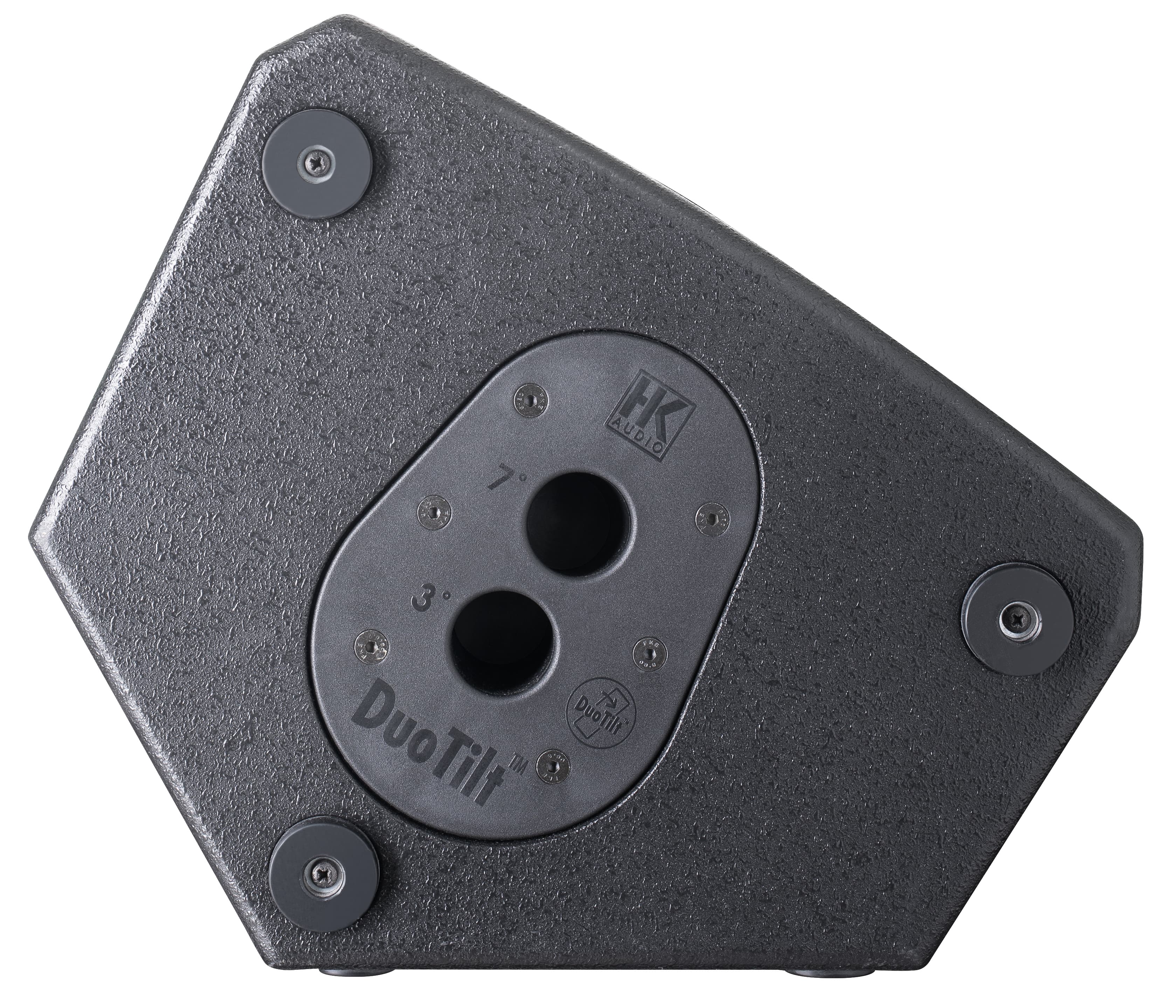

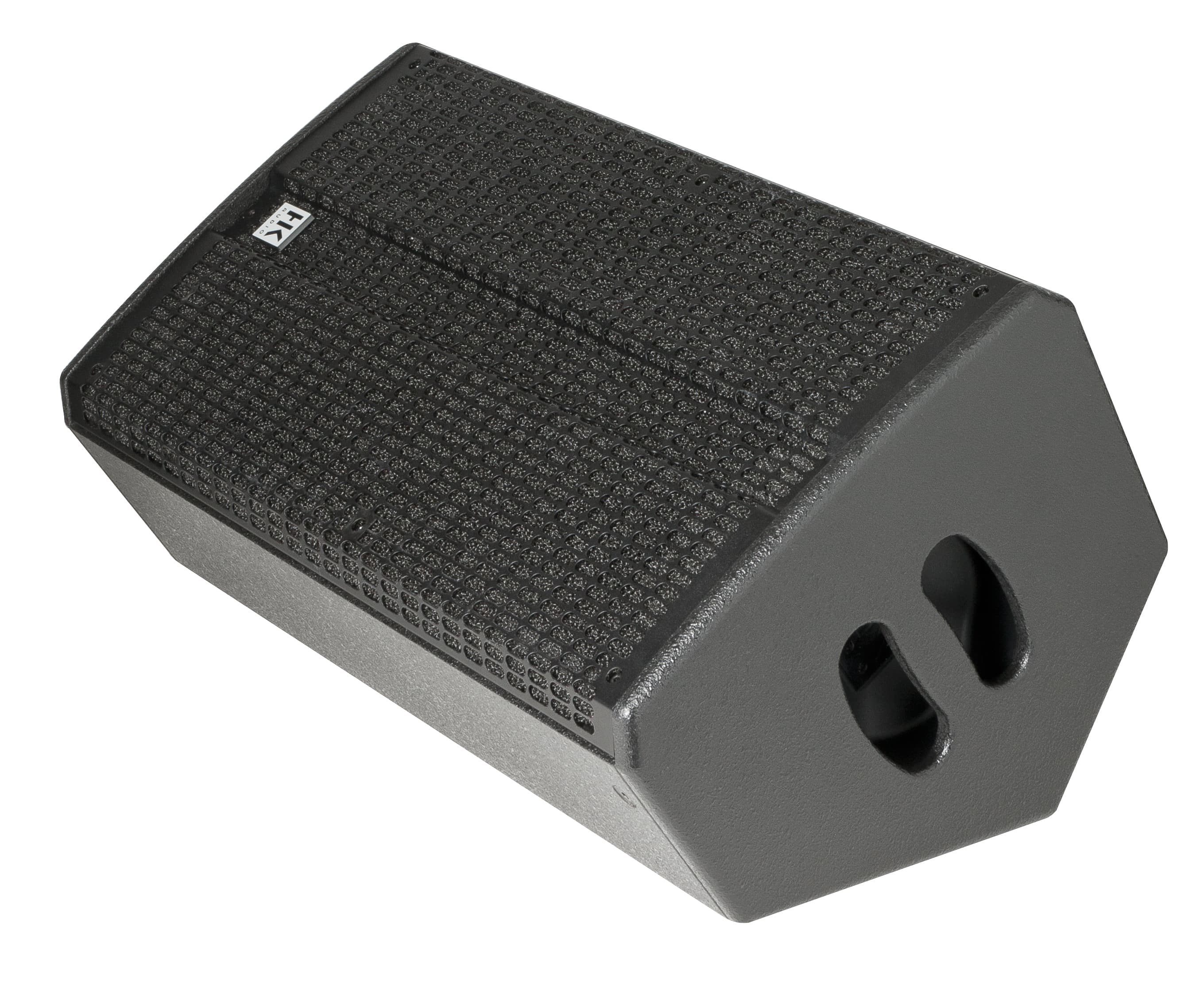

Cabinet features/riggingpole mount HK Audio DuoTilt 3°/7°, monitor angle: 33°, 3 x rigging point M8

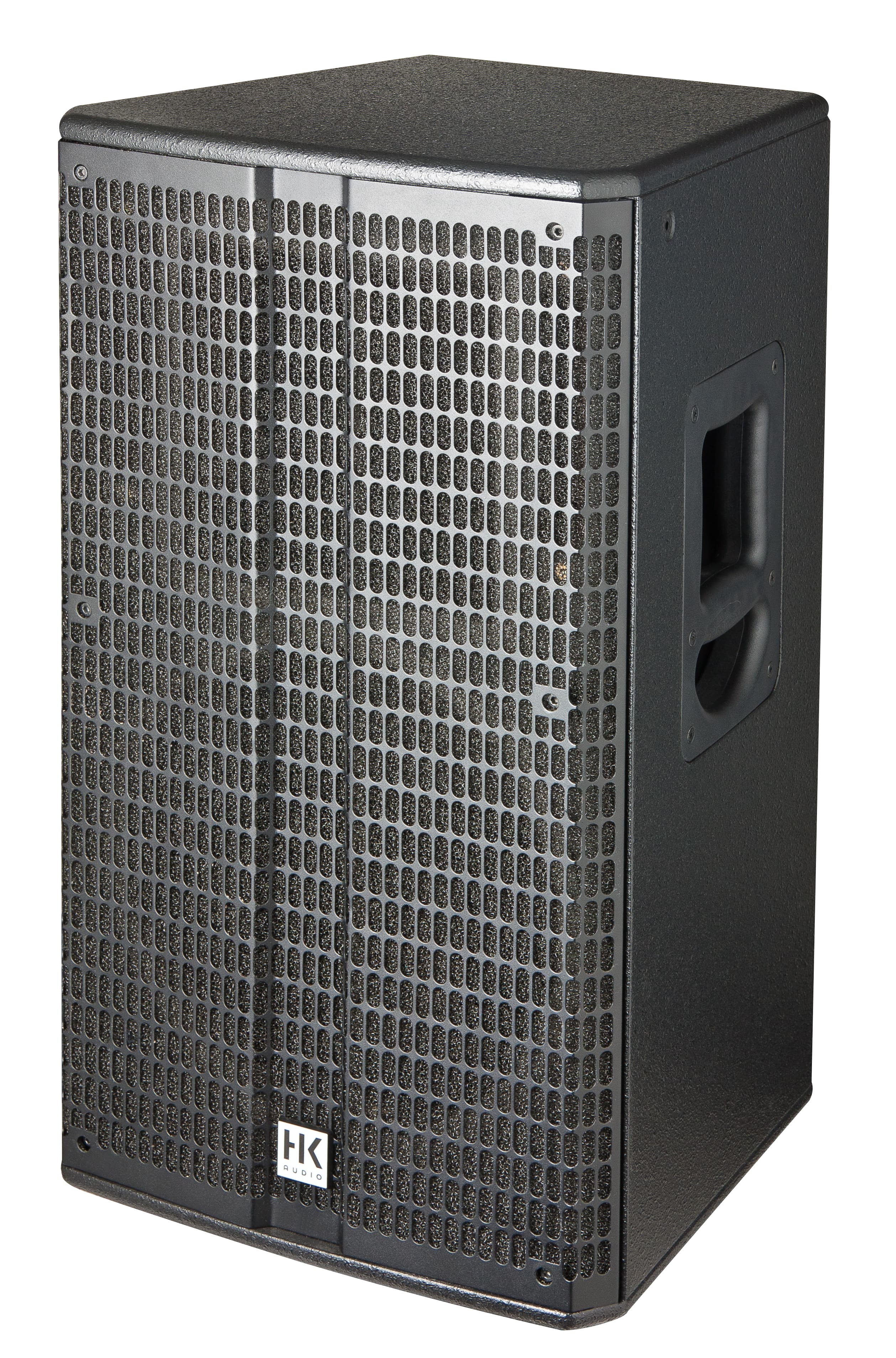

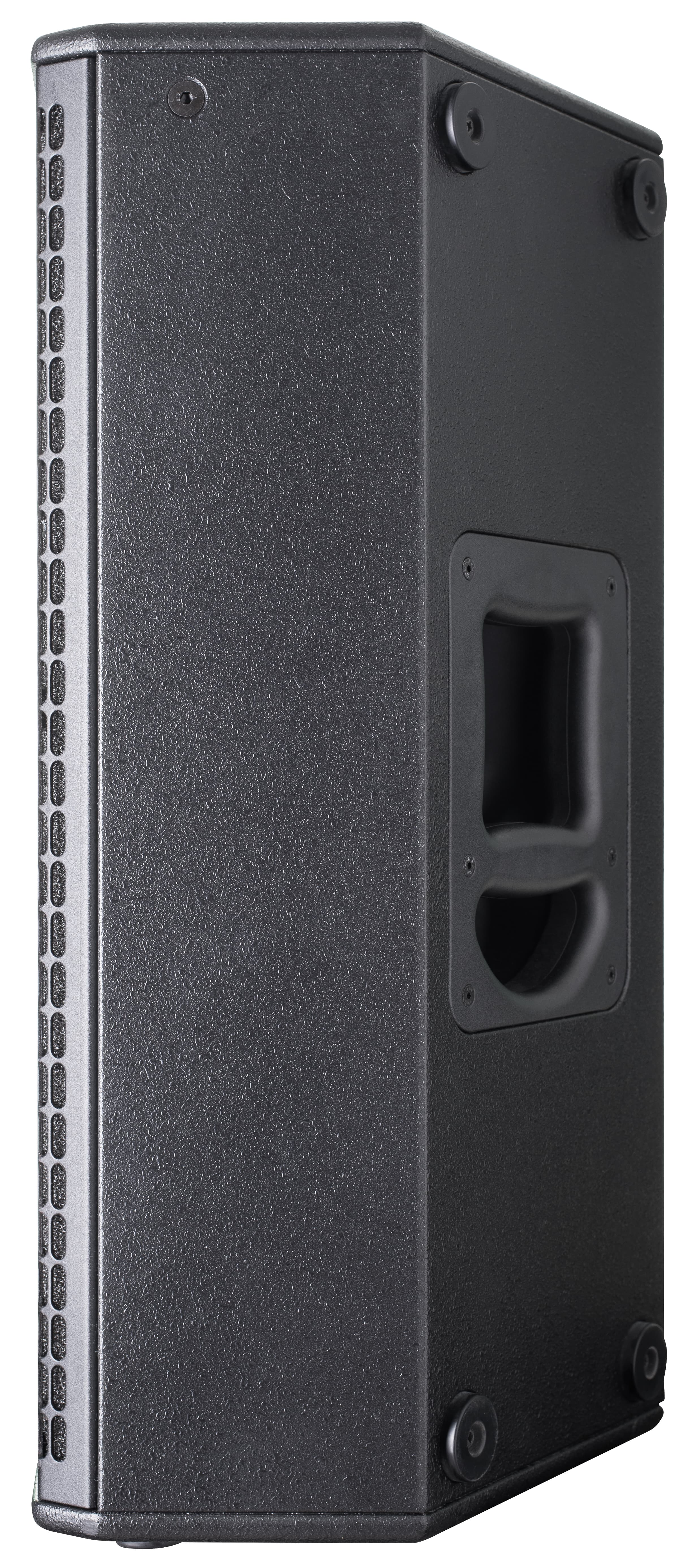

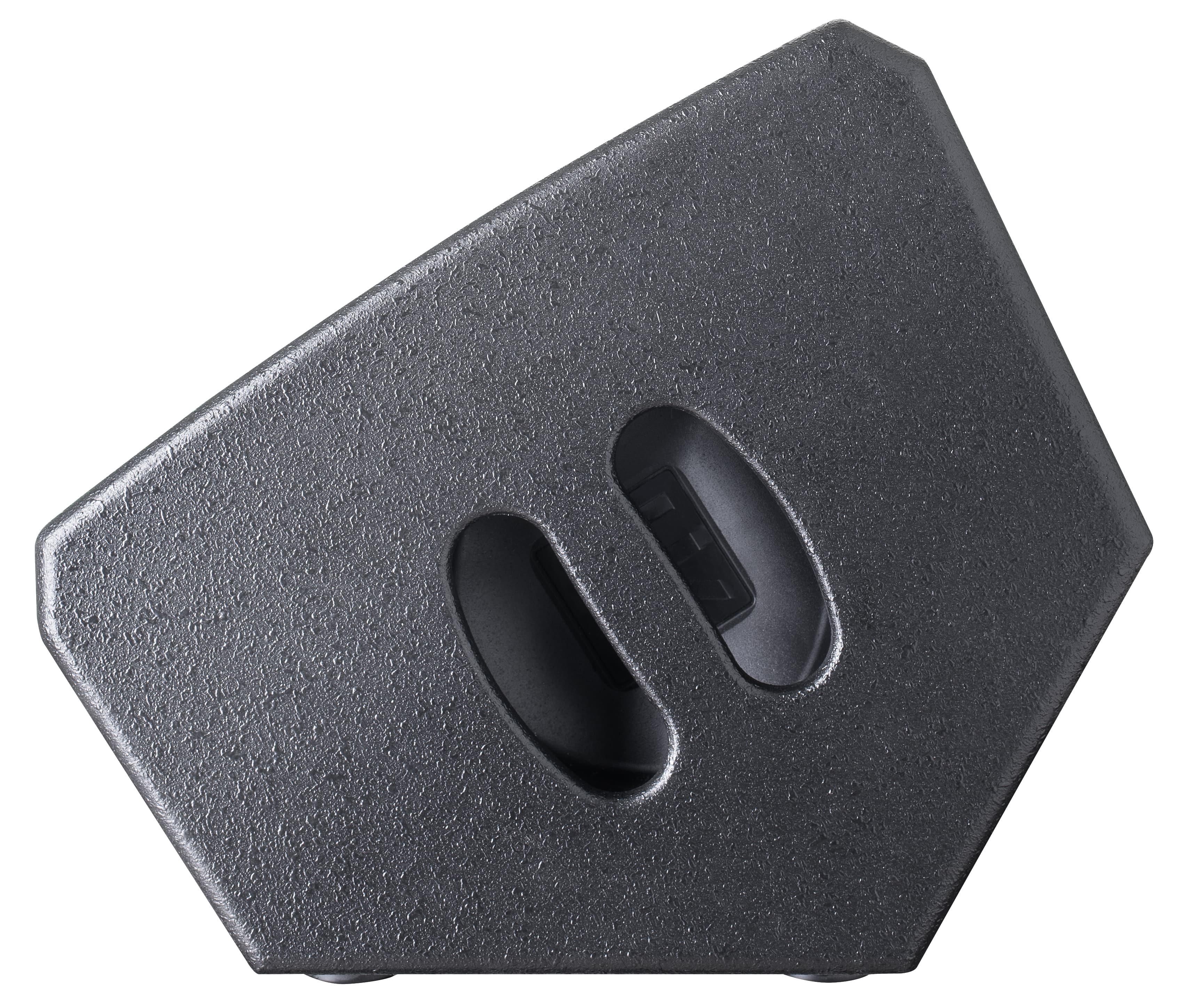

Carrying handles1 x HK Audio MultiGrip, 1 x SingleGrip

Cabinet materialHybrid (Birch plywood/MDF)

Cabinet surfaceacrylic enamel

ColorJet black (RAL 9005)

Front grilleSteel front grille, backed with acoustic foam

Dimensions (W x H x D), metric37 x 67 x 30 cm

Dimensions (W x H x D), imperial14-9/16 x 26-3/8 x 11-13/16 inch

Weight, metric19.5 kg

Weight, imperial43.0 lbs

The 12"/1" model comes housed in a multifunctional design cabinet, offering an impressive maximum sound pressure level of 135dB SPL peak. When paired with the Linear Sub 2000, it creates a powerful and cohesive system suitable for a wide range of applications.

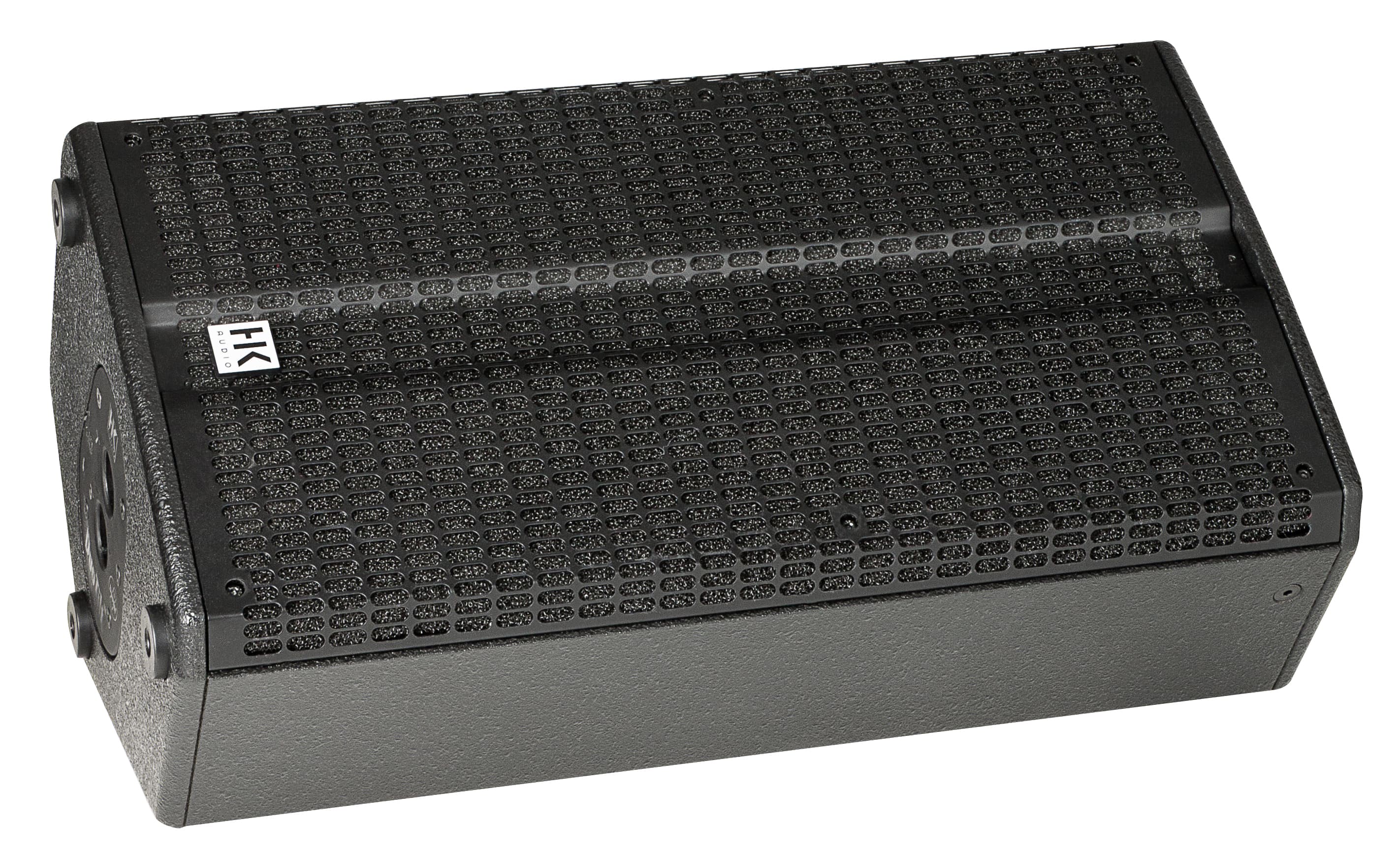

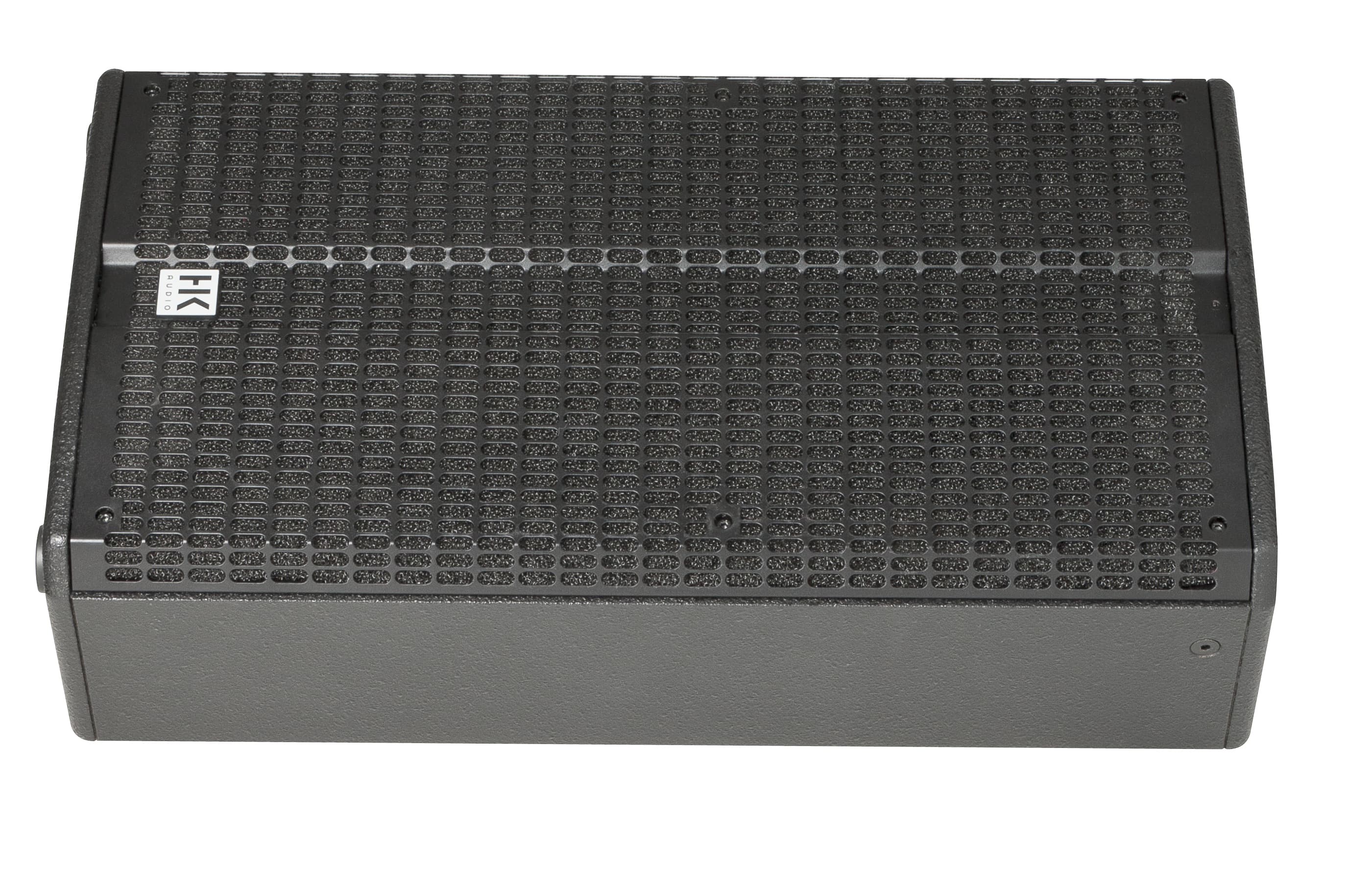

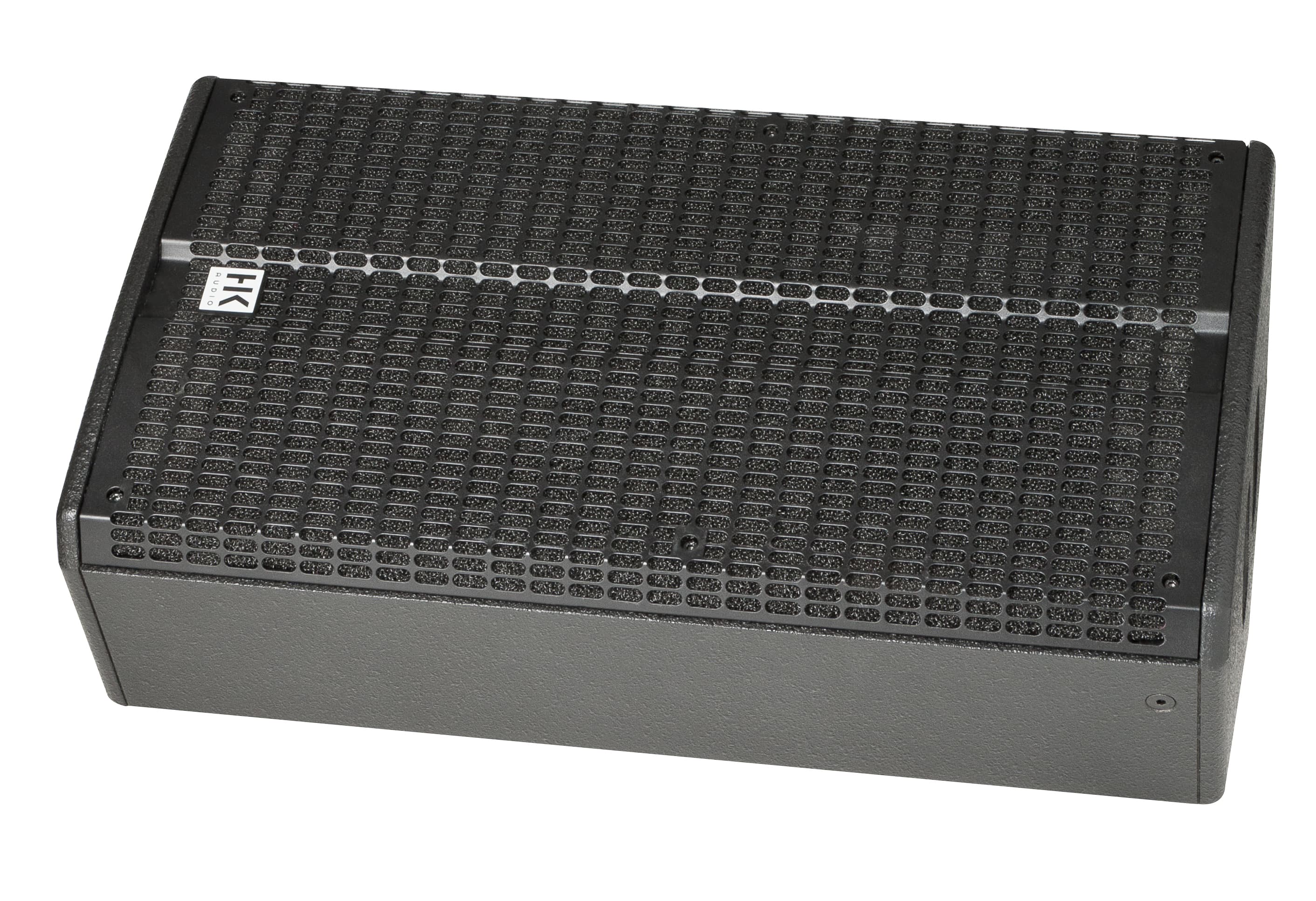

In addition to its system use, the LINEAR 5 112 X is highly effective as a stage monitor. It provides ample gain before feedback, ensuring clear and distortion-free audio for performers. The rotatable 60° x 40° CD horn further enhances its performance, delivering exceptional dispersion and ensuring that sound is evenly distributed across the space, whether used as a main speaker or a monitor. This makes it a versatile and reliable choice for both live sound applications and monitoring needs.
