LINEAR 5 MK II 308 LTA
THE ALL PURPOSE WORKHORSE
technical data
Characteristics
ConceptActive 2-way loudspeaker
Cabinet principlehorn loaded, bass reflex
Max. SPL average2133 dB
Max. SPL peak3138 dB
Crossover frequency1.6 kHz
Frequency range -6 dB105 Hz - 17kHz
Frequency range -10 dB98 Hz - 19 kHz
Dispersion angle -6 dB (horizontal x vertical)60° x +5/-25° (asymm.)
Index
Index 2)1 x unit @ 1 m, 10 % THD, 100 Hz - 12 kHz, (EN 60268-21), half space
Index 3)1 x unit @ 1 m, 10 % THD, half space
Components
Mid/high frequency3 x 8" cone speaker, 1.5" voice coil
High frequency1 x 1" compression driver, 1.7" voice coil
HornMCT-Horn
Connections
Analog input1 x XLR/jack combo symm.
Analog output1 x XLR symm.
DSP output1 x XLR symm.
Network input1 x Ethercon RJ45
Network output1 x Ethercon RJ45
Electronical data
PreamplifierDSP preamplifier
Power amplifierClass D-Biamped
Power amplifier output RMS600 W
Power amplifier output peak1200 W
Power consumption1 A / 100-240 V nominal according to EN 62368-1
Maximum input level+20 dBu
Speaker protectionRMS-/Peak-Limiter
Sample rate48 kHz
Latencyunder 2.9 ms
DSP functionsparametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute
Remote softwareHK Audio DSP CONTROL (Windows, Mac OS)
Filter presetsSingle, Cluster, Headstack, Remote
Digital audio transmissionMILAN
Mechanical data
Cabinet features/riggingpole mount MonoTilt 0°, 5 x rigging point M8
Carrying handles2 x HK Audio MultiGrip
Cabinet materialBirch plywood
Cabinet surfaceacrylic enamel
ColorJet black (RAL 9005)
Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

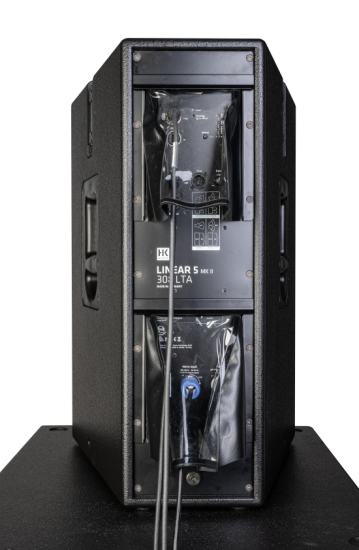

Accessories includedRCS (Rain-Cover-Set)
Dimensions (W x H x D), metric44 x 68 x 46 cm
Dimensions (W x H x D), imperial17-5/16 x 26-25/32 x 18-1/8 inch
Weight, metric25 kg
Weight, imperial55.1 lbs
Balanced and powerful sound can reach up to 40 metres and up to 3000 people without having to use delay lines. The bass and mids are reproduced crisply and richly by three vertically arranged, horn-loaded 8-inch woofers. Precisely tuned presets for clustering and headstacking are available directly on the speaker. Thanks to the flexible design variants, the system can grow as required. Even with just one LINEAR 5 MK II 308 LTA mid/high unit (per side), the sound reaches much greater depths. Cluster, headstack or headstack cluster setups can be used to achieve coverage patterns with more width and depth. LINEAR 5 MK II 308 LTA is equipped with PowerCon connectors and PowerCon Link, which simplifies wiring and saves cable material.
