P10j
VERSATILE INSTALLATION TOOLS
technical data
Characteristics
ConceptPassive broadband column loudspeaker
Cabinet principleClosed
Power handling RMS300 W
Power handling program600 W
Power handling peak1200 W
Nominal impedance116 Ohms
Max. SPL average2121 dB
Max. SPL peak3127 dB
Sensitivity 1 W/1 m497 dB
Frequency range -6 dB155 Hz - 18 kHz
Frequency range -10 dB130 Hz - 19 kHz
Dispersion angle -6 dB (horizontal x vertical)120° x 15° (asymm., j-förmig geneigt)
Index
Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)
Index 2)1 m, 10 % THD @ 200 Hz - 10 kHz, (EN 60268-21), full space
Index 3)1 m, 10 % THD @ 1.5 kHz, full space
Index 4)200 Hz - 10 kHz, full space
EN 54-Specifications
Nominal noise power (EN 54 signal)300 W
Sensitivity 1 W/4 m³80 dB
Max. SPL (Nominal power/4 m/EN 54 signal)103 dB
Certifications
Ball impact resistance (DIN 18032-3)certified (MPA Uni Stuttgart)
IP-Protection class (EN 60529)IP 66 (TÜV Süd)
Voice alarms (EN 54-24:2008)certified (Typ B, Outside area); 1438-CPR-0754 (CNBOP-PIB)
Components
Mid/high frequency10 x 3" Beyma Broadband loudspeaker with ferrite magnet and 0.8"-voice coil
Crossoverno integrated crossover
Connections

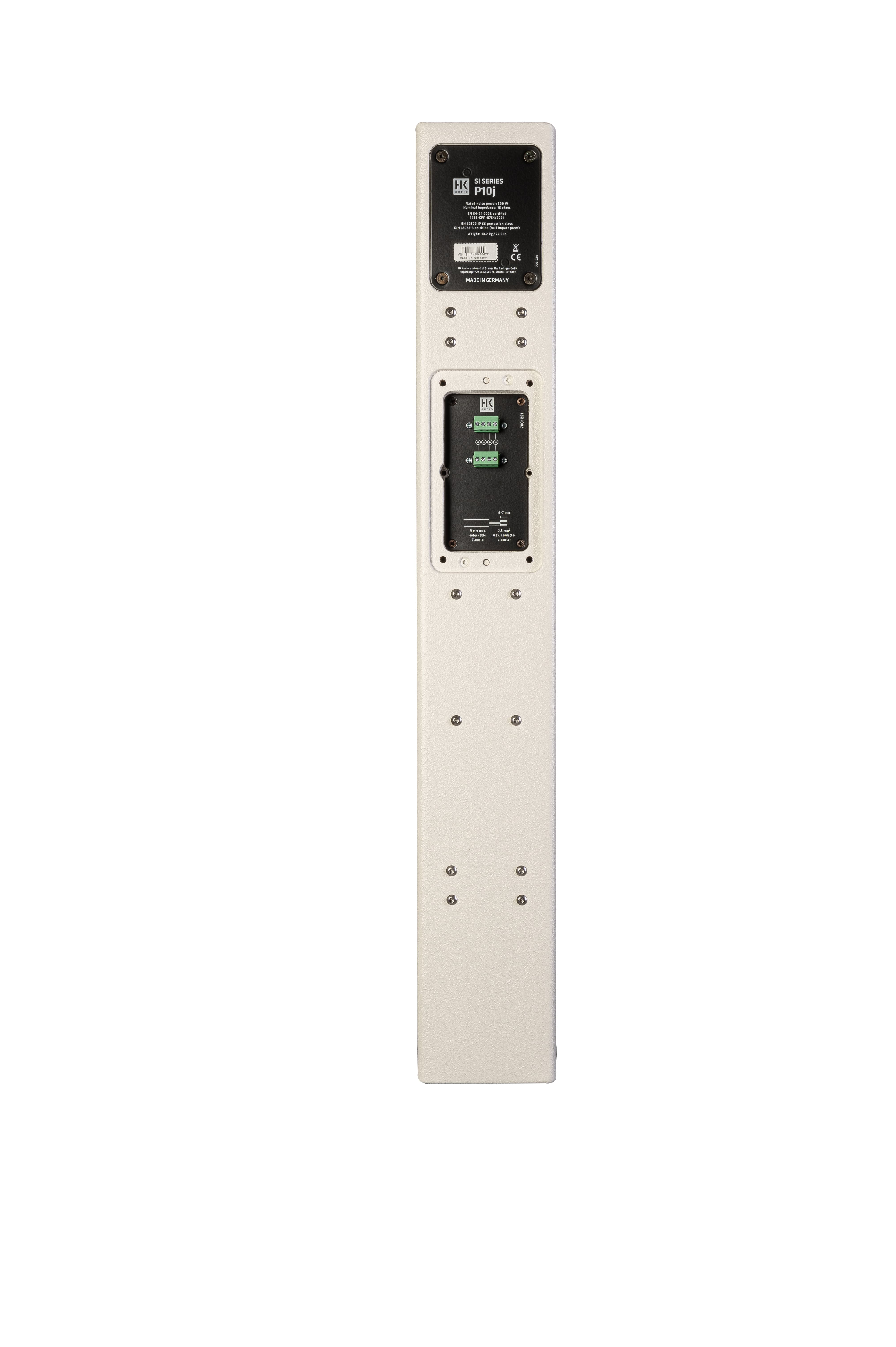

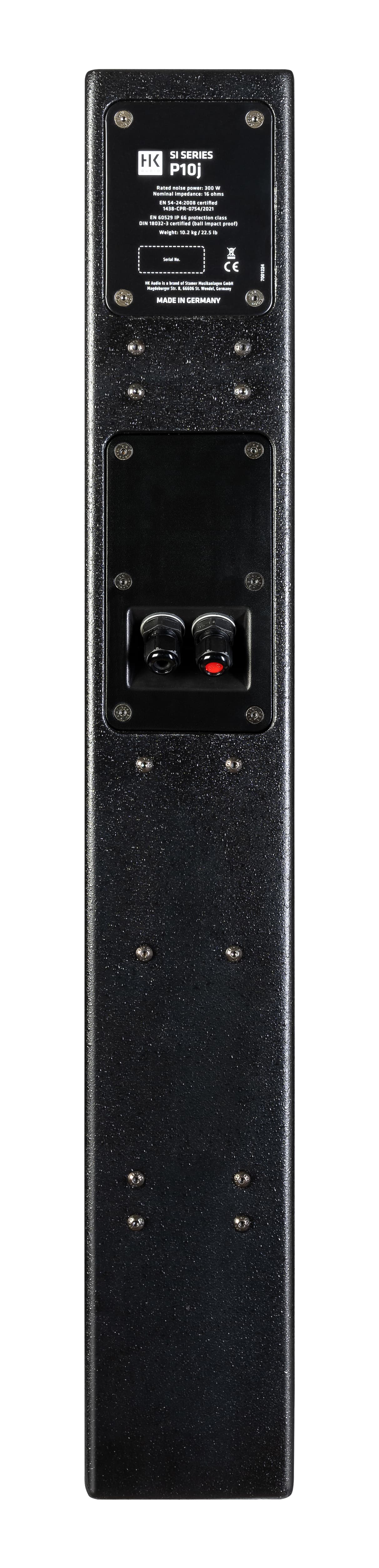

Input1 x 4-pin Euroblock plug
Output/parallel output1 x 4-pin Euroblock plug, parallel connecion
Amping/Presets
Lab.gruppenIPX Series, IPD Series, Lake
PowersoftArmonia+
othersQSC Q-SYS (Filter container)
Amping/Filter Sheets
Lab.GruppenIPX Series, IPD Series (limiter settings incl.)
Mechanical data

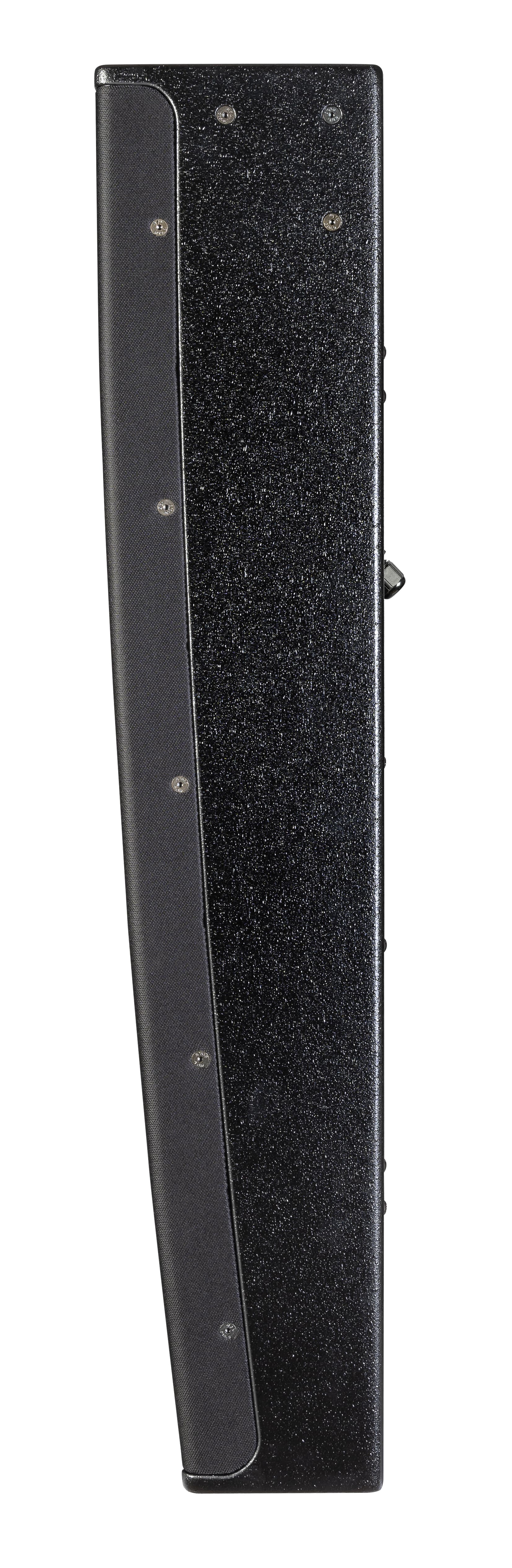

Cabinet features/rigging12 x M5 on the side, 12 x M5 on the back
Cabinet materialBirch plywood
Cabinet surface2-component textured coating
ColorJet black (RAL 9005), Signal white (RAL 9003) or special color according to catalog (over 30 colors), also optional PU coating for installation in unroofed outdoor areas
Front grilleSteel front grille with anticorrosive coating and external acoustic fabric, optionally hydrophobic or flame retardant
Accessories includedU-bracket (swivels horizontally), cover plate with 2 x PG screw connection
Dimensions (W x H x D), metric12.0 x 82.0 x 16.5 (top)/11.9 cm (bottom)
Dimensions (W x H x D), imperial4-23/32 x 32-9/32 x 6-1/2 inch (top) / 4-11/16 inch
Weight, metric10.2 kg
Weight, imperial22.5 lbs
Extensive range of mounting accessories for outdoor and indoor installations and very high maximum sound pressure level for demanding environments. Asymmetrical directivity, can be combined with the SI SERIES P10i for targeted sound in difficult rooms or long-distance sound applications outdoors.
Certifications: Protection class IP 66 (EN 60529), safety against ball throwing (DIN 18032-3), voice alarm (EN 54-24).
