COSMO C SUB CF 118

THE INTEGRATIVE LINE ARRAY

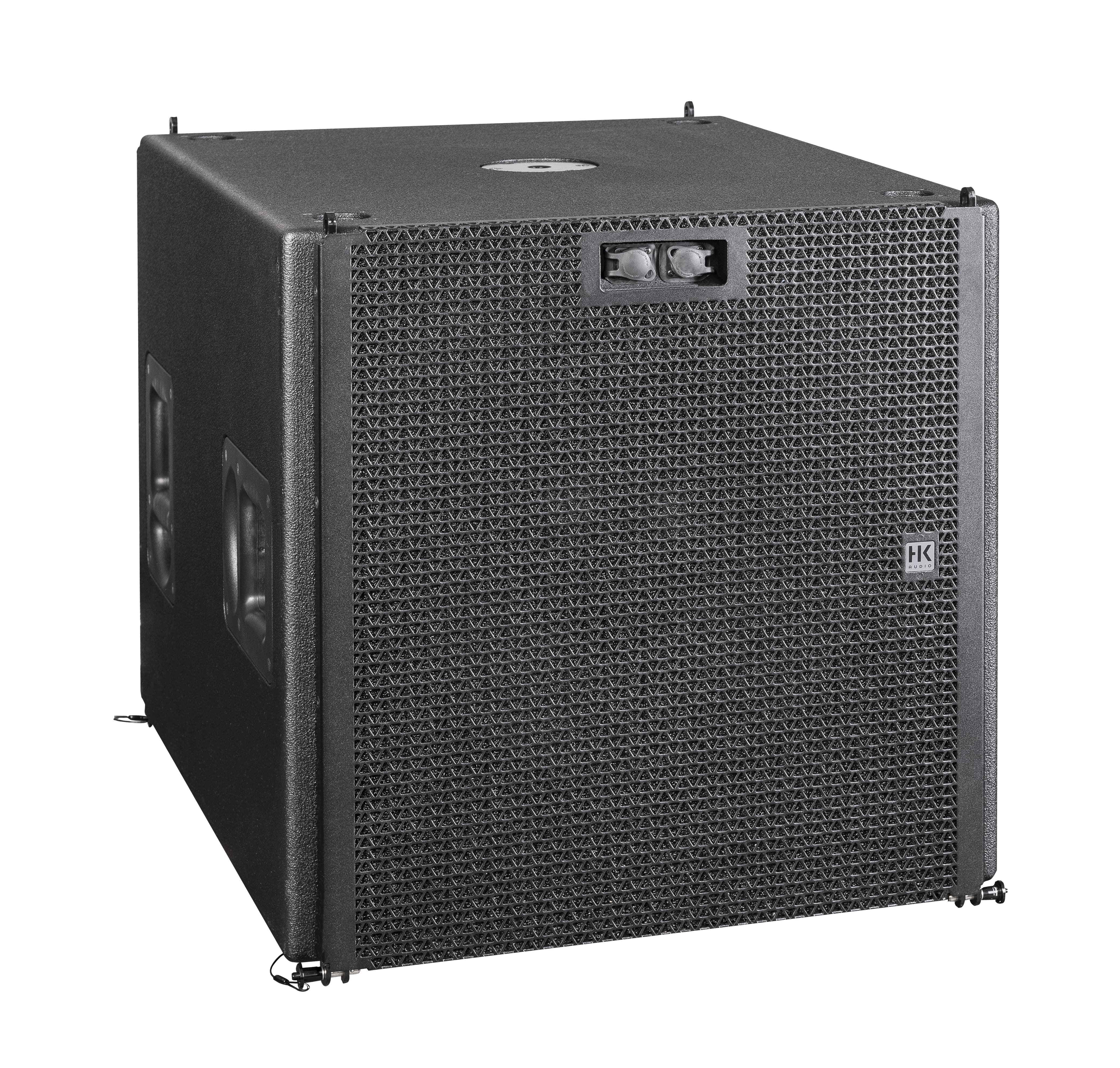

The compact, direct-radiating, high-performance 1×18" subwoofer with COSMO’s modular dimensions of 60 cm is the flyable version of the CS 118 subwoofer. Its high efficiency and extremely high power handling capacity provide an extraordinarily large dynamic headroom down to the lowest frequencies. It is ideal for all applications where there is no room for placing bass enclosures and is also suitable for ground-stack setups with COSMO or CONTOUR X components.

ConceptPassive subwoofer
Power handling RMS1600 W
Max. SPL peak129 dB
Frequency range -6 dB35.5 Hz - 100 Hz
Dispersion angle -6 dB (horizontal x vertical)

technical data

Characteristics

ConceptPassive subwoofer
Cabinet principleBass reflex
Power handling RMS1600 W
Power handling program3200 W
Power handling peak6400 W
Nominal impedance18 Ohms
Max. SPL average2126 dB
Max. SPL peak3129 dB
Sensitivity 1 W/1 m493 dB
Frequency range -6 dB35.5 Hz - 100 Hz
Frequency range -10 dB31 Hz - 100 Hz
Index
Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value)
Index 2)1 x Subwoofer @ 1 m, 10 % THD, 30 Hz - 120 Hz, (EN 60268-21), full space, @ 4.7 kW
Index 3)1 x Subwoofer @ 1 m, 10 % THD @ 58 Hz,full space, @ 4.7 kW
Index 4)30 Hz - 120 Hz, full space

Components

Low frequency1 x 18" Beyma cone speaker with neodymium magnet and 4" voice coil

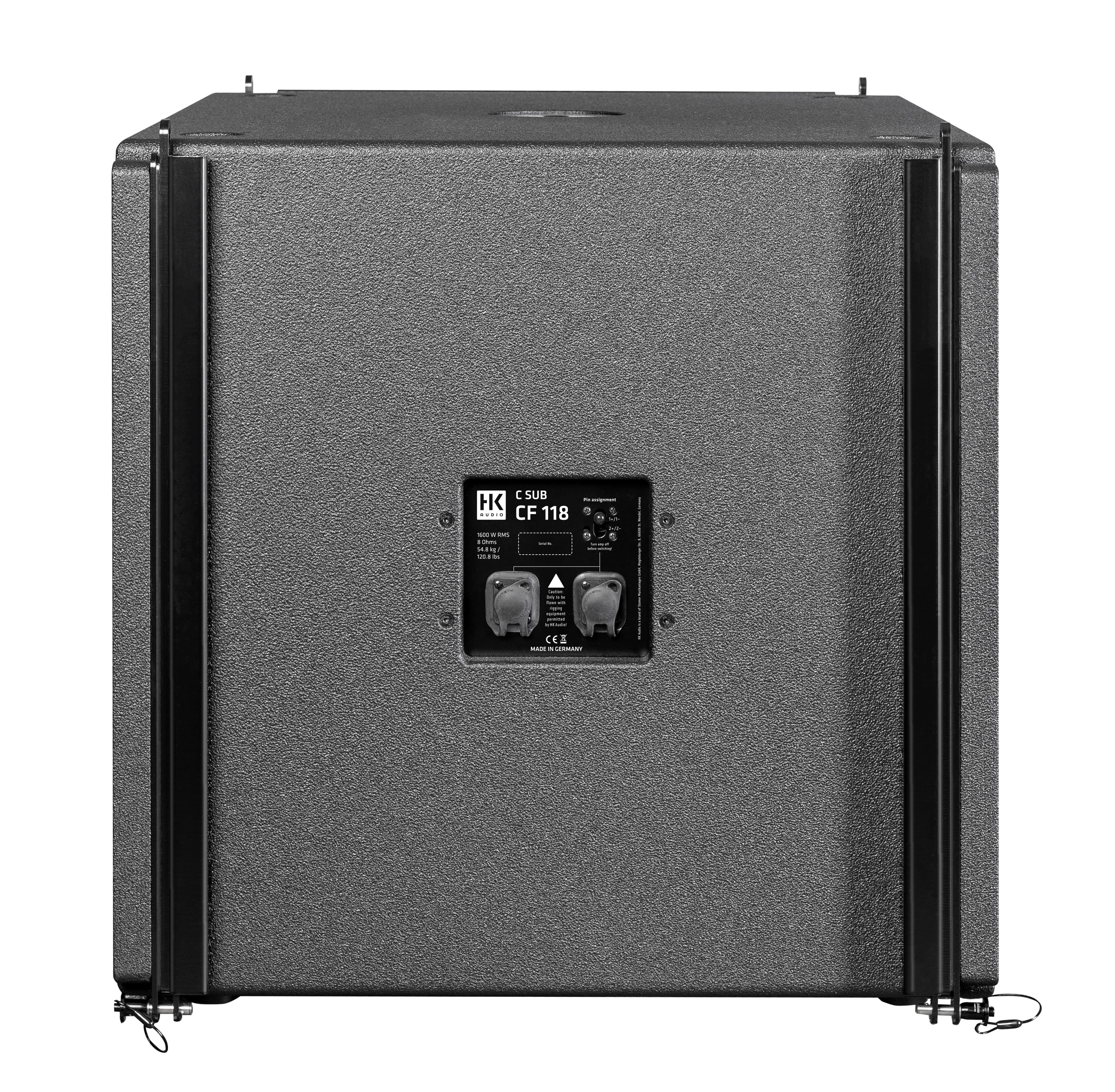

Connections

Input2 x NL4 Speakon
Output/parallel output2 x NL4 Speakon
Pin assignment1+/-, 2+/-, switchable

Amping/Presets

Lab.gruppenIPX Series, IPD Series, Lake
PowersoftArmonia+

Amping/Filter Sheets

Lab.GruppenIPX Series, IPD Series (limiter settings incl.)

Mechanical data

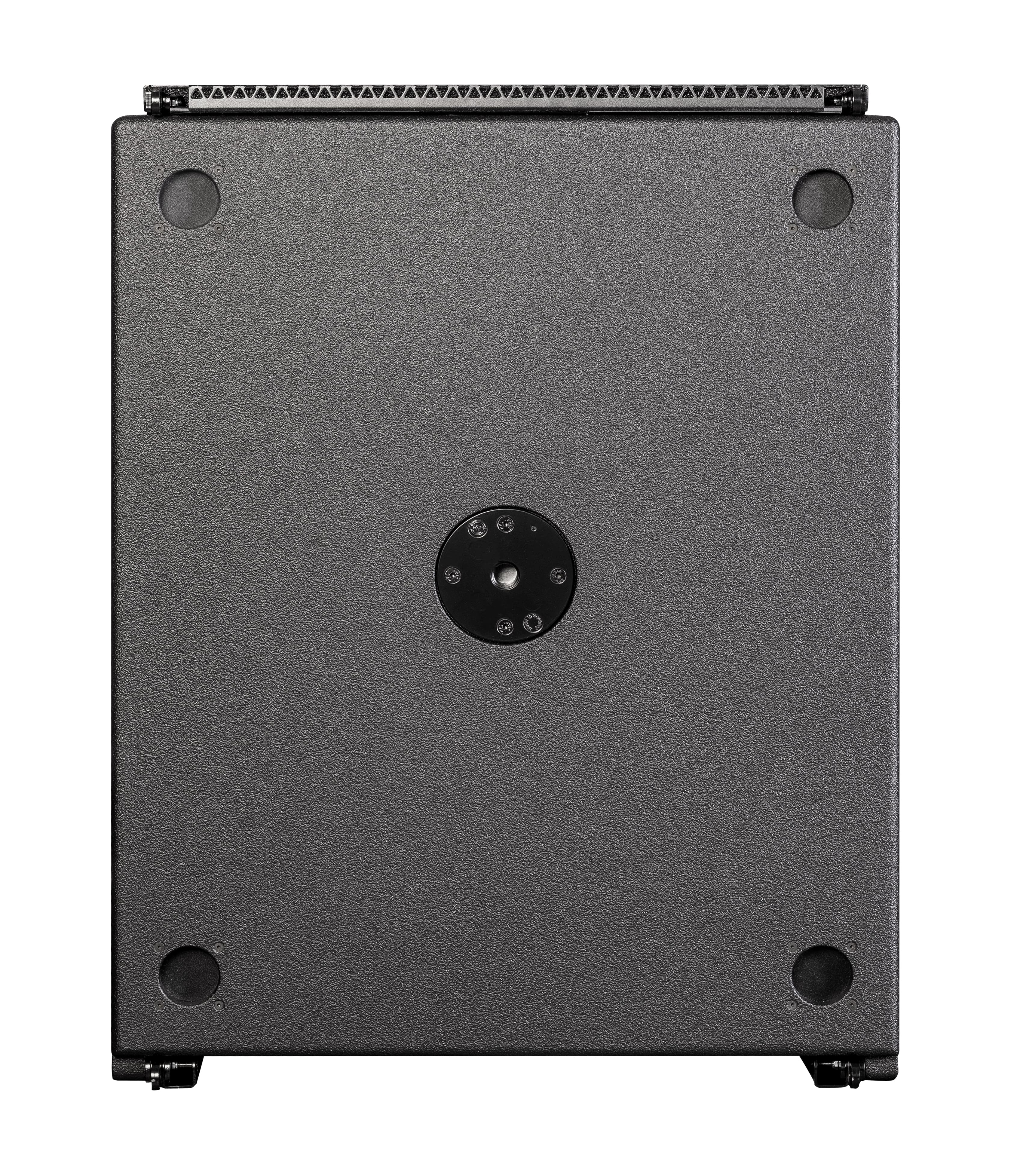

Cabinet features/rigging1 x pole mount M20, Rigging points 4-Point rigging hardware with black CDC coating

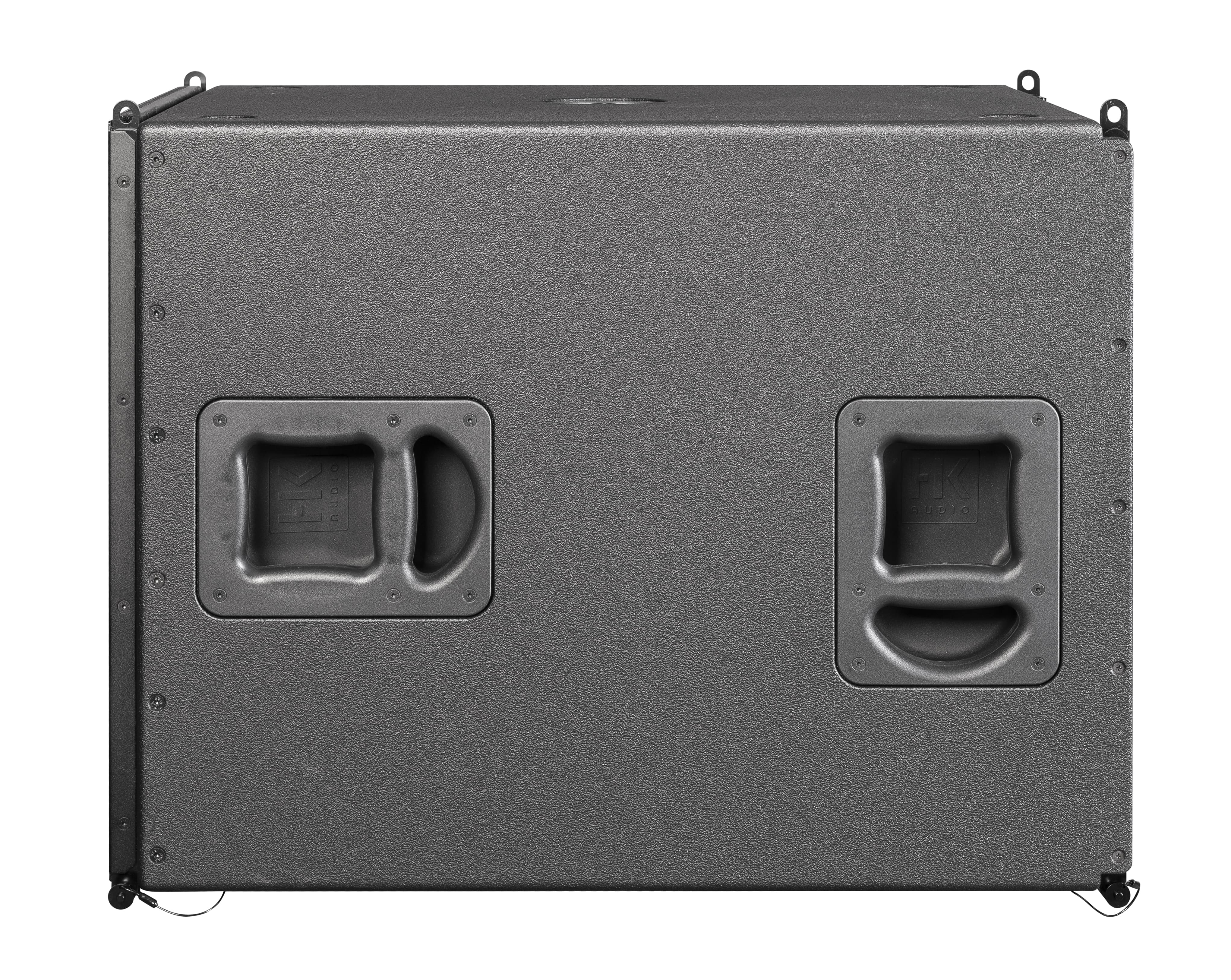

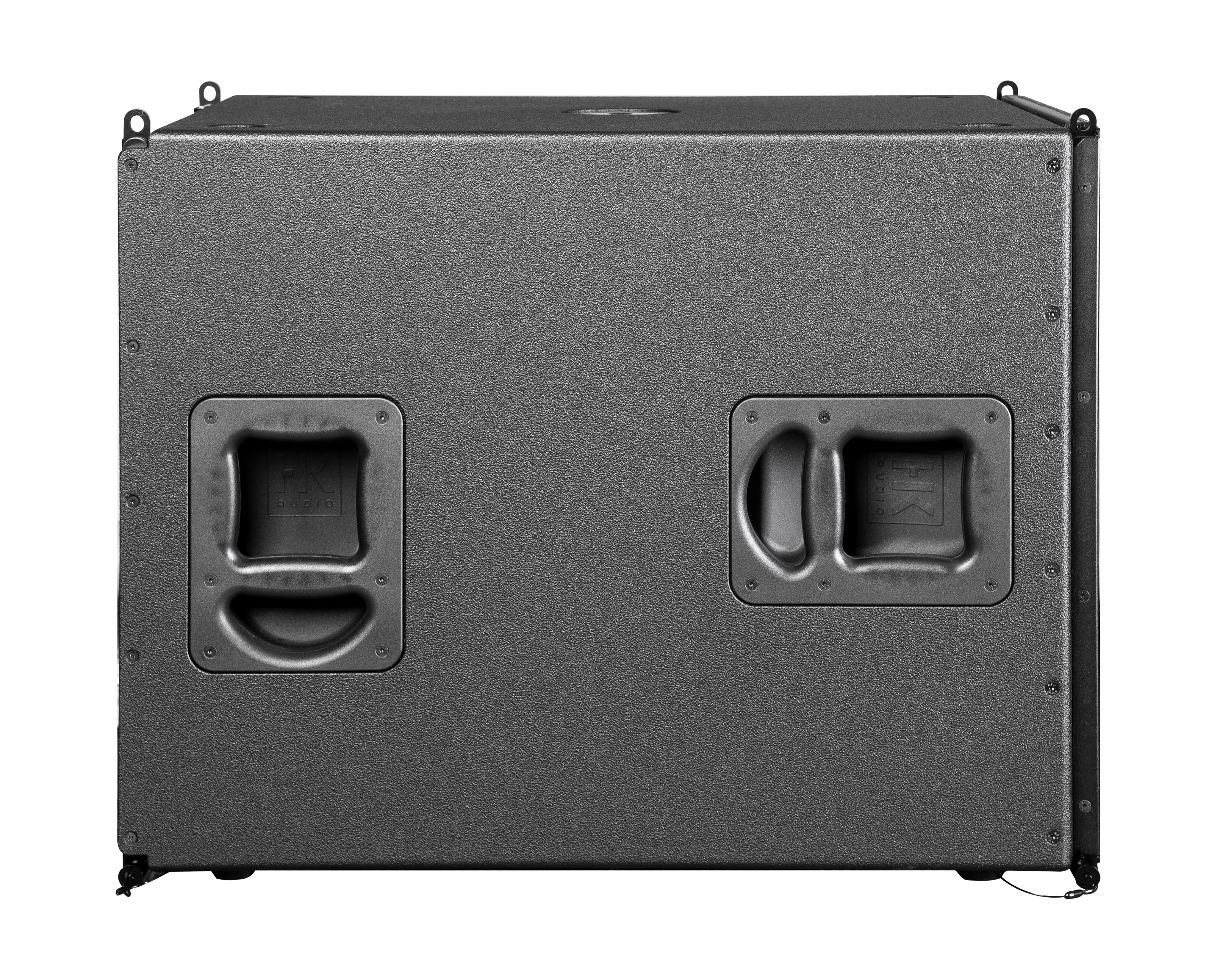

Carrying handles4 x HK Audio MultiGrip
Cabinet materialBirch plywood
Cabinet surfacePU coating
ColorJet black (RAL 9005)

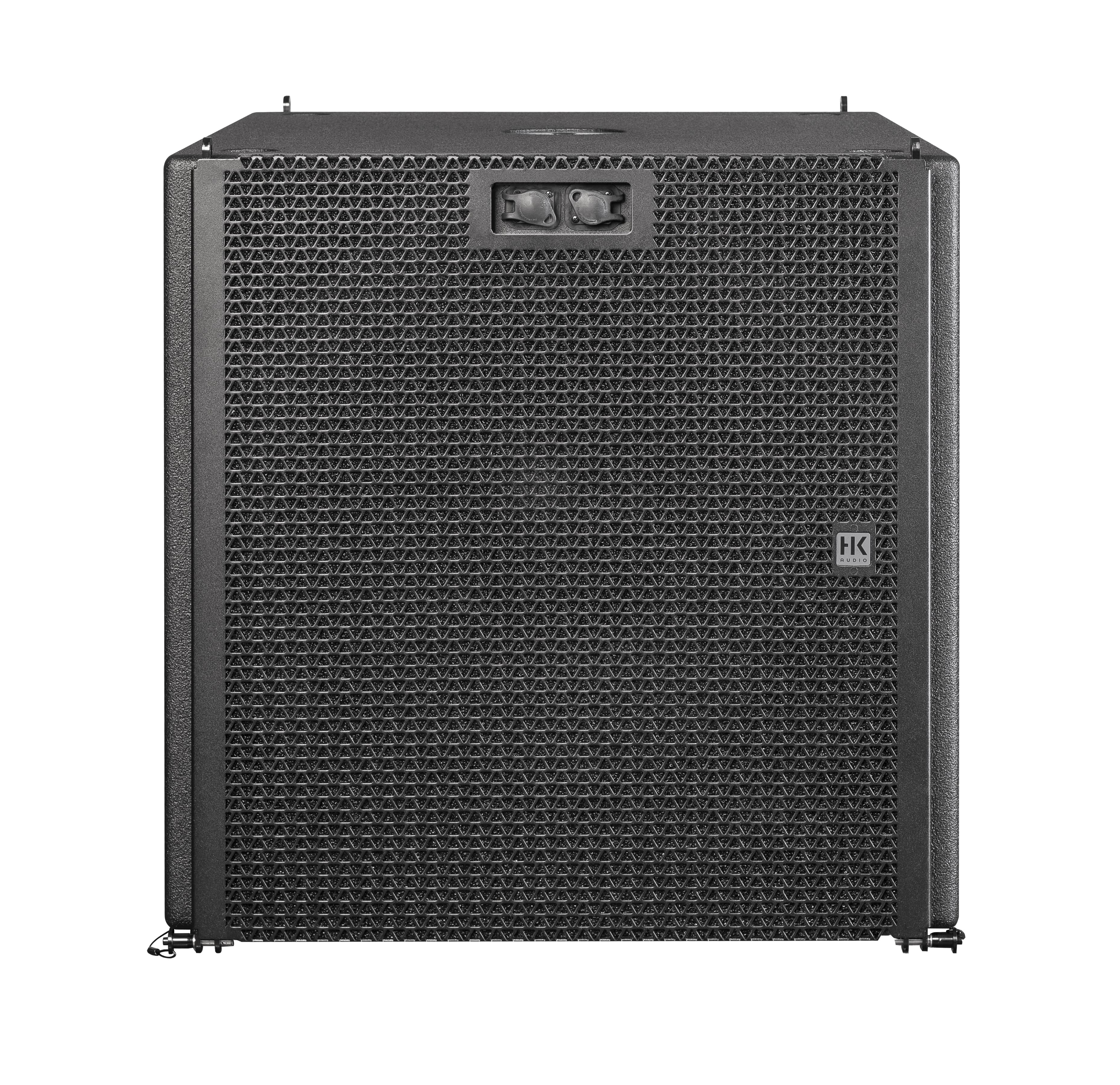

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W x H x D), metric60.0 x 63.3 x 78.3 cm
Dimensions (W x H x D), imperial23-5/8 x 24-29/32 x 30-13/16 inch
Weight, metric56.0 kg
Weight, imperial123.5 lbs

Compared to subwoofers in its performance class, there are considerably fewer components covering the full spectrum of what users need and expect from an FOH system. This extends the operating periods of each component compared to other system families. For the CF 118 we provide ready-to-use filter sets for Lab.Gruppen PLM+ or Powersoft X power amplifiers. Optimised filter settings make it possible to quickly set up Cardioid or Endfire arrangements, among others. The uniform dimensions of the COSMO family simplify both storage and disposition, which has a positive impact on the warehousing in total. The simple handling results in enormous time savings, as well as reduced training requirements. An existing system can be expanded precisely as needed, all of which means an even more effective investment protection than usual is ensured. The expansion in small steps creates a much lower investment requirement.
