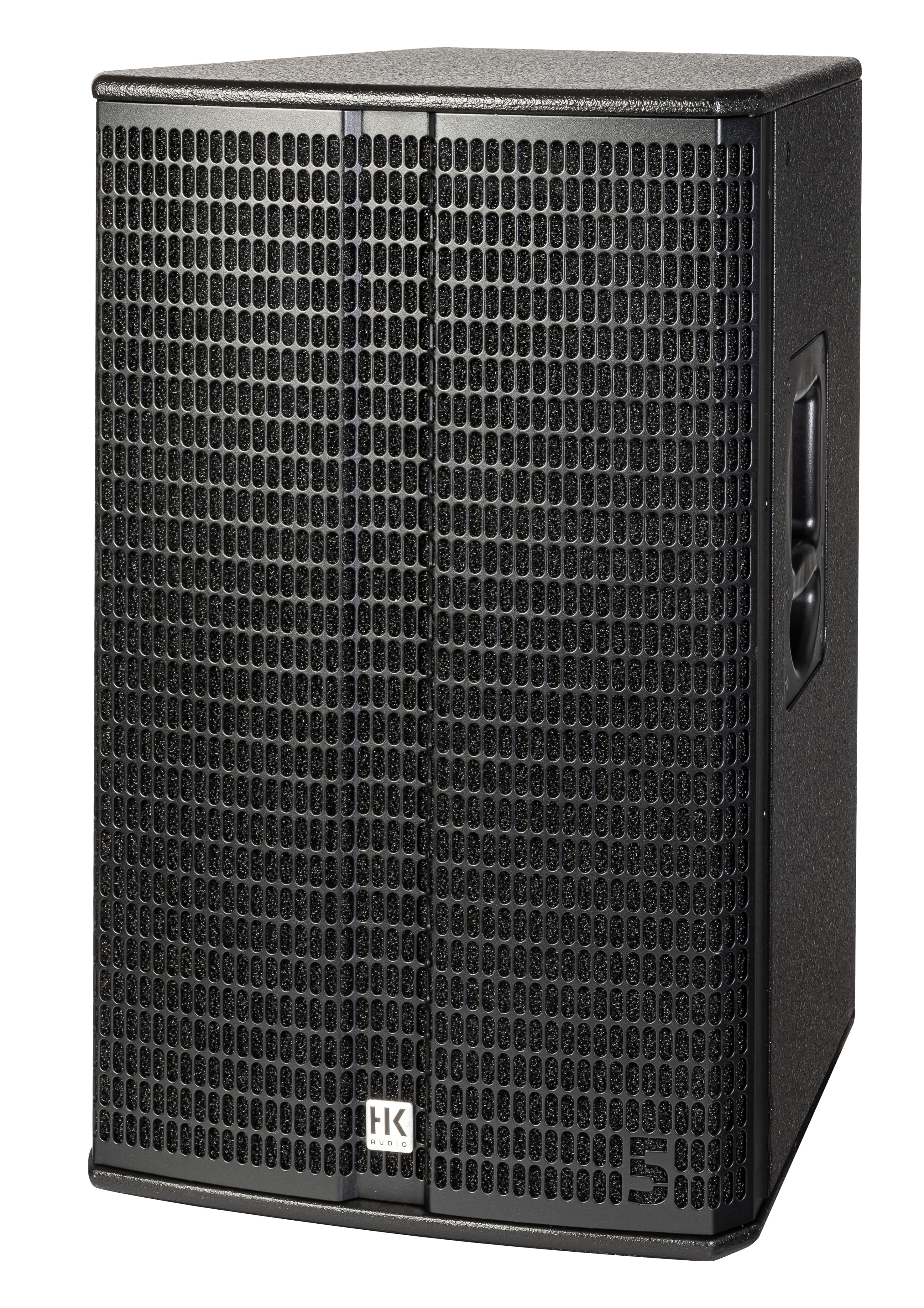

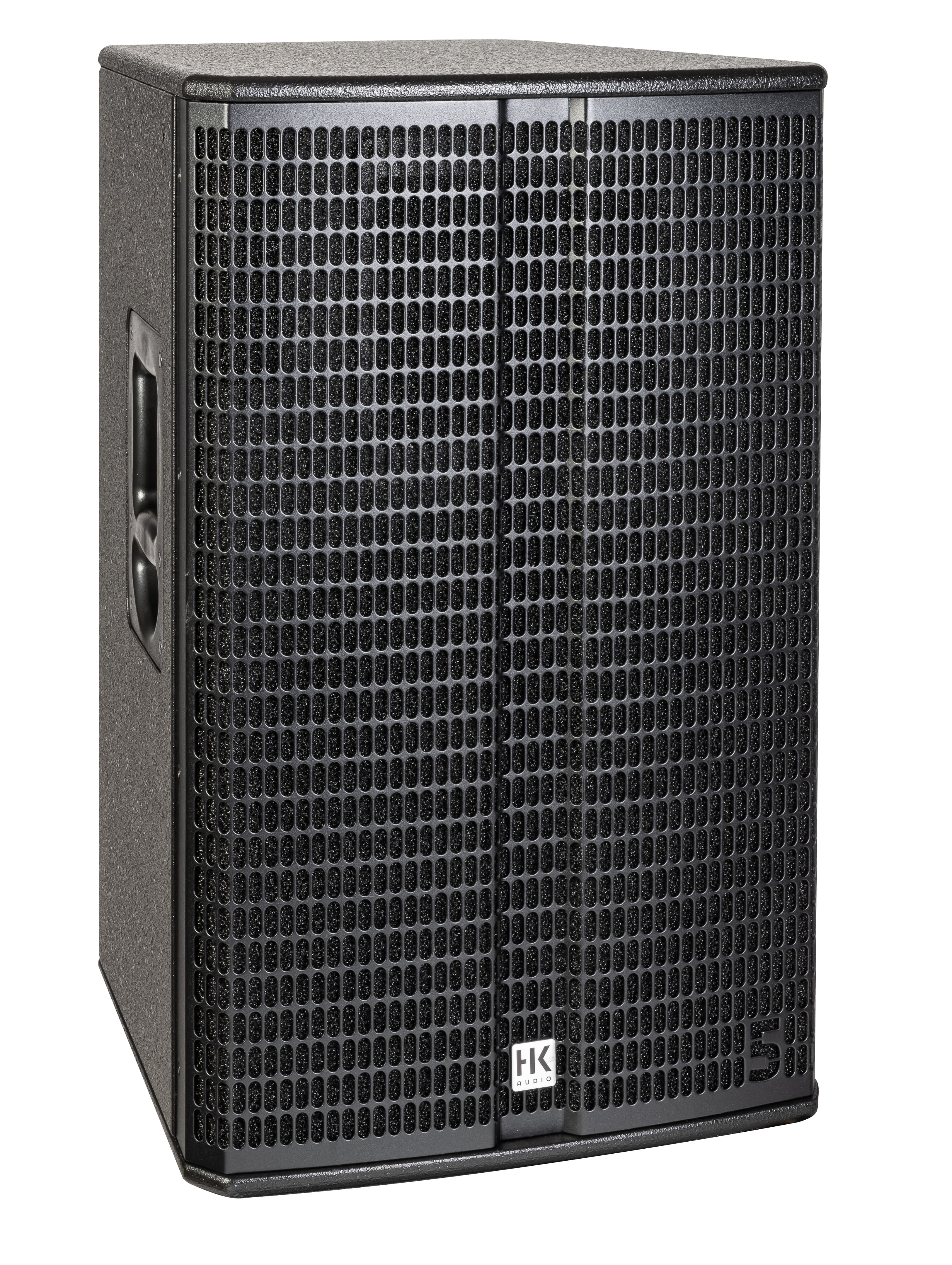

LINEAR 5 MK II 115 FA

THE ALL PURPOSE WORKHORSE

Full-range mid/high unit with the most powerful bass response of the series.

The LINEAR 5 MK II FA models are powerful full-range mid/high units with a transparent, full sound. Due to the longer horns, they achieve impressive throw distances. As a stereo system, the FA models provide the necessary extra low-end and punch. A special filter adapted to the characteristics of the LINEAR 5 MK II subwoofers, which can be selected via a preset, makes it possible to use the LINEAR 5 MK II FA models as system mid/high units with high usable output in various systems in no time at all. The horn dispersion facilitates horizontal and vertical clustering. With optional TB-45N or TB-45NQ tilt brackets attached to the MultiGrips, the FA models can be rigged easily and safely.

Concept	Active 2-way loudspeaker
Power handling RMS
Max. SPL peak	138 dB
Frequency range -6 dB	57 Hz - 12 kHz
Dispersion angle -6 dB (horizontal x vertical)	60° x 40°, rotatable

technical data

Characteristics

ConceptActive 2-way loudspeaker

Cabinet principleBass reflex

Max. SPL average²130 dB

Max. SPL peak³138 dB

Crossover frequency 1.6kHz

Frequency range -6 dB57 Hz - 12 kHz

Frequency range -10 dB54 Hz - 19 kHz

Dispersion angle -6 dB (horizontal x vertical)60° x 40°, rotatable

Index

Index 2)1 x unit @ 1 m, 10 % THD, 70 Hz - 12 kHz, (EN 60268-21), half space

Index 3)1 x unit @ 1 m, 10 % THD, half space

Components

Mid/high frequency1 x 15" cone speaker, 3" voice coil

High frequency1 x 1" compression driver, 1.7" voice coil

HornConstant directivity horn, rotatable

Connections

Analog input1 x XLR/jack combo symm.

Analog output1 x XLR symm.

DSP output1 x XLR symm.

Network input1 x Ethercon RJ45

Electronical data

PreamplifierDSP preamplifier

Power amplifierClass D-Biamped

Power amplifier output RMS600 W

Power amplifier output peak1200 W

Power consumption1 A / 100-240 V nominal according to EN 62368-1

Maximum input level+20 dBu

Speaker protectionRMS-/Peak-Limiter

Sample rate48 kHz

Latencyunder 2 ms

DSP functionsparametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute

Remote softwareHK Audio DSP CONTROL (Windows, Mac OS)

Filter presetsFlat, Boost, Low Cut, Remote

Digital audio transmissionMILAN

Mechanical data

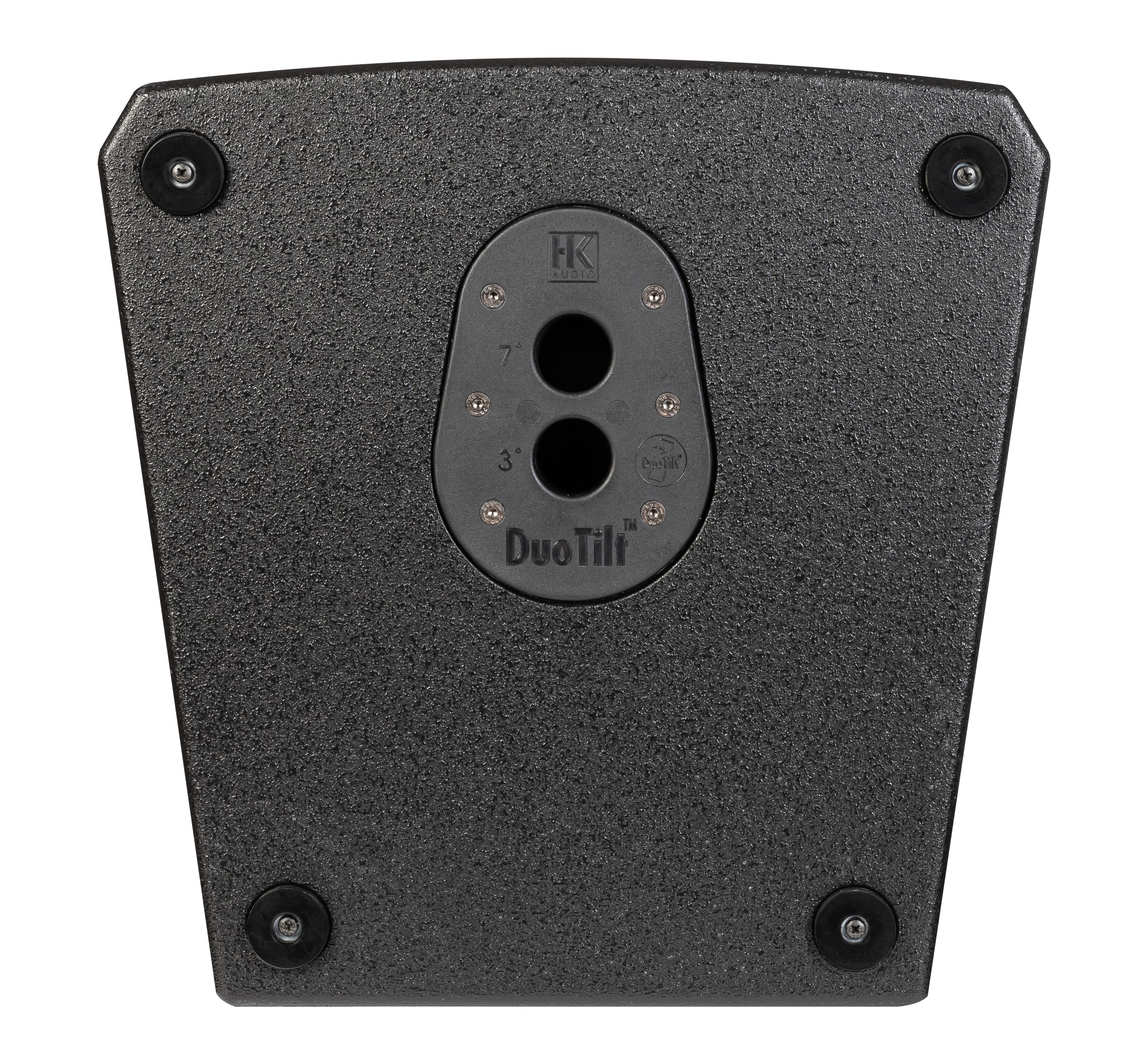

Cabinet features/riggingpole mount HK Audio DuoTilt 3°/7°, monitor angle: 31°, 3 x rigging point M8

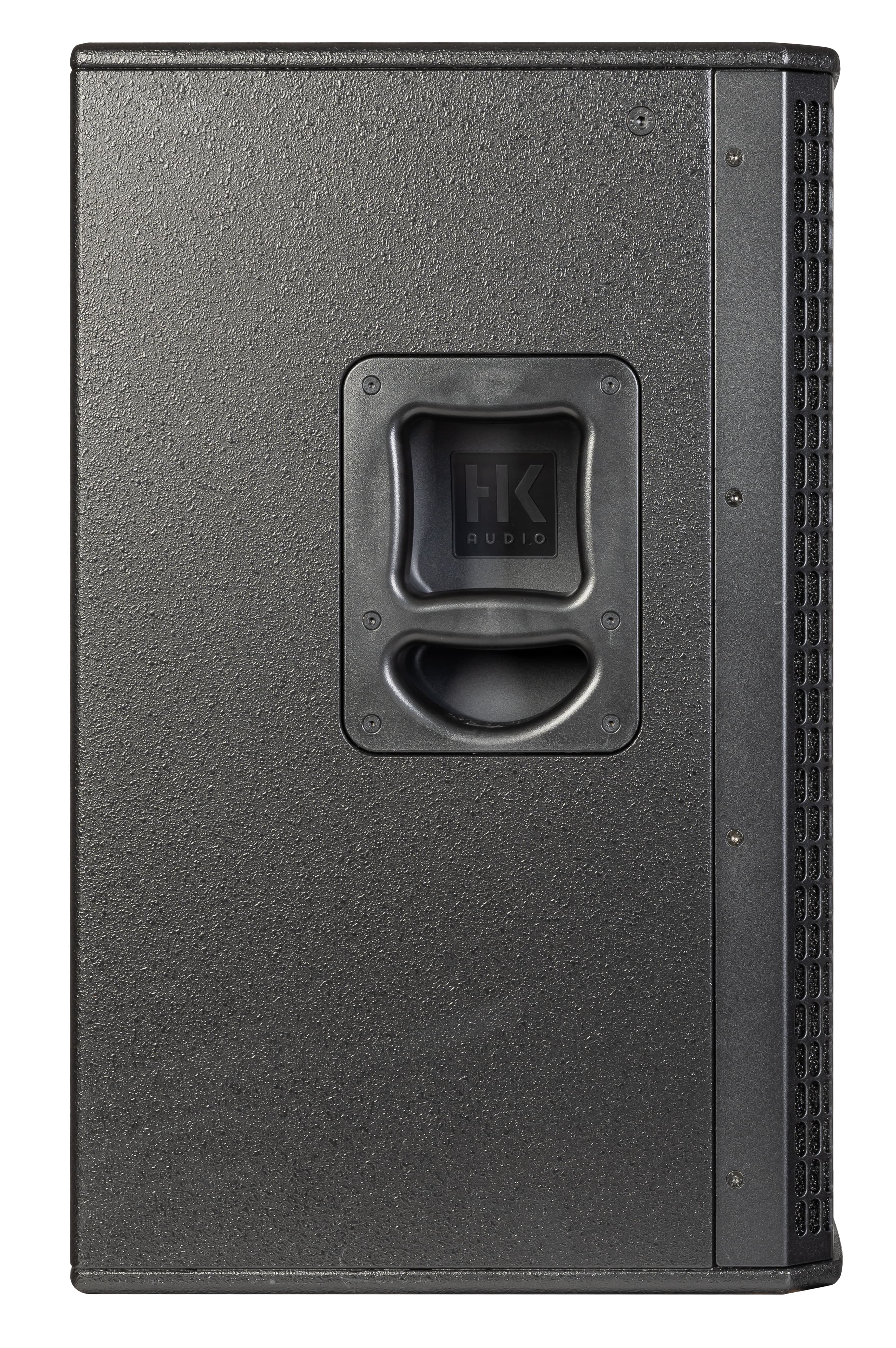

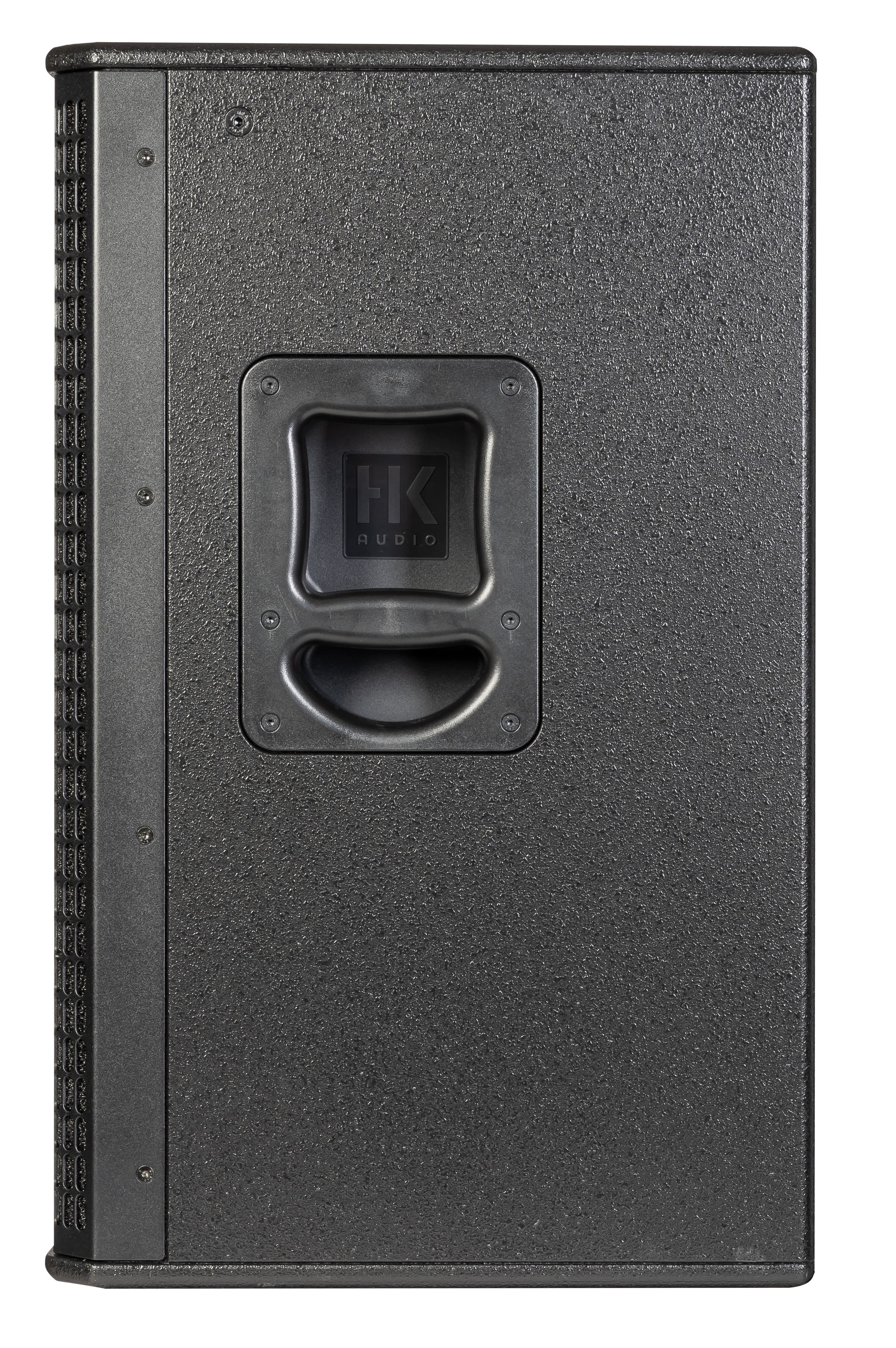

Carrying handles2 x HK Audio MultiGrip

Cabinet materialHybrid (Birch plywood/MDF)

Cabinet surfaceacrylic enamel

ColorJet black (RAL 9005)

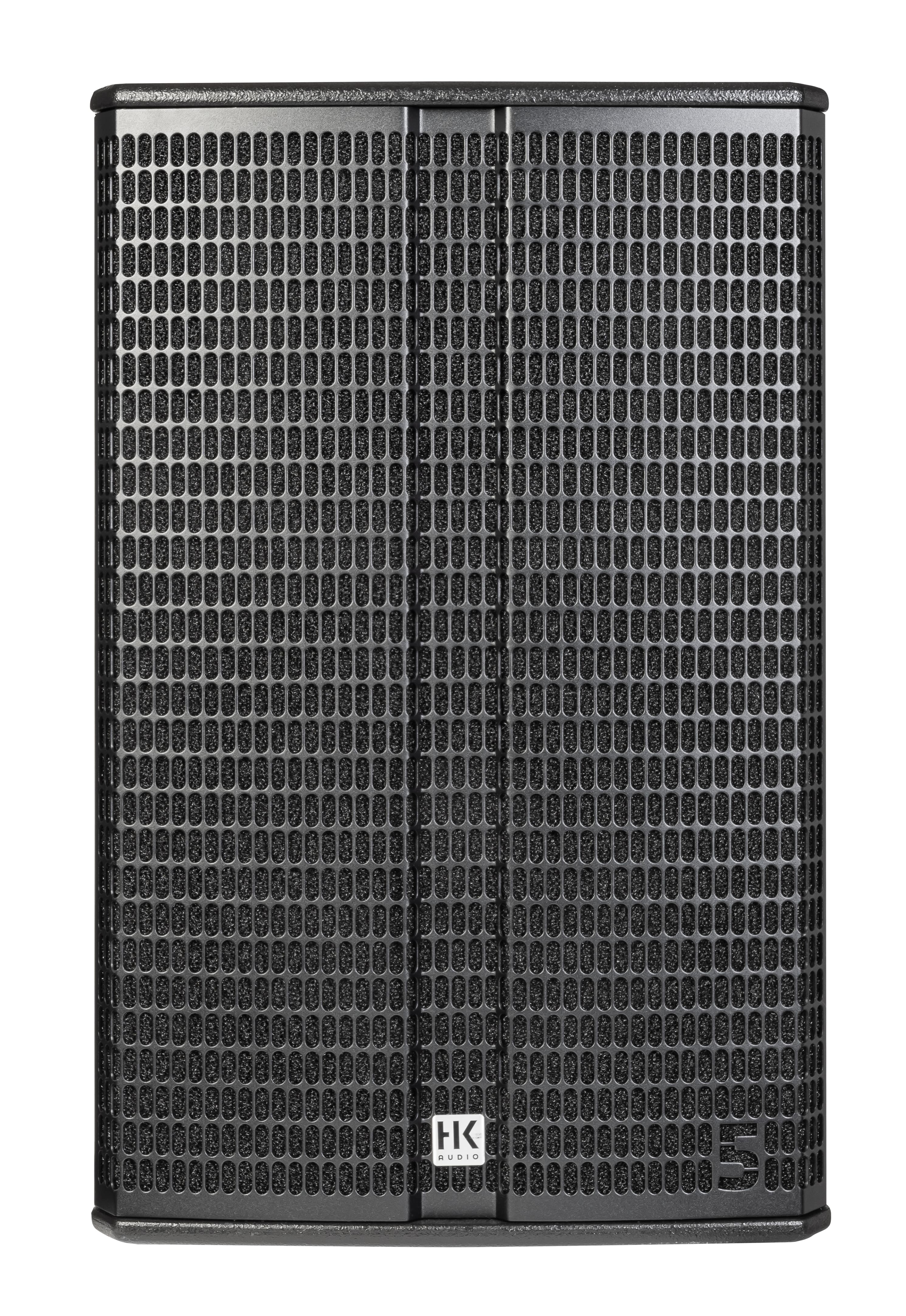

Front grilleSteel front grille with anticorrosive coating and backed acoustic foam

Dimensions (W x H x D), metric44.8 x 70.7 x 44.75 cm

Dimensions (W x H x D), imperial17-5/8 x 27-27/32 x 17-5/8 inch

Weight, metric30.2 kg

Weight, imperial66.6 lbs

The LINEAR 5 MK II FA models are powerful full-range mid/high units that offer the most powerful bass reproduction in their series, while also impressing with a transparent and voluminous sound. Thanks to the longer horns, they achieve impressive sound throw distances, giving them outstanding range.
As part of a stereo system, the FA models not only deliver excellent bass response, but also the necessary assertiveness to excel in more demanding setups. A specially tuned filter, matched to the characteristics of the LINEAR 5 MK II subwoofers and accessible via preset, allows the FA models to be quickly deployed as system mid/high units with high output and versatility in a variety of system configurations.
The horn dispersion also facilitates horizontal and vertical clustering, which simplifies integration into various setups. The FA models can be safely and easily flown using the TB-45N or TB-45NQ tilt brackets attached to the butterfly MultiGrips.
