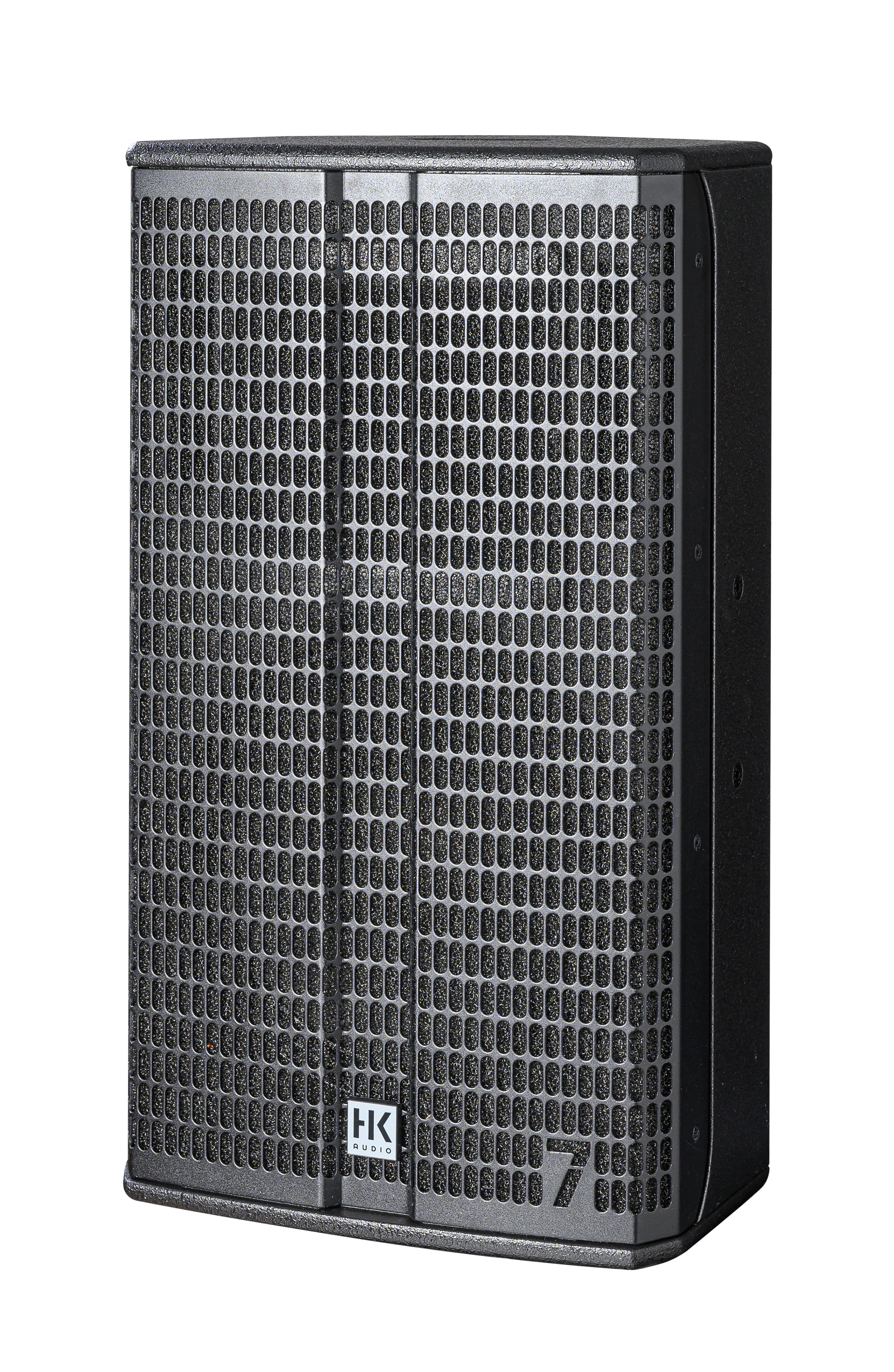

LINEAR 7 112 XA
NETWORKED AUDIO PRECISION
technical data
Characteristics
ConceptActive 2-way loudspeaker
Cabinet principleBass reflex
Max. SPL average2128 dB
Max. SPL peak3131 dB
Crossover frequency1.6 kHz
Frequency range -6 dB67 Hz - 19 kHz
Frequency range -10 dB62 Hz - 20 kHz
Dispersion angle -6 dB (horizontal x vertical)70° x 50°, rotatable
Index
Index 2)1 x unit @ 1 m, 10 % THD, 70 Hz - 12 kHz, (EN 60268-21), half space
Index 3)1 x unit @ 1 m, 10 % THD, half space
Components
Mid/high frequency1 x 12" cone speaker, 2.5" voice coil
High frequency1 x 1" compression driver, 1.7" voice coil
HornConstant directivity horn, rotatable

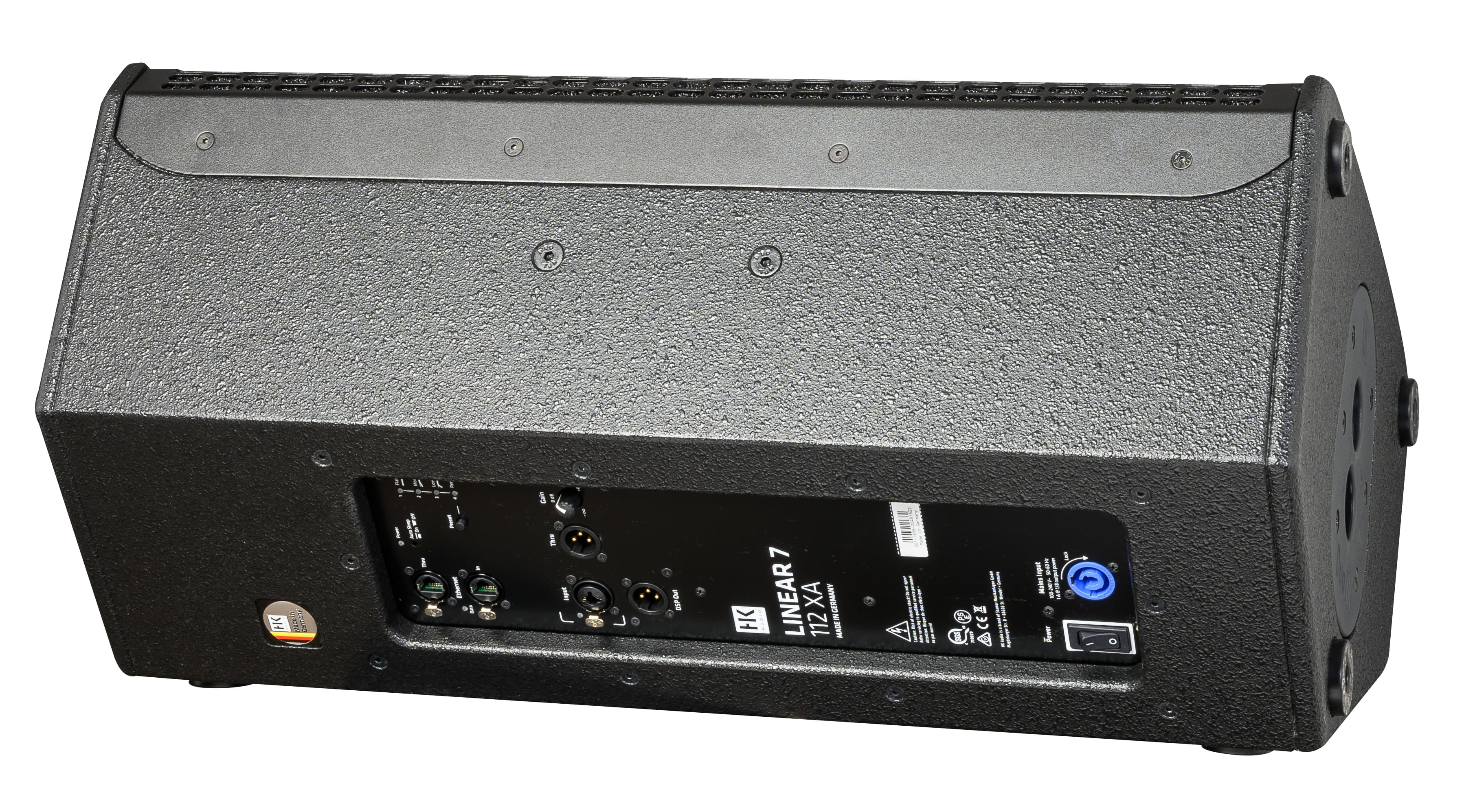

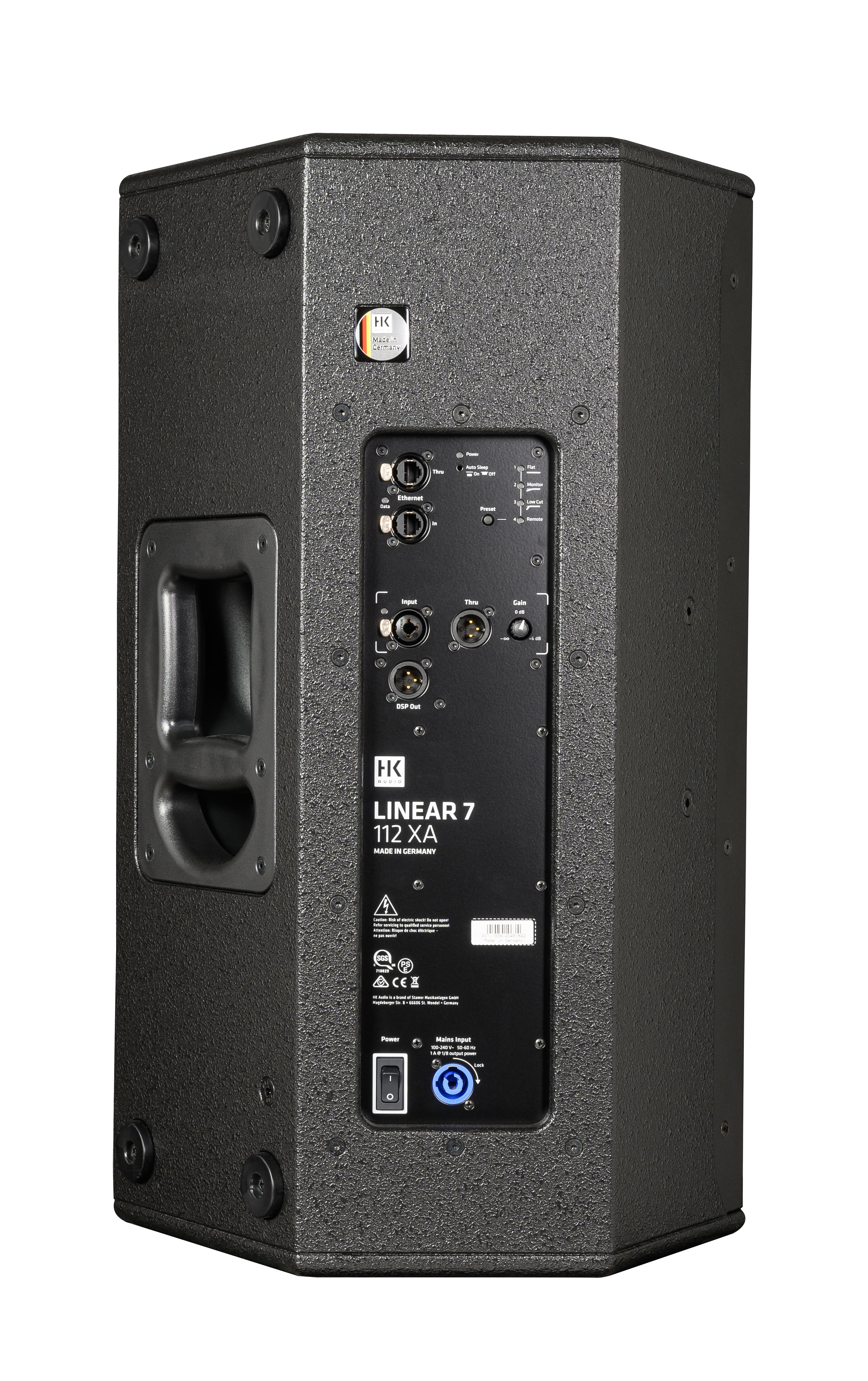

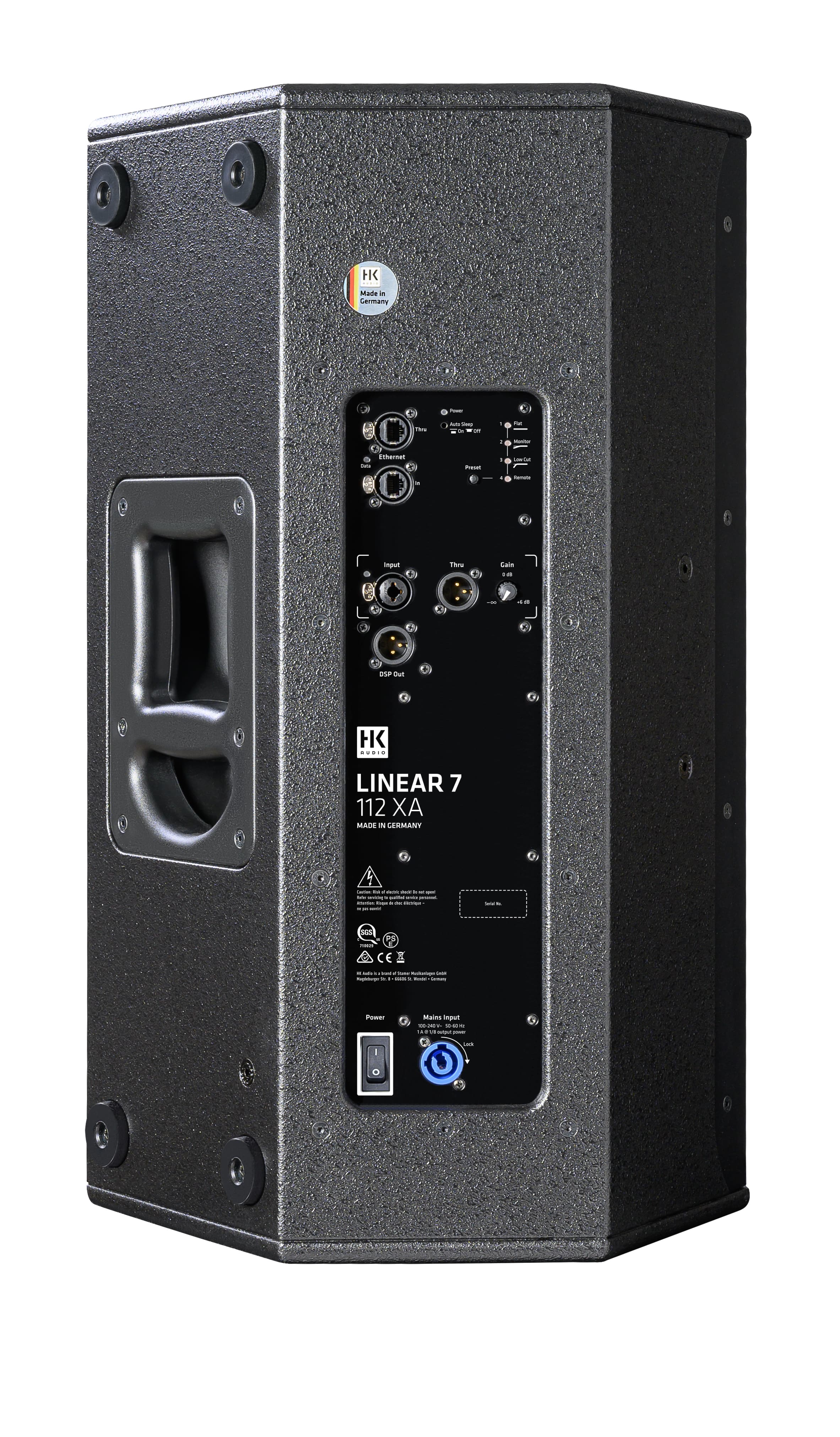

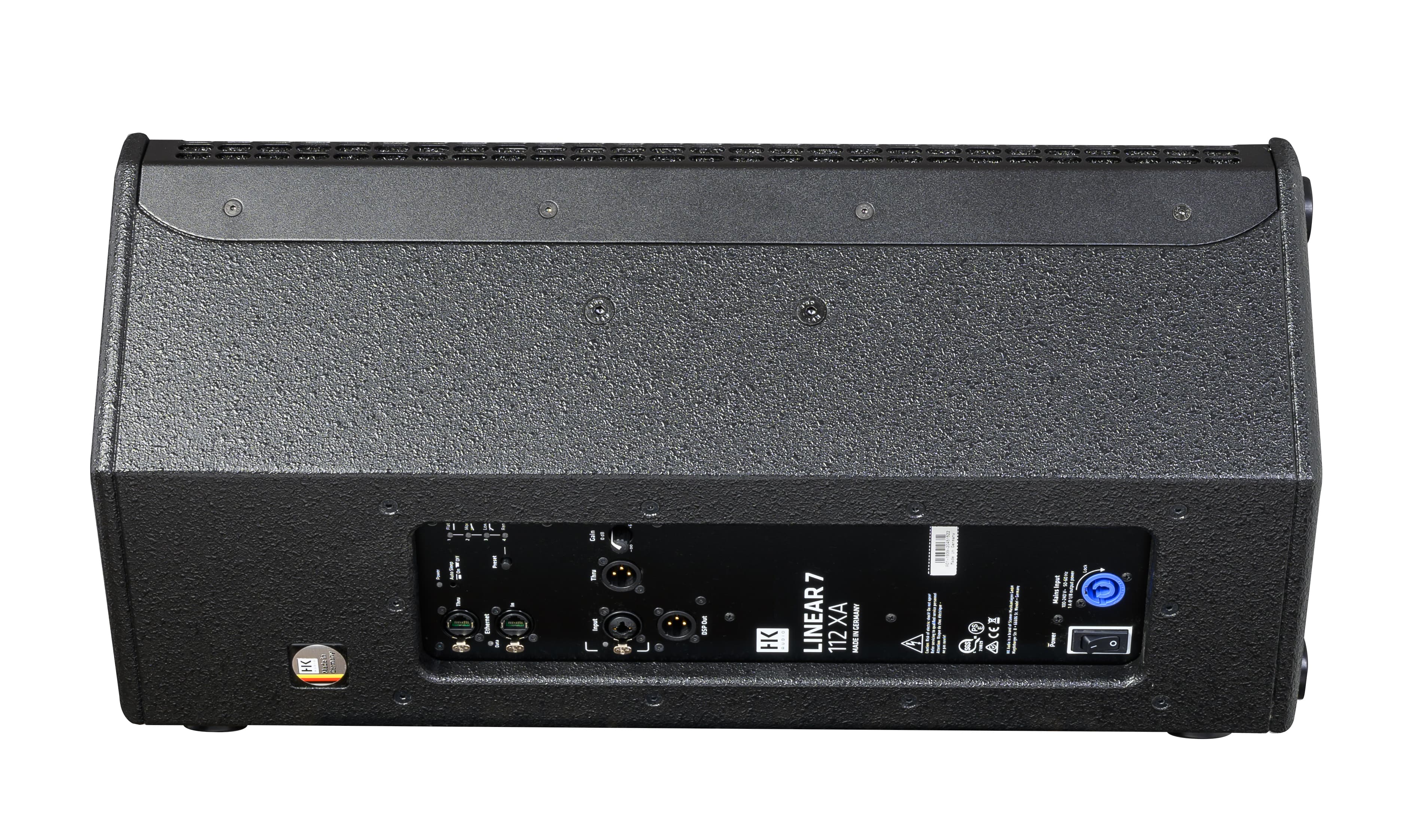

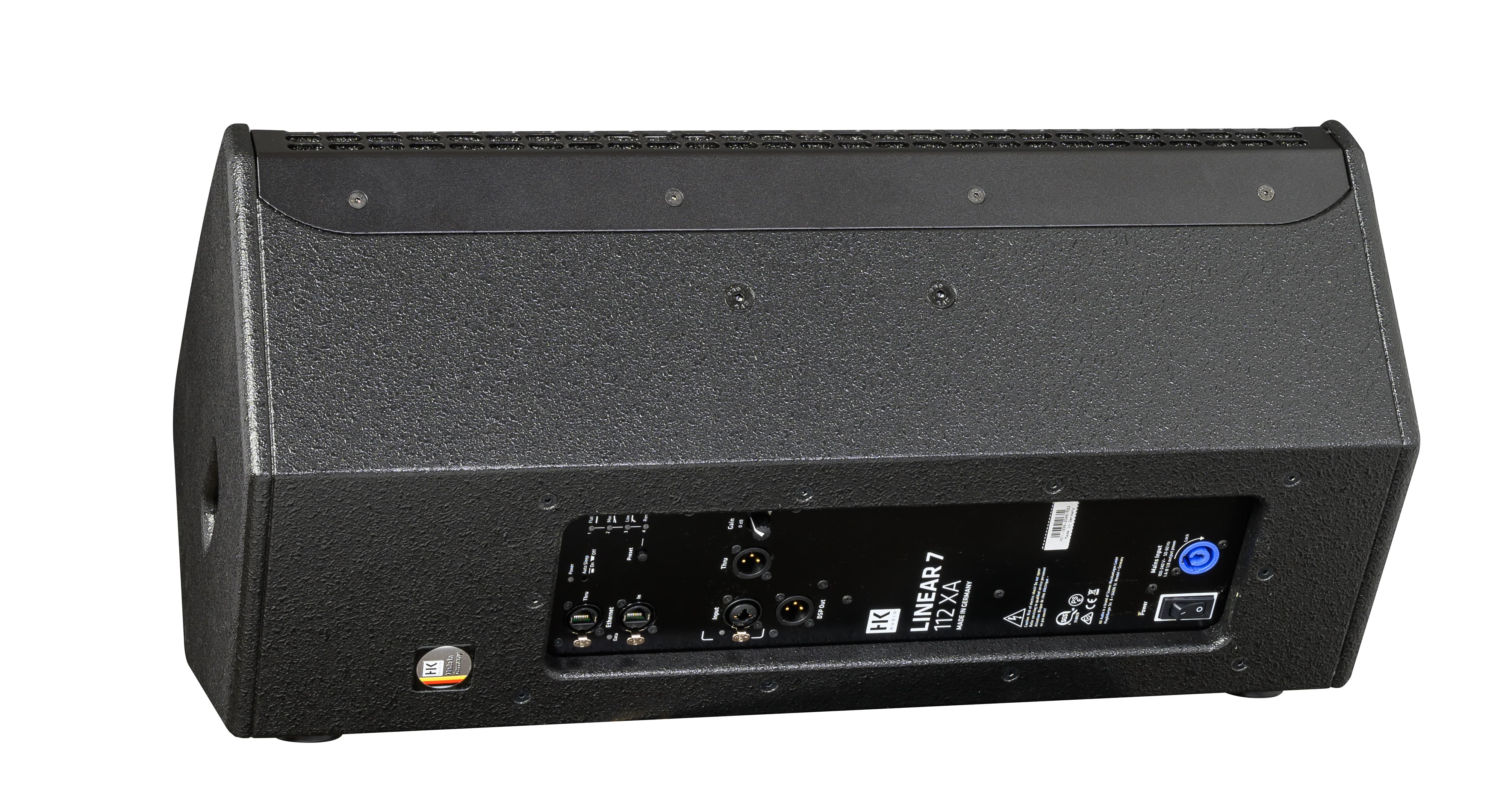

Connections
Analog input1 x XLR/jack combo symm.
Analog output1 x XLR symm.
DSP output1 x XLR symm.
Network input1 x Ethercon RJ45
Network output1 x Ethercon RJ45
Electronical data
PreamplifierDSP preamplifier
Power amplifierClass D - Biamped
Power amplifier output peak2000 W
Power consumption1 A / 100-240 V nominal according to EN 62368-1
Maximum input level+20 dBu
Speaker protectionRMS-/Peak-Limiter
Sample rate96 kHz
Latencyunder 2.6 ms
DSP functionsparametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute
Remote softwareHK Audio DSP CONTROL (Windows, Mac OS)
Filter presetsFlat, Monitor, Low Cut, Remote
Digital audio transmissionMILAN
Mechanical data

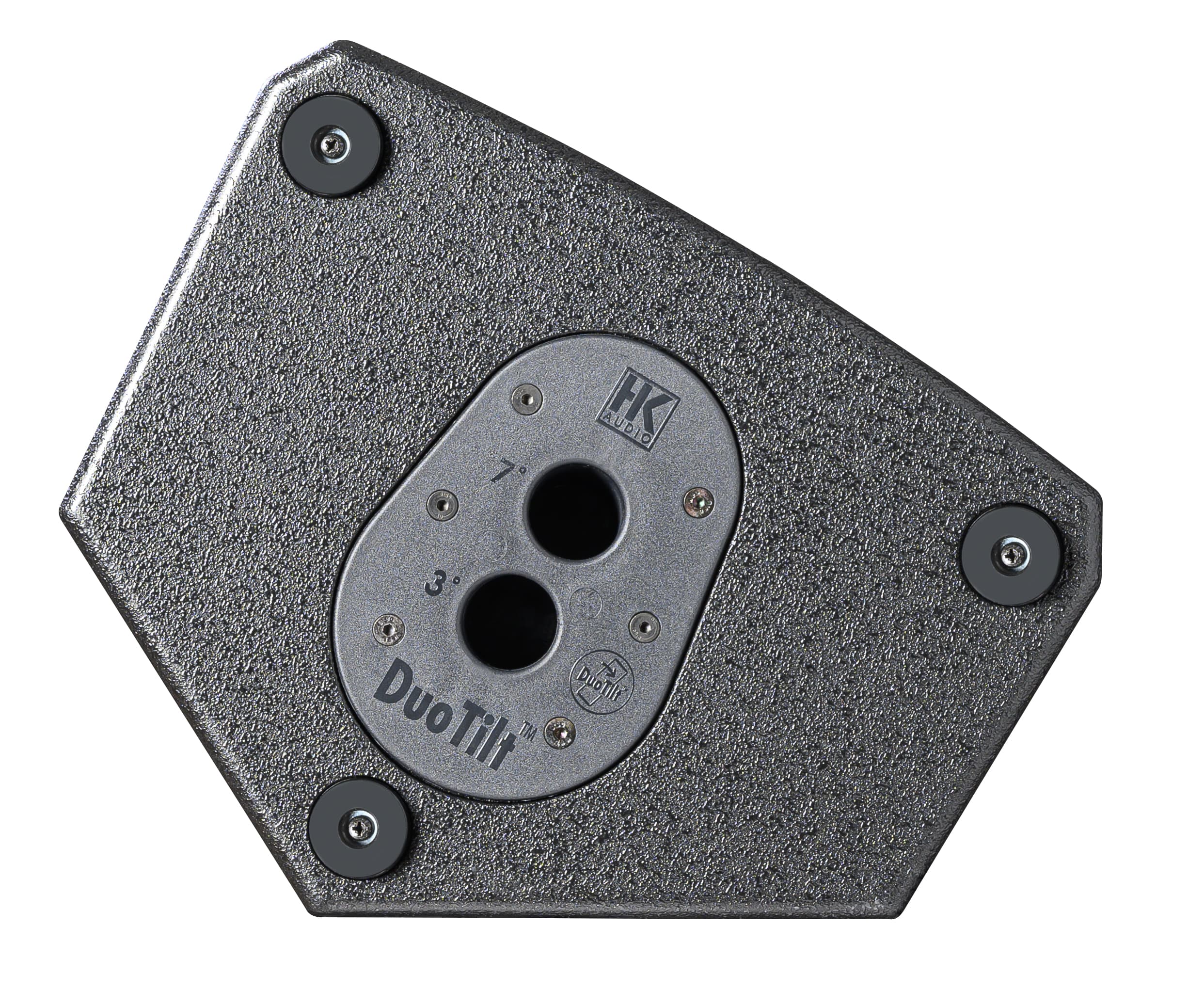

Cabinet features/riggingpole mount HK Audio DuoTilt 3°/7°, monitor angle: 30°, 5 x rigging point M8

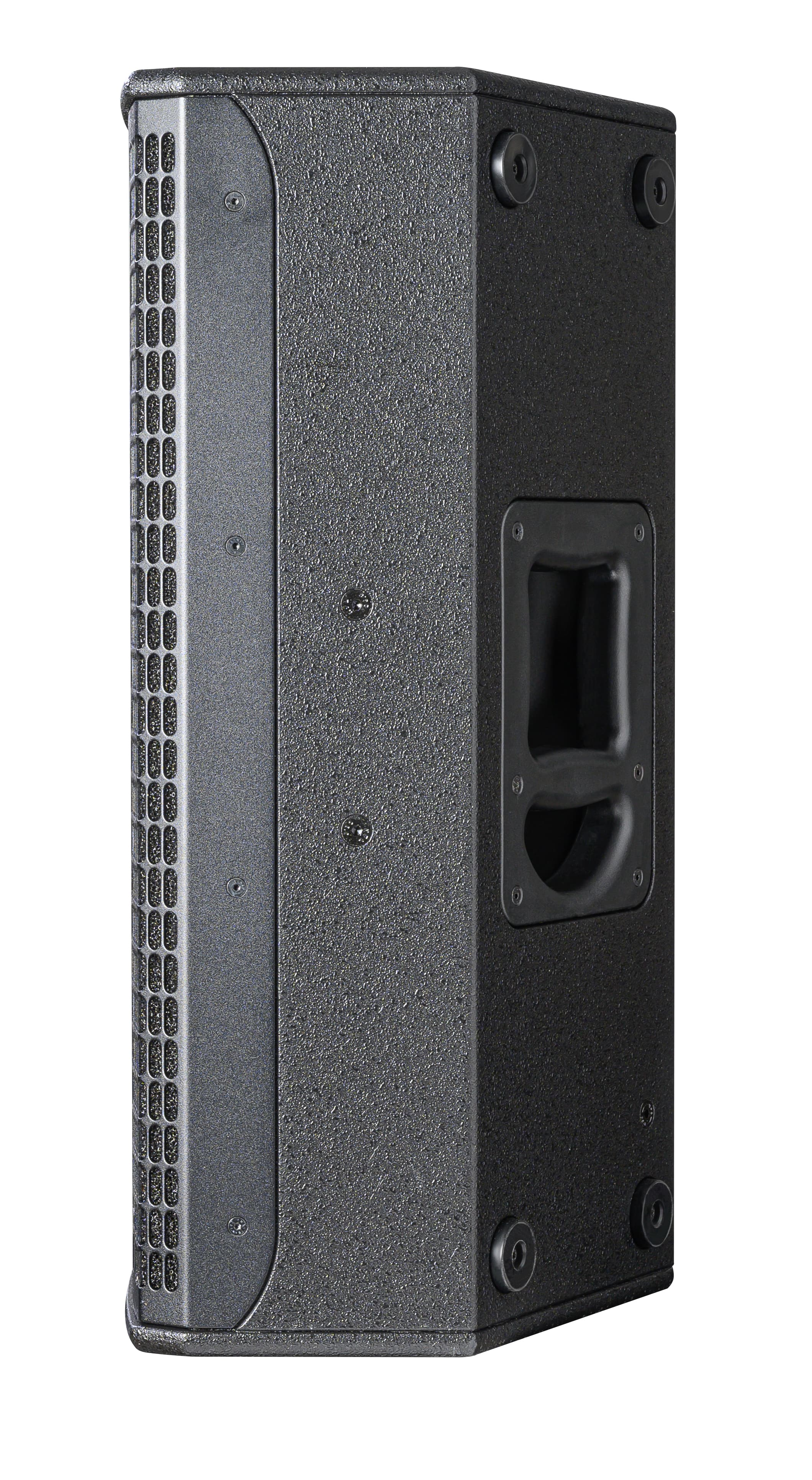

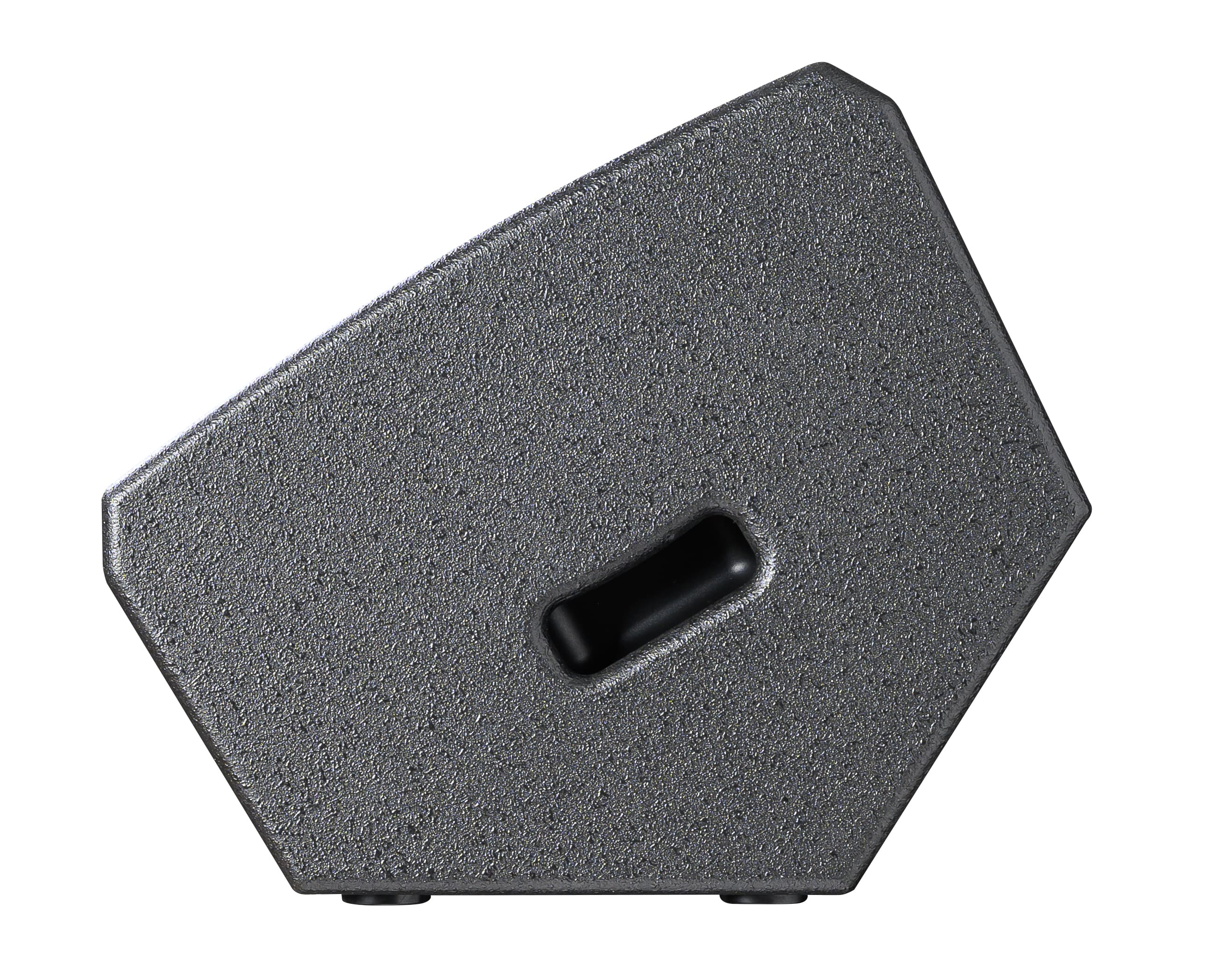

Carrying handles1 x SingleGrip, 1 x HK Audio MultiGrip
Cabinet materialHybrid (Birch plywood/MDF)
Cabinet surfaceacrylic enamel
ColorJet black (RAL 9005)
Front grilleSteel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W x H x D), metric37 x 67 x 31 cm
Dimensions (W x H x D), imperial14-9/16 x 26-3/8 x 12-7/32 inch
Weight, metric21 kg
Weight, imperial46.3 lbs

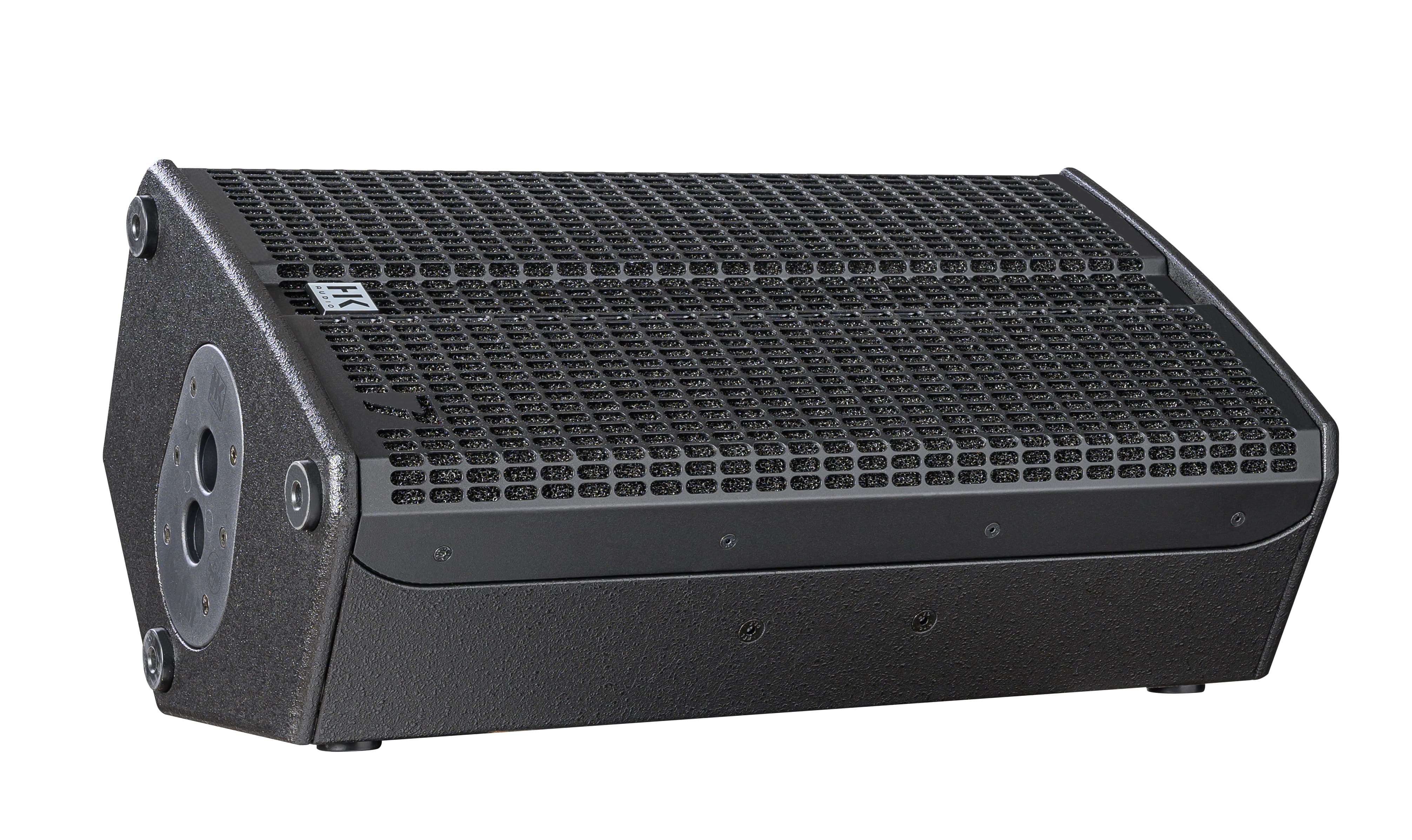

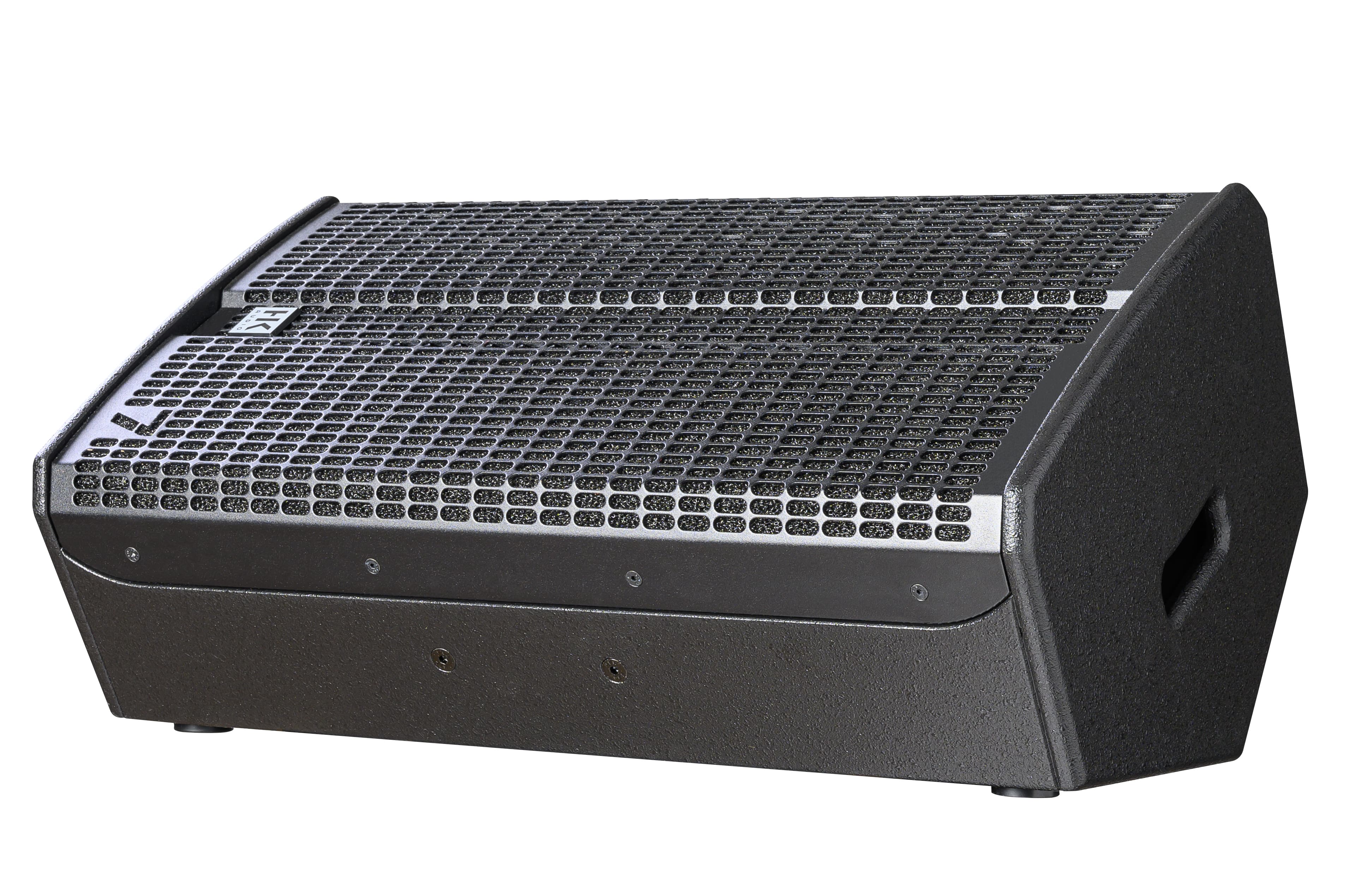

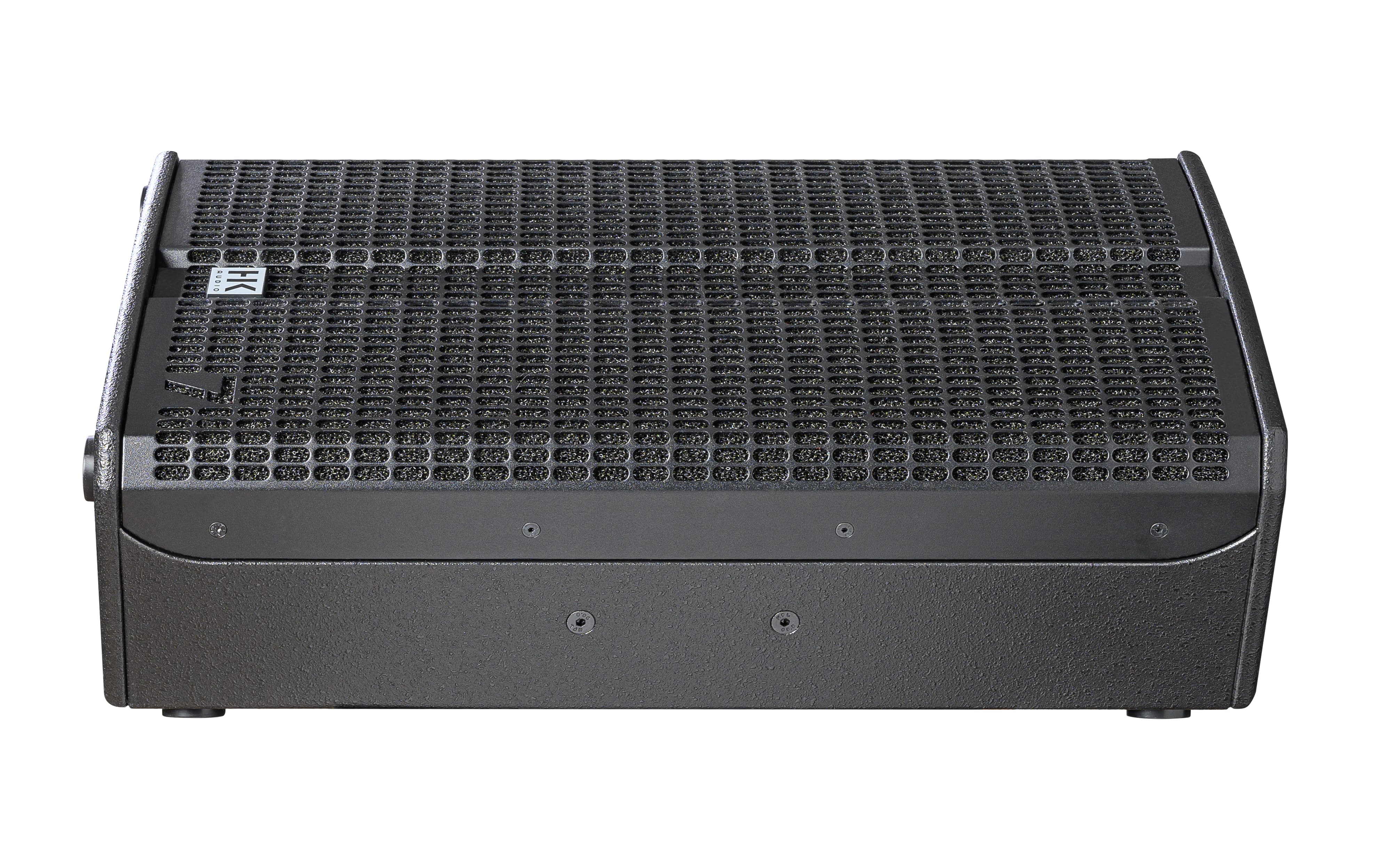

The active, network-compatible multifunction box LINEAR 7 112 XA impresses with its flexible design, which also makes it ideal for use as a horizontal stage monitor. The preset, which is specially designed for monitor applications, compensates for the overemphasis of the low-frequency range caused by the floor coupling when used horizontally, ensuring a balanced sound.
